SNAP-HD-BF6
Hover over image to zoom in

SNAP-HD-BF6

$185.00 (USA and Canada only)

Availability: In stock
Header cable for SNAP 32-channel modules and breakout racks - 6 ft. (1.8 m)

Production Specification

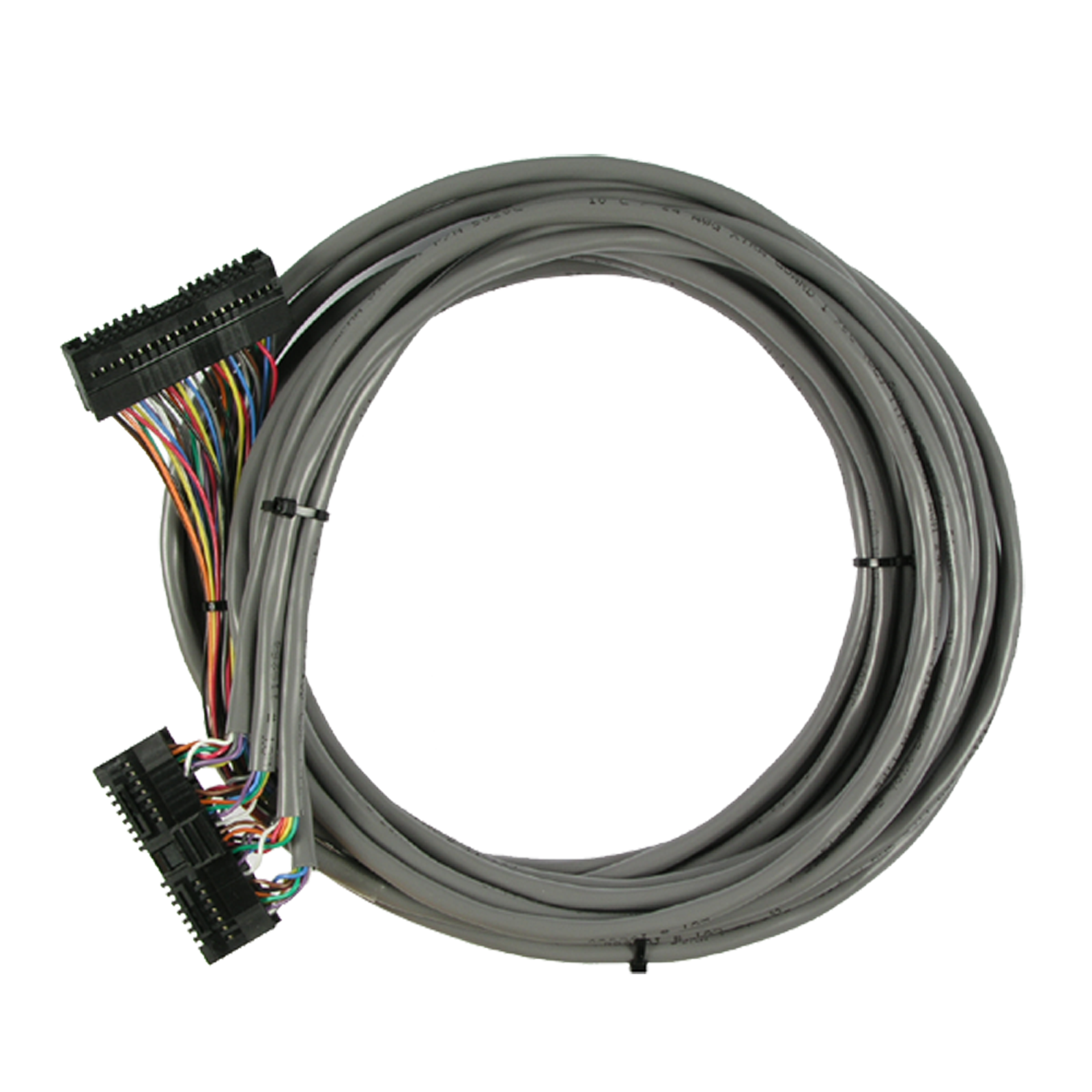

The SNAP-HD-BF6 is a 6-foot (1.8 m) header cable for connecting a SNAP 32-channel digital or analog module to an appropriate breakout rack. This cable can be used for the following:
  • SNAP-IDC-32 digital input module to SNAP-IDC-HDB or SNAP-UDC-HDB rack
  • SNAP-ODC-32-SRC digital output module to SNAP-ODC-HDB or SNAP-UDC-HDB rack
  • SNAP-ODC-32-SNK digital output module to SNAP-ODC-HDB or SNAP-UDC-HDB rack
  • SNAP 32-point digital input or output modules to a SNAP-UDC-HDB-G4 rack
  • SNAP-AIMA-32 analog module to SNAP-AIMA-HDB rack
  • SNAP-AIV-32 analog module to SNAP-AIV-HDB rack
For reference: Modules, Cables, and Breakout Boards Compatibility Charts

Build your system in the SNAP I/O Configurator.

Feature

SNAP-HD-ACF6

SNAP-HD-CBF6

SNAP-HD-BF6

Cable length

6 feet (1.8 meters)

6 feet (1.8 meters)

6 feet (1.8 meters)

Connectors

Two-cable assembly; 16-pin connector at module end; flying leads at other end

One 40-pin connector at module end; flying leads at other end

One connector at module end; one con­nector at breakout board end

Wires

Pre-stripped, color-coded,
22-gauge wires

Pre-stripped, color-coded,
24-gauge wires

24 gauge wires

Use with

Modules:
SNAP-IAC-16
SNAP-IAC-A-16
SNAP-IAC-K-16
SNAP-IDC-16
SNAP-IDC-HT-16

Modules:
SNAP-IDC-32

SNAP-IDC-32-FM

SNAP-IDC-32N

SNAP-ODC-32-SNK

SNAP-ODC-32-SNK-FM

SNAP-ODC-32-SRC

SNAP-ODC-32-SRC-FM

SNAP-AIV-32

SNAP-AIV-32-FM

Modules to breakout boards
(regular and -FM versions of all):
SNAP-IDC-32 to SNAP-IDC-HDB

SNAP-IDC-32N to SNAP-IDC-HDB
SNAP-ODC-32-SNK to SNAP-ODC-HDB
SNAP-ODC-32-SRC to SNAP-ODC-HDB
SNAP-AIV-32 to SNAP-AIV-HDB
SNAP-AIMA-32 to SNAP-AIMA-HDB

Agency Approvals

CE, RoHS, DFARS

CE, RoHS, DFARS

CE, RoHS, DFARS

Warranty

30 months

30 months

30 months

SNAP TEX Cables and Breakout Boards Data Sheet

SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules. This data sheet covers the following part numbers:

SNAP High-Density Digital Modules Data Sheet

SNAP I/O high-density digital modules from Opto 22 provide 16 or 32 digital input or output points in one compact SNAP module. These modules are ideal for OEMs and others who have high point-count applications, or for anyone requiring more than 64 digital points on a single SNAP PAC rack. The high-density configuration reduces per-point costs of digital I/O systems by providing up to eight times as many I/O points in the same space.

SNAP high-density digital modules are part of the SNAP PAC System. They can also be used as part of intelligent remote I/O with an Allen-Bradley Logix PLC system. HDD modules require a SNAP PAC R-series controller or a SNAP PAC brain for I/O processing.

This data sheet covers the following modules:

The data sheet also covers the following accessories used with SNAP HDD modules:

SNAP High-Density Digital Module User's Guide

This guide covers how to install and test SNAP 16-channel and 32-channel digital modules, part of the SNAP PAC System. These modules provide 16 or 32 points of digital input or digital output in the same space as a 4-channel digital module. They are ideal for OEMs and for anyone who needs up to 512 digital points on a single mounting rack. SNAP high-density digital modules include the following part numbers:

  • SNAP-IAC-16
  • SNAP-IAC-A-16
  • SNAP-IAC-K-16
  • SNAP-IDC-16
  • SNAP-IDC-32
  • SNAP-IDC-32D
  • SNAP-IDC-32DN
  • SNAP-IDC-32-FM [OBSOLETE]
  • SNAP-IDC-32N
  • SNAP-ODC-32-SNK
  • SNAP-ODC-32-SNK-FM  [OBSOLETE]
  • SNAP-ODC-32-SRC
  • SNAP-ODC-32-SRC-FM  [OBSOLETE]

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

No downloads are available for this product.

Video: SNAP TEX Wiring and Mounting Accessories

A quick overview of SNAP TEX wiring and mounting accessories.
