SNAP-ODC-HDB
Hover over image to zoom in

SNAP-ODC-HDB

$415.00 (USA and Canada only)

Availability: In stock

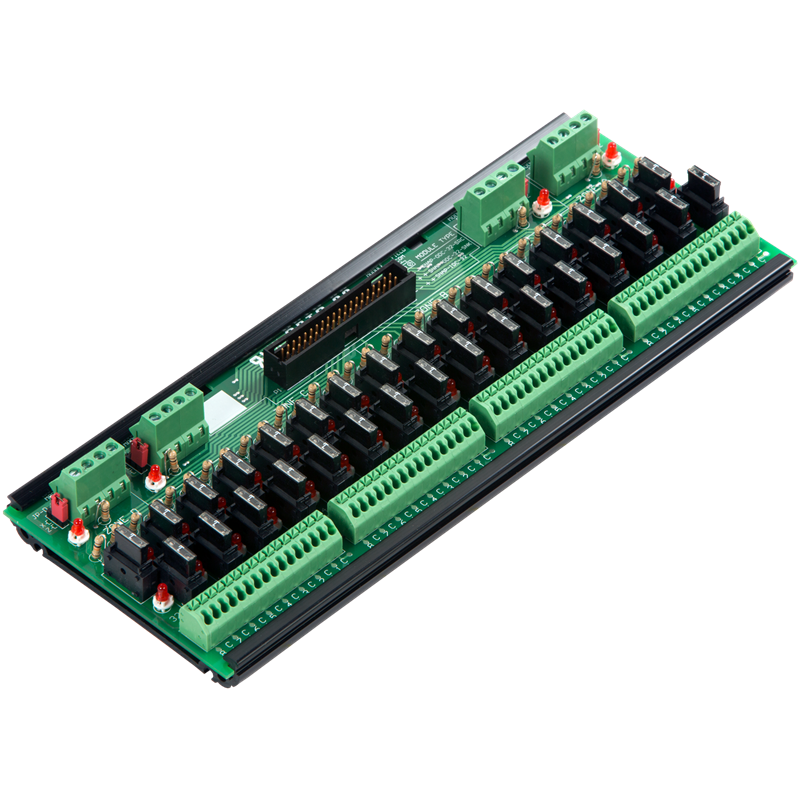

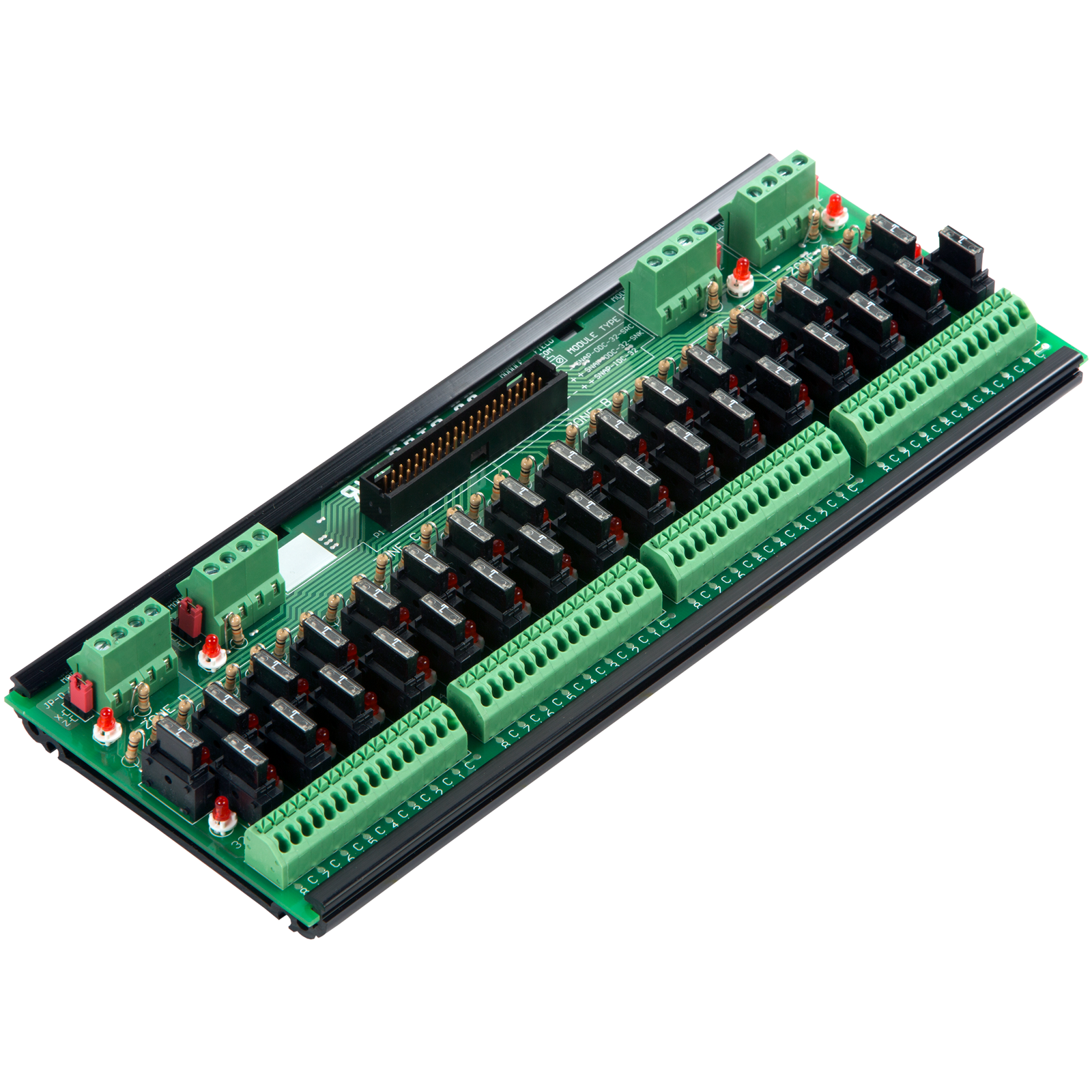

Fused breakout rack for SNAP 32-channel digital (discrete) output modules

Production Specification

The SNAP-ODC-HDB breakout rack is used with one 32-channel digital output module, such as the SNAP-ODC-32-SNK or SNAP-ODC-32-SRC. The breakout rack provides LED indicators and easily accessible fused connectors for output points.

If you need a more compact breakout rack, see the SNAP-UDC-HDB.

For reference: Modules, Cables, and Breakout Boards Compatibility Charts

Build your system in the SNAP I/O Configurator.

SNAP-ODC-HDB and SNAP-ODC-HDB-FM Breakout Racks for High-Density Digital Output Modules

Used with

SNAP-ODC-32-SRC, SNAP-ODC-32-SRC-FM,
SNAP-ODC-32-SNK, and SNAP-ODC-32-SNK-FM

Connectors

40-pin header; connects to 32-point sourcing or sinking module using
SNAP-HD-BF6 header cable.
32 signal output connectors; each signal connector has a corresponding common connector.
For each zone of 8 signal outputs, 1 connection for either module common or field common.
Wire size for field connectors: 16-20 AWG

Indicators

1 LED for each signal output (32 signal LEDs total)
1 power status LED for each zone of 8 signal outputs (4 power LEDs total)

Fusing

1 A fuses; 1 fuse for each signal output (32 signal fuses total)
Replace with Pudenz 1 A automobile mini-fuse or equivalent.

Jumpers

For each zone of 8 signal inputs, 1 jumper controls whether module common or field common is used.

Voltage

32 VDC maximum, 12-24 VDC nominal

Agency Approvals

SNAP-ODC-HDB: UL, CE, RoHS, DFARS

SNAP-ODC-HDB-FM: FM, CE, RoHS, DFARS

Warranty

30 months from date of manufacture
