$116.00 (USA and Canada only)
Feature

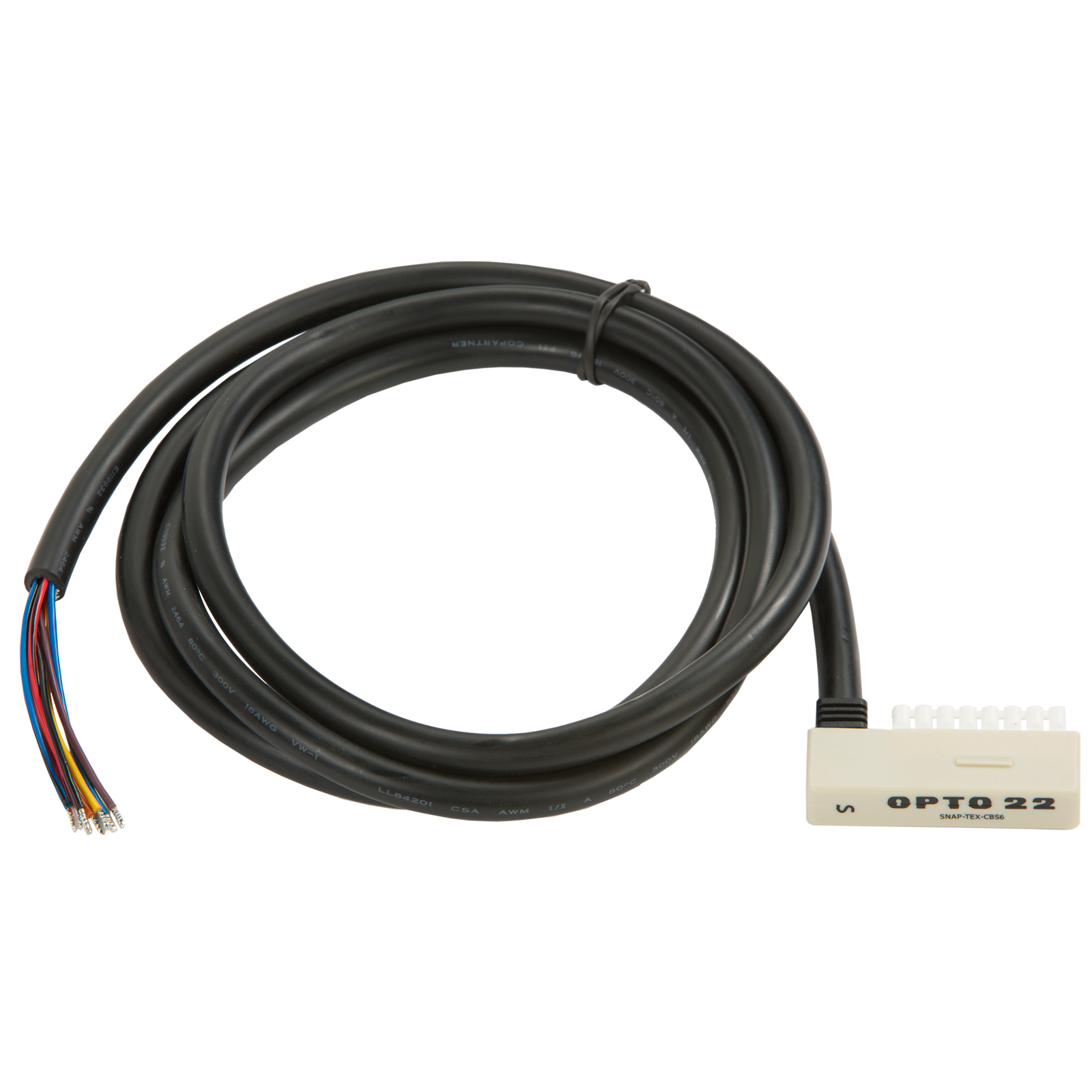

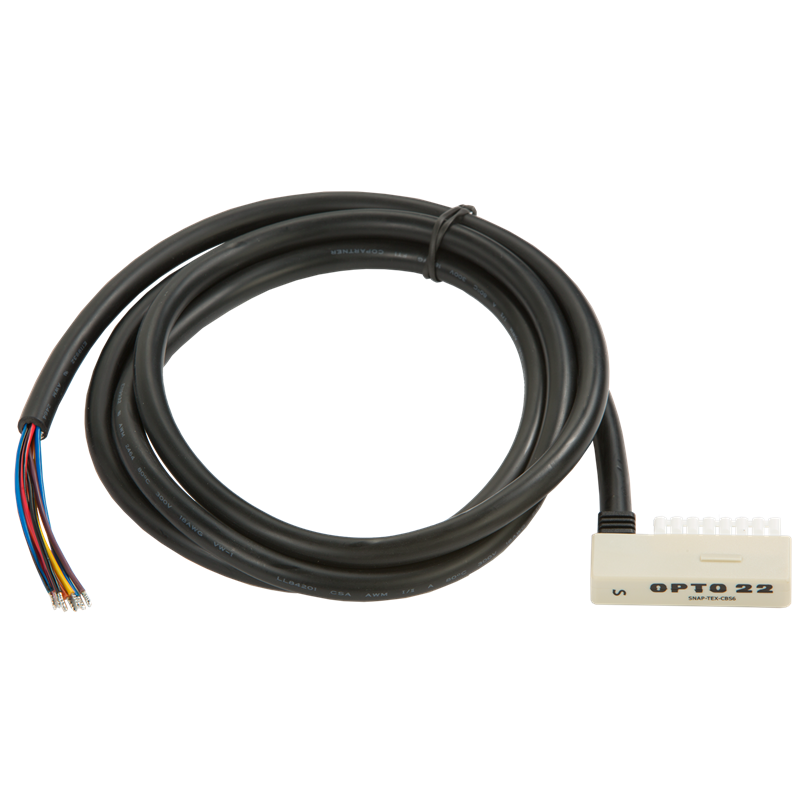

SNAP-TEX-CBO6
SNAP-TEX-CBE6
SNAP-TEX-CBS6
Cable length
6 feet (1.8 meters)
Connector
8 pins, 0.2 in. (5.08 mm) center-to-center
Wires
8 pre-stripped, color-coded, 18 gauge
Bussing
Odd-numbered pins connected
Even-numbered pins connected*
No connected
Agency Approvals
CE, RoHS, DFARS
Warranty
30 months
*Do NOT USE the CBE6 with a SNAP-TEX-FB16-H or -L breakout board. The FB16s have odd-numbered pins connected.
SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules. This data sheet covers the following part numbers:
SNAP TEX cables make wiring to field devices easier. This installation note shows how to install the following cables:
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
A quick tip on spring clamps.
A quick overview of SNAP TEX wiring and mounting accessories.
