Use with I/O modules
2- or 4-channel analog inputs/outputs; 4-channel digital inputs/outputs *
4-channel digital inputs and outputs
16- and 32-ch digital inputs/outputs
Use with cables
SNAP-TEX-CBE6 (even pins connected), SNAP-TEX-CBO6 (odd pins connected), or SNAP-TEX-CBS6 (no connections), depending on module.
4-ch modules: SNAP-TEX-CBO6 (odd pins connected)** or SNAP-TEX-CBS6 (straight-through), depending on module.
16-ch modules: SNAP-HD-ACF6
32-ch modules: SNAP-HD-CBF6

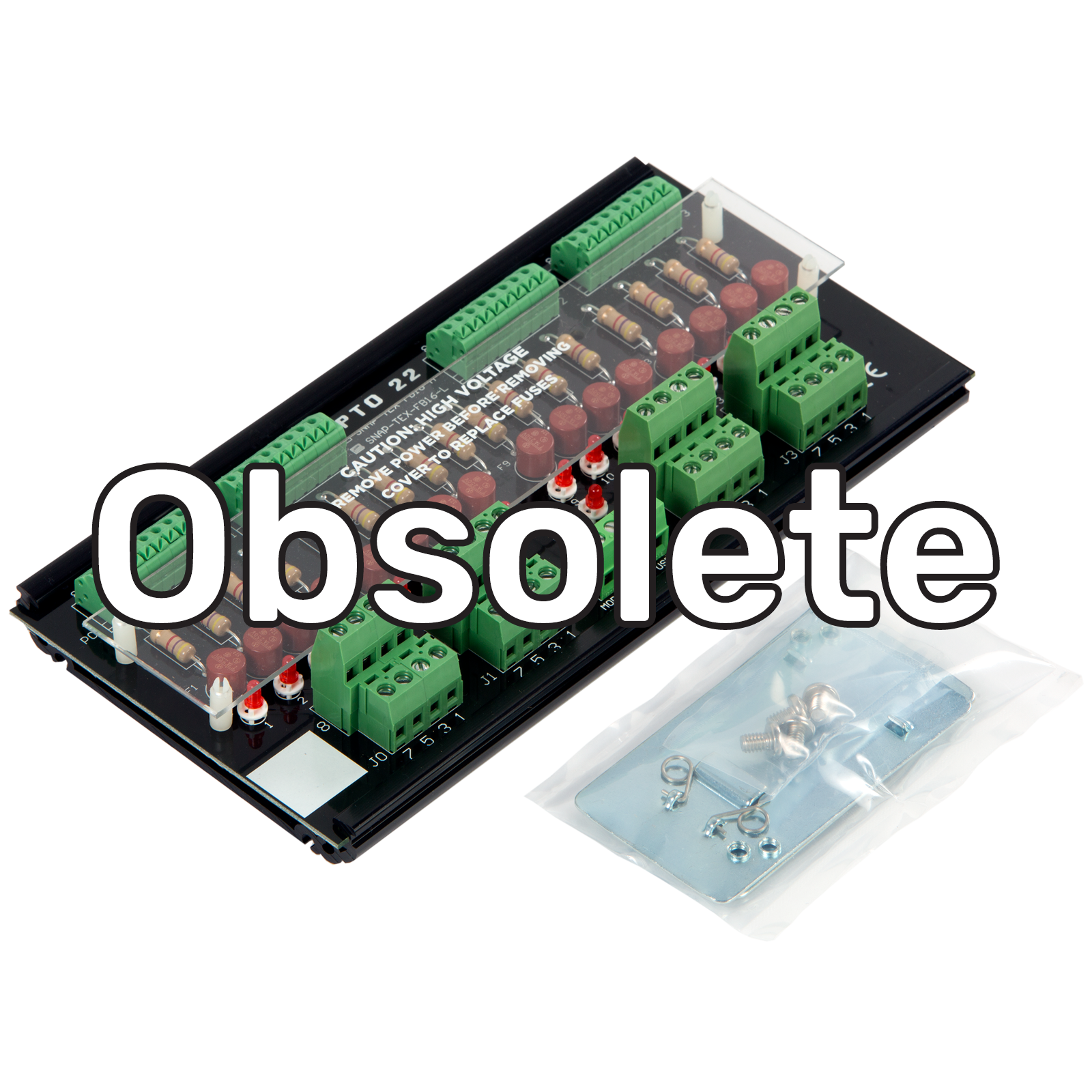

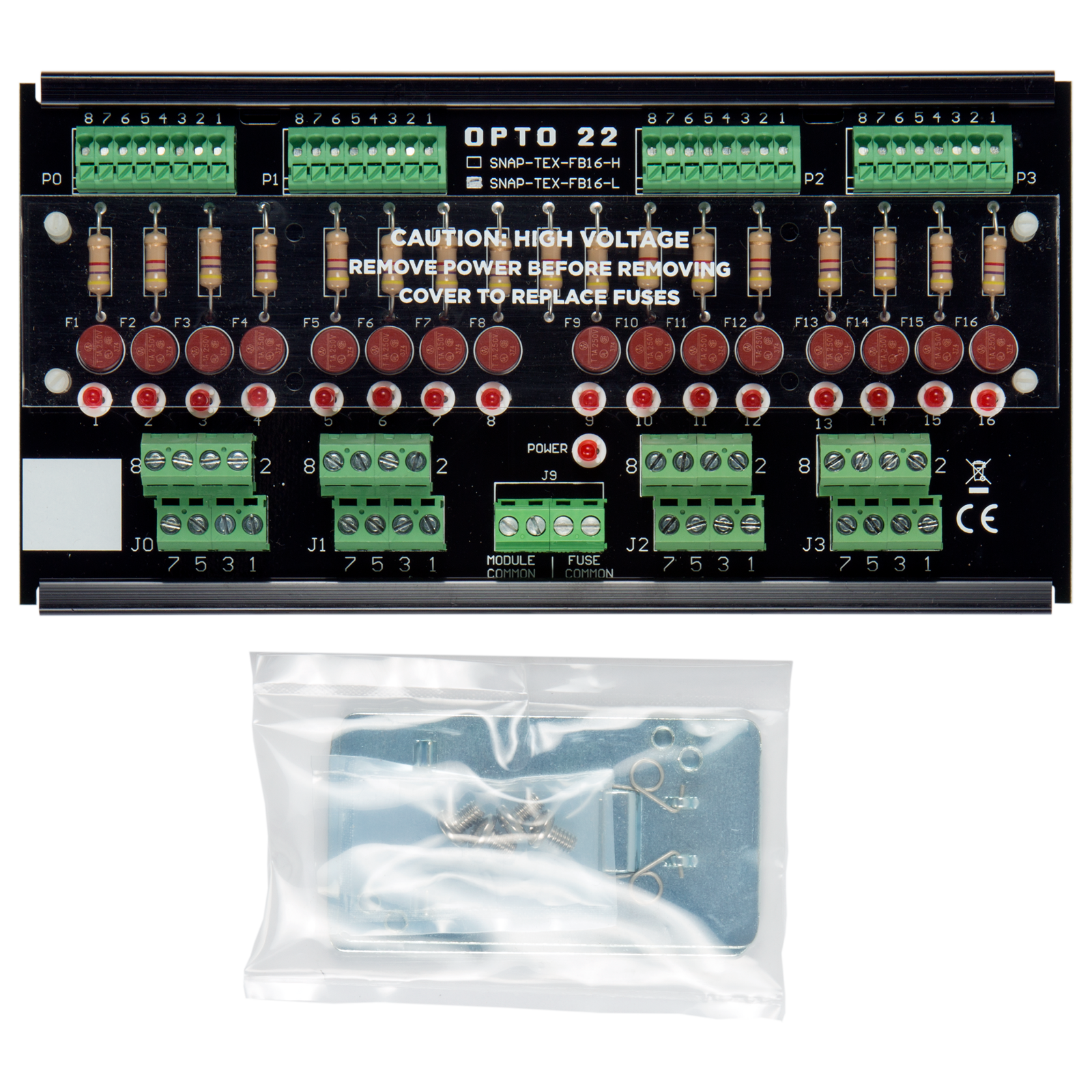

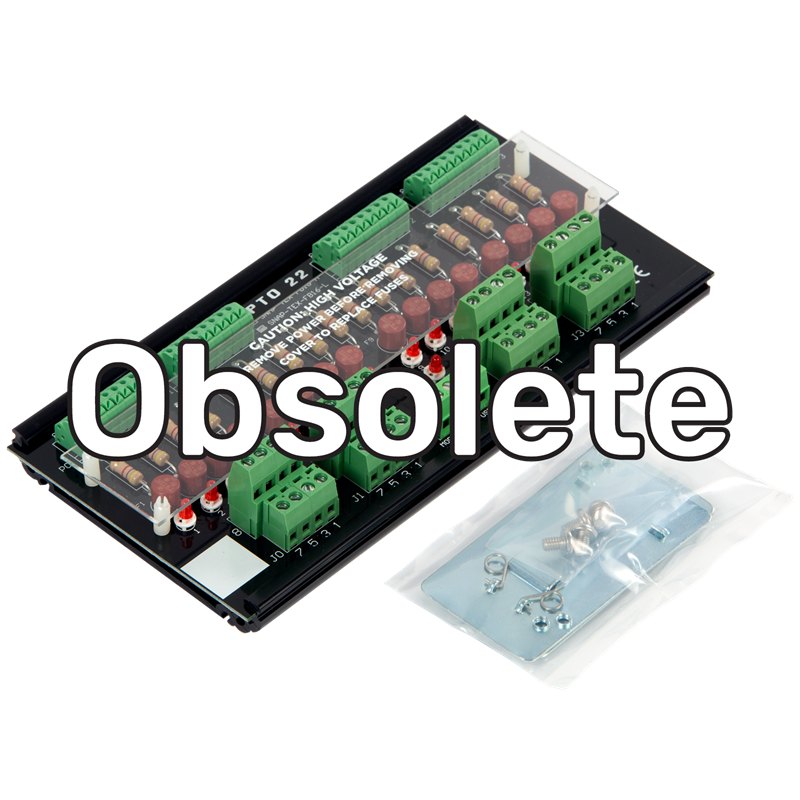

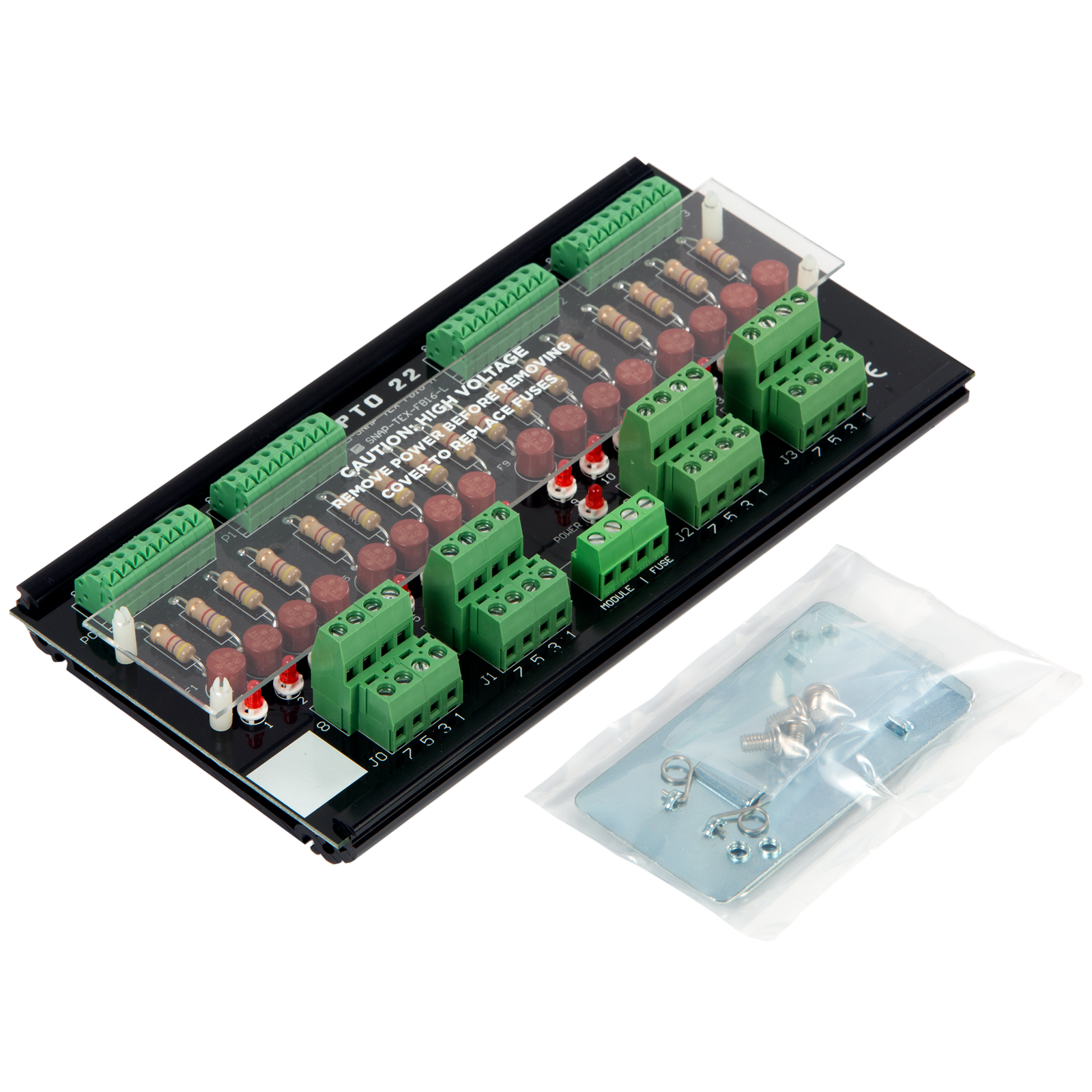

32 spring connectors; accommodates eight 4-channel modules
16 spring connectors; accommodates four 4-channel modules
1 A, 250 V, fast-acting fuse for each
I/O point (16 total). Replace with Opto 22 PN FUSE01G4.
1 LED per fuse (16 LEDs total)
CE, RoHS, DFARS; UKCA
UL, CE, RoHS, DFARS
UL, CE, RoHS, DFARS; UKCA
* Can also be used with 8-, 16-, or 32-channel digital and analog inputs (not thermocouples).
** IMPORTANT: Do NOT USE the FB16 breakout boards with a SNAP-TEX-CBE6 cable. The board has odd pins connected; the cable has even pins connected.
SNAP TEX cables and breakout boards are part of the SNAP TEX family of wiring and mounting accessories. These parts save time and expense during installation, maintenance, and debugging by reducing the time and effort required to wire field devices to SNAP I/O modules. This data sheet covers the following part numbers:
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
A quick overview of SNAP TEX wiring and mounting accessories.
