Products > SNAP-AIV
SNAP-AIV
Hover over image to zoom in

SNAP-AIV

$289.00 (USA and Canada only)

Availability: Call for Availability

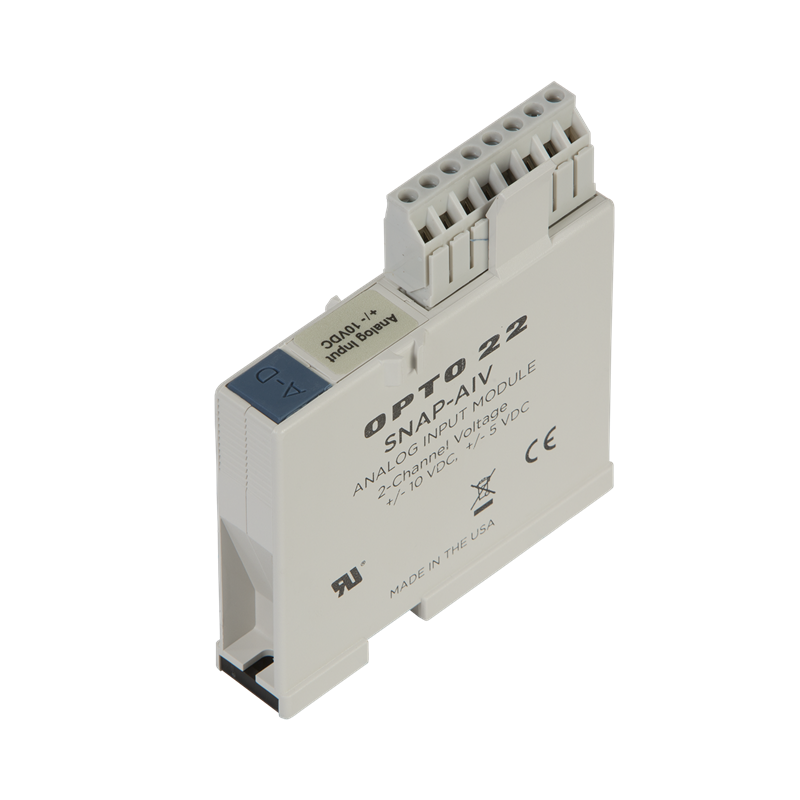

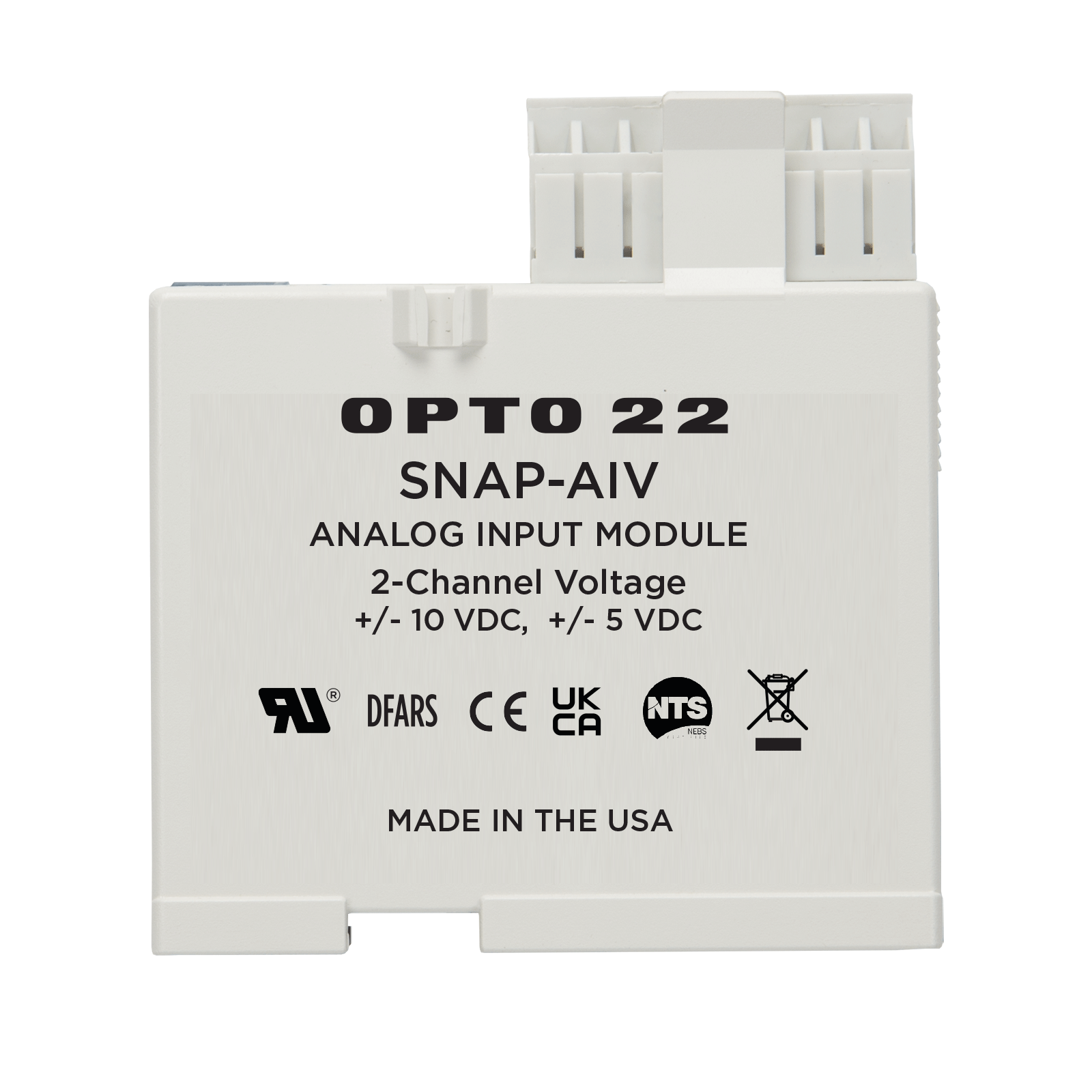

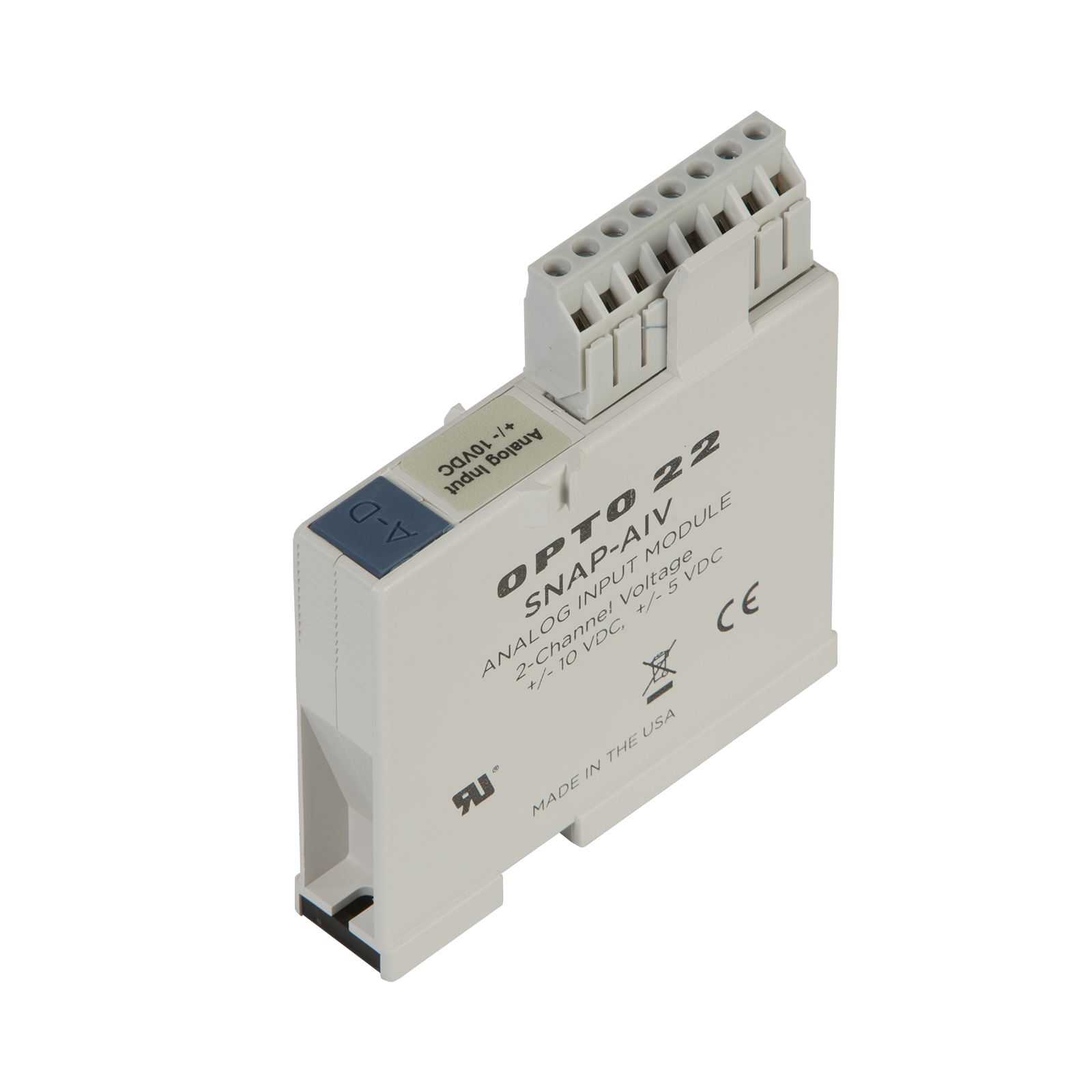

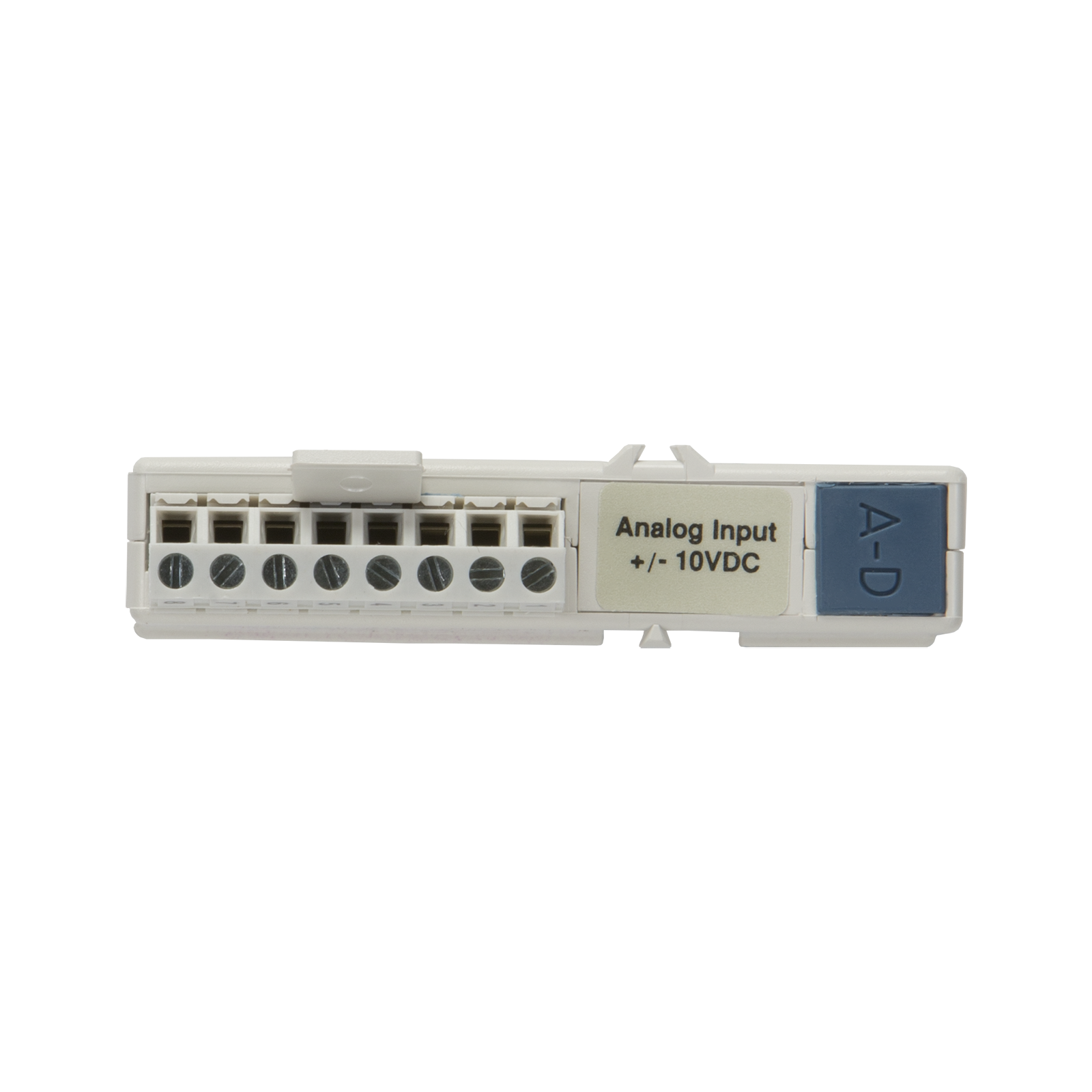

SNAP 2-Ch -10VDC to +10VDC Analog Input Module
Data Sheet

Production Specification

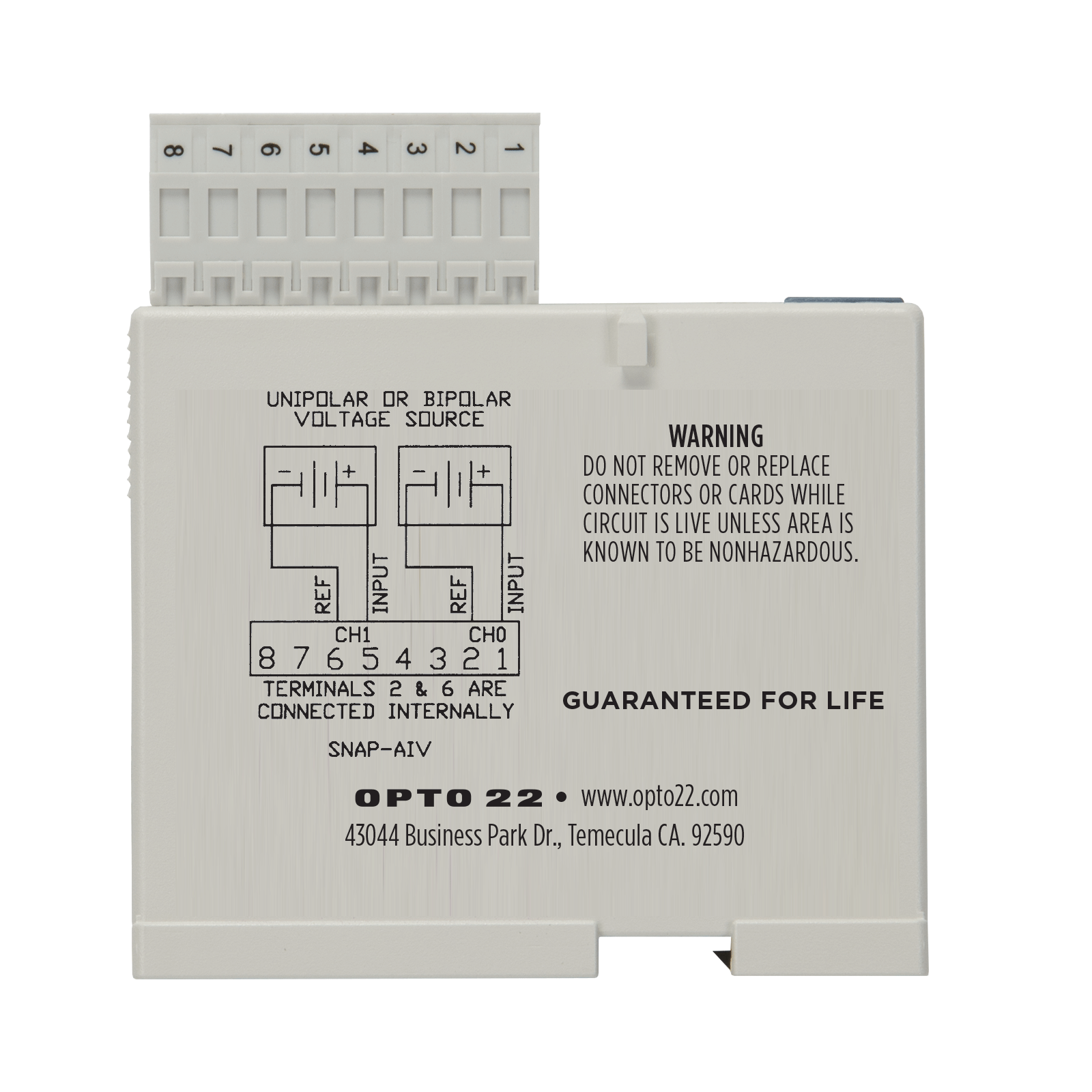

The SNAP-AIV provides two channels of analog voltage input, either -10 to +10 VDC or -5 to +5 VDC. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices. Modules are factory calibrated.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

If you need channel-to-channel isolation, see SNAP-AIV-i.

For a four-channel module, see SNAP-AIV-4. For a 32-channel module, see the SNAP-AIV-32 (requires a SNAP PAC brain or R-series controller).

Input Range

From -10 volts to +10 volts
From -5 volts to +5 volts

Over-Range Limits

From -11 to +11 volts (+/-10 V range)
From -5.5 to +5.5 volts (+/-5 V range)

Resolution

0.4 mV when configured -10 to +10 volts
0.2 mV when configured -5 to +5 volts

Input Filtering

-3 dB @ 64 Hz

Input Response Time
(% of span/ delta V / delta t)

63.2% / 6.7 V / 10 ms

Data Freshness (Max)

11.5 ms (2-channel, +/- 10 VDC)
23 ms (2-channel, +/- 5 VDC
23 ms (4-channel, +/- 10 VDC)
46 ms (4-channel, +/- 5 VDC

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

220 VAC or 300 VDC

Maximum Operating Com­mon Mode Voltage

250 V

Accuracy

0.05%, 5 mV @ 10 VDC
2.5 mV @ 5 VDC

Gain Temperature Coefficient

30 PPM/ °C

Offset Temperature Coeffi­cient

15 PPM/ °C

Isolation

1500 V

Power Requirements

5 VDC (±0.15) @ 170 mA

Input Resistance

1 M ohms (each channel; both channels share the same reference point)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Wire size

22 to 14 AWG

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m))

Agency Approvals

UL, CE, RoHS, DFARS; UKCA, NEBS

Warranty

Lifetime
