SNAP-AITM-2

Availability: In stock

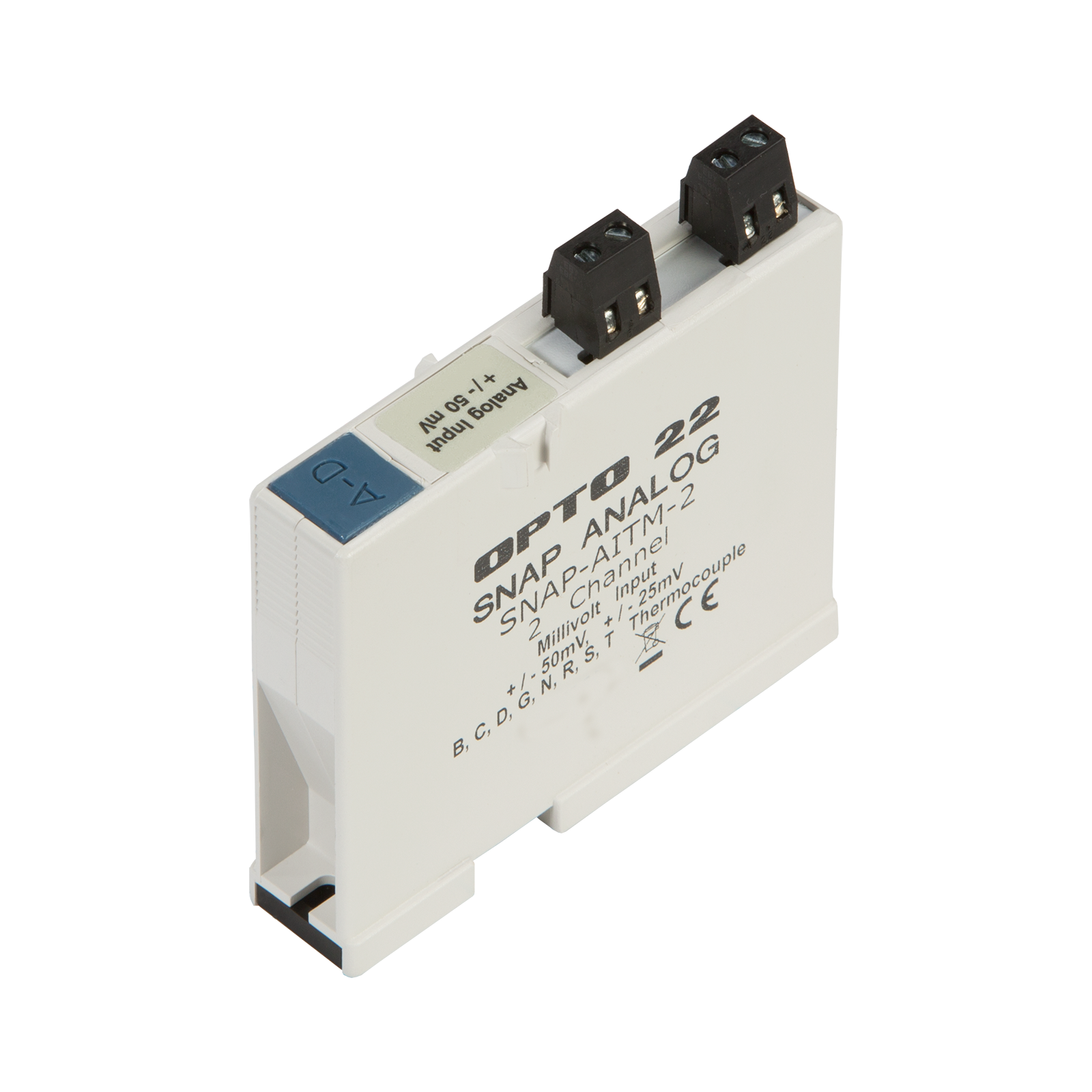

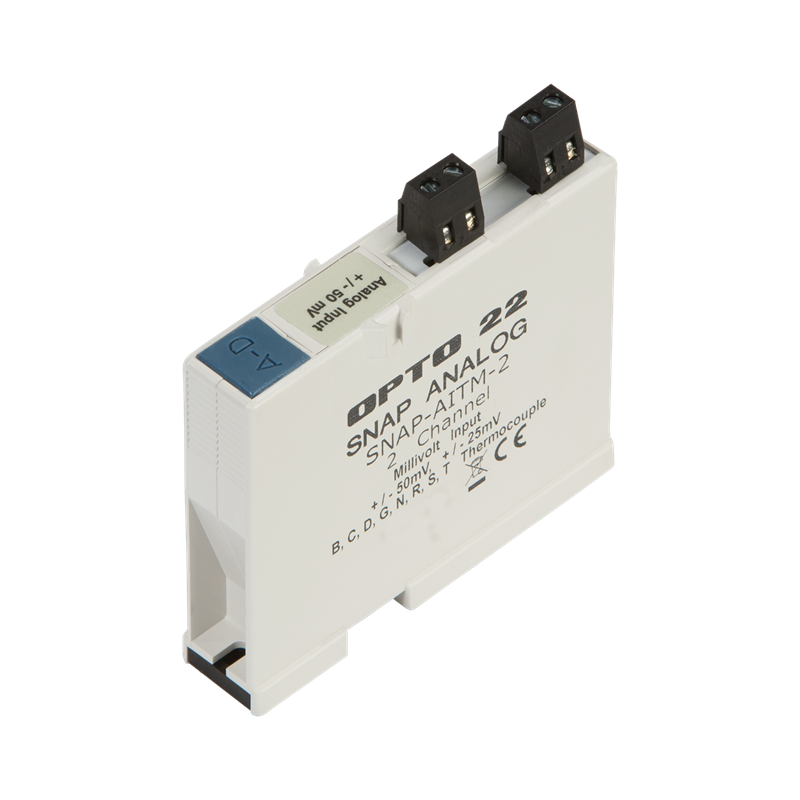

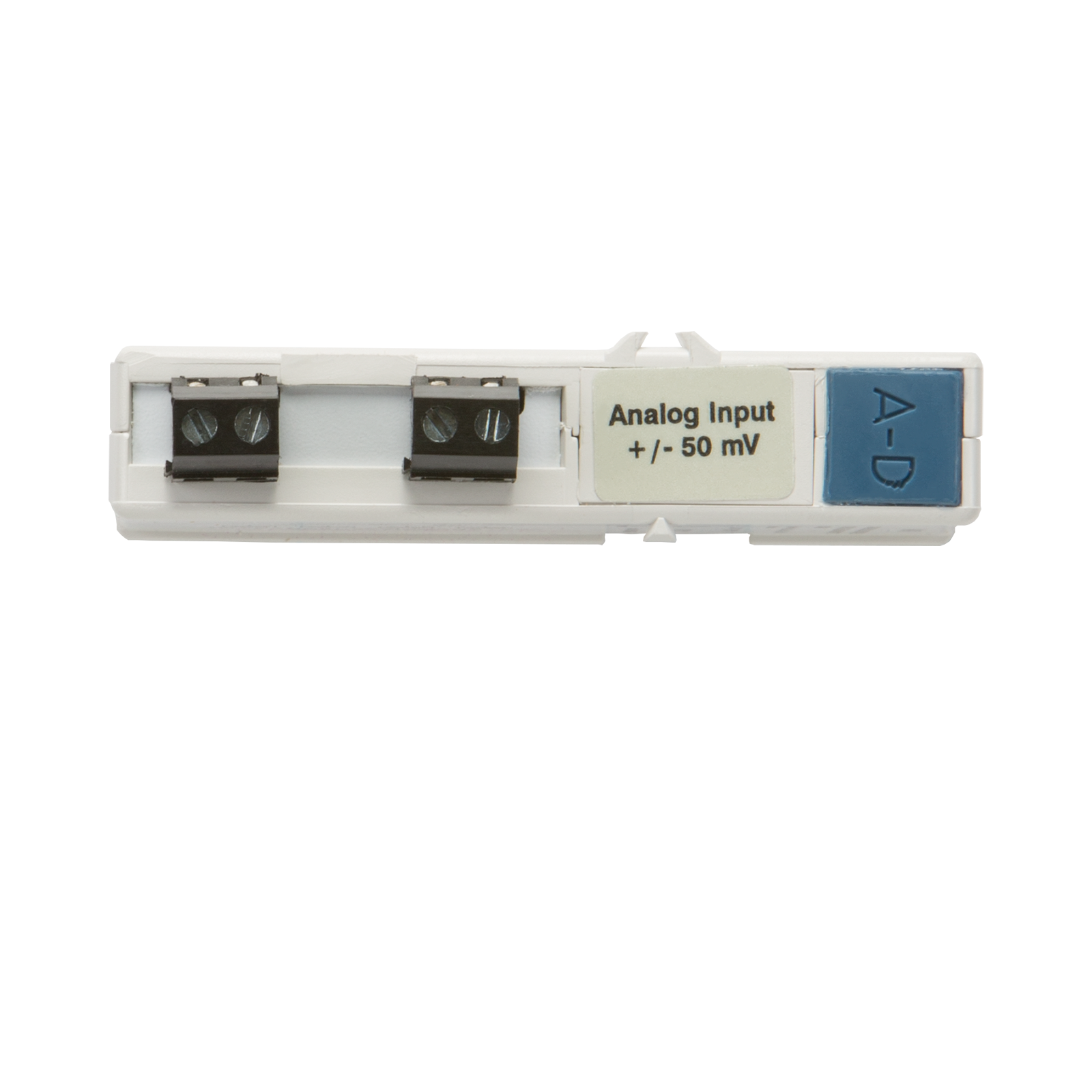

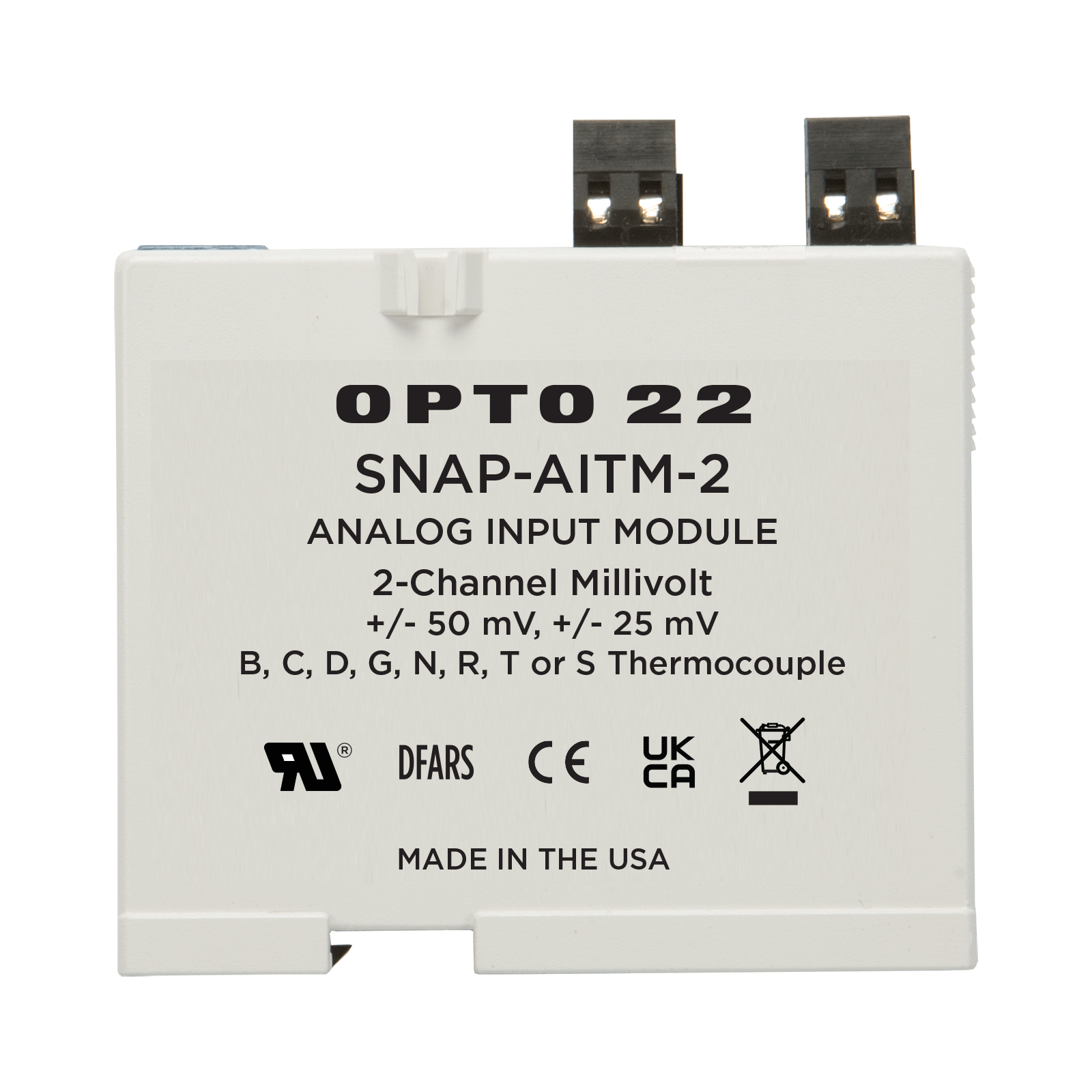

SNAP 2-Ch Type B,C,D,G,N,T,R, or S Thermocouple Analog Input Module

Please call (800) 321-6786 to order.

SNAP-AITM-2

Production Specification

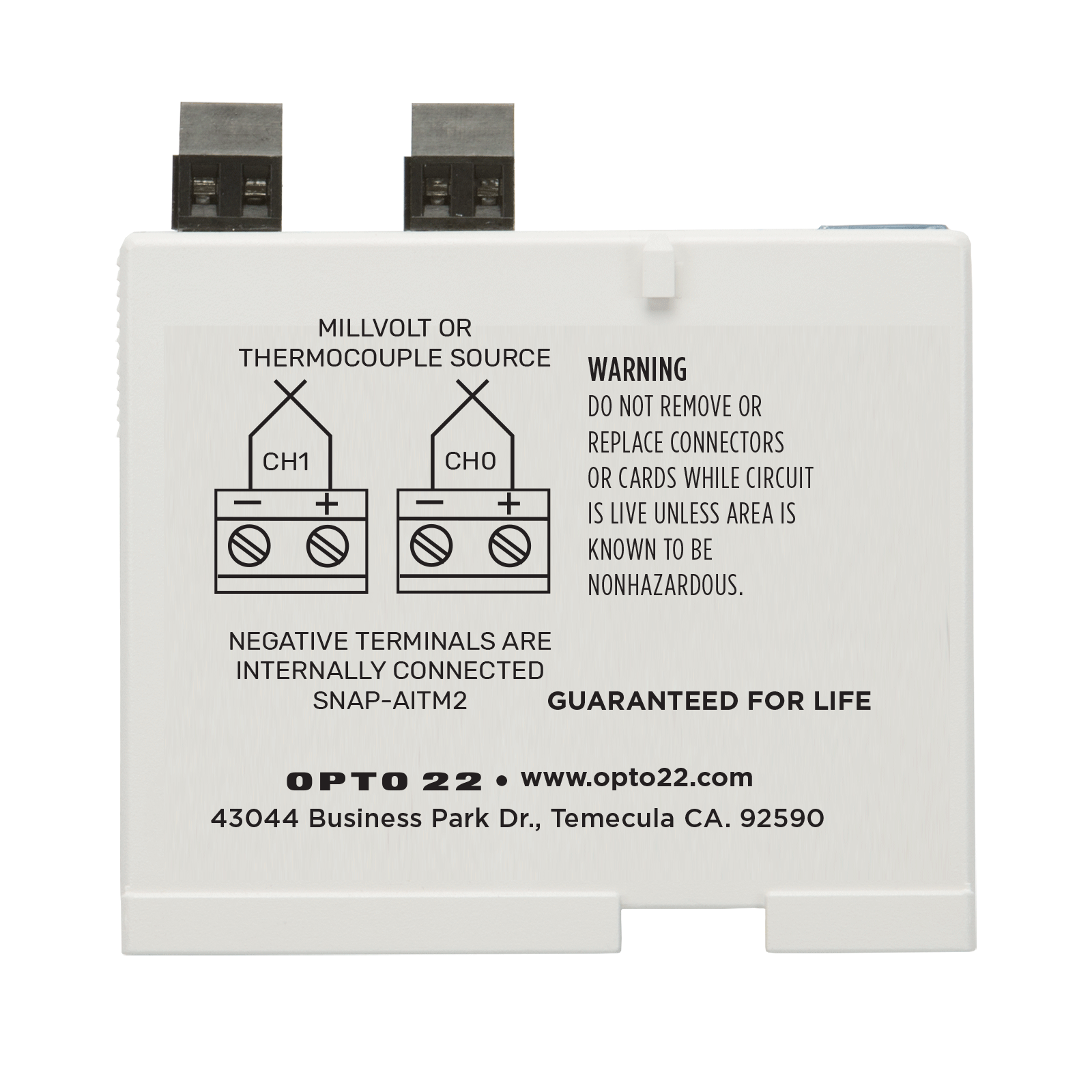

The SNAP-AITM-2 provides two channels of analog input with a range of -50 to +50 mV, -25 to +25 mV, or type B,C,D,G,N,T,R, or S thermocouple. Use isolated probes for thermocouple inputs. Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For a similar module offering eight channels, see SNAP-AITM-8.

For a similar module with channel-to-channel isolation, see SNAP-AITM-i.

Build your system in the SNAP I/O Configurator.

Input Range

From -50 mV to +50 mVDC
From -25 mV to +25 mVDC

Over-range Limits

From -55 to +55 mV
(+/-50 mV range)
From -27.5 to +27.5 mV
(+/-25 mV range)

Resolution

2 microvolts from -50 mV to +50 mV
1 microvolts from -25 mV to +25 mV

Cold Junction Temperature Compensation

Automatic when used with SNAP brains

Input Filtering

-3 dB @ 2.4 Hz

Input Response Time
(% of span/delta V/delta time)

63.2%/31.5 mV/66 ms

Data Freshness (Max)

167 ms (+/- 50 mV)
334 ms (+/- 25 mV)

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

±15 volts

Maximum Operating Com­mon Mode Voltage

250 V

Accuracy at Full Scale

0.1% (50 microvolts) @ 50 mV
0.2% (50 microvolts) @ 25 mV

Drift: Gain Temperature Coefficient

5 microvolts / °C

Drift: Offset Temperature Coefficient

2 microvolts / °C

Thermocouple Accuracy [°C]

B, R, S

C, D, G

T, N

 From factory

±5

±4

±3

 After user gain and offset commands

±3

±2

±2

Isolation

1500 V

Power Requirements

5 VDC (±0.15 ) @ 170 mA

Input Resistance

100 Megohms (each channel)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Agency Approvals

FM, CE, RoHS, DFARS

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

3 in-lb (0.34 N-m)

Warranty

Lifetime
