SNAP-AIRTD-8U

$539.00 (USA and Canada only)

Availability: In stock
SNAP 8-Ch Multifunction RTD/Resistance Analog Temperature Input Module

Please call (800) 321-6786 to order.

SNAP-AIRTD-8U

Production Specification

The SNAP-AIRTD-8U analog input module provides 8 input channels, each individually software configurable. This module is commonly used for 3-wire RTD temperature inputs but is also suited to high-resolution resistance measurements. It features open circuit detection if any wire breaks.

You can individually configure each of the module's 8 points for a variety of behaviors, including a fixed temperature range for nickel, platinum, or copper RTD inputs; a fixed range in ohms; or two types of auto-ranging where the module scrolls within a range (in ohms) and chooses the best resolution.

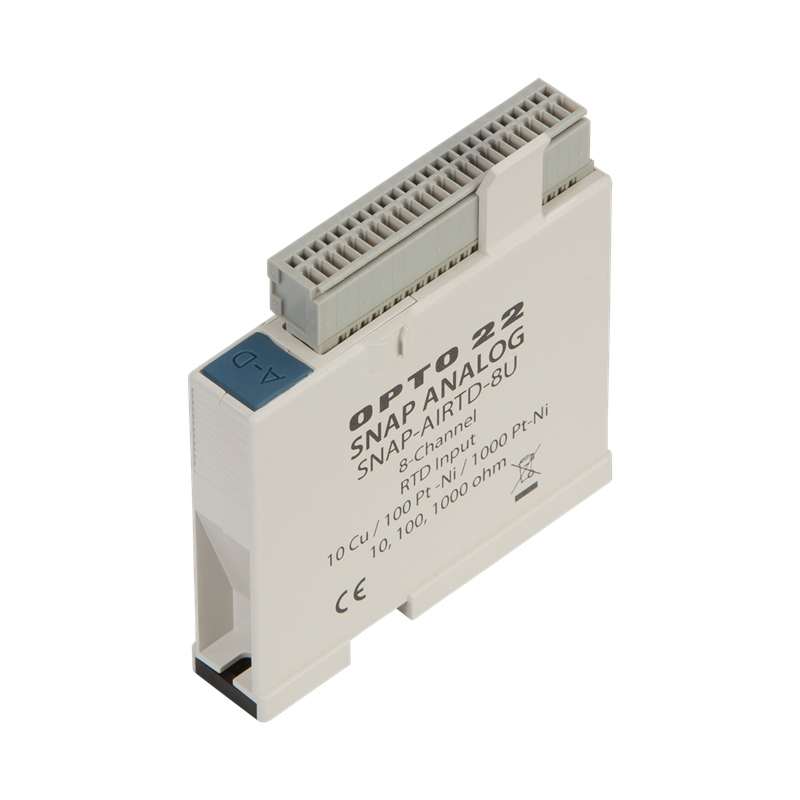

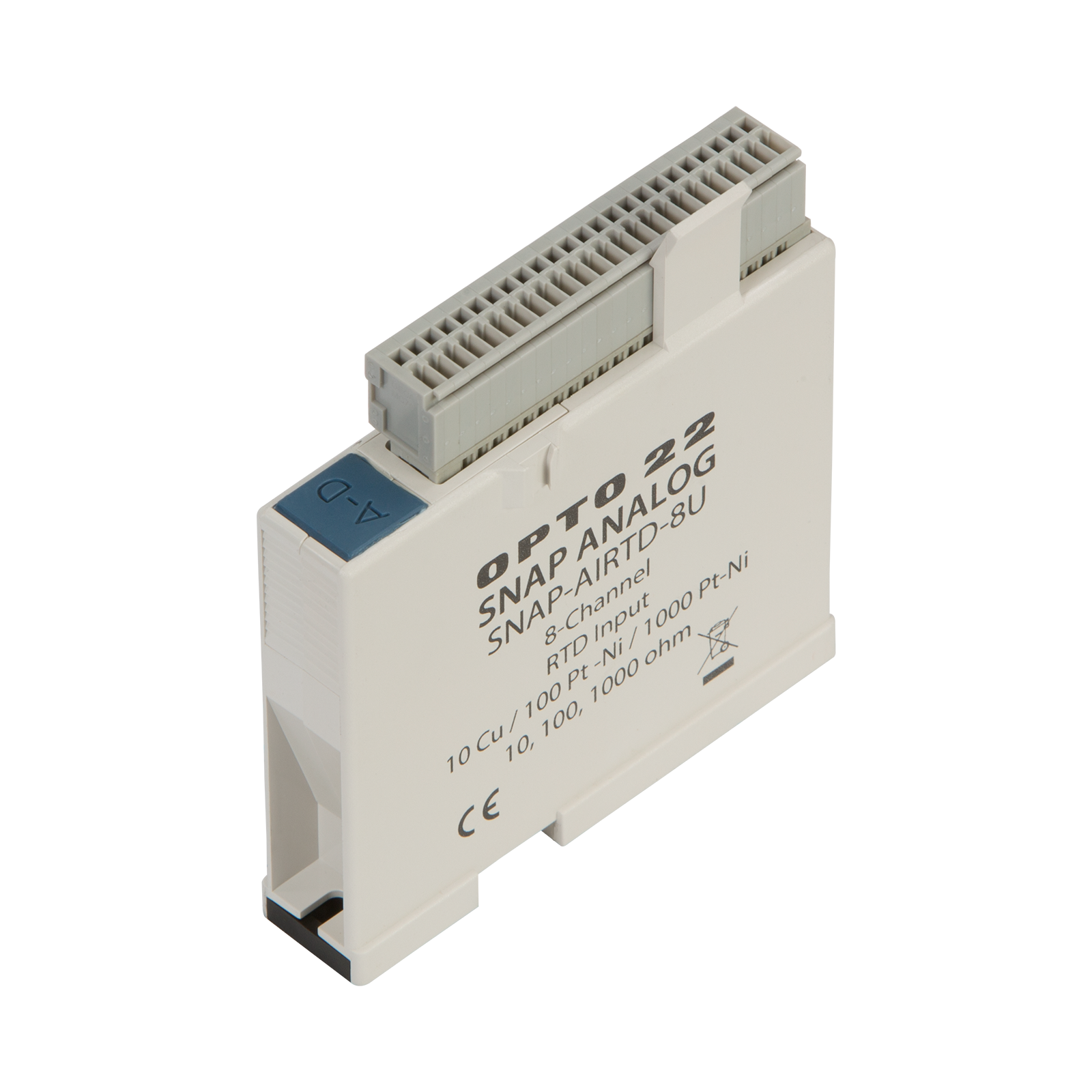

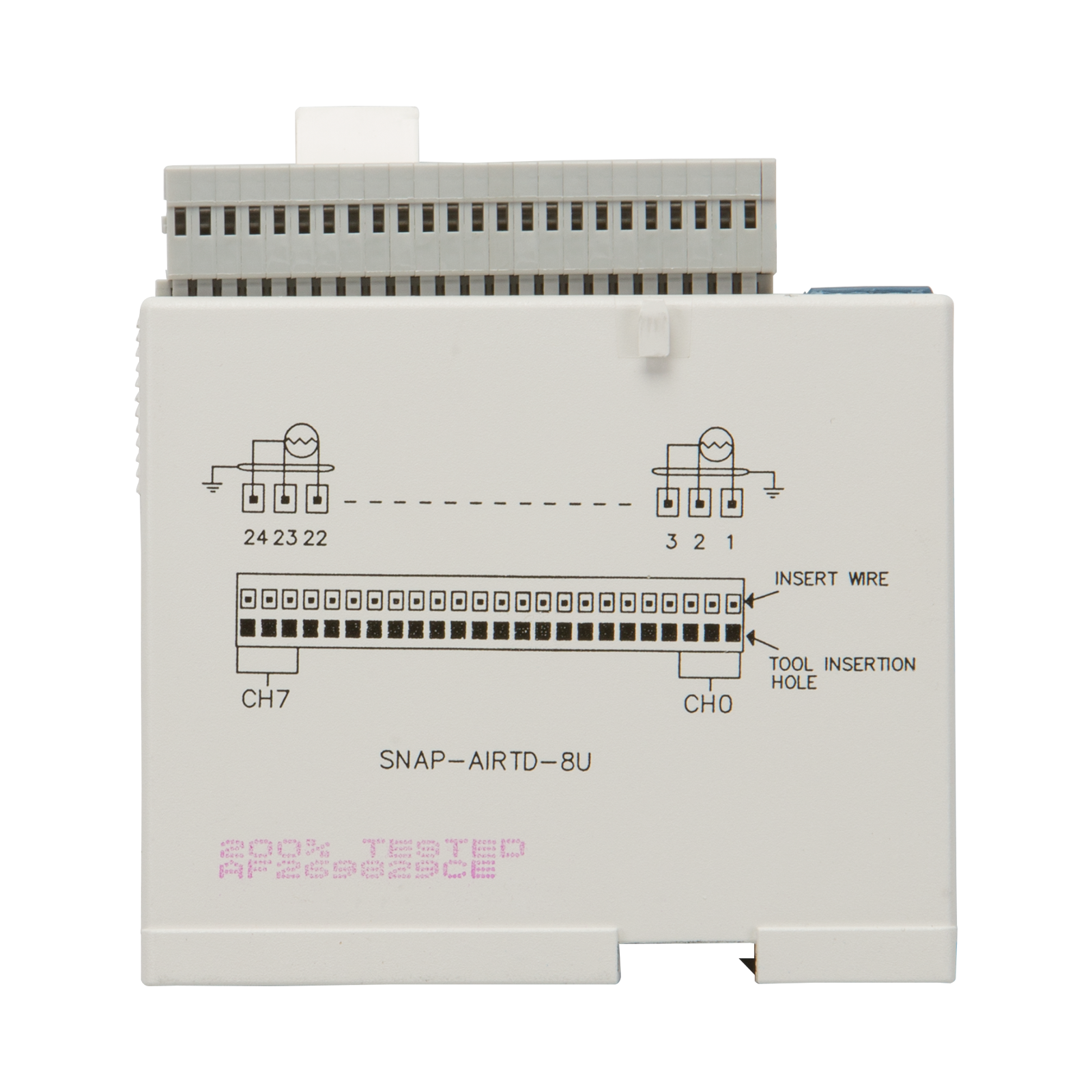

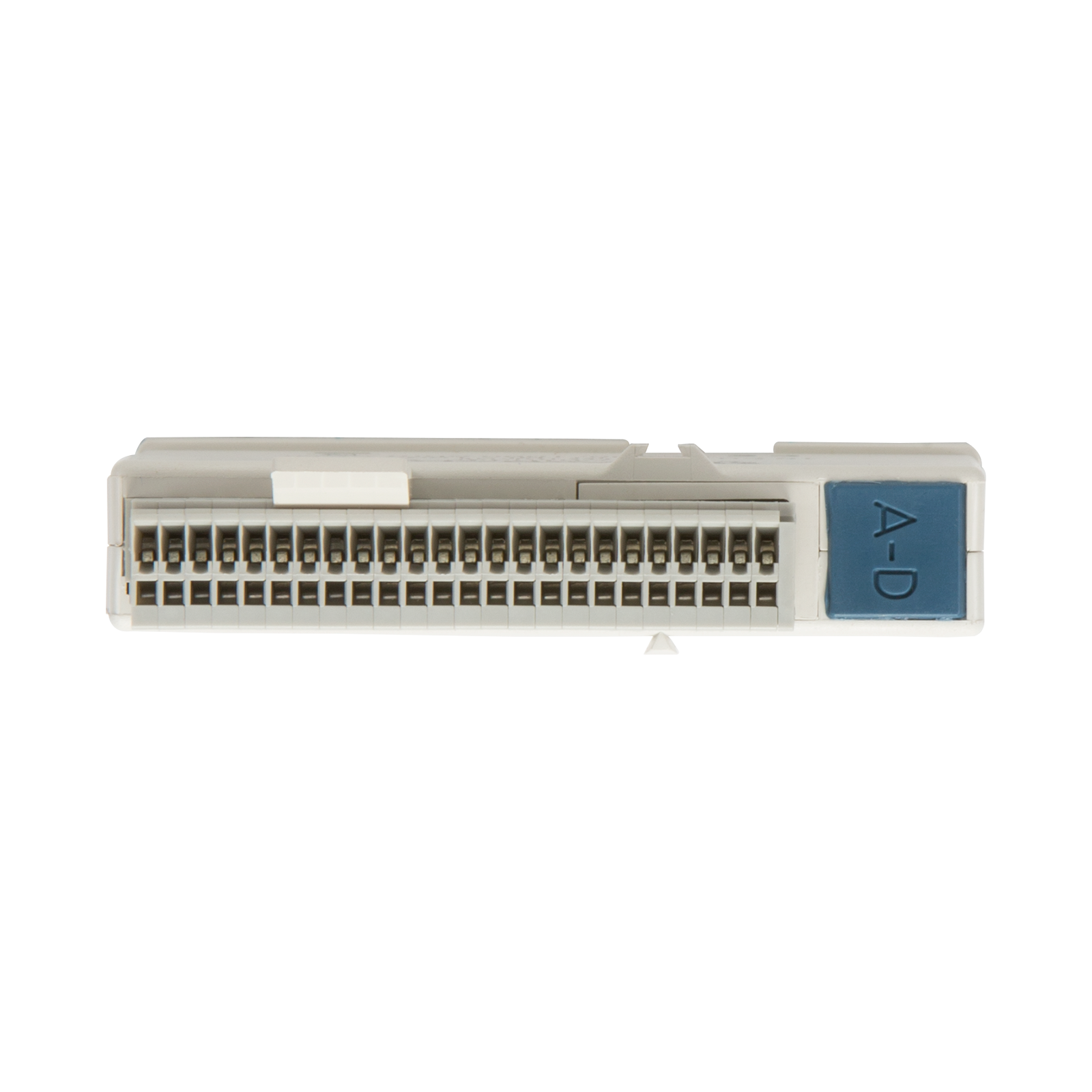

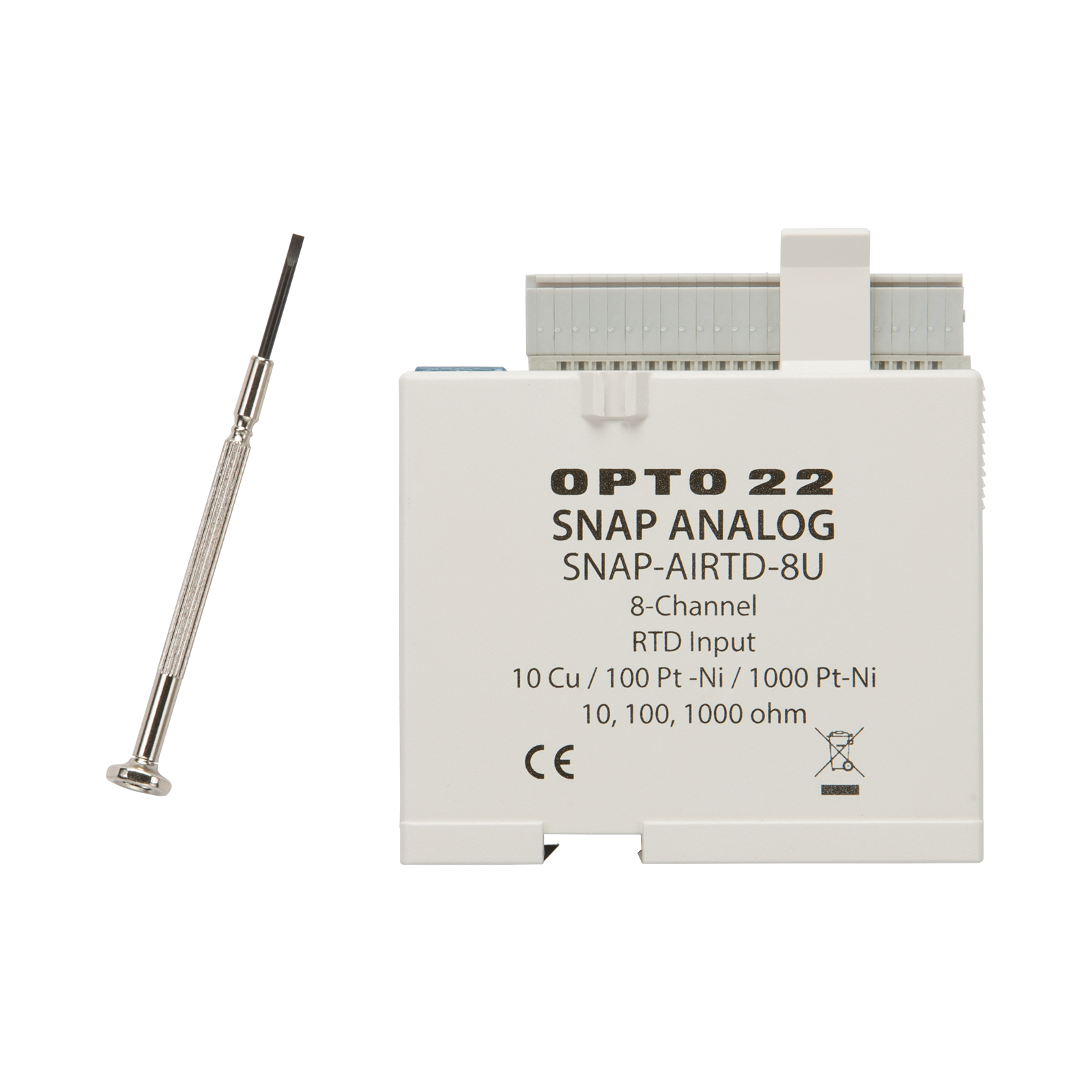

The SNAP-AIRTD-8U has a plug-in terminal on top with spring-clamp connectors for easy wiring. An insertion tool is provided in the box with the module.

All 8 inputs share the same reference terminal. Make sure you use isolated RTD probes.

The SNAP-AIRTD-8U requires a SNAP PAC brain or R-series controller with firmware R9.5a or higher. The module cannot be used with legacy brains or controllers.



SNAP-AIRTD-8U

3-wire RTD input and maximum temperature table range (actual range depends on your probe)

1000 ohm platinum @ 0 °C α= 0.00385
Range: -200 to 850 °C
(-328 to 1,582 °F)

100 ohm platinum @ 0 °C
α= 0.00385
Range: -200 °C to 850 °C
(-328 to 1,582 °F)

10 ohm copper @ 25 °C
α= 0.00427
Range: -60 to 355 °C
(-76 to 671 °F)

1000 ohm nickel @ 0 °C
α= 0.00618
Range: -60 to 170 °C
(-76 to 356 °F)

100 ohm nickel @ 0 °C
α= 0.00618
Range: -60 to 250 °C
(-76 to 482 °F)

1000 ohm nickel @ 70 °F
α= 0.00637
Range: -46 to 148.9 °C
(-50 to 300 °F)

120 ohm nickel @ 0 °C
α= 0.00672
Range: -80 to 260 °C
(-112 to 500 °F)

Input Range

0 to 4000 ohms

0 to 400 ohms

0 to 40 ohms

Accuracy
 From factory
 After setting gain and offset



0.8 °C (Pt); 0.6 °C (Ni)
0.6 °C (Pt); 0.4 °C (Ni)



0.8 °C (Pt); 0.6 °C (Ni)
0.6 °C (Pt); 0.4 °C (Ni)



1.7 °C
1.2 °C

Excitation Current

0.325 mA

2 mA

4.28 mA

Over-Range Limit

10% overrange for all measurements in ohms

Resolution
 In Ohms
 In RTD Temperature



The greater of: (Ohms Range / 100,000) or 1 milliohm

Better than or equal to 0.05 °C (0.09 °F)

Input Filtering
 Front end filtering
 DSP Notch filter



-15 dB @ 50 Hz, -20 dB @ 60 Hz

20 Hz (-3 DdB = 5.24 Hz)

Data Freshness (Max)

1.2 s

Auto-range Settle Time

 Step change from 10 to 8000

 Step change from 8000 to 10

1.2 s to the next higher or lower range

<= 10 s ranging up (channel may show overrange until settled)

<= 10 s ranging down (channel will give a reading while settling)

Total Lead Resistance

200 ohms maximum

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB at 60 Hz

Maximum Survivable Fault Voltage at Input (between any 2 field wires)

±8 V

Maximum Operating Common Mode Voltage

250 V field terminal to logic connector

Isolation

1500 V field side to logic side

Power Requirements

5.00 to 5.20 VDC @ 135 mA

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Maximum wire size

20 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

Agency Approvals

UL, CE, RoHS, DFARS

Warranty

Lifetime
