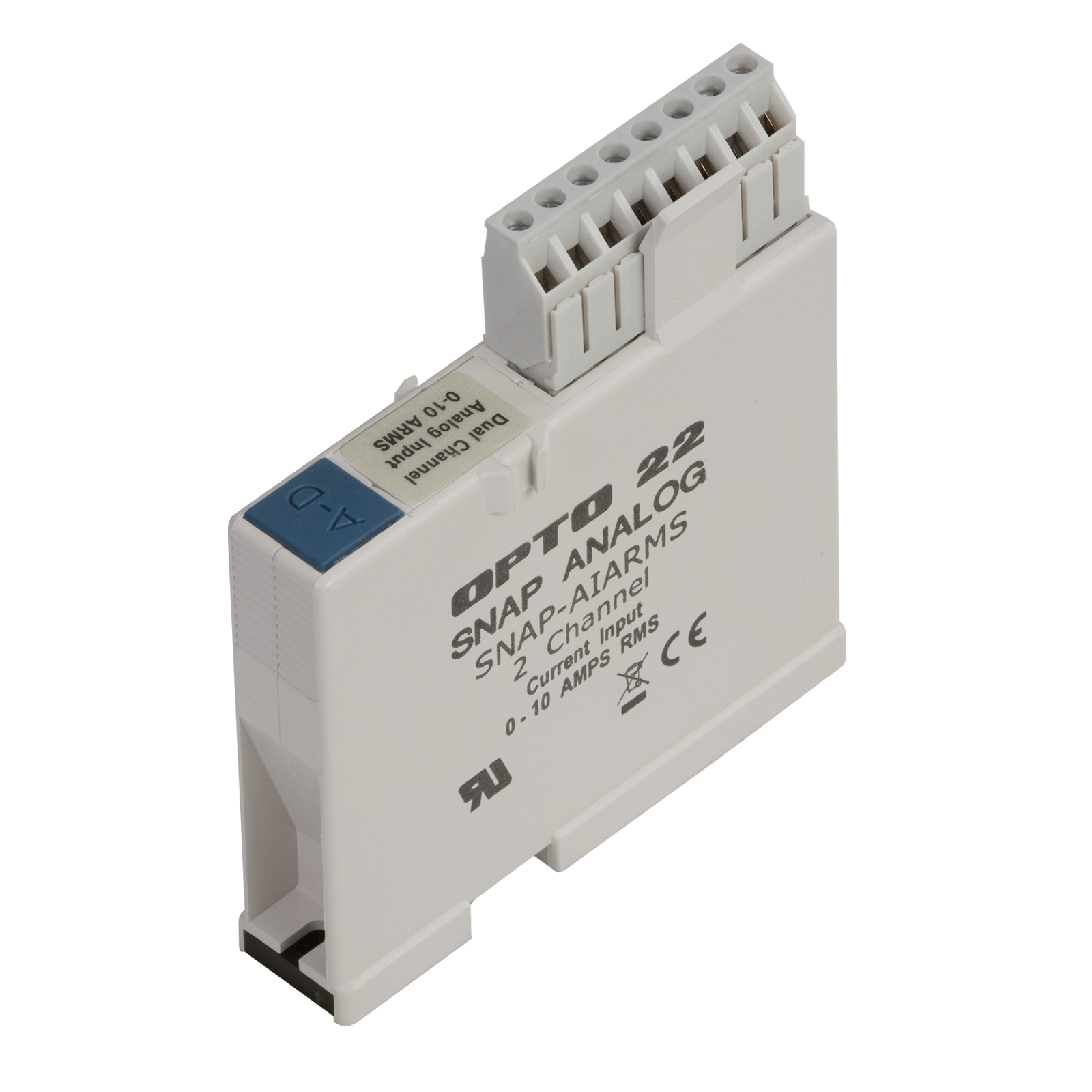

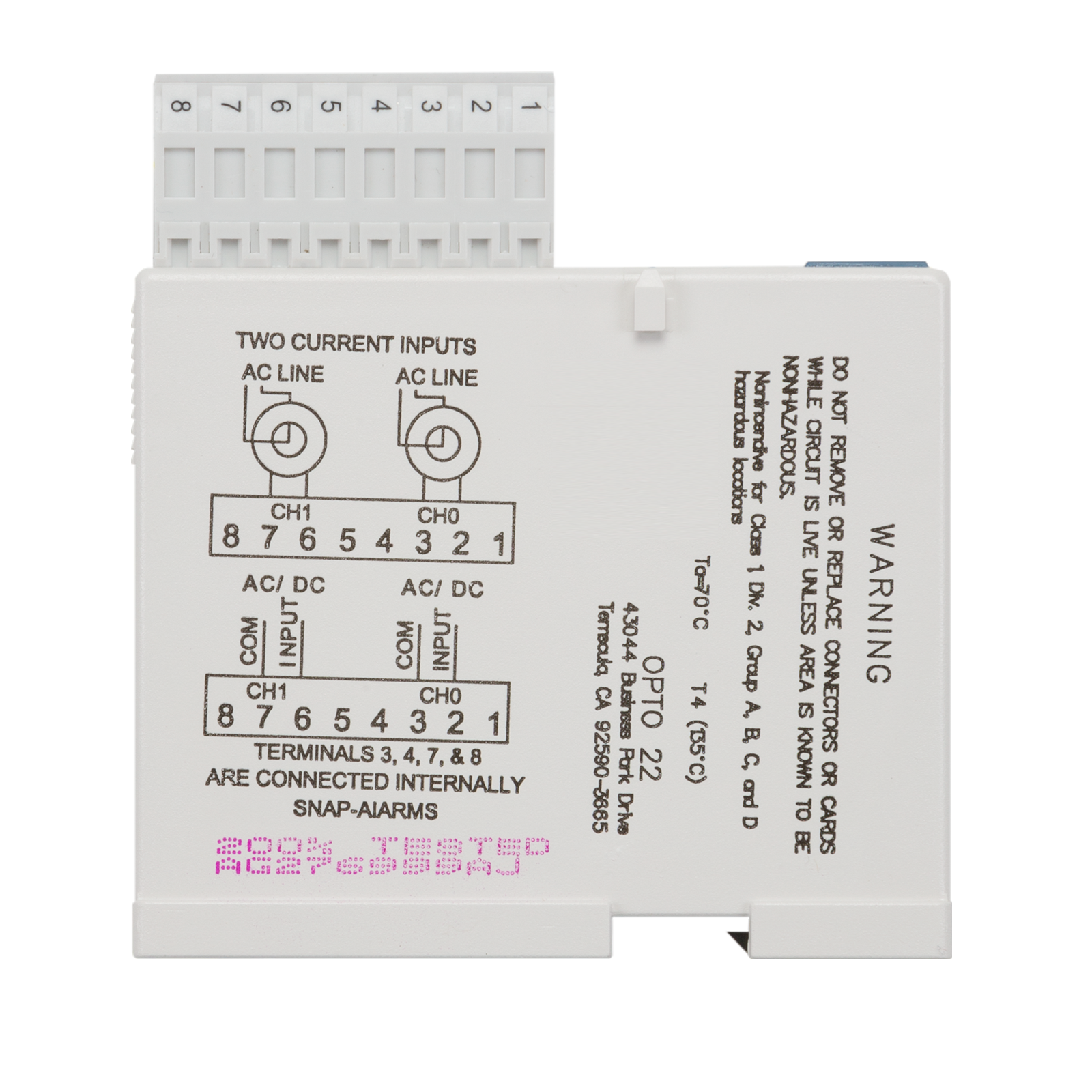

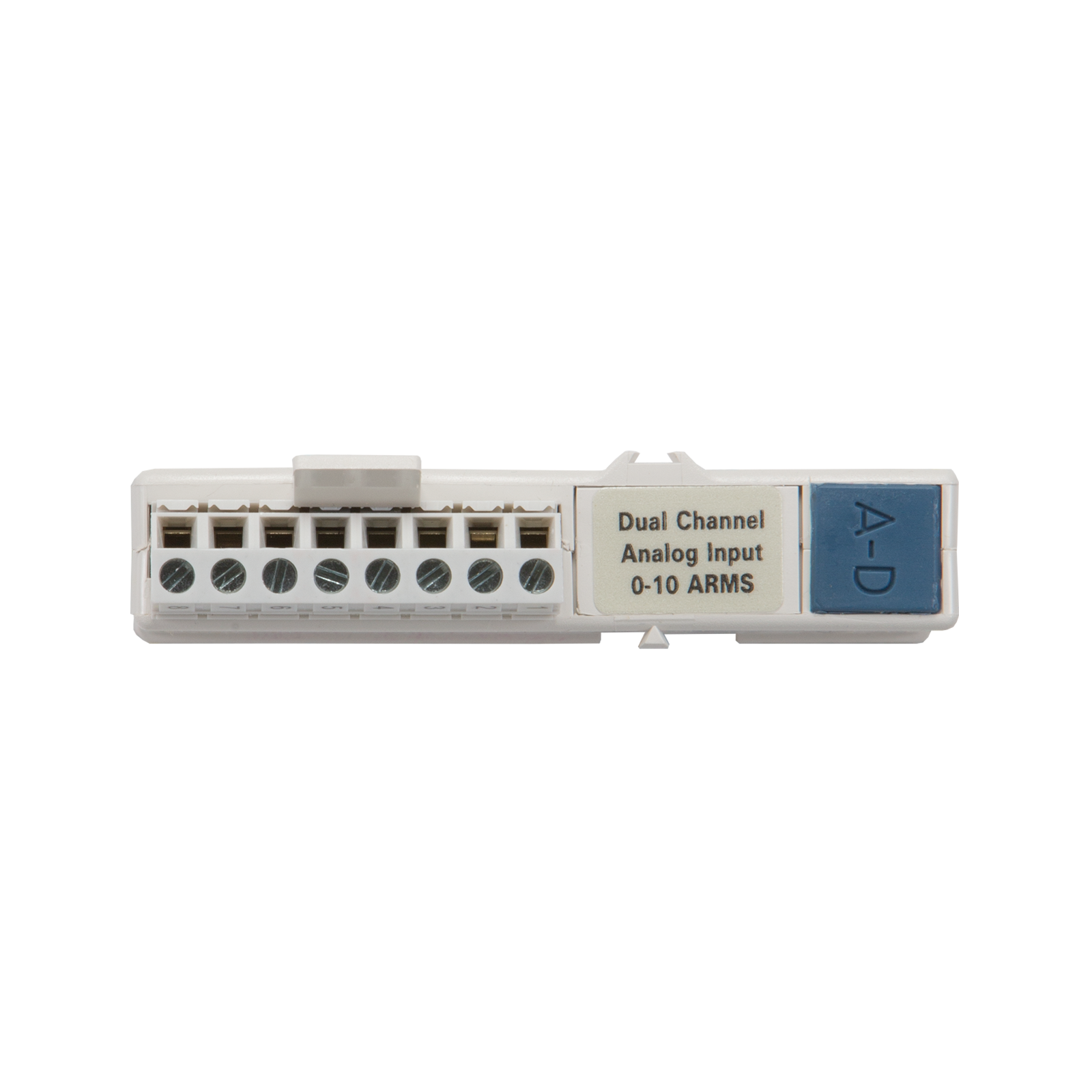

The SNAP-AIARMS provides two channels of 0-10 amp RMS AC/DC input. An ideal input is the 5-amp secondary of a standard current transformer used to monitor AC line current.
Although the two channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.
For a similar module with two isolated channels, see SNAP-AIARMS-i.
Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.
Build your system in the SNAP I/O Configurator.
Input Range
0 to 10 amp RMS AC/DC
Input Over-Range
To 11 amps
Input Resistance
0.005 ohms
Maximum Input
11 amps AC/DC
Accuracy (AC)
±8 mA and ±0.2% reading
Resolution
400 microamps
DC Reversal
±16 mA (0.16%)
Input Response Time (Step Change)
63.2% (158 V) in 50 mS 99% (248 V) in 75 mS
Data Freshness (Max)
32.3 ms
DC Common Mode Rejection
>-120 dB
AC Common Mode Rejection
>-120 dB at 60 Hz
Maximum Operating Common Mode Voltage
250 V
Isolation
1500 V
Power Requirements
5 VDC (±0.15 V) at 170 mA
Operating Temperature
-20 °C to 70 °C
Storage Temperature
-40 °C to 85 °C
Humidity
5-95%, non-condensing
Wire size
22 to 14 AWG
Torque, hold-down screws
Not to exceed 1 in-lb (0.11 N-m)
Torque, connector screws
5.22 in-lb (0.59 N-m)
Agency Approvals
UL, CE, RoHS, DFARS; UKCA, NEBS
Warranty
Lifetime
