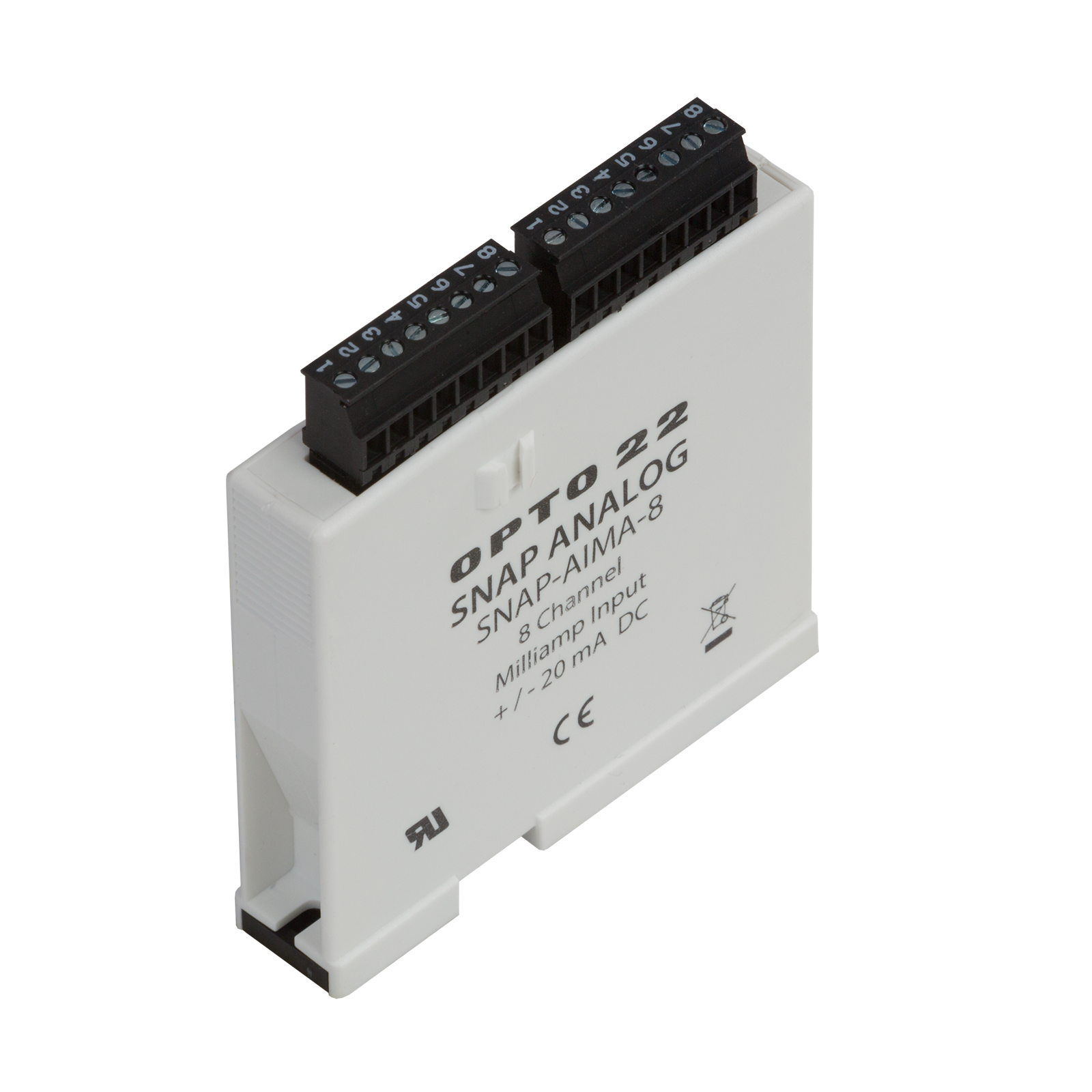

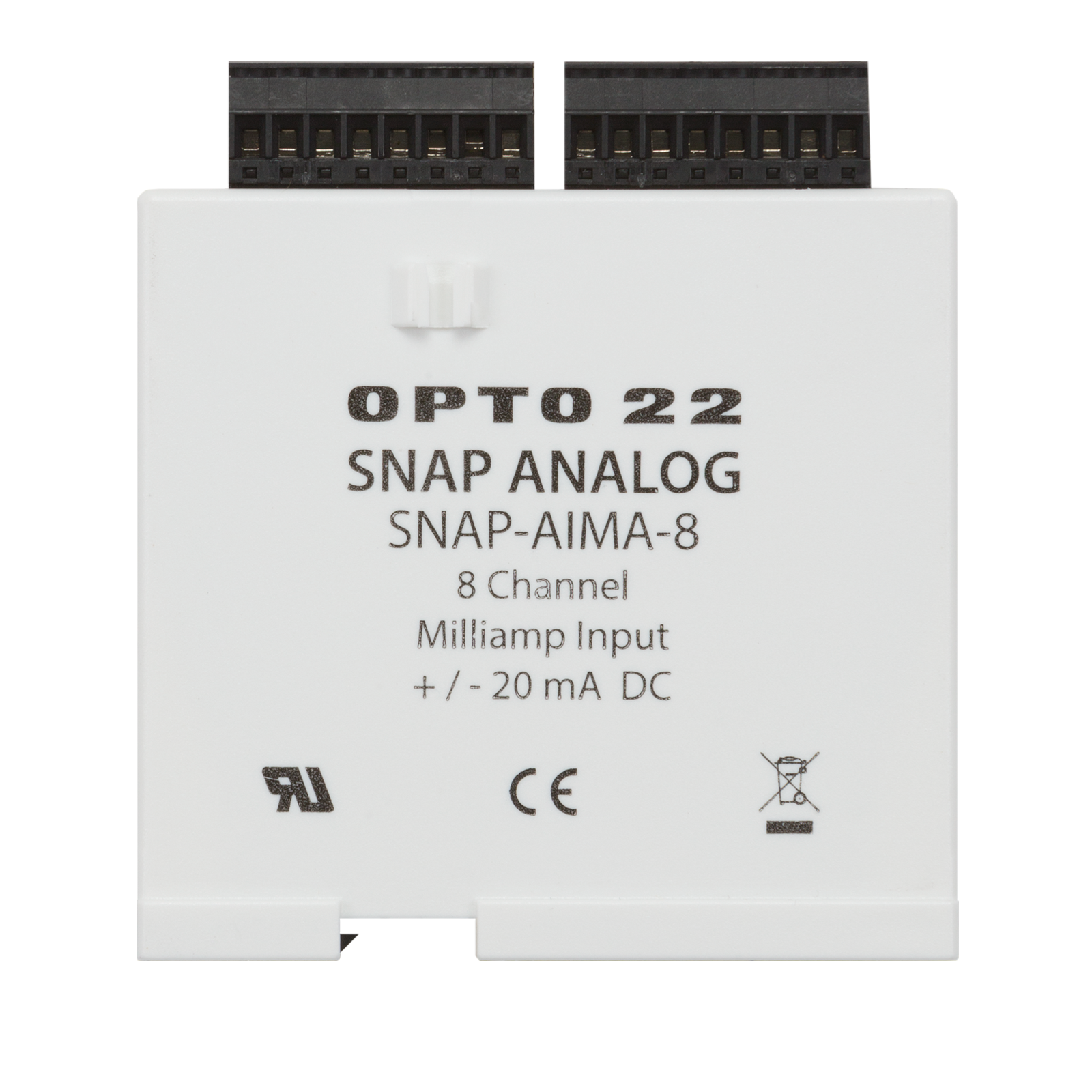

SNAP 8-Ch -20mA to +20mA Analog Current Input Module

Production Specification

The SNAP-AIMA-8 provides eight channels of -20 mA to +20 mA current input. The module does not supply loop excitation current. Although the eight channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Compatibility: This module can be used only with SNAP PAC R-series controllers, SNAP PAC EB-series Ethernet brains, and SNAP PAC SB-series serial brains.

NOTE: This module does not provide channel-to-channel isolation. If you need an isolated module, see the two-channel SNAP-AIMA-i module.

Build your system in the SNAP I/O Configurator.

Input Range

-20 mA to +20 mA

Over-Range Limits

From -22 to +22 mA
(+/-20 mA range)

Resolution

0.8 microamps

Data Freshness (Max)

0.28 seconds

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

36 mA or 9 VDC

Maximum Operating Common Mode Voltage

250 V

Accuracy

0.05% (10 microamps)

DRIFT: Gain Temperature Coefficient

30 PPM/ °C

DRIFT: Offset Temperature Coefficient

15 PPM/ °C

Isolation

1500 V

Power Requirements

5 VDC (±0.15 ) @ 170 mA

Input Resistance - Single Ended

100 ohms (all channels share the same reference point)

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

1.7 in-lb (0.19 N-m)

Agency Approvals

CE, RoHS, DFARS

Warranty

Lifetime

SNAP Analog Input Modules Data Sheet

SNAP I/O analog input modules are part of Opto 22's SNAP PAC System. This document includes descriptions, specifications, and wiring and dimensional diagrams for the following analog input modules:

For analog modules with channel-to-channel isolation, see Form 1182, the SNAP Isolated Analog Input Modules Data Sheet.
