SNAP-AIMV2-4

Availability: In stock

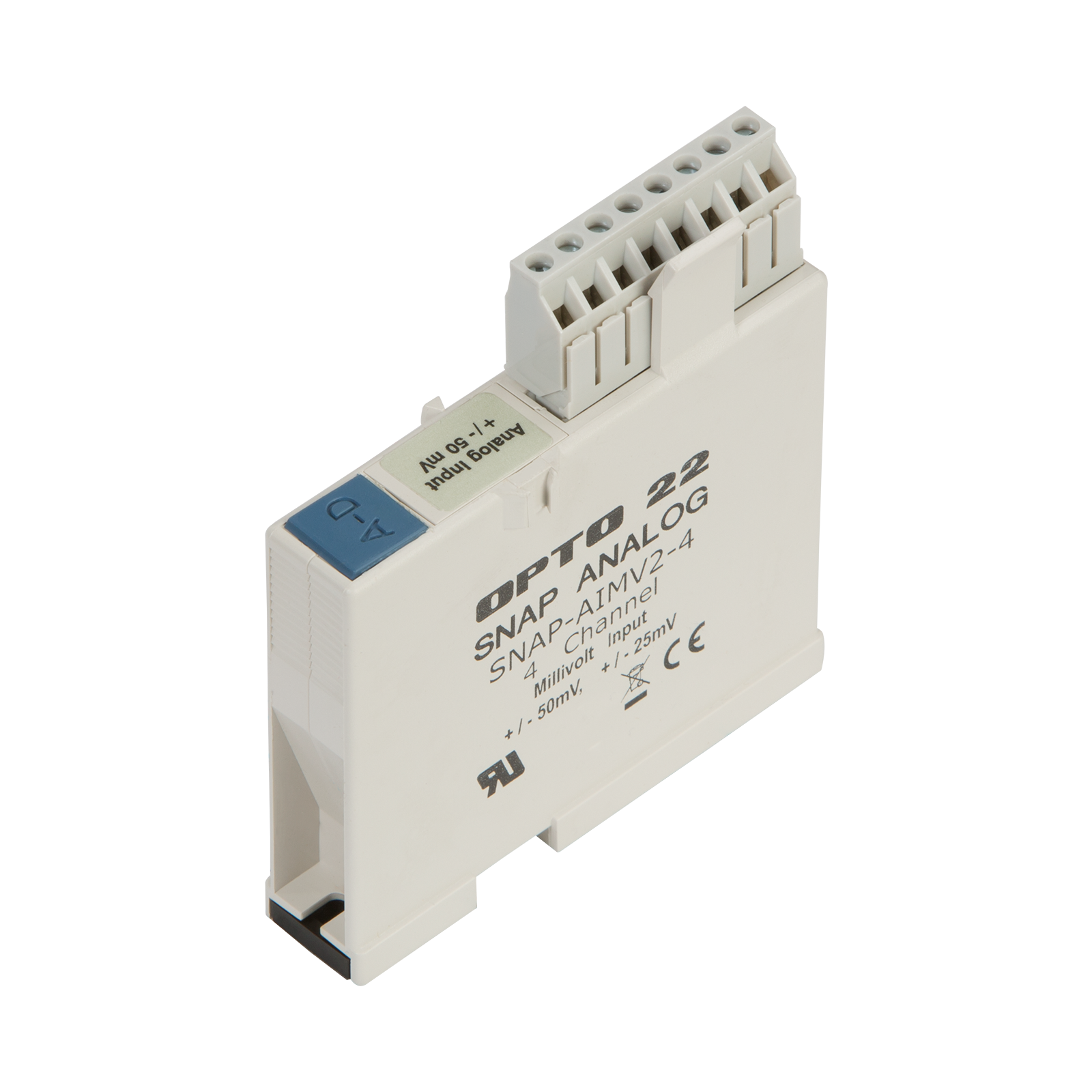

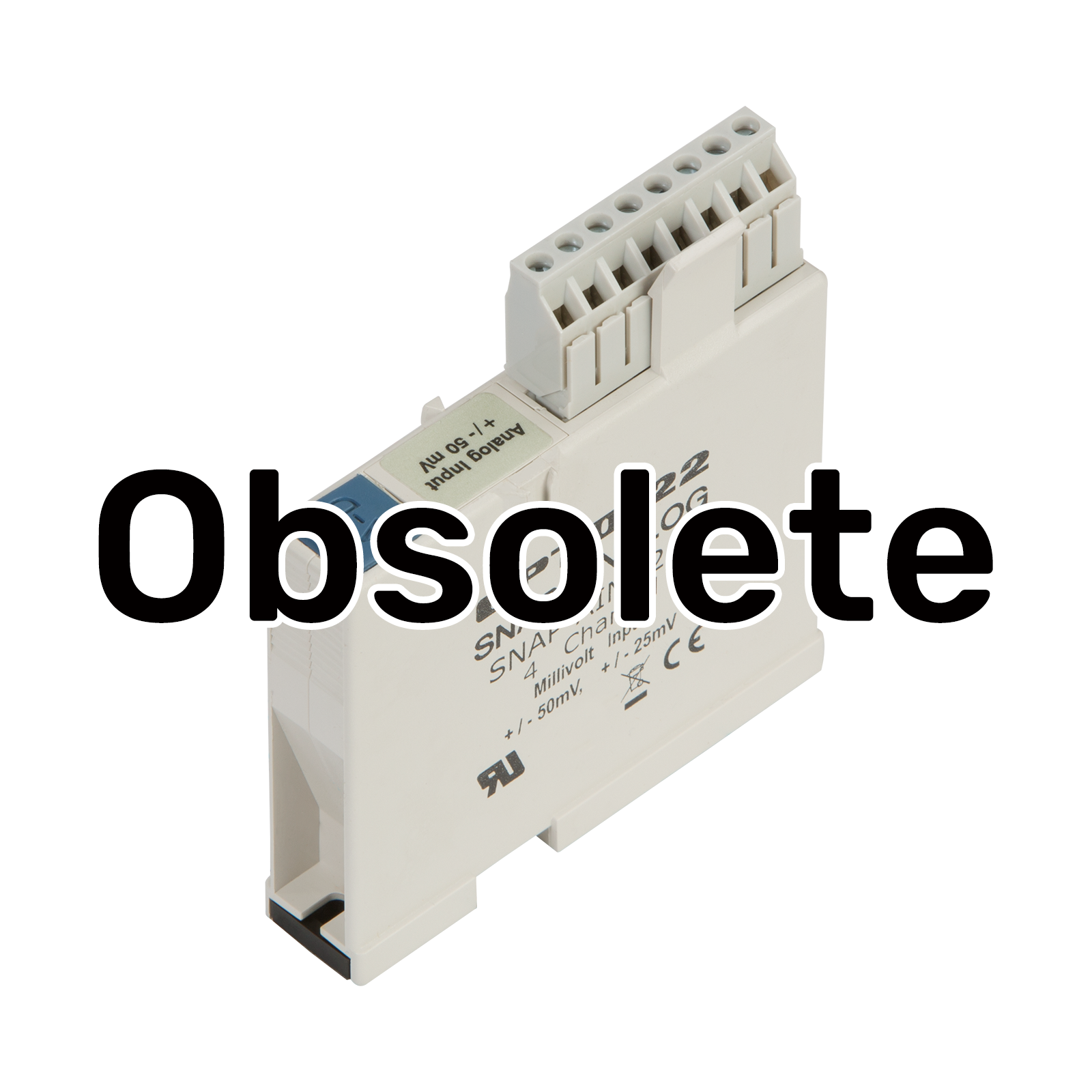

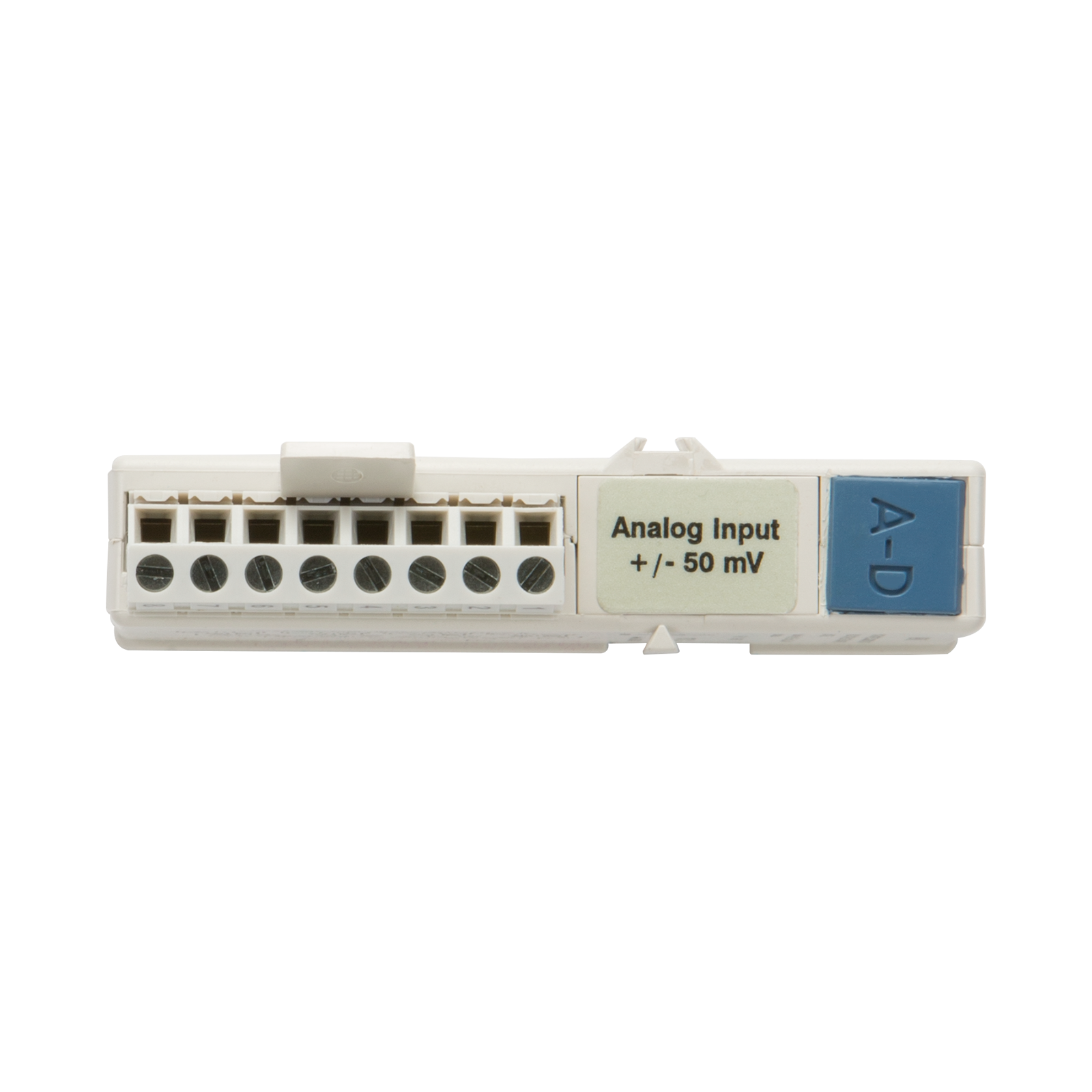

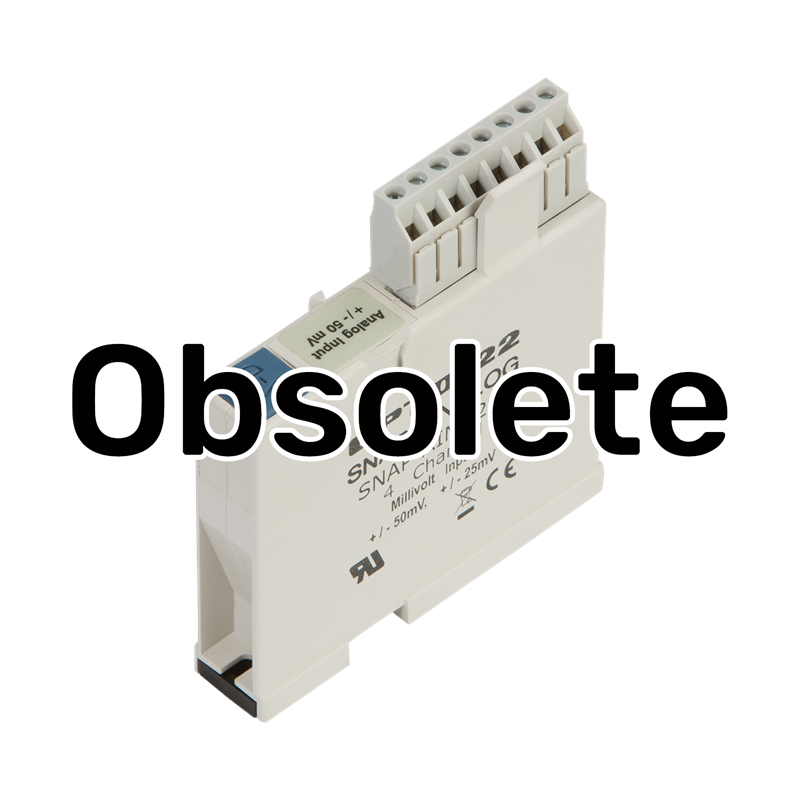

SNAP 4-Ch -50 to +50 mV Analog Input Module

Please call (800) 321-6786 to order.

SNAP-AIMV2-4

Production Specification

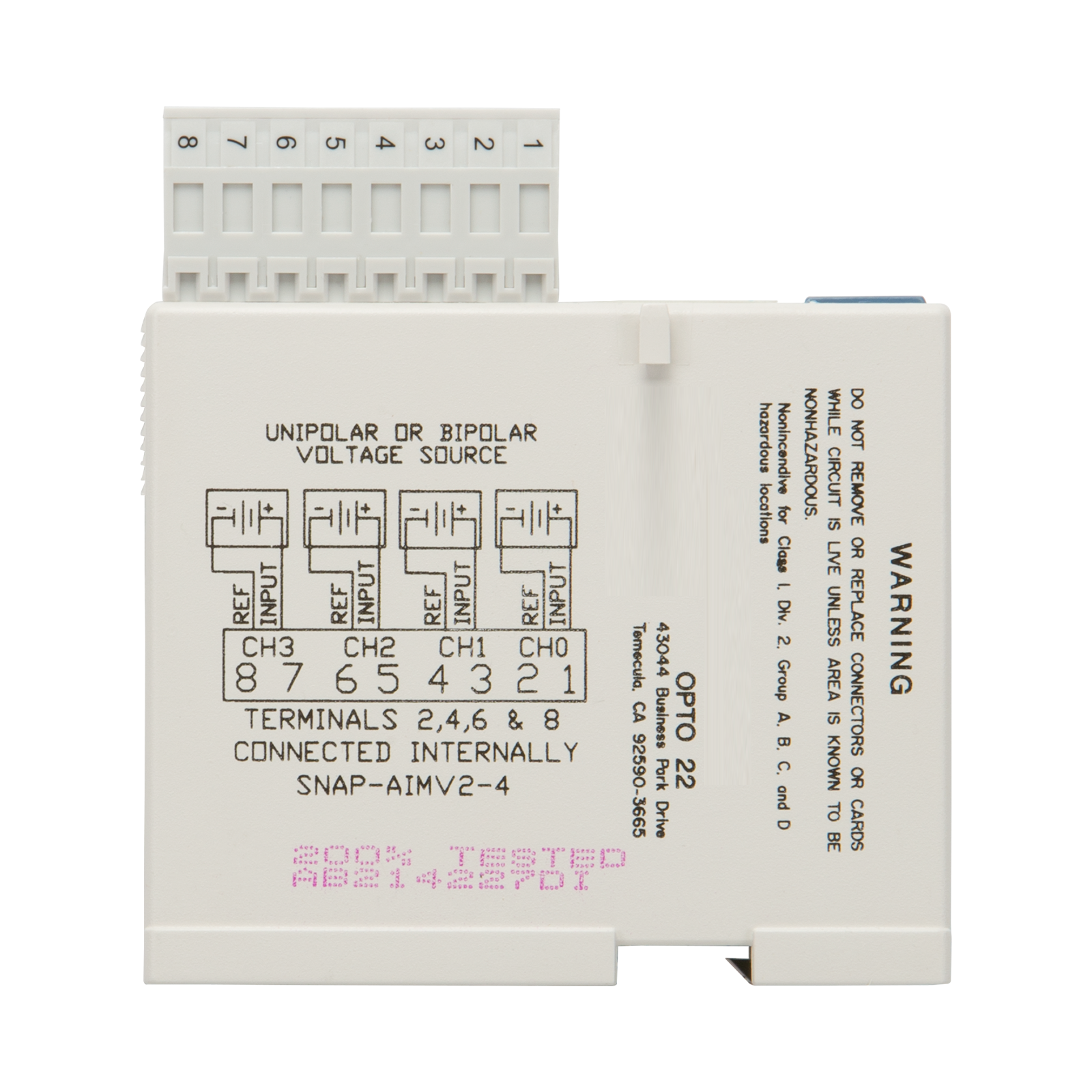

The SNAP-AIMV2-4 provides four channels of analog-to-digital conversion. Each channel can be configured for -50 mV DC to +50 mV DC or -25 mV DC to +25 mV DC.
Although the four channels are not isolated from each other, the module is transformer isolated and optically isolated from other modules and devices.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Compatibility: This module can be used with SNAP PAC brains and R-series controllers. It can also be used with legacy Ethernet-based brains.

Build your system in the SNAP I/O Configurator.

Input Range

From -50 mV to +50 mV
From -25 mV to +25m V

Over-Range Limits

From -55 to +55 mV
(+/-50 mV range)
From -27.5 to +27.5 mV
(+/-25 mV range)

Resolution

2 microvolts (-50 mV to +50 mV)
1 microvolt (-25 mV to +25 m V)

Input Filtering

-3 dB @ 2.4Hz

Input Response Time
(% of span/delta V/delta time)

63.2%/31.5 mV/66 ms

Data Freshness (Max)

335 ms (+/- 50 mV)
668 ms (+/- 25 mV)

DC Common Mode Rejection

>-120 dB

AC Common Mode Rejection

>-120 dB @ 60 Hz

Maximum Survivable Input

±15 volts

Maximum Operating Com­mon Mode Voltage

250 V

Accuracy at Full Scale

0.1% (50 microvolts) @ 50m V
0.2% (50 microvolts) @ 25 mV

Drift: Gain Temperature Coef­ficient

3 microvolts / °C

Drift: Offset Temperature Coefficient

2 microvolts / °C

Isolation

1500 V

Power Requirements

5 VDC (±0.15 ) @ 170 mA

Input Resistance - Single Ended

100 Megohms (each channel)

Operating Temperature

-20 °C to 70 °C

Storage Temperature

-40 °C to 85 °C

Wire size

22 to 14 AWG

Torque, hold-down screws

4 in-lb (0.45 N-m)

Torque, connector screws

5.26 in-lb (0.6 N-m)

Agency Approvals

UL, FM, CE, RoHS, DFARS

Warranty

Lifetime
