SNAP-ODC5MA
|
SNAP-ODC5-i
|

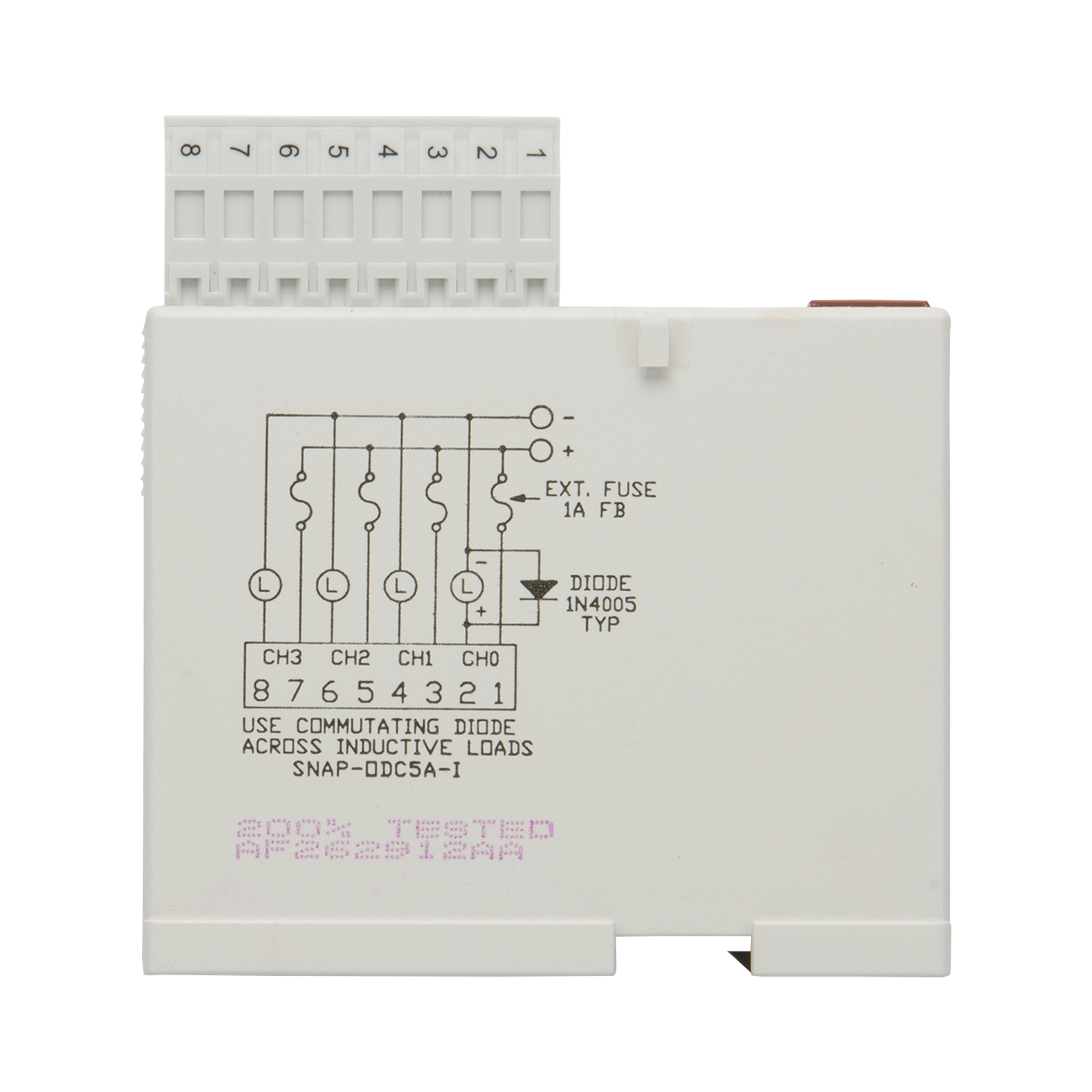

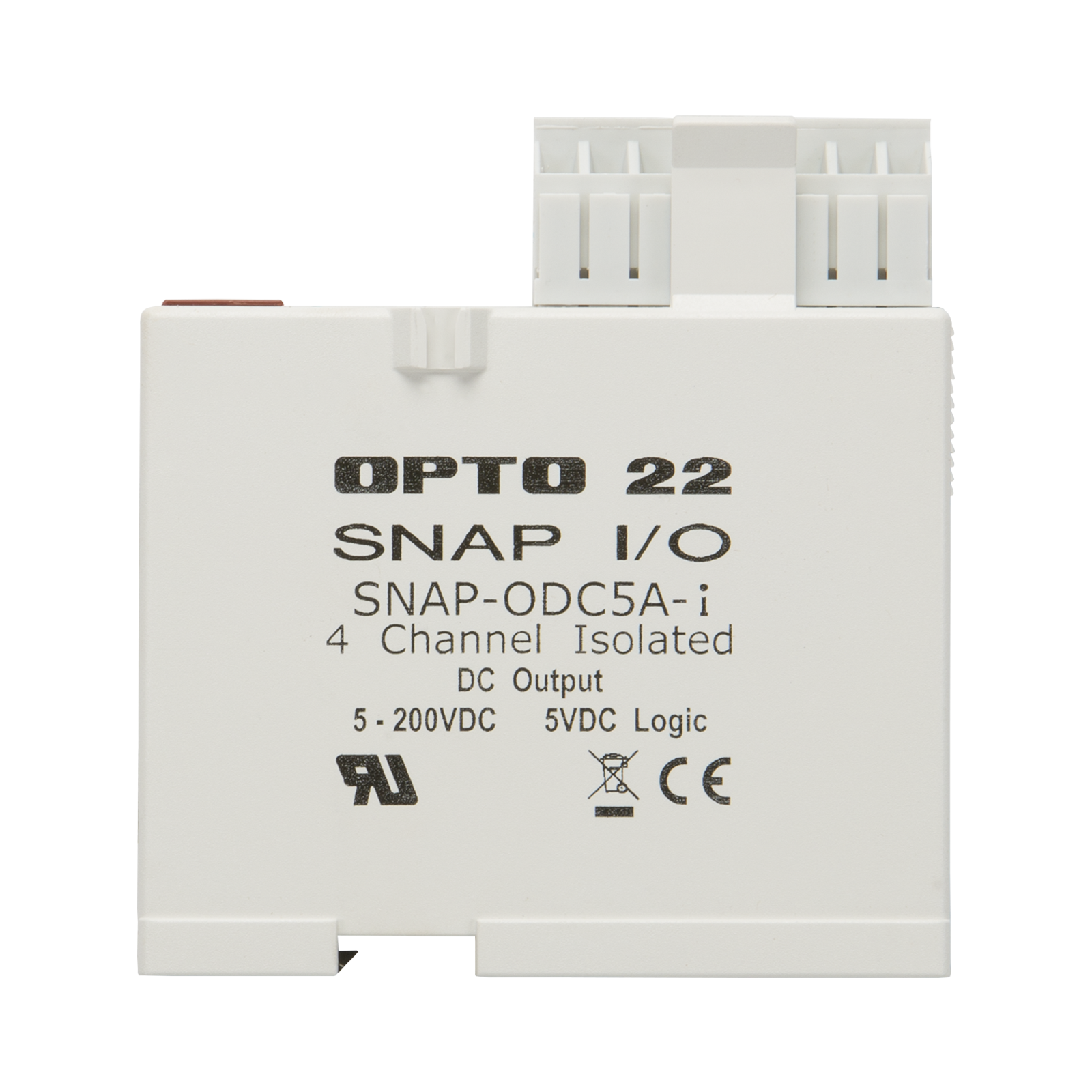

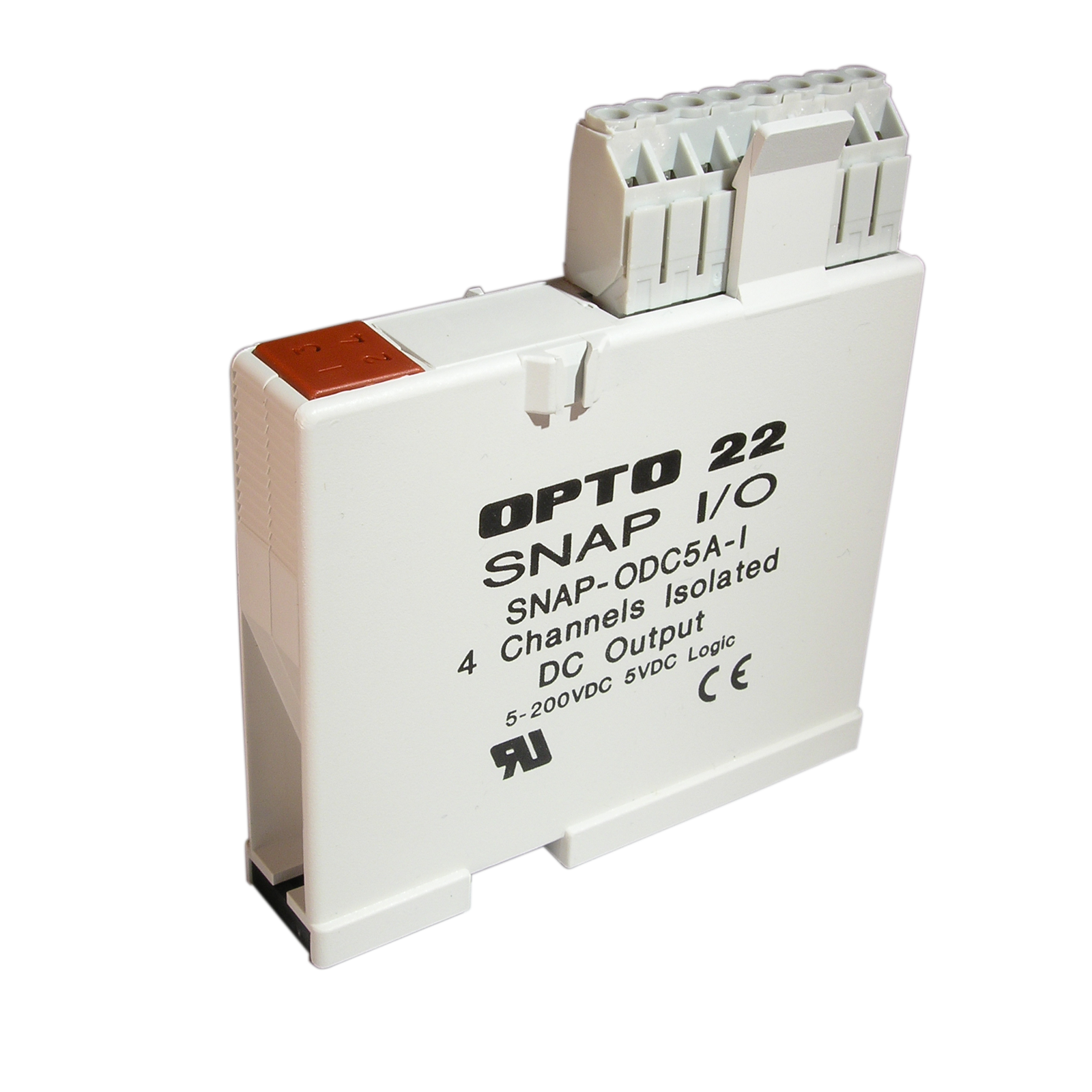

SNAP-ODC5A-i
|
SNAP-ODC5ASNK
|
|
Key Feature
|
Diagnostic switches
Four isolated channels
|
Four isolated channels
|
Four isolated channels
|
Load sinking
|
|
Torque, hold-down screws
|
Not to exceed 1 in-lb (0.11 N-m)
|
Not to exceed 1 in-lb (0.11 N-m)
|
Not to exceed 1 in-lb (0.11 N-m)
|
Not to exceed 1 in-lb (0.11 N-m)
|
|
Torque, connector screws
|
5.22 in-lb (0.59 N-m)
|
5.22 in-lb (0.59 N-m)
|
5.22 in-lb (0.59 N-m)
|
5.22 in-lb (0.59 N-m)
|
|
Field Side Ratings (each channel)
|
|
Line Voltage - Range
|
5–60 VDC
|
5–60 VDC
|
5–200 VDC
|
5–200 VDC
|
|
Line Voltage - Nominal
|
5–48 VDC
|
5–48 VDC
|
5–200 VDC
|
5–200 VDC
|
|
Current Rating
0 °C to 70 °C Ambient
|
2 amps per module
0.5 amps per channel
|
3 amps per module
|
3 amps per module
|
3 amps per module
|
|
Surge Current
|
1.5 amps peak for
1 second
|
5 amps peak for
1 second
|
5 amps peak for
1 second
|
5 amps peak for
1 second
|
|
Minimum Load
|
20 mA
|
20 mA
|
20 mA
|
20 mA
|
|
Output Voltage Drop
|
1.6 volts max.@ 0.75 amps
|
1.6 volts max.@ 0.75 amps
|
1.6 volts max.@ 0.75 amps
|
1.6 volts max.@ 0.75 amps
|
|
Off-state Leakage
|
1 mA @ 60 VDC
|
1 mA @ 60 VDC
|
1 mA @ 200 VDC
|
1 mA @ 200 VDC
|
|
Peak Blocking Voltage
|
60 VDC
|
60 VDC
|
200 VDC
|
200 VDC
|
|
Fuse
(Common to all Channels)
|
Has four isolated
channels. User must provide own fusing.
|
Has four isolated
channels. User must provide own fusing.
|
Has four isolated
channels. User must provide own fusing.
|
250 VAC - 4A 5x20 mm
Fast-acting Bell Fuse Part: BEL 5HF4
Opto 22 Part: SNAP-FUSE4AB
|
|
Channel-to-channel
isolation
|
300 VAC
(1500 V transient)
|
300 VAC
(1500 V transient)
|
300 VAC
(1500 V transient)
|
Not applicable
|
|
Logic Side Ratings
|
|
Pickup Voltage
|
4 V @ 5.5 mA
|
4 V @ 5.5 mA
|
4 V @ 5.5 mA
|
4 V @ 5.5 mA
|
|
Dropout Voltage
|
1 VDC
|
1 VDC
|
1 VDC
|
1 VDC
|
|
Control Resistance
|
220 ohms
|
220 ohms
|
220 ohms
|
220 ohms
|
|
Logic Supply Voltage
|
5 VDC ± 0.25 VDC
|
5 VDC ± 0.25 VDC
|
5 VDC ± 0.25 VDC
|
5 VDC ± 0.25 VDC
|
|
Logic Supply Current
|
50 mA maximum
|
50 mA maximum
|
50 mA maximum
|
50 mA maximum
|
|
Module Ratings
|
|
Number of Channels Per Module
|
4
|
4
|
4
|
4
|
|
Turn-on Time
|
100 usec
|
100 usec
|
100 usec
|
100 usec
|
|
Turn-off Time
|
750 usec
|
750 usec
|
750 usec
|
750 usec
|
|
Isolation (Field Side to Logic Side)
|
4,000 volts (transient)
|
4,000 volts (transient)
|
4,000 volts (transient)
|
4,000 volts (transient)
|
|
Temperature
|
-20 ° to 70 °C, operating
-40 ° to 85 °C, storage
|
-20 ° to 70 °C, operating
-40 ° to 85 °C, storage
|
-20 ° to 70 °C, operating
-40 ° to 85 °C, storage
|
-20 ° to 70 °C, operating
-40 ° to 85 °C, storage
|
|
Wire size range
|
22 to 14 AWG
|
22 to 14 AWG
|
22 to 14 AWG
|
22 to 14 AWG
|
|
Agency Approvals
|
UL, CE, RoHS, DFARS; UKCA
|
UL, CE, RoHS, DFARS; UKCA
|
UL, CE, RoHS, DFARS; UKCA
|
UL, CE, RoHS, DFARS; UKCA
|
|
Warranty
|
30 months
|
Lifetime
|
Lifetime
|
Lifetime
|
