(USA and Canada only)
Torque, hold-down screws
Not to exceed 1 in-lb (0.11 N-m)
Torque, connector screws
5.22 in-lb (0.59 N-m)
Field Side Ratings (each channel)
Line Voltage - Range
Line Voltage - Nominal
Current Rating 0 °C to 70 °C Ambient
3 amps per module
5 amps peak for
Output Voltage Drop
1.6 volts max.@ 0.75 amps
1 mA @ 60 VDC
Peak Blocking Voltage
(Common to all Channels)

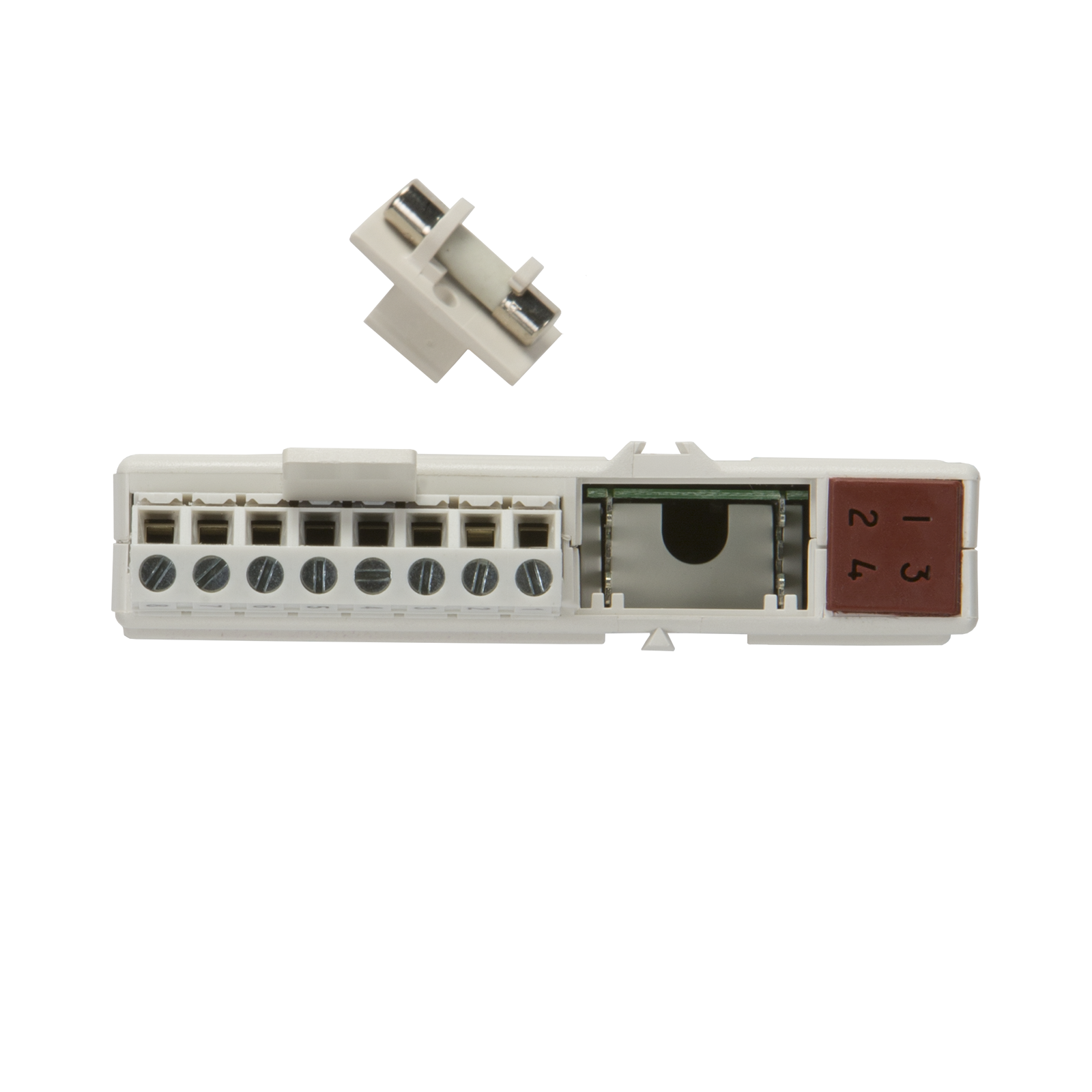

250 VAC - 4A 5x20 mm
Fast-acting Bell Fuse Part No. BEL 5HF4
Opto 22 Part SNAP-FUSE4AB
Logic Side Ratings
4 V @ 5.5 mA
Logic Supply Voltage
5 VDC ± 0.25 VDC
Logic Supply Current
50 mA maximum
Number of Channels Per Module
Isolation (Field Side to Logic Side)
4,000 volts (transient)
-20 to 70 °C, operating
-40 to 85 °C, storage

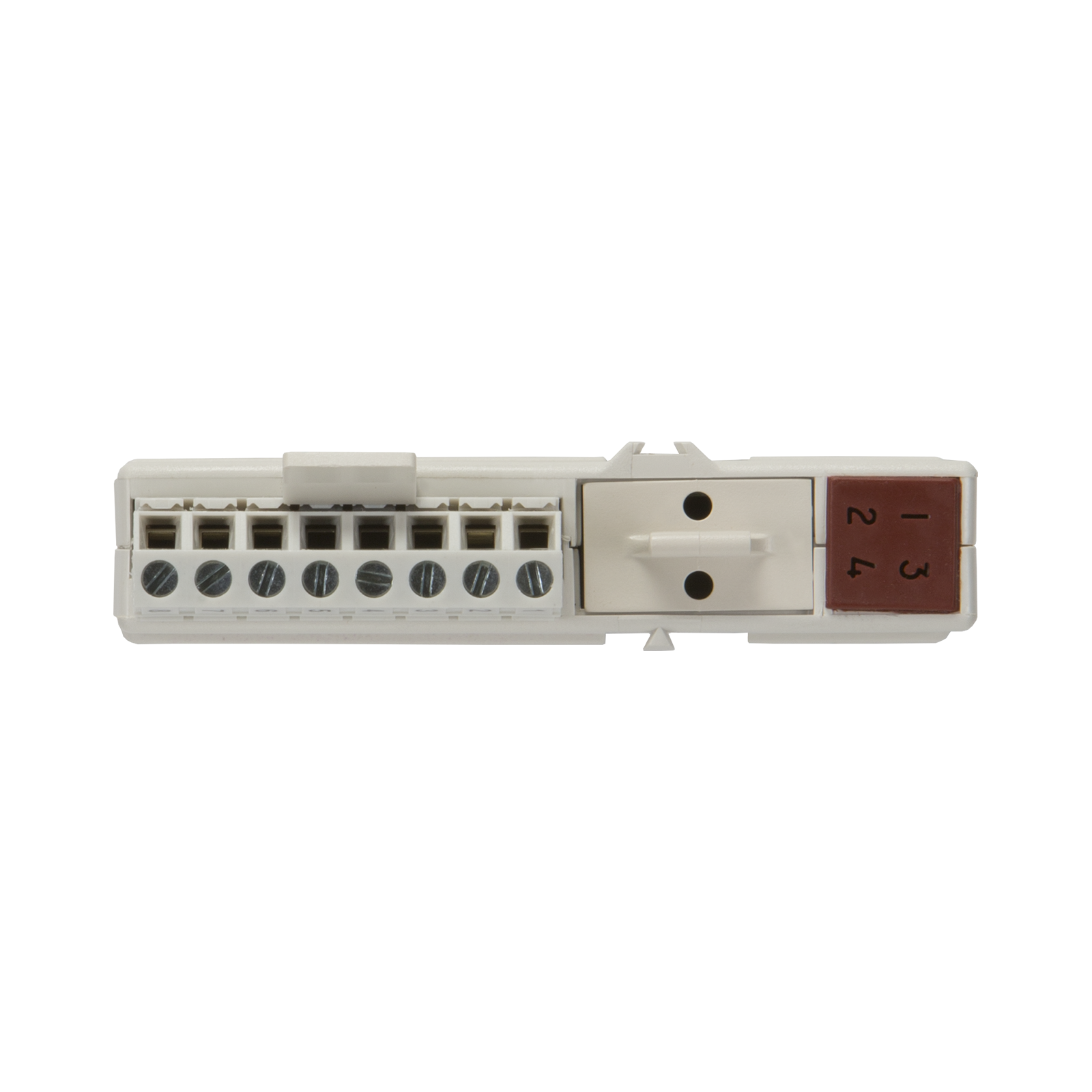

Wire size range
22 to 14 AWG
UL, CE, CSA, RoHS, DFARS; UKCA
This document lists and describes all current Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

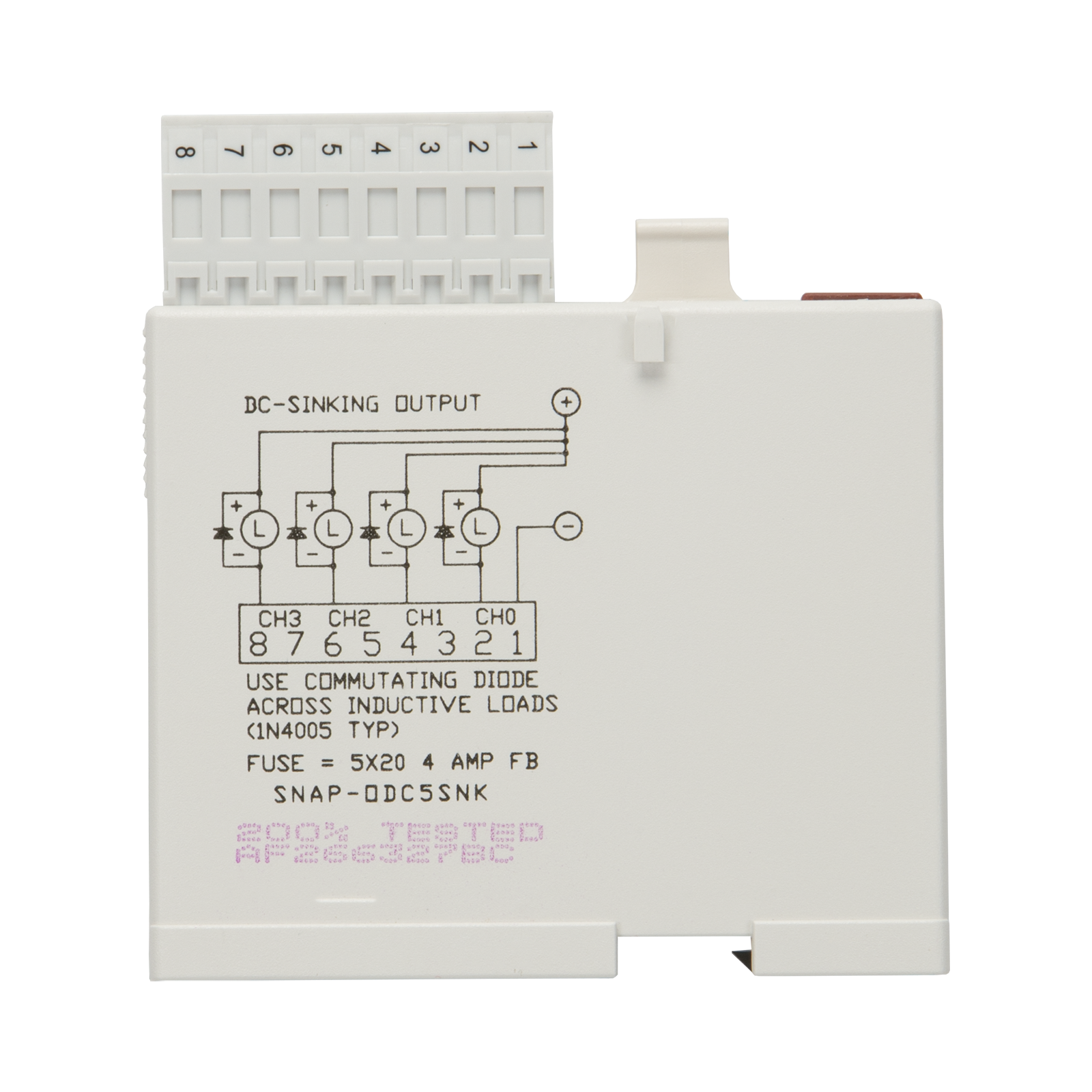

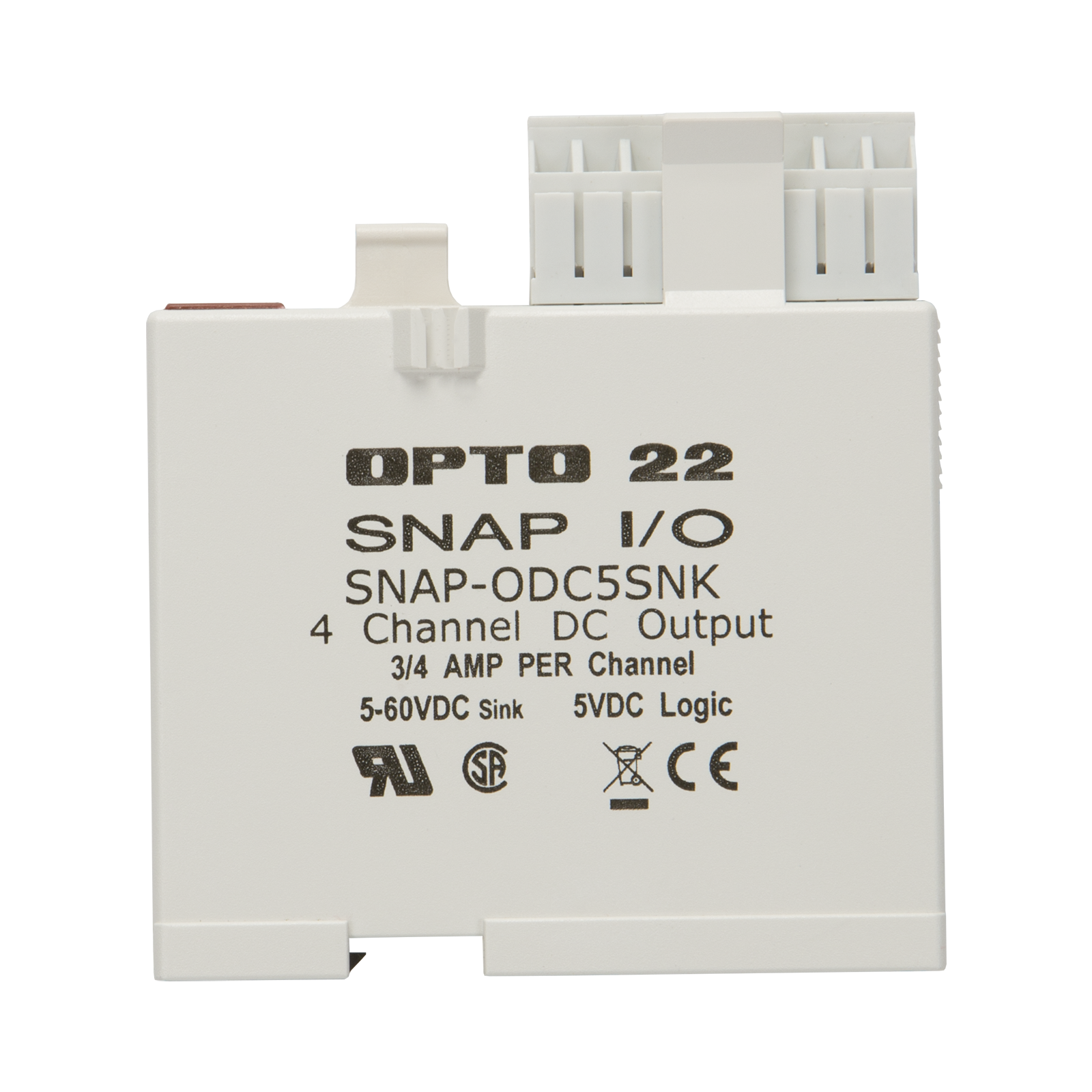

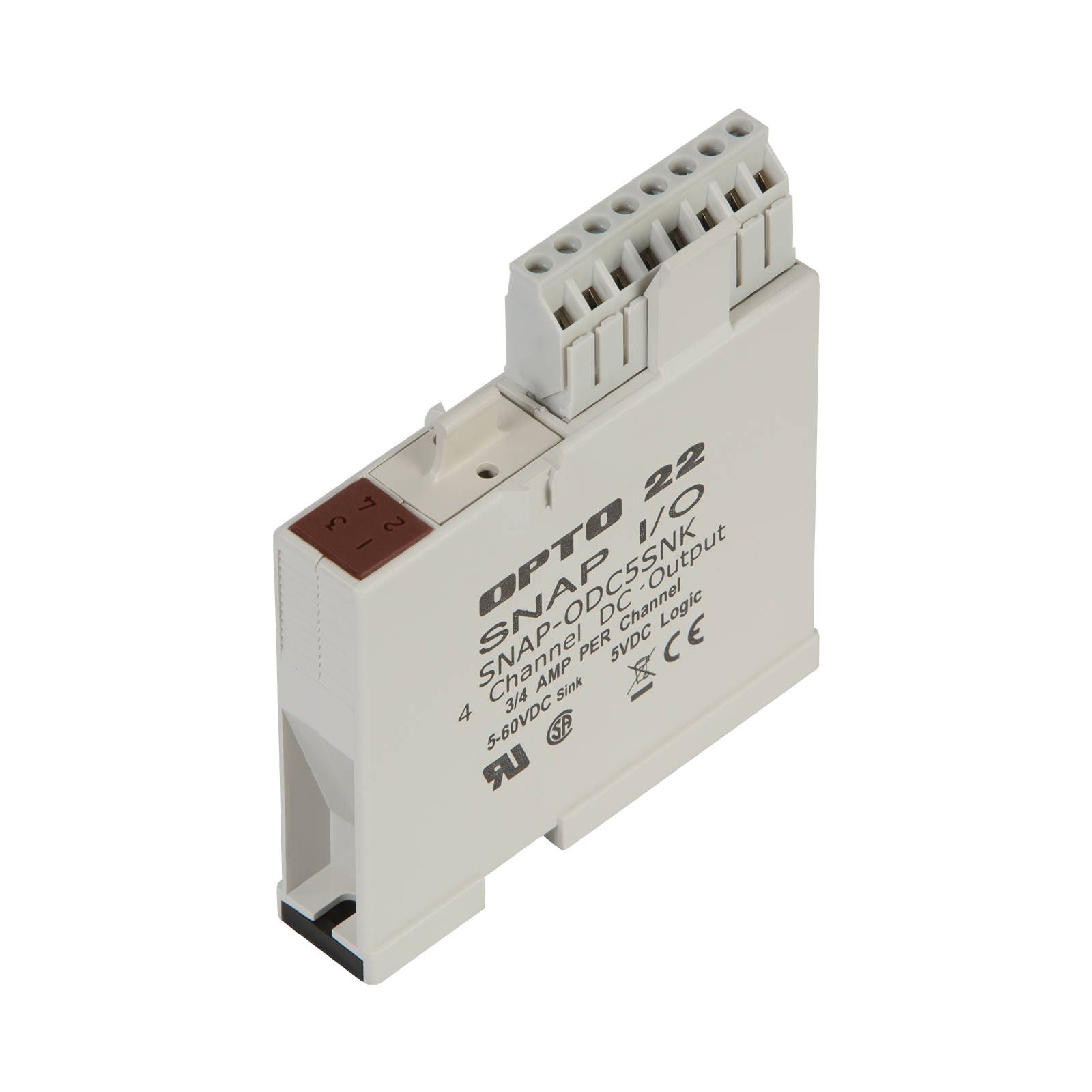

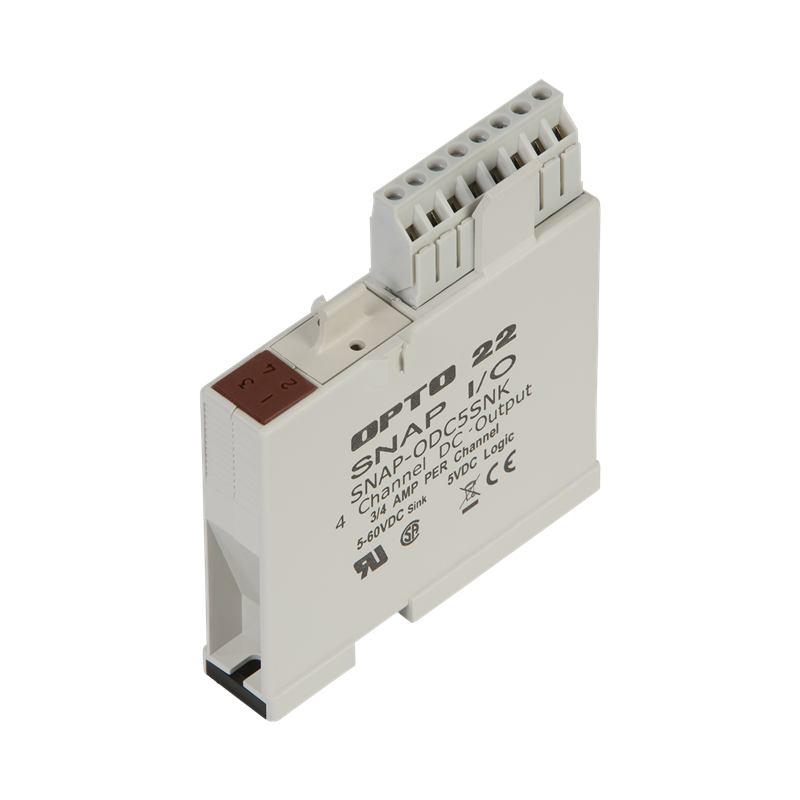

Opto 22 SNAP digital output modules are designed to mount on SNAP PAC racks and be used with SNAP PAC brains and R-series controllers, both standard wired and Wired+Wireless models. You can choose from AC or DC output modules.
These modules are also compatible with SNAP D-series and legacy M-series and B-series racks, and they can be used with legacy Ethernet-based brains as well as other SNAP brains, such as the serial B3000 or the B3000-HA.
This data sheet covers the following part numbers:
