OPTO-P1-40P
Hover over image to zoom in

OPTO-P1-40P

$184.00 (USA and Canada only)

Availability: In stock

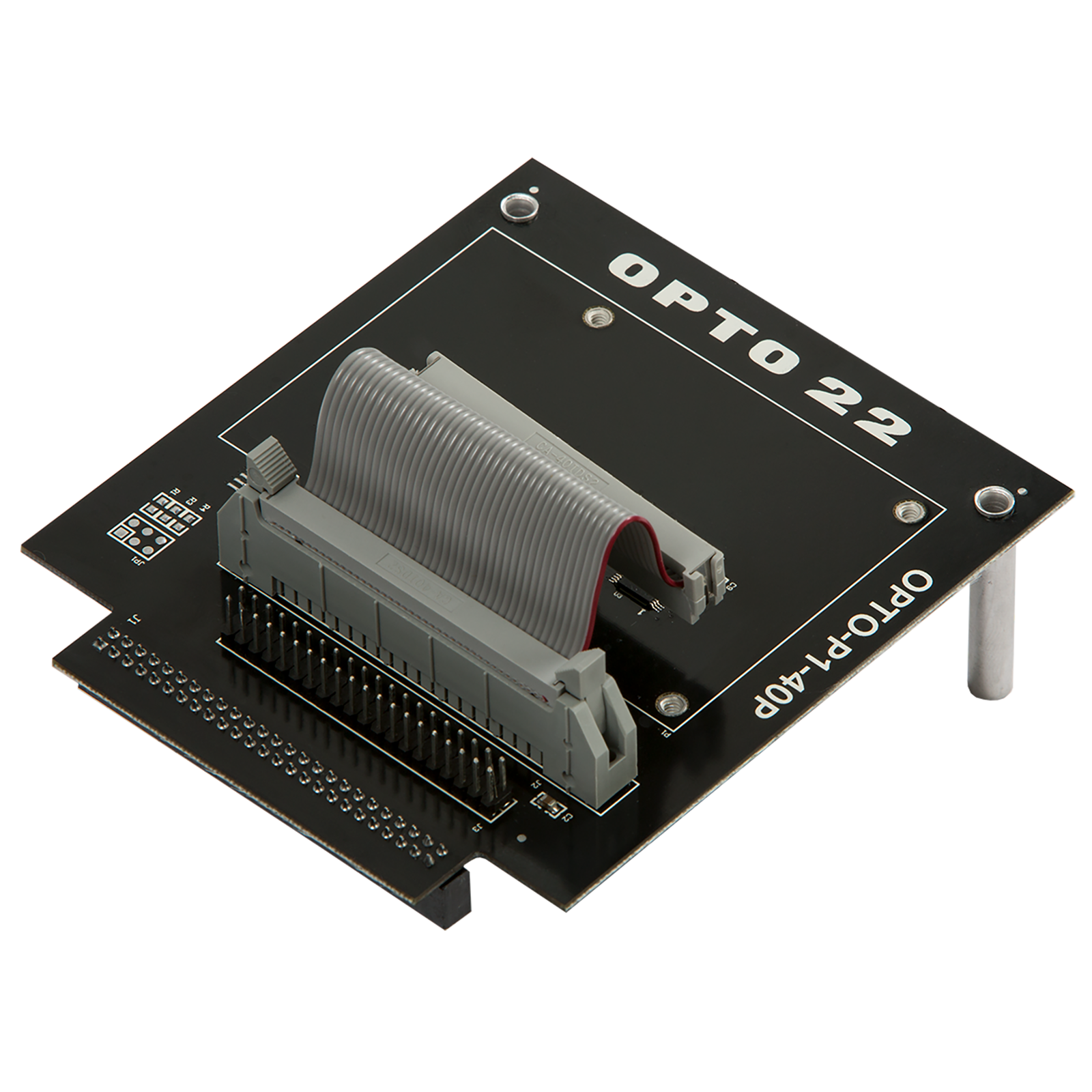

Digital I/O Carrier Board for Raspberry Pi

Production Specification

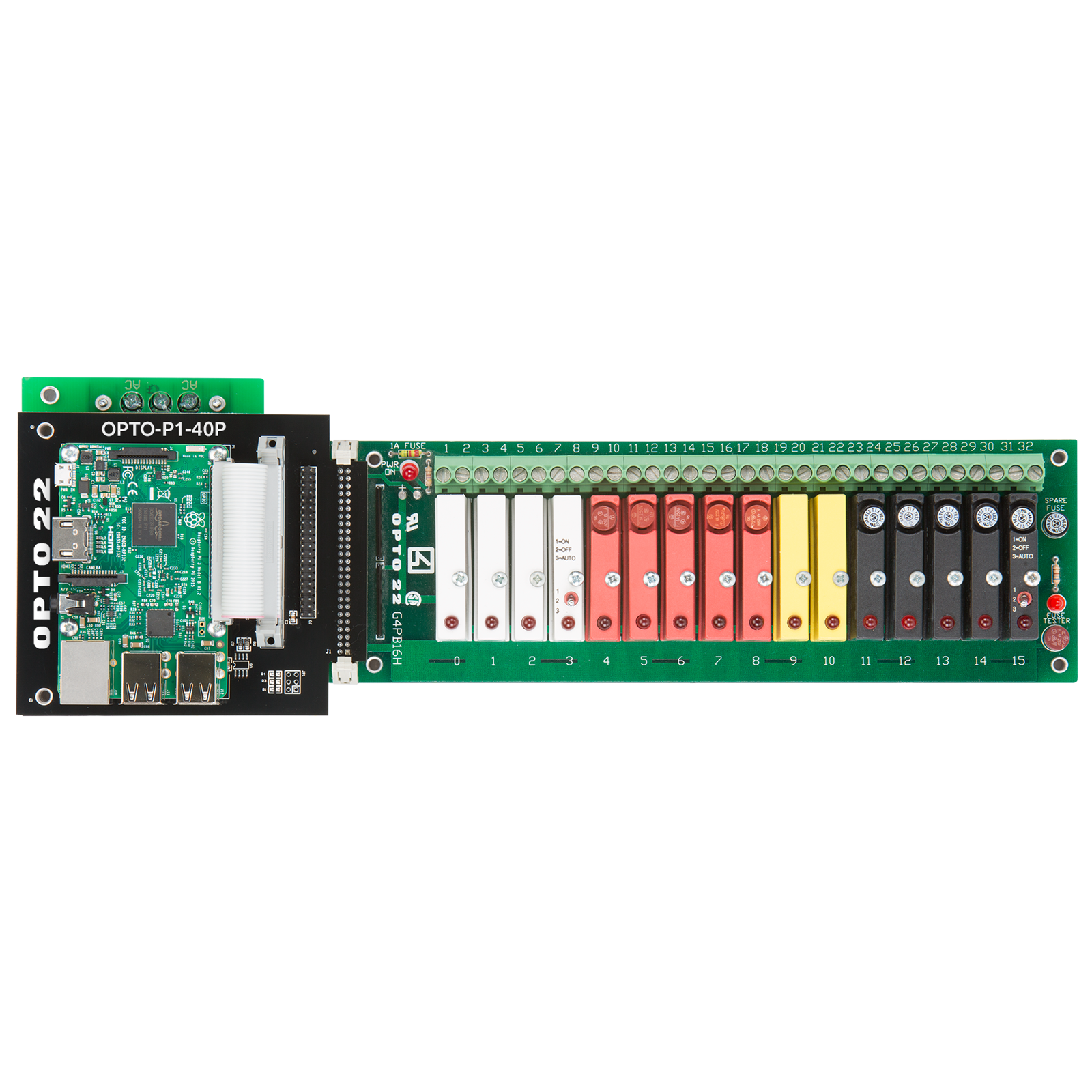

The Digital I/O Carrier Board for Raspberry Pi® lets you switch industrial-level electrical loads with your Raspberry Pi. Control real-world devices like industrial motors, pumps, and sensors by using your Pi to read and write to up to 16 digital I/O modules.

Great for prototyping IIoT solutions, proofs of concept, and projects where an industrially hardened controller isn't required. (Raspberry Pi, I/O modules, mounting rack, and power supply all sold separately.)

Compatible with any model Pi with a 40-pin header connector, including Models A+ and B+, Pi 2 Model B, Pi 3 Model B, Pi 4 Model B, and Pi Zero.

Or get our Digital I/O Starter Kit which includes the Carrier Board, mounting rack, and four G4 modules.

More information on I/O choices and what you need.

Interface connectors
* Raspberry Pi
* I/O rack


Two 40-pin GPIO header connectors
One 50-conductor header connector

Operating temperature

-20 to 70 °C

Storage Temperature

-40 to 85 °C

Relative Humidity

95%, non-condensing

Agency Approvals

CE, RoHS, DFARS

Warranty

30 months from date of manufacture

Digital I/O Carrier Board for Raspberry Pi Data Sheet

With Opto 22's Digital I/O Carrier Board for Raspberry Pi®, you can control industrial-level loads with a Raspberry Pi. Great for prototyping IIoT solutions, proofs of concepts, and projects where an industrially hardened controller isn't required.

In addition to Carrier Board specifications, this data sheet lists compatible I/O modules, mounting racks, and power supplies. (Raspberry Pi, I/O modules, mounting rack, and power supply are sold separately.)

Digital I/O for Raspberry Pi Selection Guide

Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O.

This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included.

For code samples and steps to get started, also see developer.opto22.com.

Build a Raspberry Pi with Node-RED and Industrial I/O

The Raspberry Pi® is a tiny, powerful, inexpensive computer, capable of many tasks. Couple the Pi to industrial, solid-state Opto 22 digital inputs and outputs, and you can build cost-effective solutions for commercial and industrial applications.

This technical note (also a blog post on our website), shows you step-by-step how to set up your Pi to use the free, open-source software tool Node-RED with industrial I/O.

Opto 22 conecta dispositivos industriales del mundo real a millones de Raspberry Pi con el lanzamiento de una tarjeta de montaje, Digital I/O Carrier Board para Raspberry Pi

Opto 22 conecta dispositivos industriales del mundo real a millones de Raspberry Pi® con el lanzamiento de una tarjeta de montaje, Digital I/O Carrier Board para Raspberry Pi.

El Digital I/O Carrier Board destaca el camino para que los desarrolladores de Raspberry Pi diseñen y implementen soluciones basadas en Pi para aplicaciones industriales y comerciales.

Ver vídeos:

OPTO-P1-40P Tablero de Montaje para Raspberry Pi

Todo Automatizado Cañón de Confeti

Opto 22 connects real-world industrial devices to millions of Raspberry Pi single-board computers with release of Digital I/O Carrier Board for Raspberry Pi

Opto 22 connects real-world industrial devices to millions of Raspberry Pi® single-board computers with release of Digital I/O Carrier Board for Raspberry Pi.

The Digital I/O Carrier Board blazes a trail for Raspberry Pi developers to design and deploy Pi-based solutions for industrial and commercial applications.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CAD 3D Drawing: OPTO-P1-40P Digital I/O Carrier Board for Raspberry Pi

This CAD file contains a three-dimensional drawing of the OPTO-P1-40P digital I/O carrier board for Raspberry Pi. The drawing applies to the following part numbers:

Video: RPI3 OPTO SNAP Assemble

A quick look at the RP13 OPTO SNAP Assemble.
