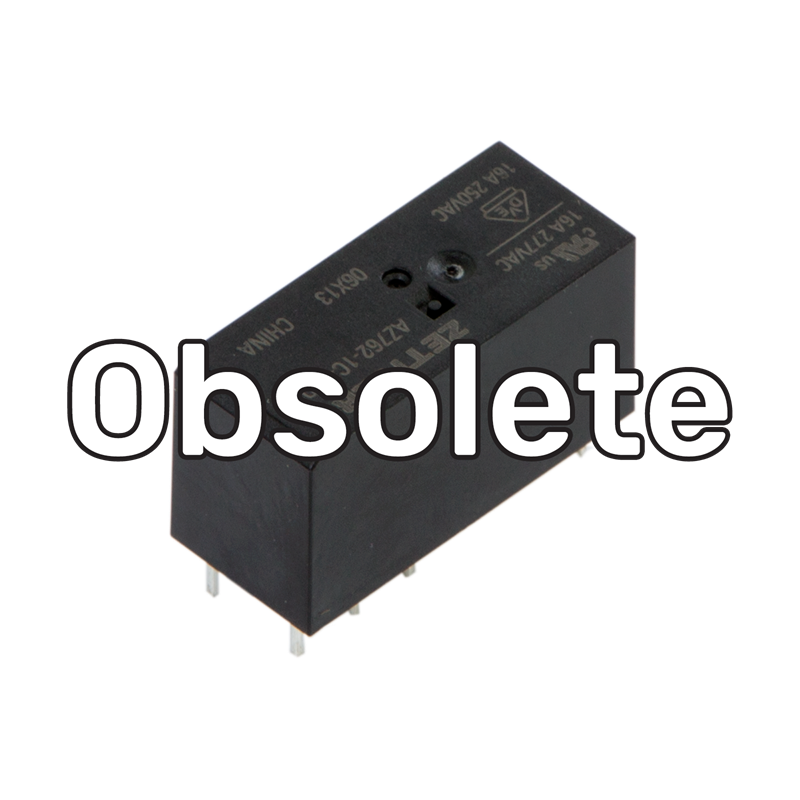

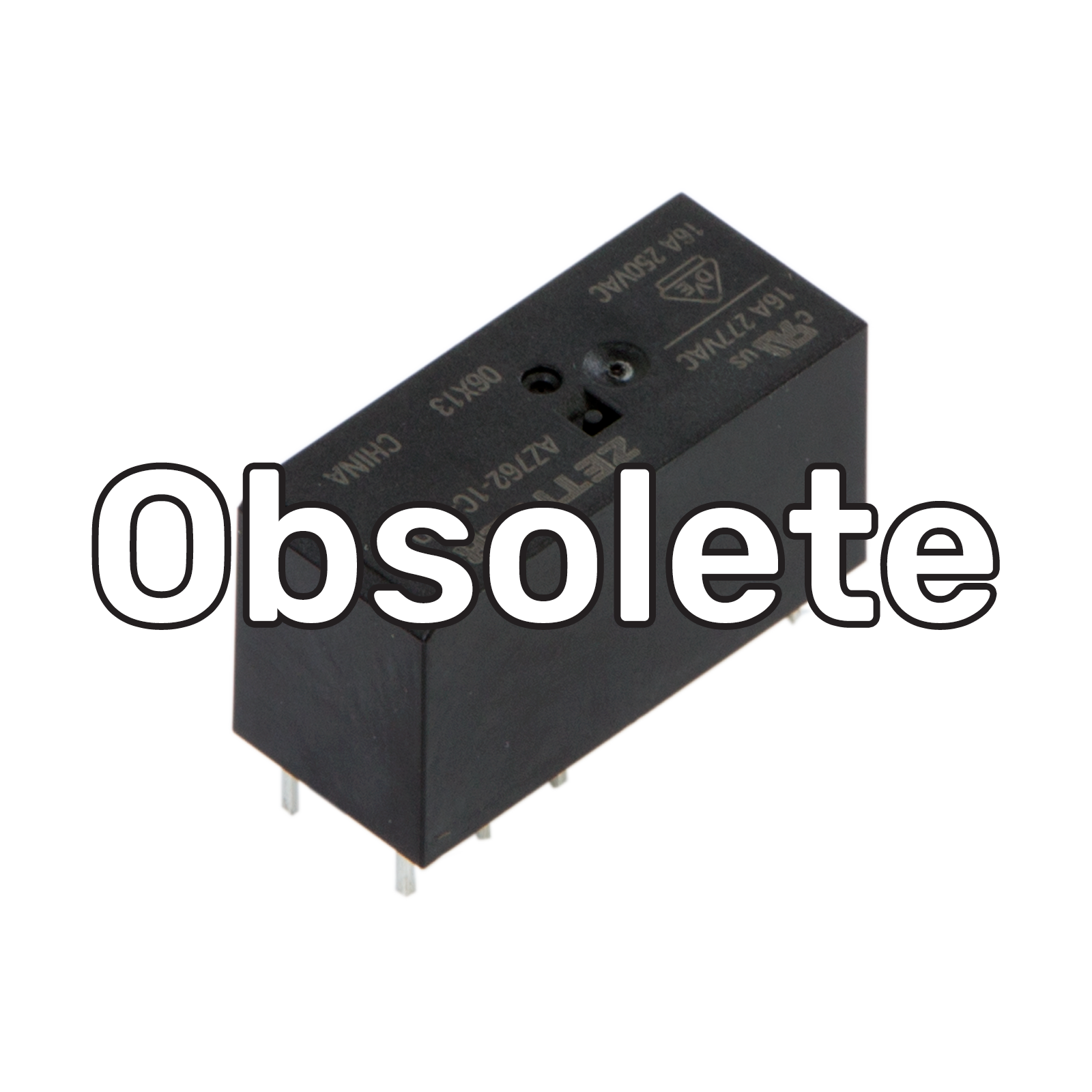

Availability: Obsolete

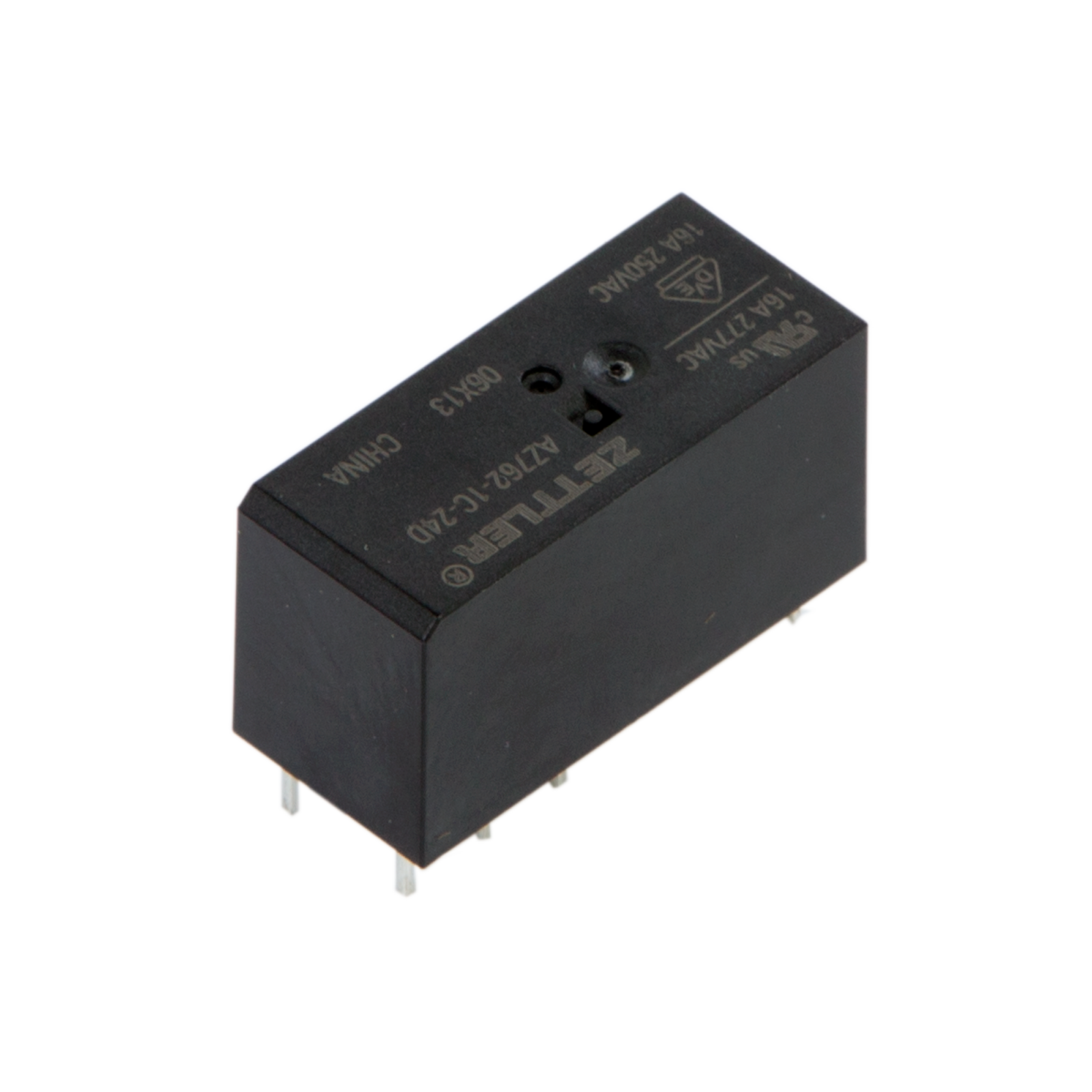

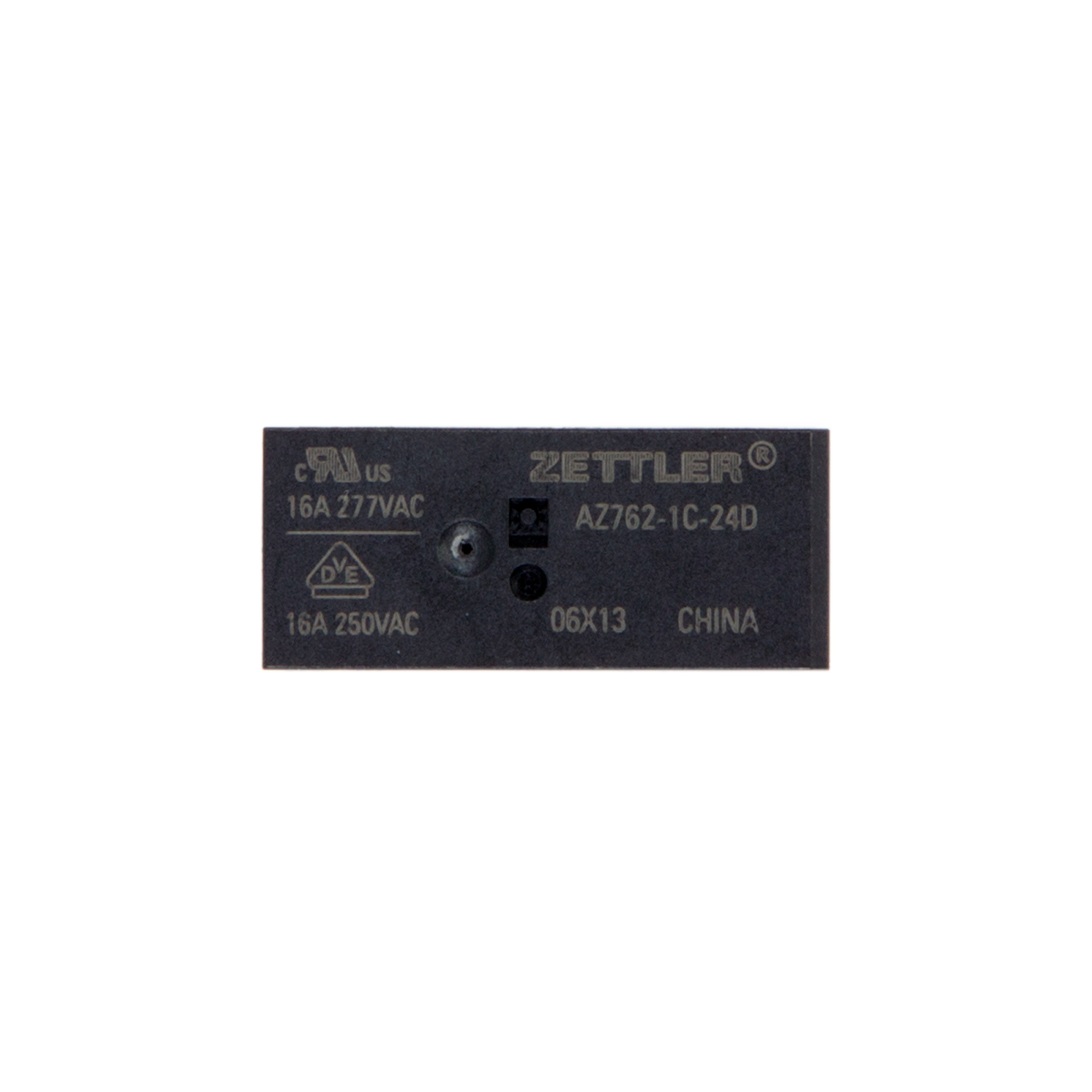

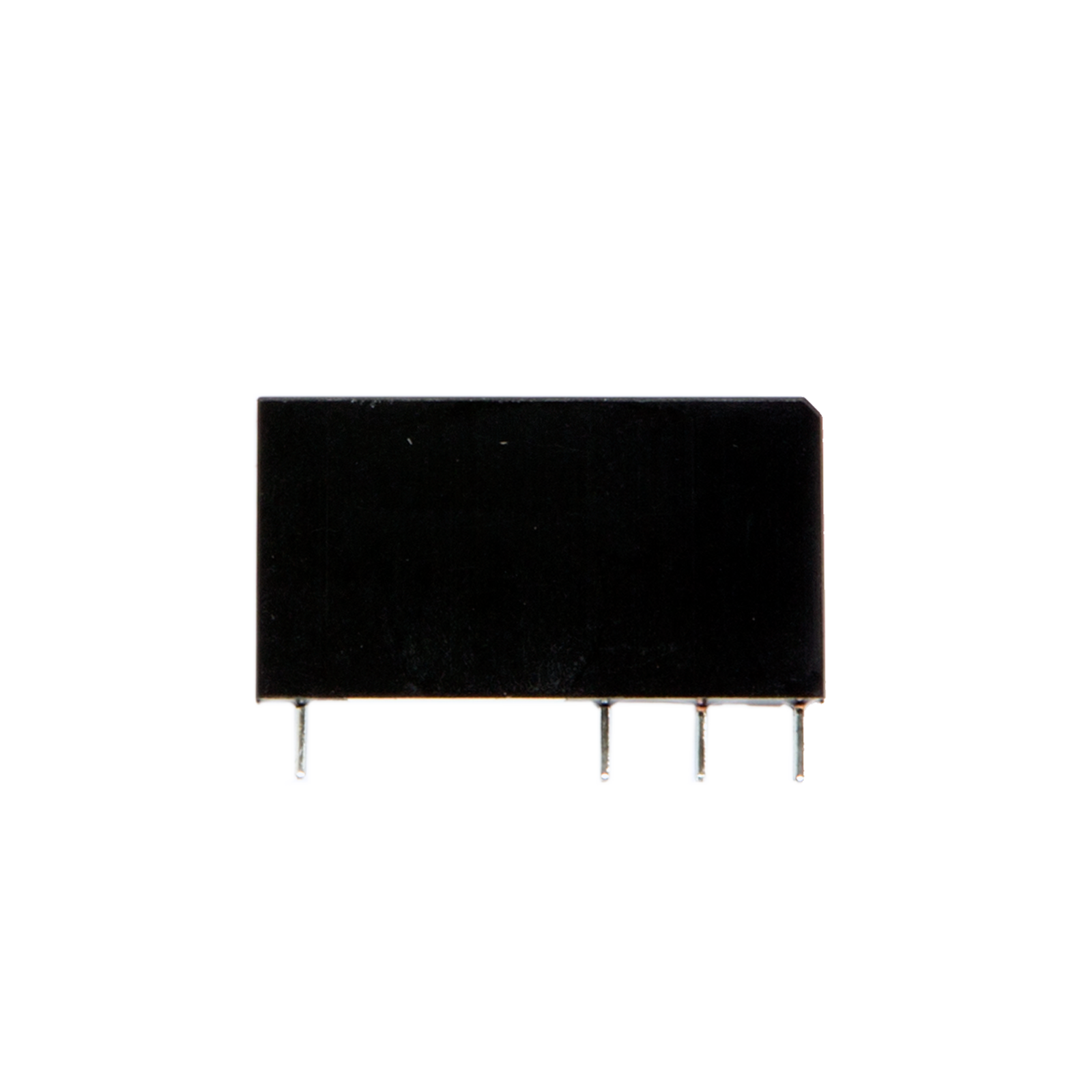

OBSOLETE SNAP Replacement Mechanical Relay for Breakout Boards, 10 A

Production Specification

*** NOTE: This part is OBSOLETE and no longer available. ***

The SNAP-MR10 is a replacement relay and clip for the SNAP-TEX-MR10-16 and the SNAP-TEX-MR10-4 breakout boards.
*** NOTE: This part is OBSOLETE and no longer available. ***

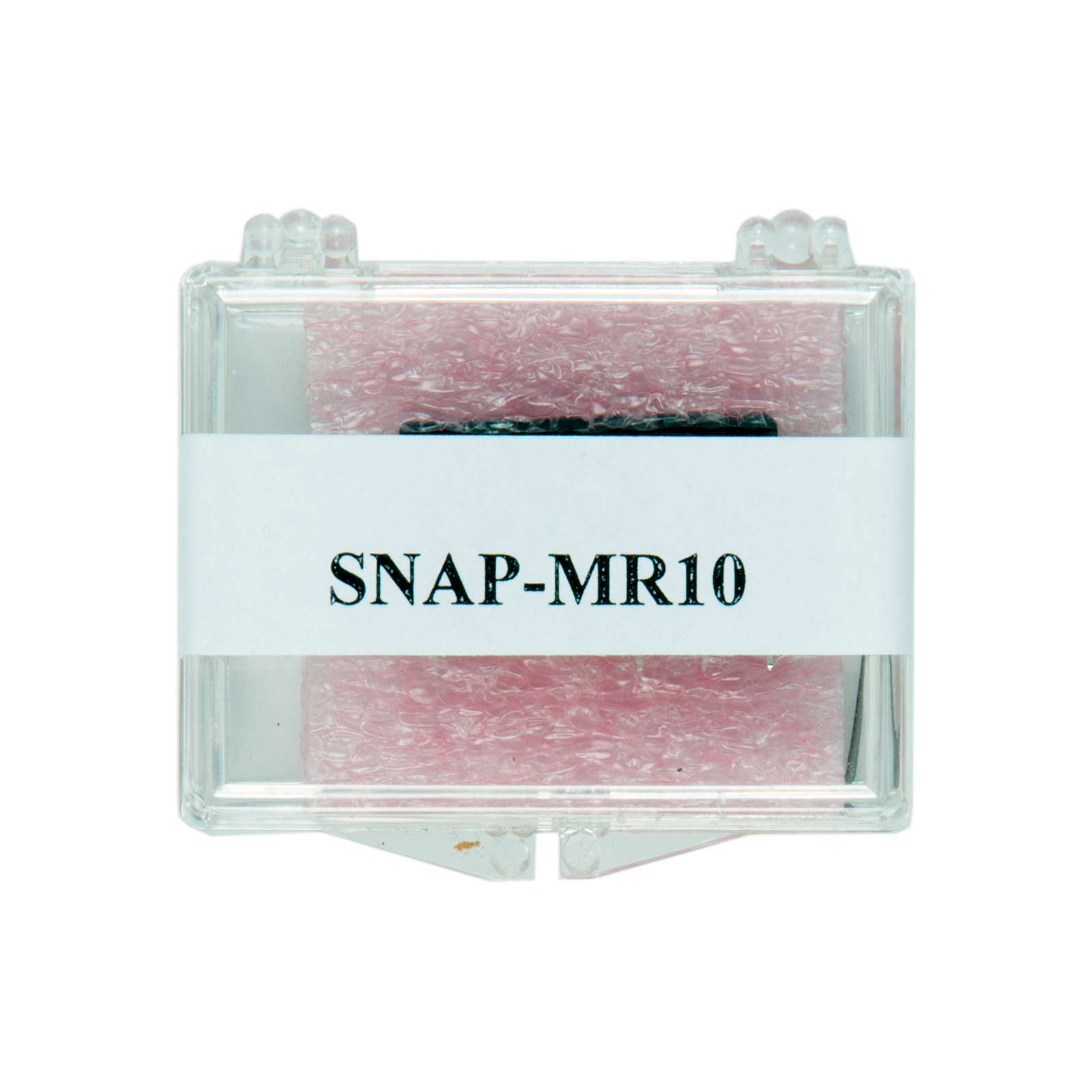

Mechanical relay, 10 amps Clip included

SNAP TEX Mounting/Wiring Tools and Spare Parts Data Sheet

SNAP TEX wiring and mounting accessories are covered in two data sheets. This document includes DIN-rail mounting kits, rack accessories, spare parts, and tools with the following part numbers:

For cables and breakout boards, see Form 1756, SNAP TEX Cables and Breakout Boards Data Sheet.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
