GRV-EPIC-CHS0
Hover over image to zoom in

GRV-EPIC-CHS0

$140.00 (USA and Canada only)

Availability: In stock

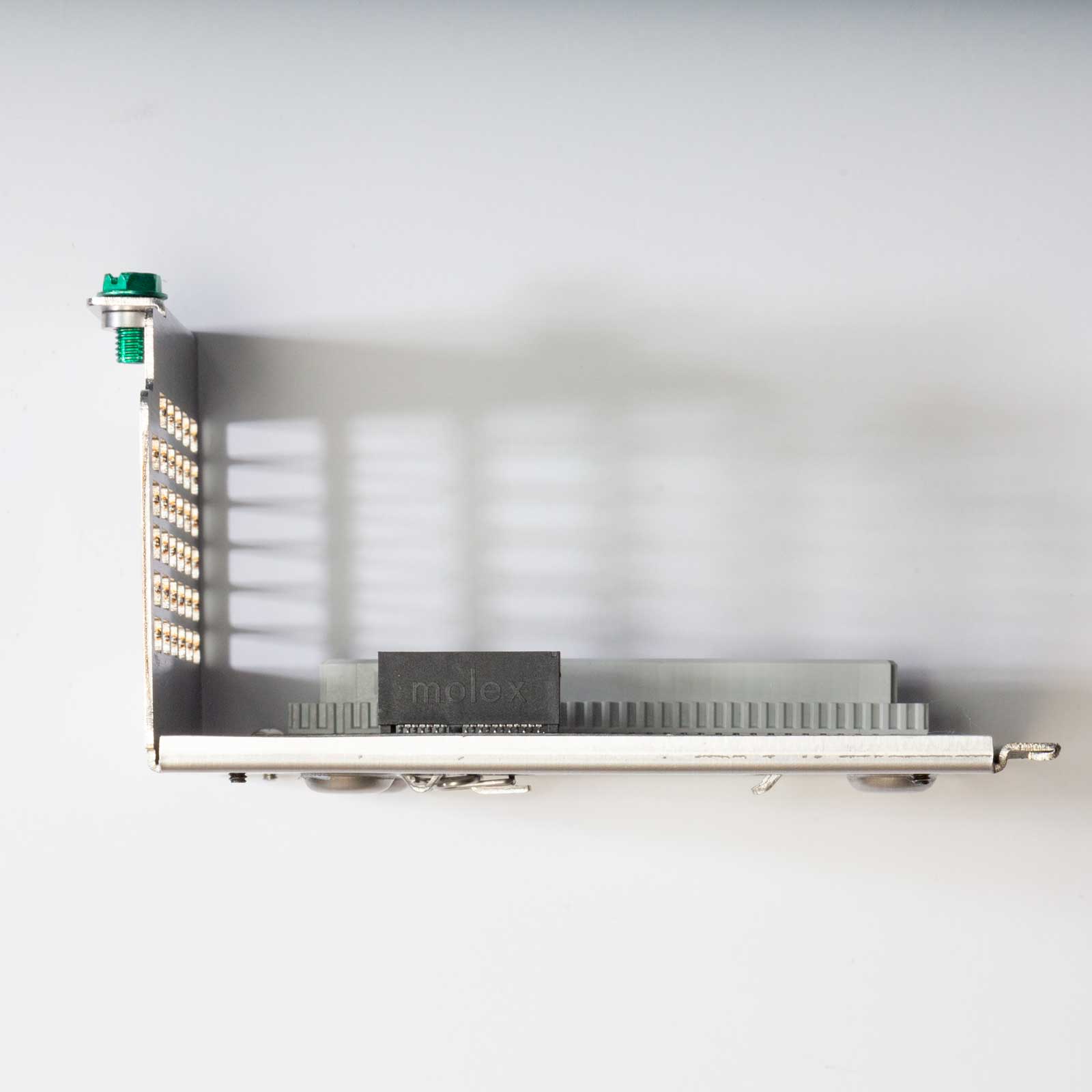

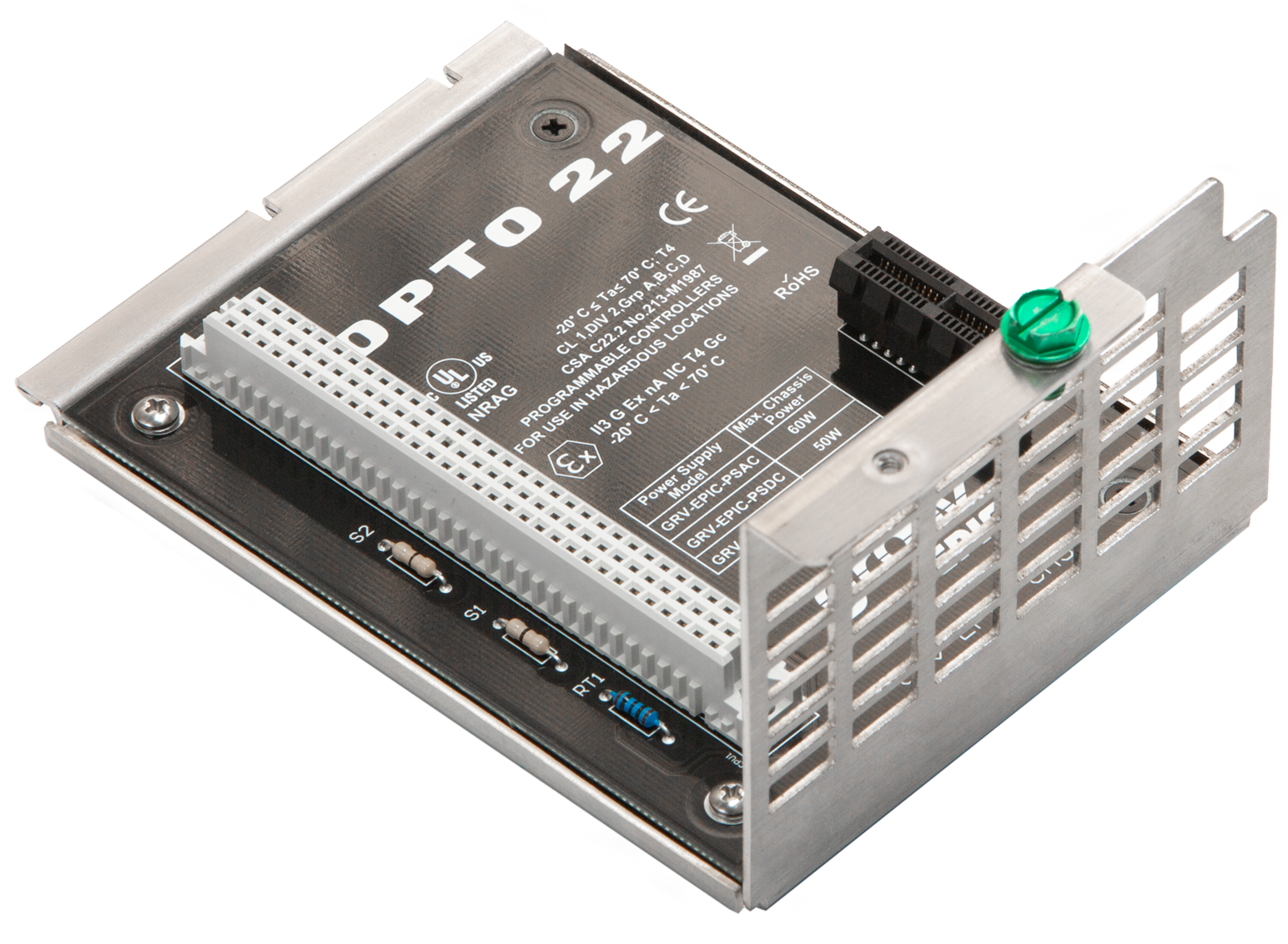

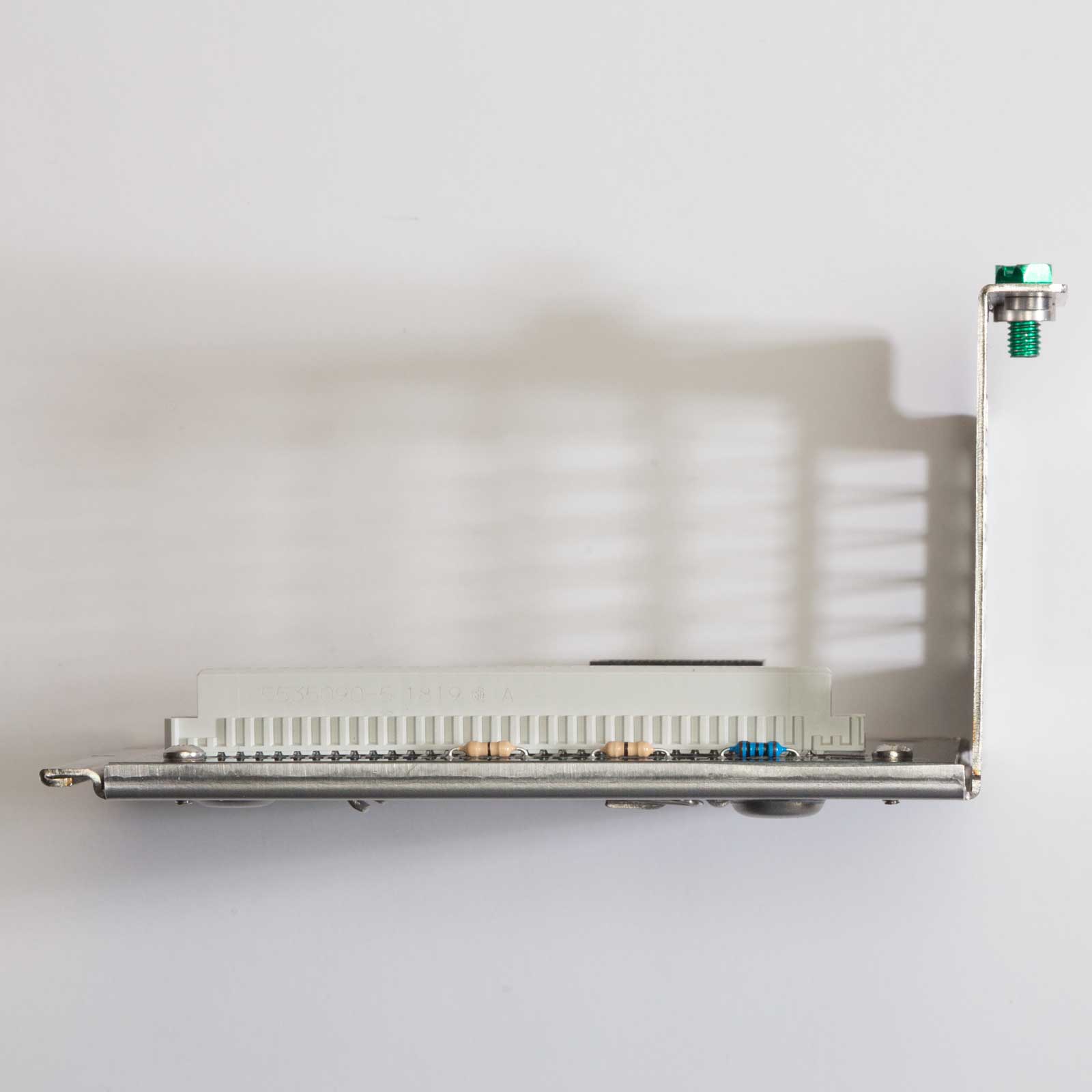

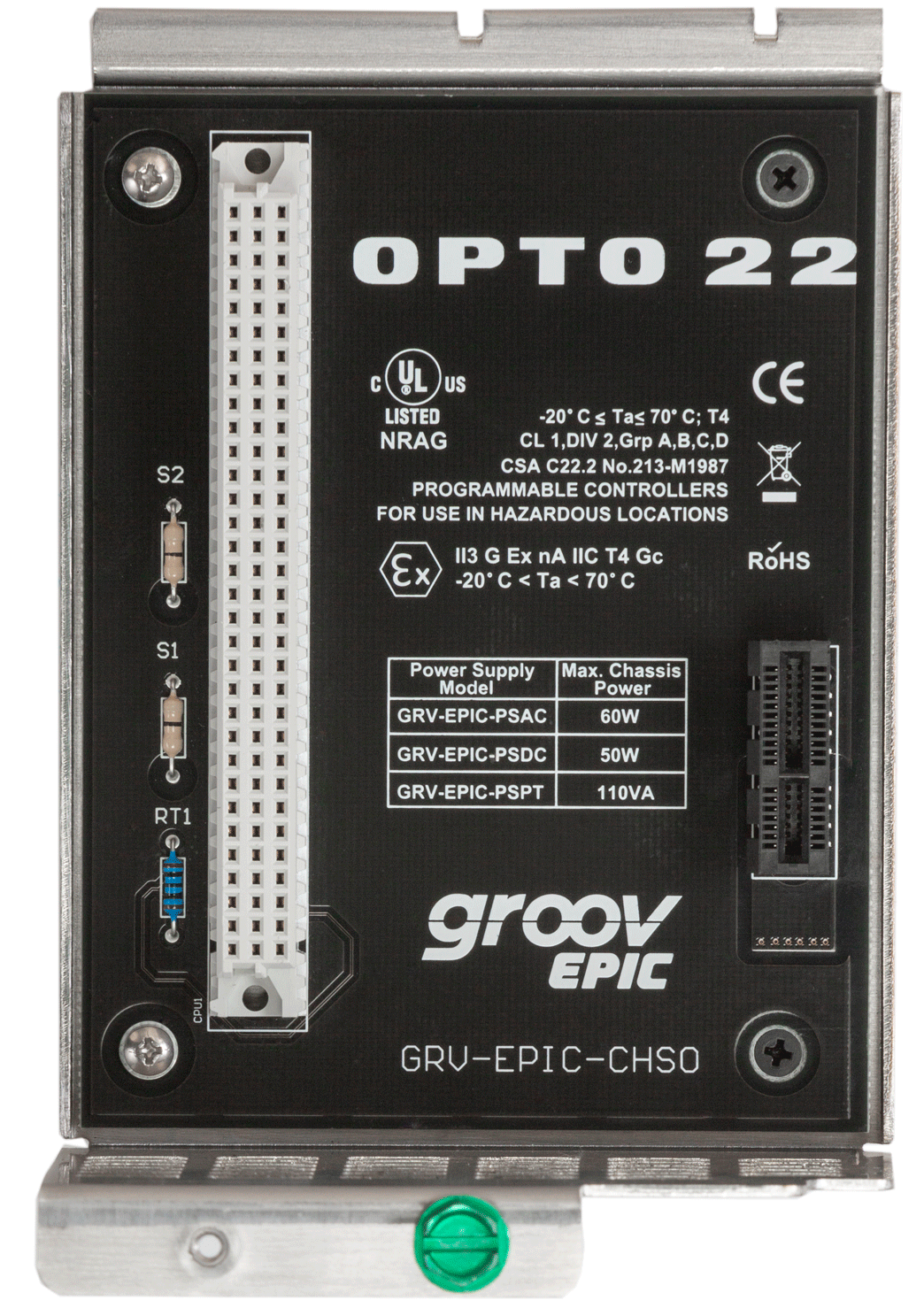

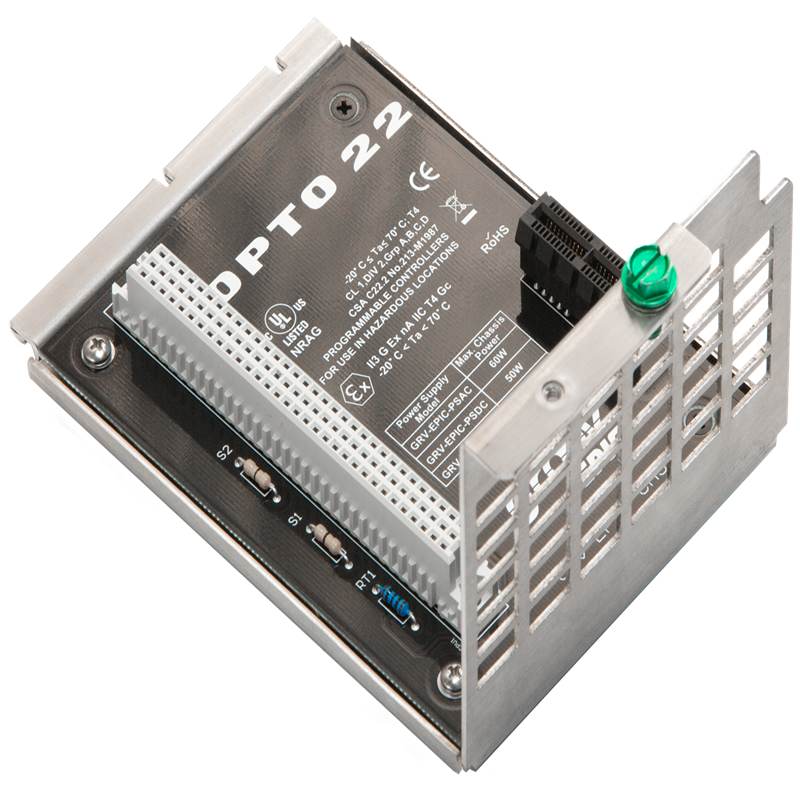

 groov EPIC mounting chassis for processor and power supply only (no I/O)

Production Specification

Part of the groov EPIC® system, the GRV-EPIC-CHS0 is designed to hold an intelligent GRV-EPIC-PR1 processor and a groov EPIC power supply. It does not include slots for I/O modules.

This new chassis option is ideal for applications where I/O is not needed locally. You can place a groov EPIC processor and power supply in challenging industrial environments where typical computers or networking equipment might fail. The EPIC processor can provide the edge computing power and networking connectivity you need to modernize and extend your existing control systems and communicate data with databases, online services, and other systems.

The GRV-EPIC-CHS0 provides all the functionality you expect from the GRV-EPIC-PR1, including visualizing data with groov View, connecting to third-party PLCs and PACs like Allen-Bradley® or Siemens® with Ignition Edge®, using MQTT for publish/subscribe communications, and using Node-RED for edge data processing. You also still have a choice of programming tools for controlling remote I/O, including PAC Control flowchartingCODESYS for IEC 61131-3 languages like ladder logic, and Secure Shell access to the Linux operating system for using languages like C++ , Python, Java, and more.

NOTE: If you need I/O on the same chassis as the groov EPIC processor, see the 4-module (GRV-EPIC-CHS4), 8-module (GRV-EPIC-CHS8), or 16-module (GRV-EPIC-CHS16) chassis.

Specification GRV-EPIC-CHS16 GRV-EPIC-CHS8 GRV-EPIC-CHS4 GRV-EPIC-CHS0
Number of module slots 16 8 4 0
Maximum Power Rating 60 W with GRV-EPIC-PSAC
50 W with GRV-EPIC-PSDC
108 W with GRV-EPIC-PSPT
Temperature (operating) -20 °C to +70 °C
Temperature (storage) -40 °C to +85 °C
Relative Humidity (non-condensing) 5-95%
Agency Approvals UL/cUL (Class 1 Div. 2); CE, ATEX (Category 3, Zone 2), RoHS; DFARS; CB Scheme
Warranty 30 months

groov EPIC Chassis Data Sheet

The groov EPIC® chassis is designed to hold a groov EPIC processor and power supply, with models available to hold several groov® I/O modules.

This data sheet includes information, specifications, and dimensional diagrams for the four models of chassis:

Letter of Conformity for groov EPIC

This Letter of Conformity is provided to support Declaration of Conformity (GRV-EPIC), form 2261.

Declaration of Conformity (groov EPIC and groov RIO)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

CAD Drawings: groov EPIC System

This ZIP file contains drawings in a variety of file formats for groov EPIC products, including the groov EPIC processor, chassis, groov I/O modules, power supplies, and more, all in one download.

NOTE: This is a very large file (55+ MB) and may take awhile to download. If this file is too large or you need drawings only for a specific product, you may prefer the following:

No videos or demos are available for this product.
