PB8H
Hover over image to zoom in

PB8H

$145.00 (USA and Canada only)

Availability: In stock

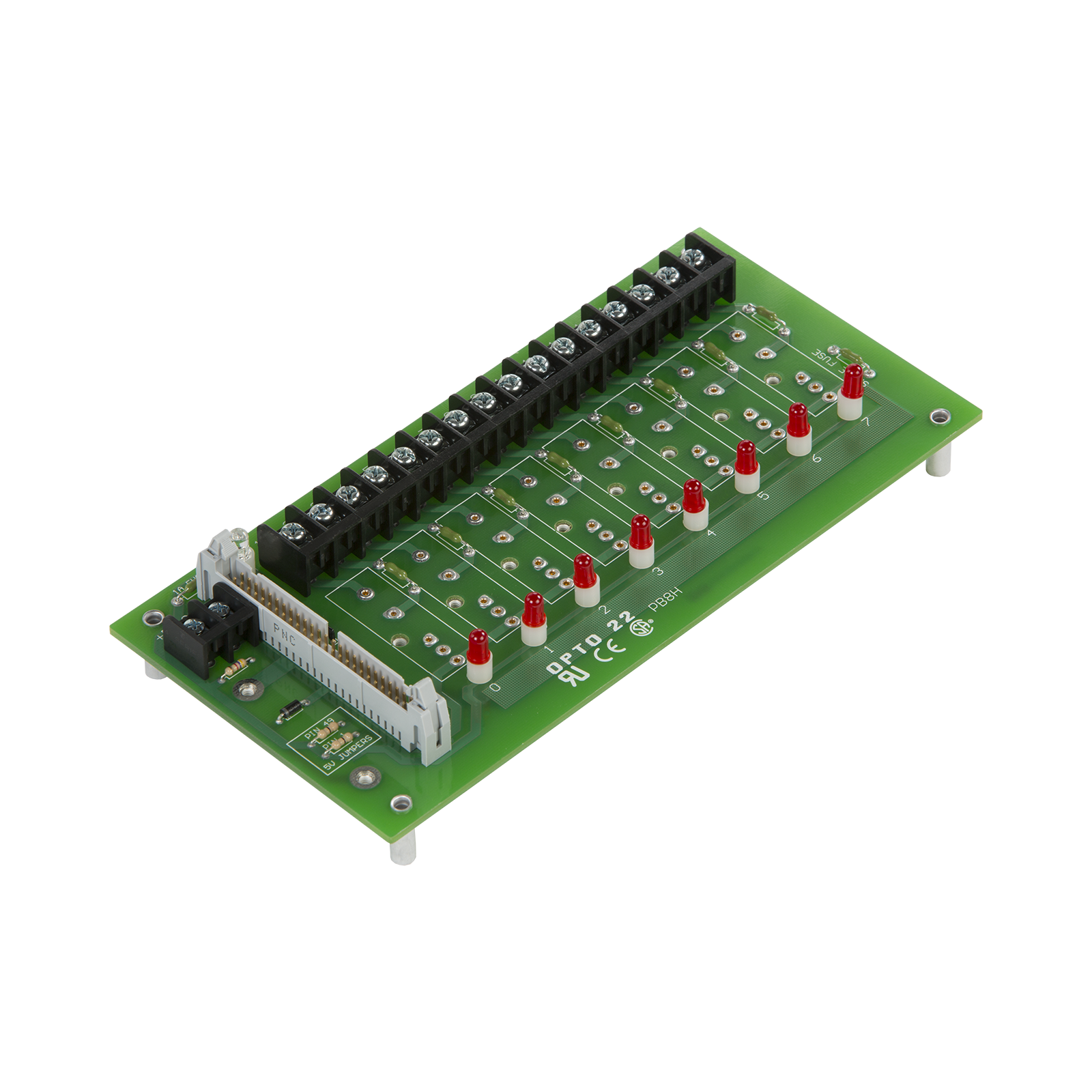

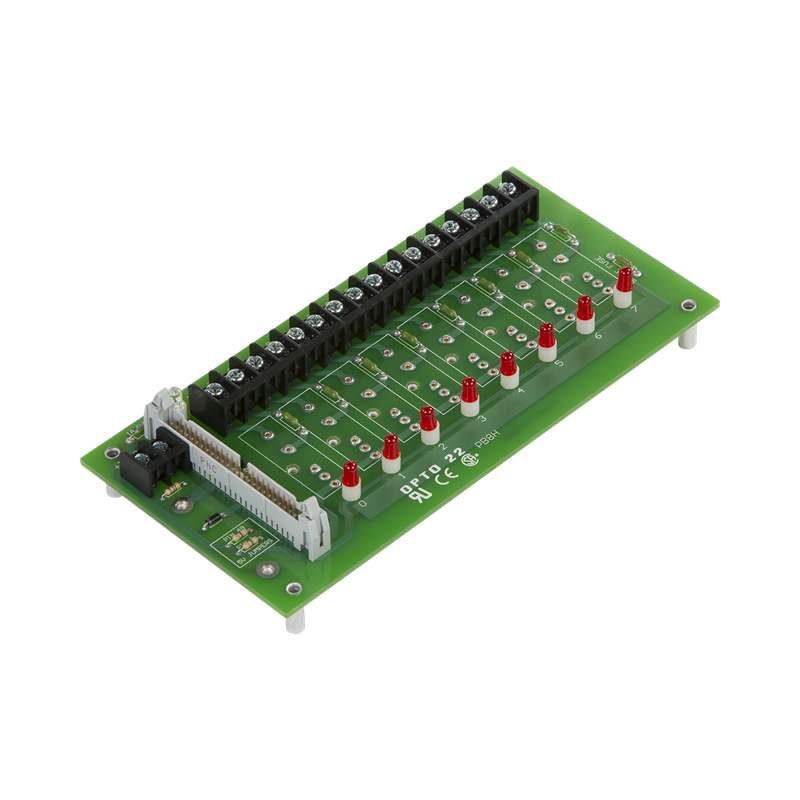

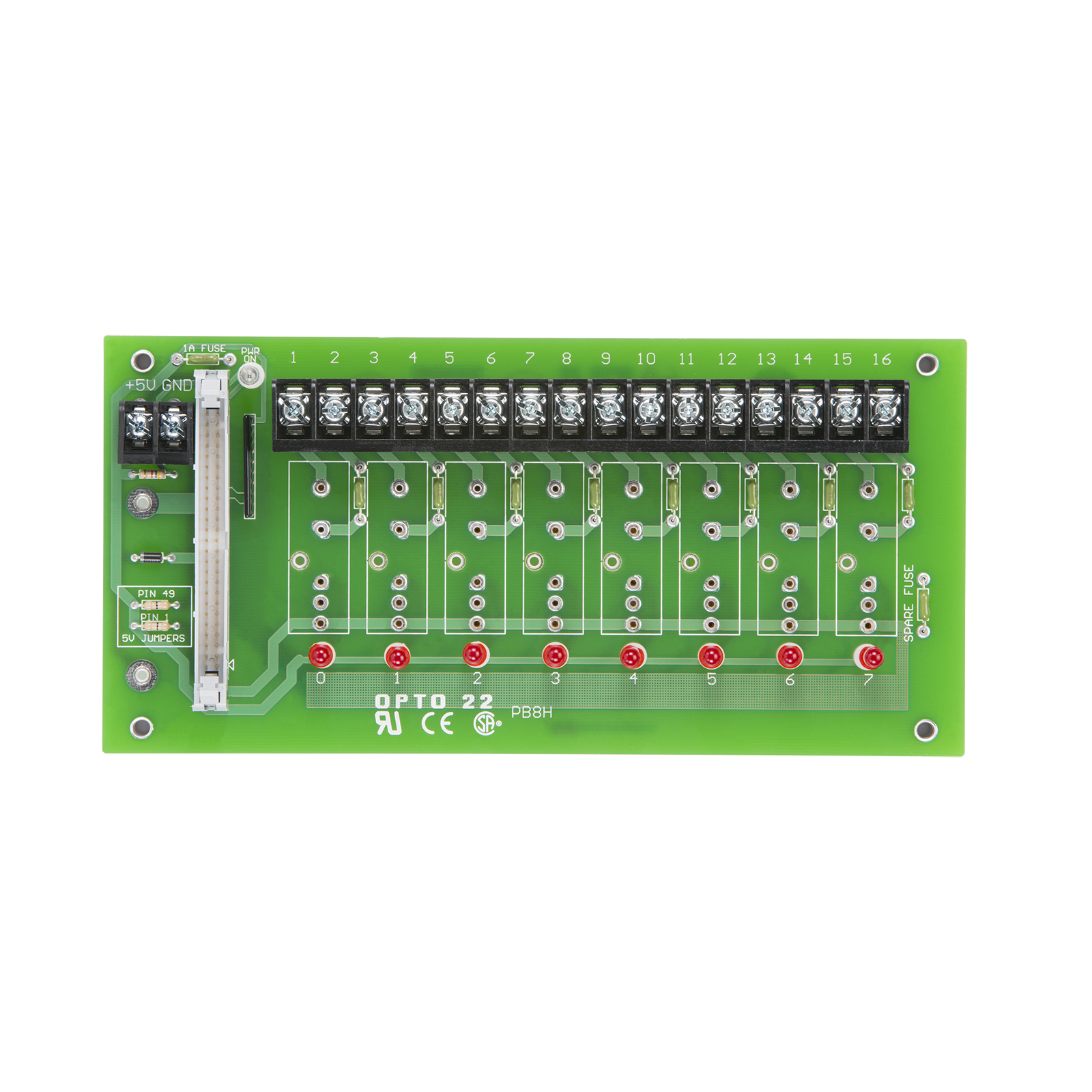

G1 8-channel Rack with Header Connector

Production Specification

G1 I/O family

The PB8H I/O mounting rack can accommodate up to eight Opto 22 standard G1 digital single-channel I/O modules (5 V).

This rack is compatible with Optomux E1 and Pamux B5 brain boards via a 50-pin header connector. It can also be used with obsolete Optomux B1 and mistic B100 brain boards.

The rack can be used with PBSAPBSB, and PBSC power supplies.

Operating Temperature

0 to 70 °C,
95% Relative Humidity Non-condensing

Interface Connectors Field

6-32 Screw Terminals

Control

50-conductor Header Connector

Power

2-position Screw Terminal
or Opto 22 PBSA/B/C Power Supply

Compatible I/O Module Family

Standard (Generation 1) Digital 5-volt logic

Agency Approvals UL, CE, CSA; UKCA



Standard Digital 8-Channel Rack Data Sheet

The PB8H I/O mounting rack can accommodate up to eight standard single channel I/O modules in any combination.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

Standard Digital I/O Wiring Diagrams

Wiring diagrams for Standard digital modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

PB Rack Strap in-the-box

Shows the use of STRAP8 and STRAP2 on PB mounting racks.
