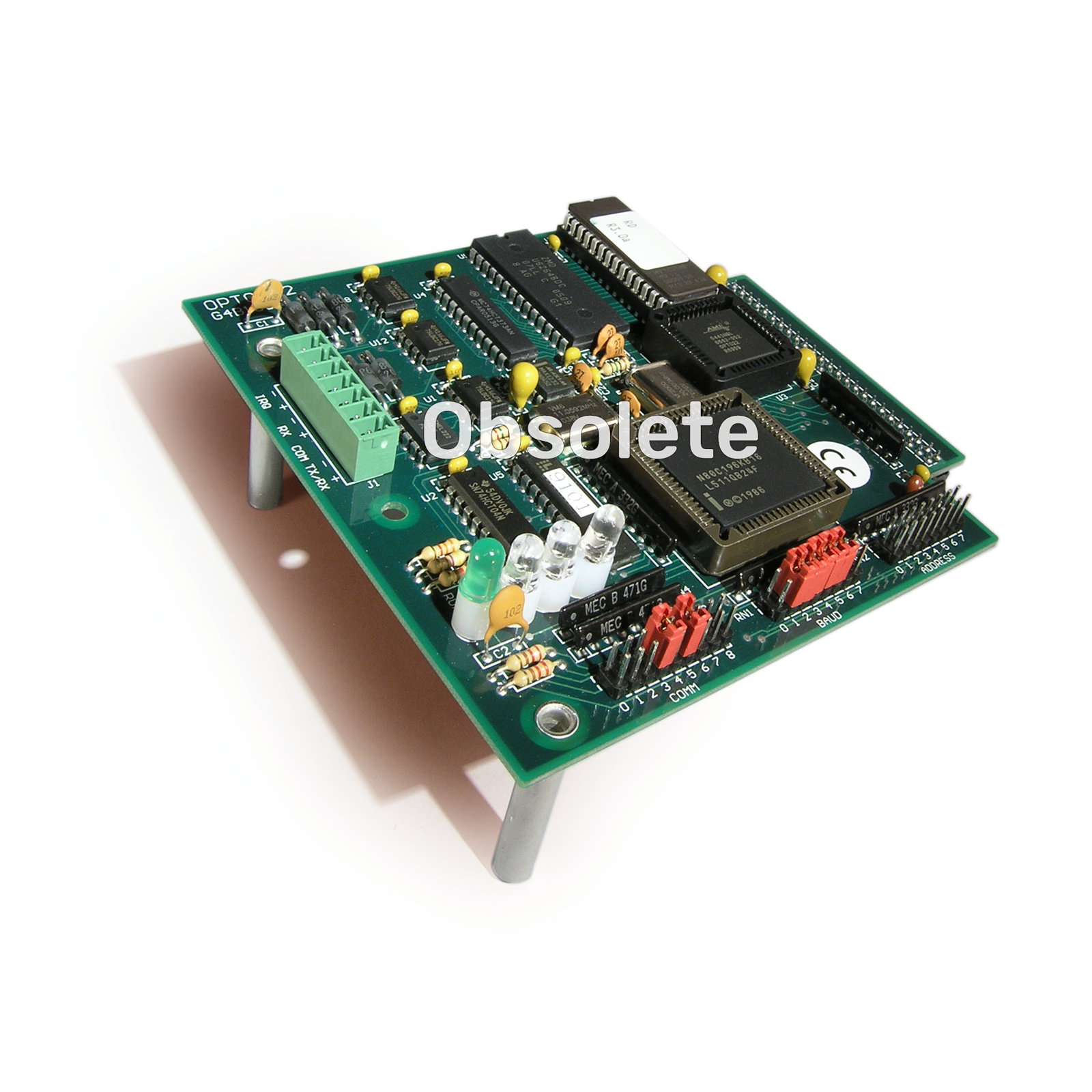

OBSOLETE - 16-channel Digital Brain Mistic
Data Sheet

Production Specification

*** The B100 brain board is obsolete and no longer available.***
here is no direct replacement. Depending on wiring, protocol, and features needed, our E1 brain may be a possible replacement. Please contact our Opto 22 Pre-Sales engineers with details about your specific application so they can help you.

--------------------

The B100 brain board is used to control up to 16 channels of remote digital I/O. The B100 communicates via RS-485 serial at communication speeds up to 115K baud using the mistic protocol. It can be used with either an Opto 22 FactoryFloor® controller or a host computer.
