PB4R

$49.00 (USA and Canada only)

Availability: In stock
G1 4-channel Isolated Output-only Module Rack

Please call (800) 321-6786 to order.

PB4R

Production Specification

G1 I/O family

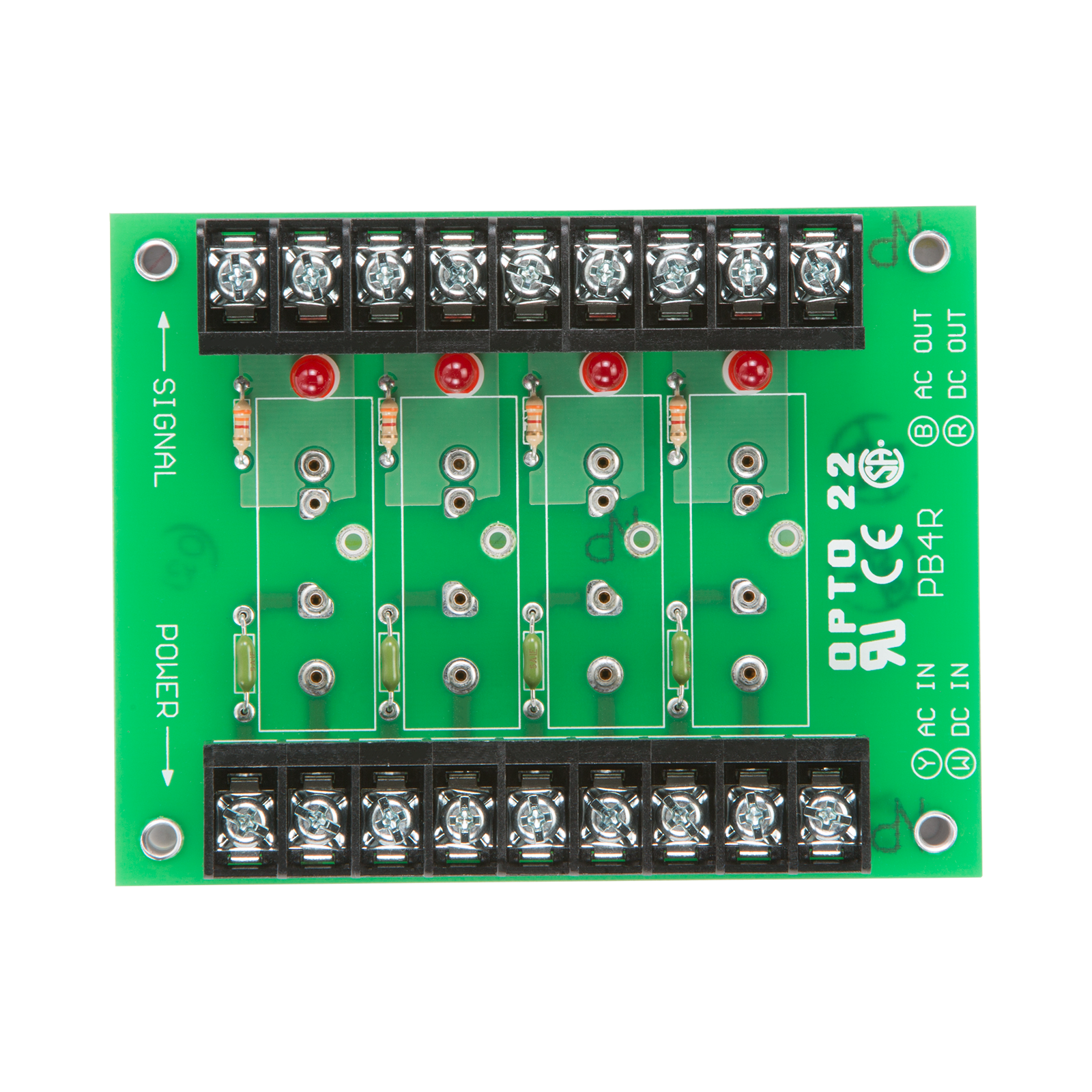

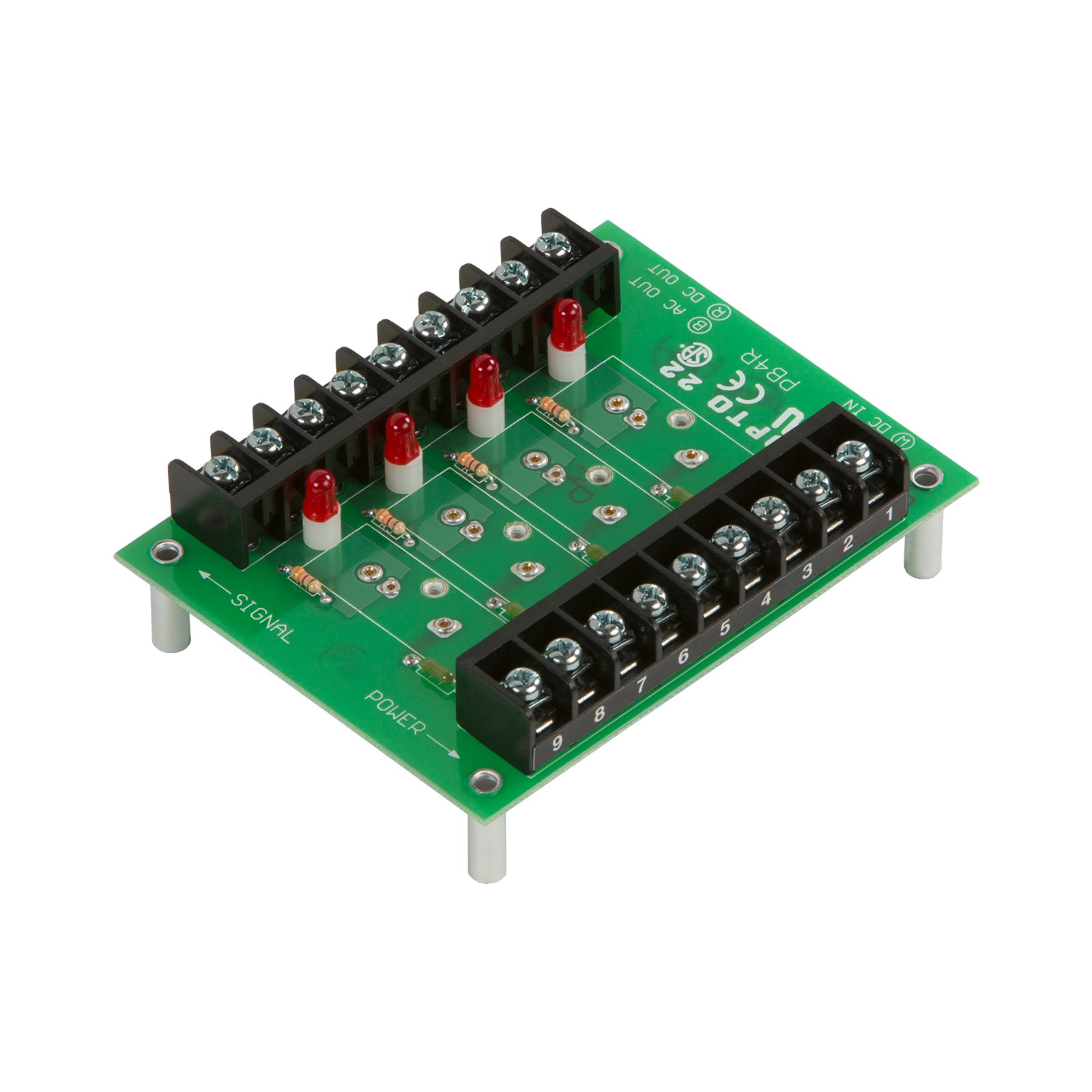

The PB4R output mounting rack holds four G1 digital output modules (outputs only) and features isolation between channels.

This rack is ideal for applications that require barrier strips on both the field and logic sides.

The rack is compatible with both positive-true logic and negative-true logic computer I/O ports. It can be used with 5 V, 15 V, and 24V logic and is often used to interface different families of logic. For example, 24-volt positive-true logic from a programmable controller can be connected to 5-volt negative-true PC logic using this mounting rack.

Operating Temperature

0 to 70 °C
95% Relative Humidity
Non-condensing

Interface Connectors Field

6 - 32 Screw Terminals

Interface Connectors Logic

6 - 32 Screw Terminals

Compatible I/O Module Family

Standard (Generation 1)



Standard Digital 4-Channel Outputs-Only Rack Data Sheet

The PB4R output mounting rack is designed for use with standard single channel output modules only, and features isolation between channels.
