G1 I/O family

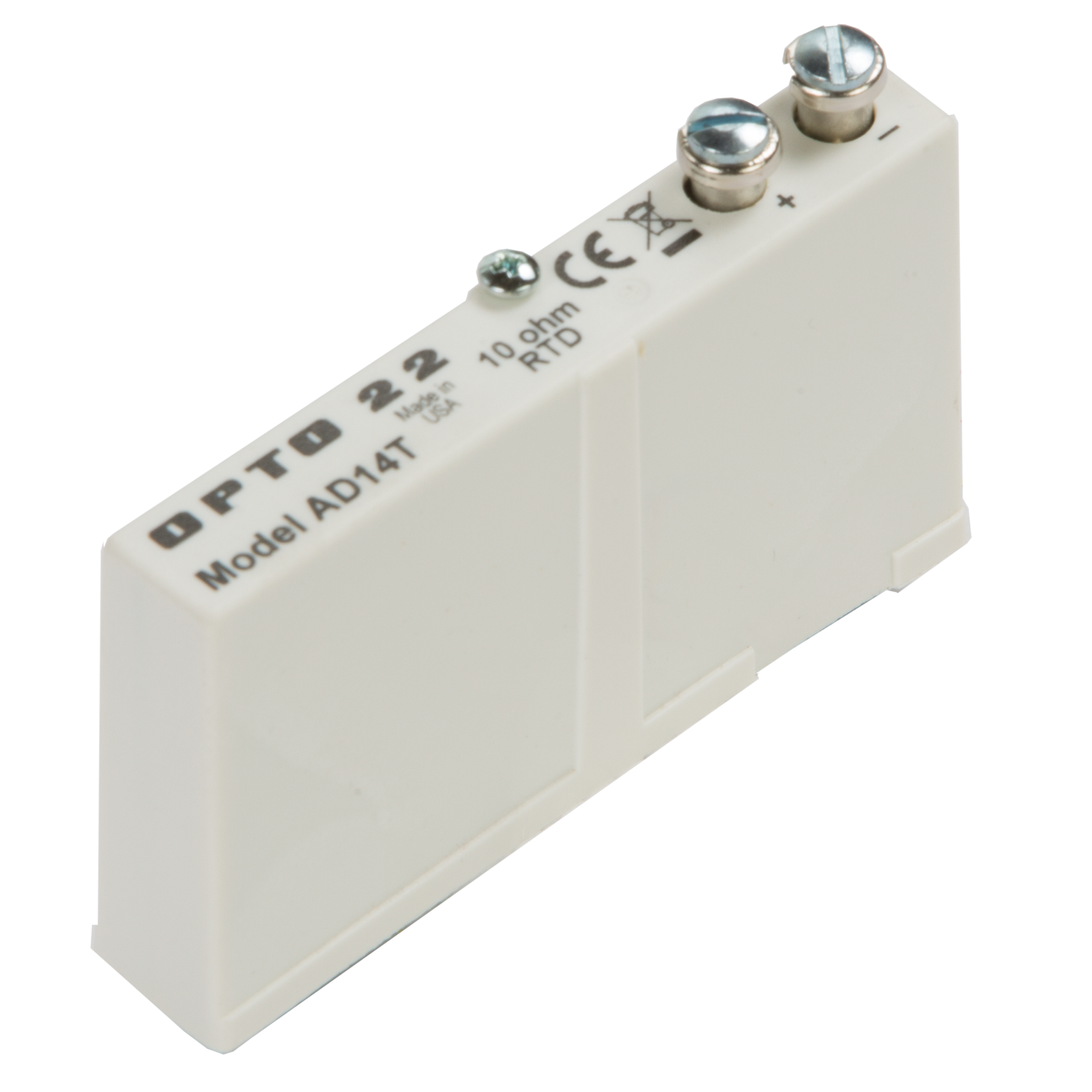

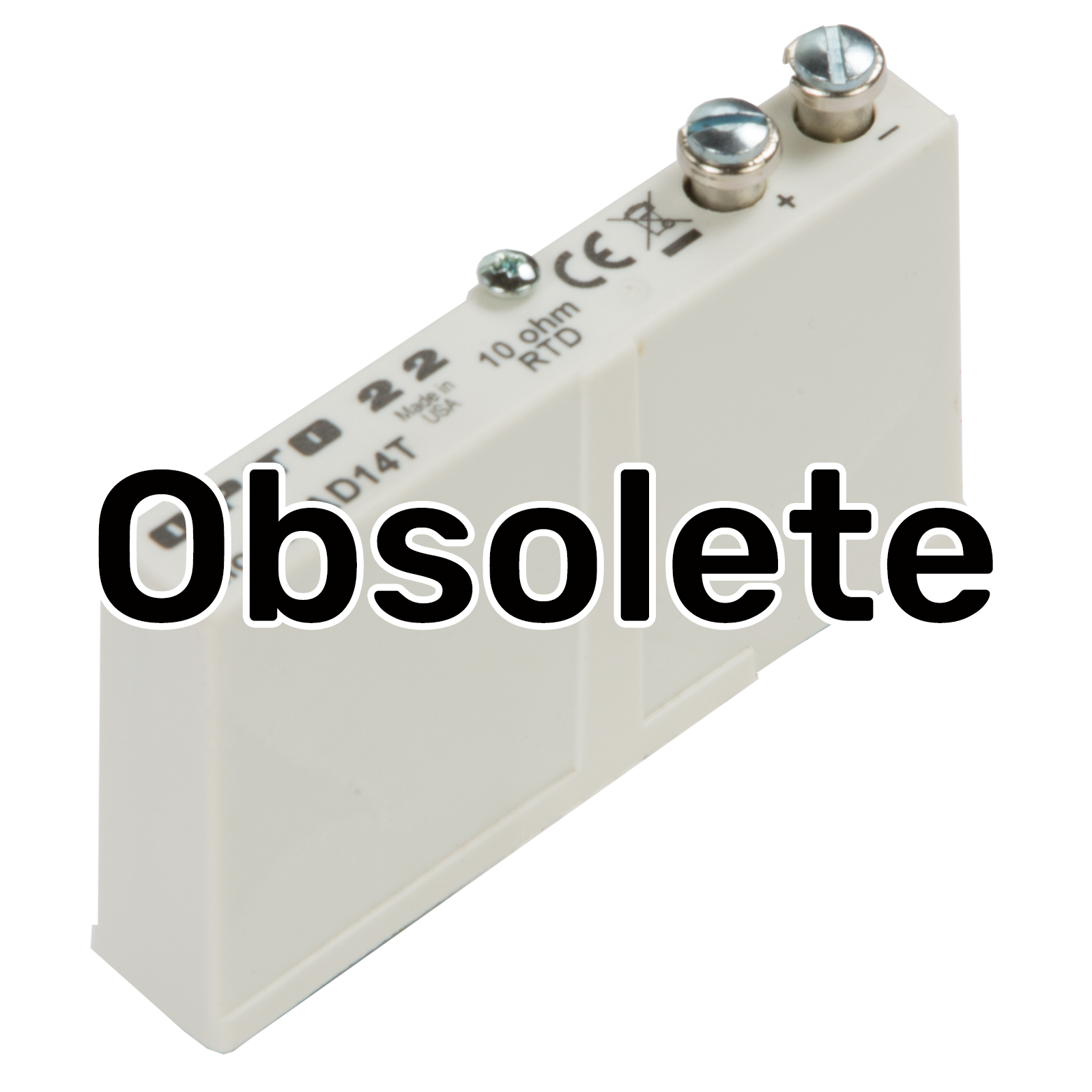

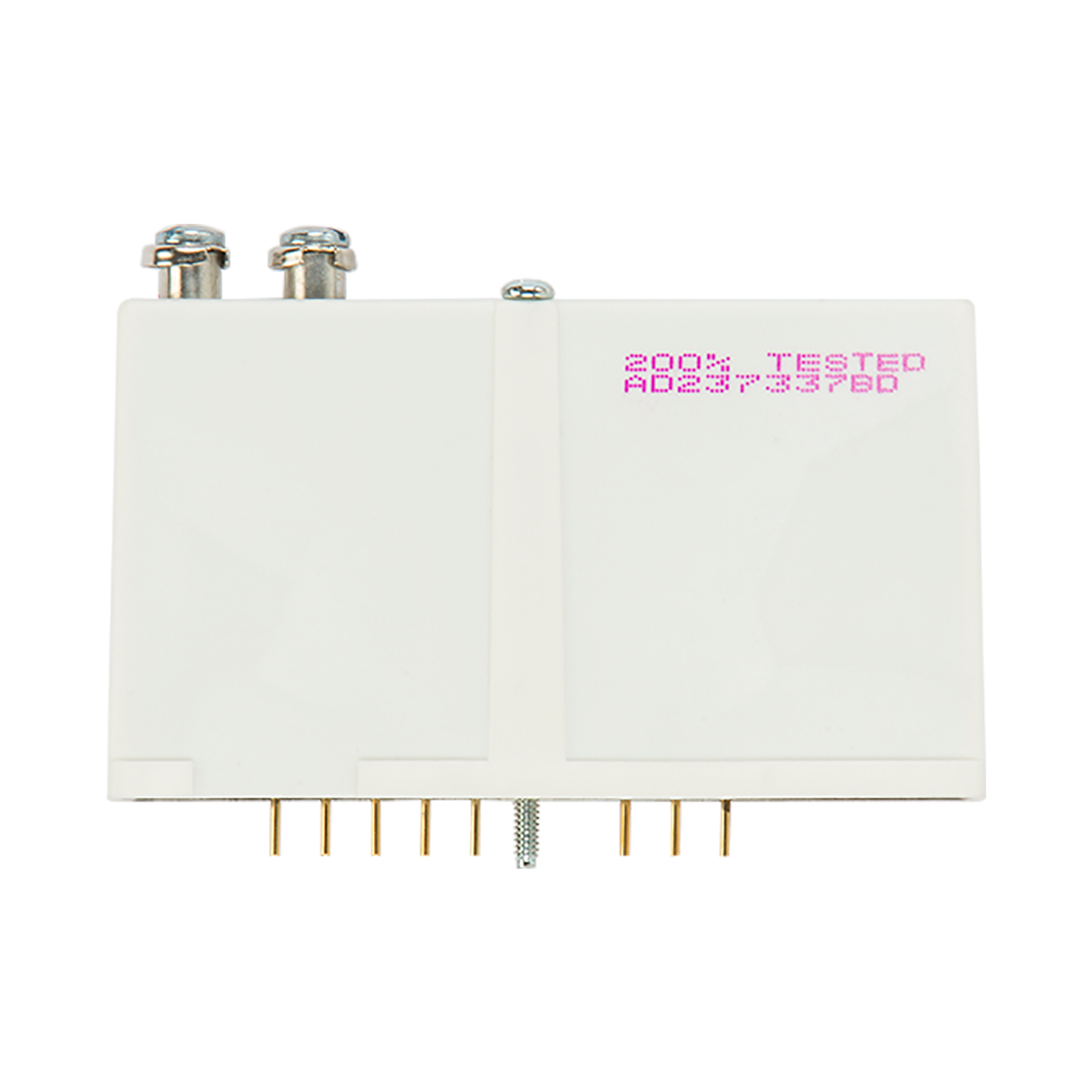

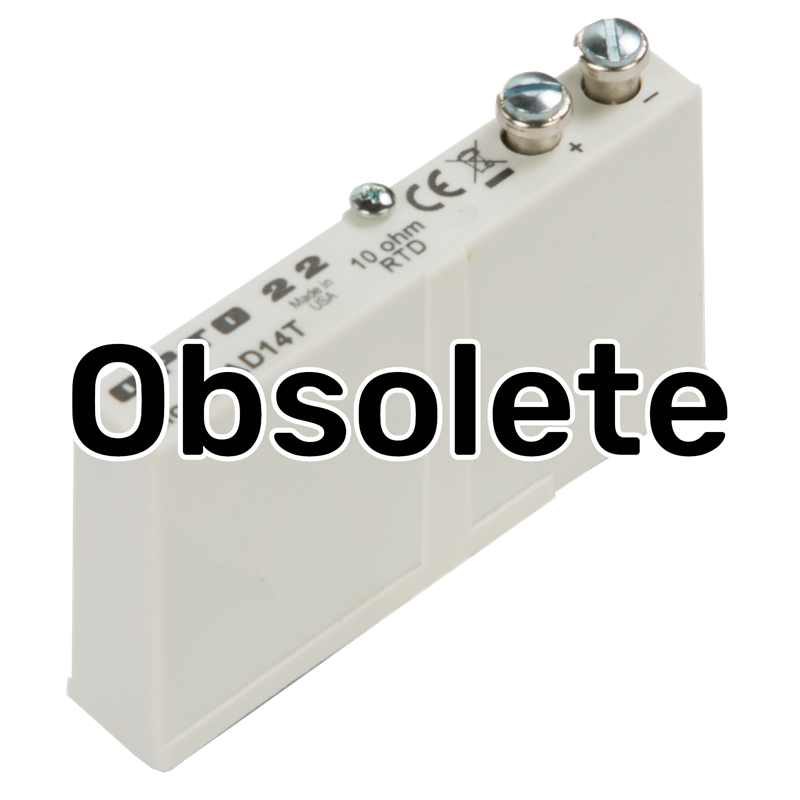

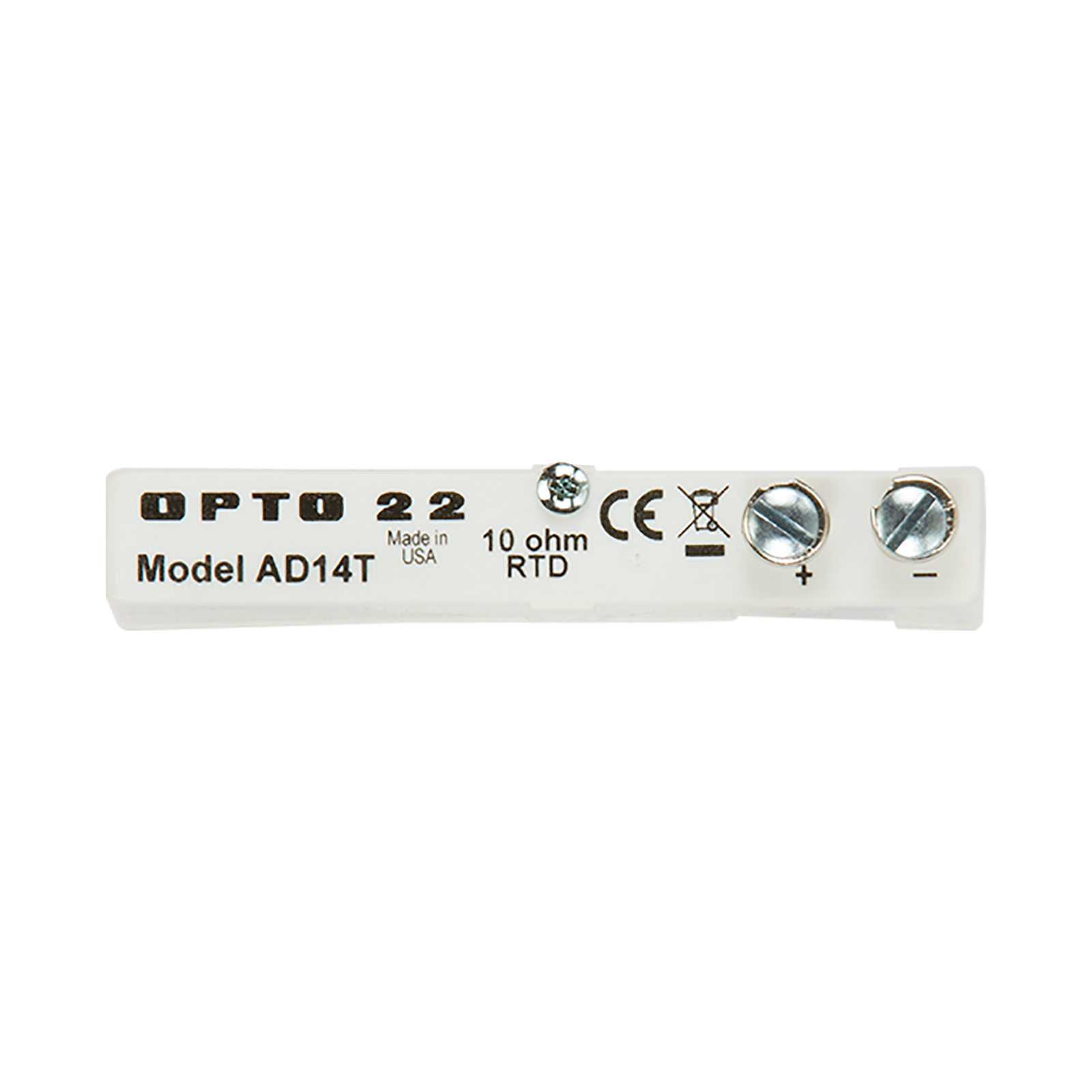

The AD14T is a 10 ohm copper RTD analog input with a nominal temperature range of -55 °C to 150 °C (-67 °F to 302 °F). This module provides a single channel of optically isolated RTD temperature-to-digital conversion with 4,000 Vrms of transient isolation.
This module is suitable for temperature measurements where the RTD probe is grounded or when ground loop currents exist.
|
|
AD10T2
|
AD14T
|
|
RTD Input
|
100 Ω platinum (α = 0.00385)
|
10 Ω copper
|
|
Nominal Temperature Range
|
- 50 °C to 350 °C
|
- 55 °C to 150 °C
|
|
Nominal Temperature Range
|
- 58 °F to 662 °F
|
- 67 °F to 302 °F
|
|
Over/Under Range
|
- 60 °C to 812 °C
|
N/A
|
|
Over/Under Range
|
- 140 °F to 1493 °F
|
N/A
|
|
Accuracy
|
± 0.4 °C
|
± 0.6 °C
|
|
Resolution
|
12 bits
|
12 bits
|
|
Response Time
|
full scale step change in 100 ms
|
full scale step change in 100 ms
|
|
Isolation Transient
Input-to-Output
Input-to-Analog Supply
|
4,000 VRMS
4,000 VRMS
|
4,000 VRMS
4,000 VRMS
|
|
Power Requirements
|
45 mA at +15 (+/- 0.25) VDC and 45 mA at -15 (+/- 0.25) VDC
|
35 mA at +15 (+/- 0.25) VDC and 35 mA at -15 (+/- 0.25) VDC
|
|
Temperature
Operating
|
0 °C to 70 °C
- 25 °C to 85 °C
|
0 °C to 70 °C
- 25 °C to 85 °C
|
