$304.00 (USA and Canada only)
G1 I/O family

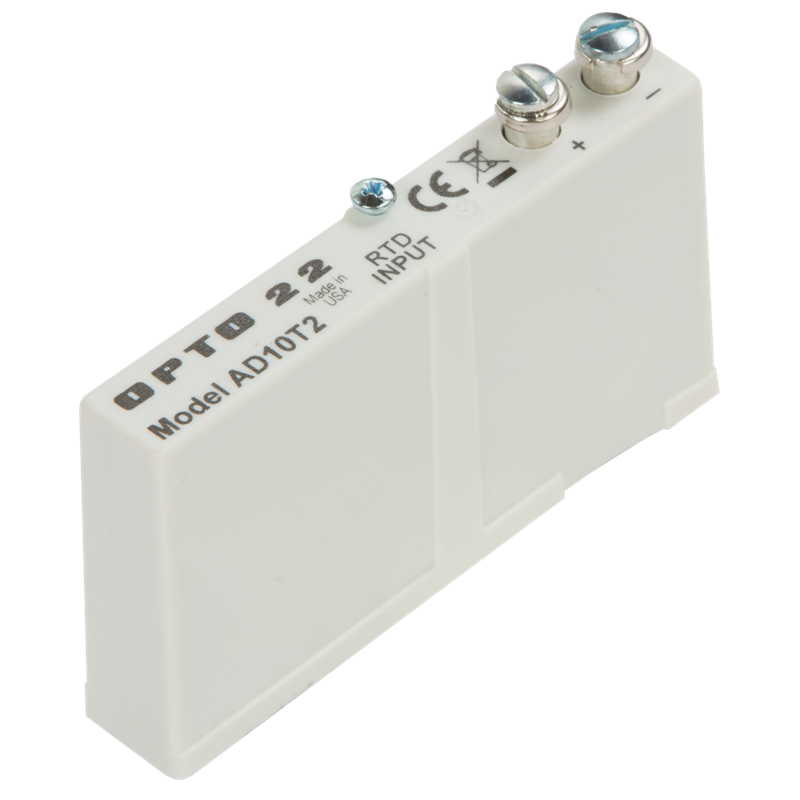

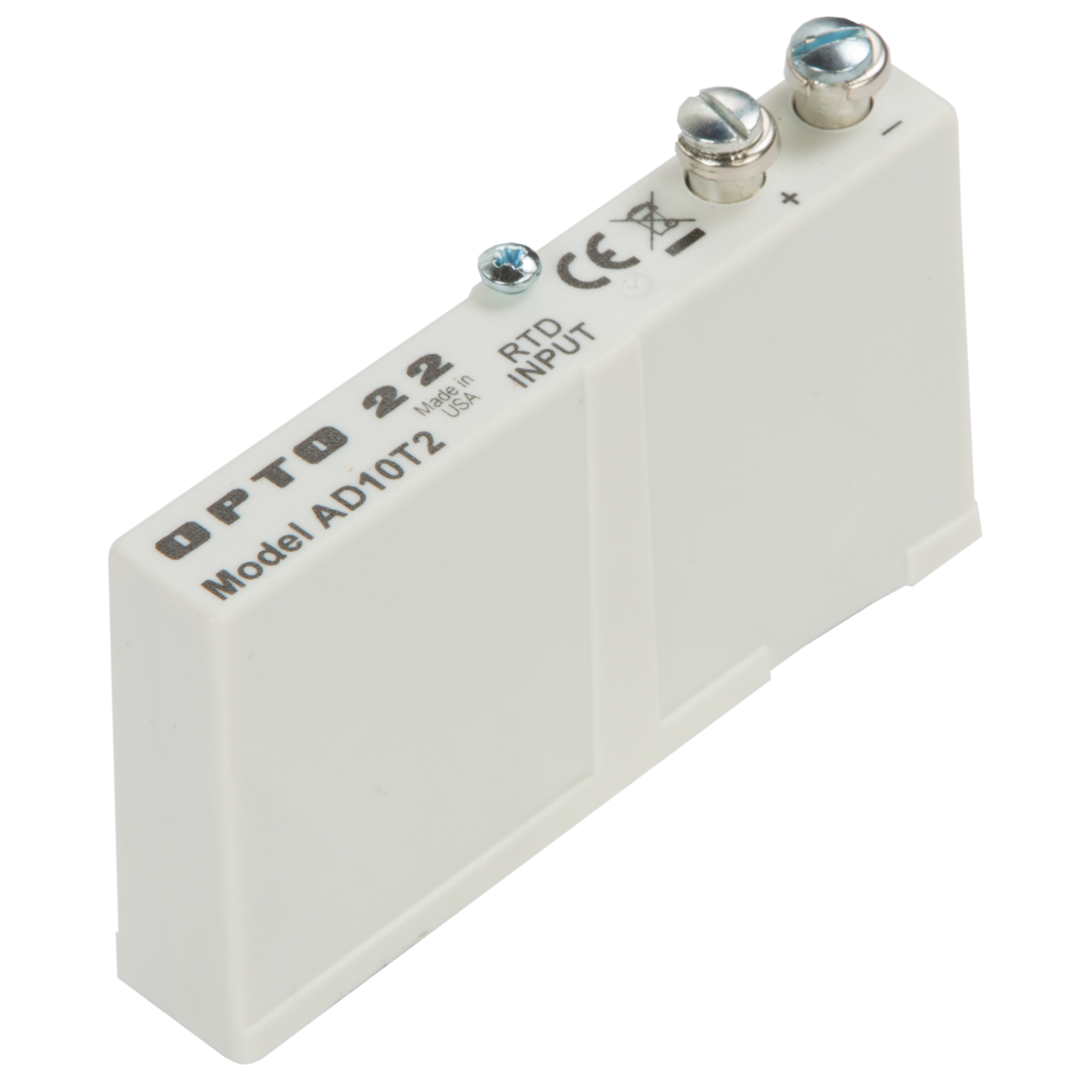

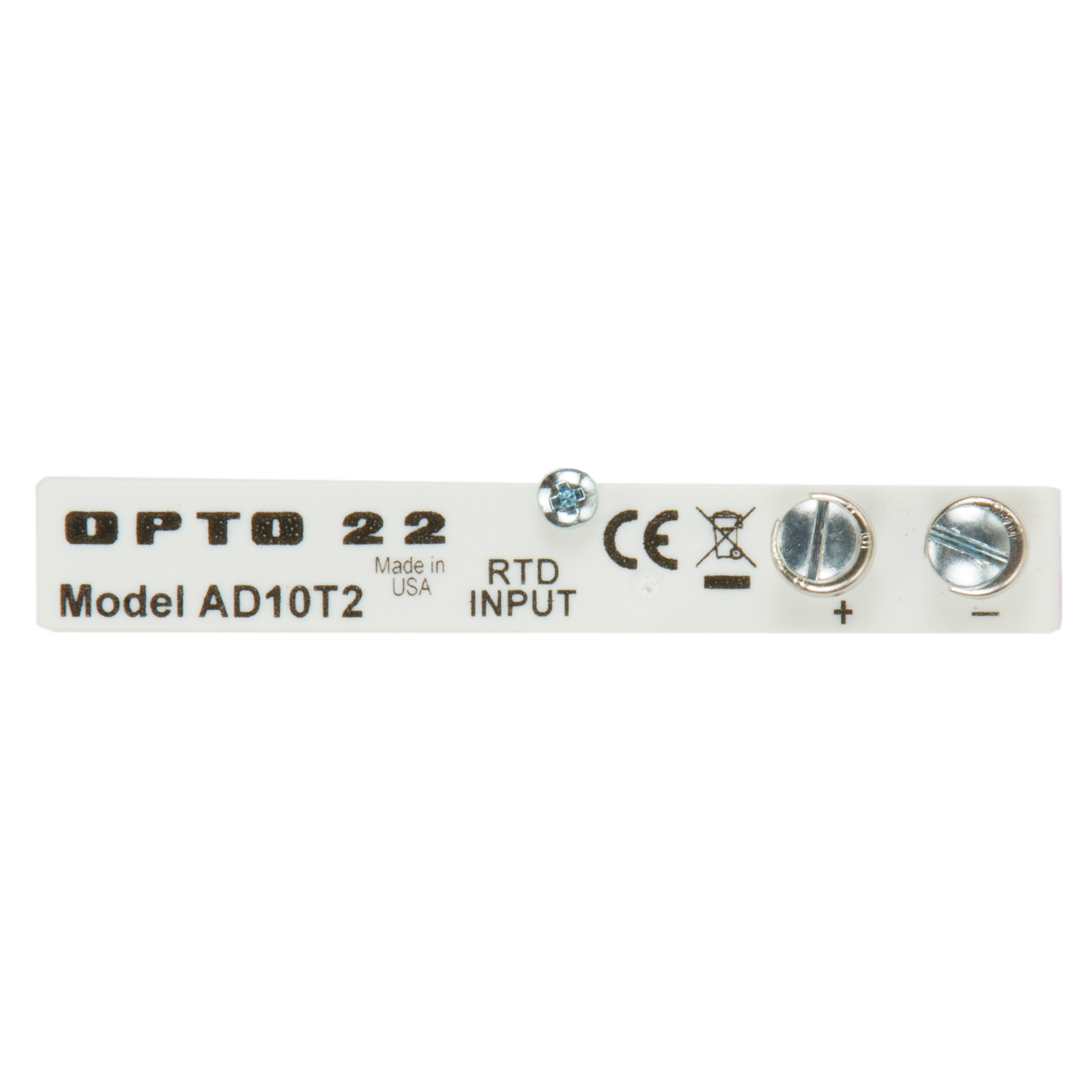

The AD10T2 is a 100 ohm platinum RTD analog input with a nominal temperature range of -50 °C to 350 °C (-58 °F to 662 °F). This module provides a single channel of optically isolated RTD temperature-to-digital conversion with 4,000 Vrms of transient isolation.
This module is suitable for temperature measurements where the RTD probe is grounded or when ground loop currents exist.
AD10T2
AD14T
RTD Input
100 Ω platinum (α = 0.00385)
10 Ω copper
Nominal Temperature Range
- 50 °C to 350 °C
- 55 °C to 150 °C
- 58 °F to 662 °F
- 67 °F to 302 °F
Over/Under Range
- 60 °C to 812 °C
N/A
- 140 °F to 1493 °F
Accuracy
± 0.8 °C
± 0.6 °C
Resolution
12 bits
Response Time
full scale step change in 100 ms
Isolation Transient Input-to-Output Input-to-Analog Supply
4,000 VRMS 4,000 VRMS
Power Requirements
45 mA at +15 (+/- 0.25) VDC and 45 mA at -15 (+/- 0.25) VDC
35 mA at +15 (+/- 0.25) VDC and 35 mA at -15 (+/- 0.25) VDC
Temperature Operating
0 °C to 70 °C - 25 °C to 85 °C
*** NOTE: AD14T is obsolete and no longer available.** Please contact Opto 22 Pre-Sales engineers for more information. The AD10T2 and AD14T [Obsolete] modules provide a single channel of optically-isolated RTD temperature-to-digital conversion with 4,000 V rms of transient isolation.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
