GRV-OMRIS-8
Hover over image to zoom in

GRV-OMRIS-8

$375.00 (USA and Canada only)

Availability: In stock
AC/DC discrete output, 8 channels, electromechanical relay, 0-250 VAC/5-30 VDC, 5 A

Production Specification

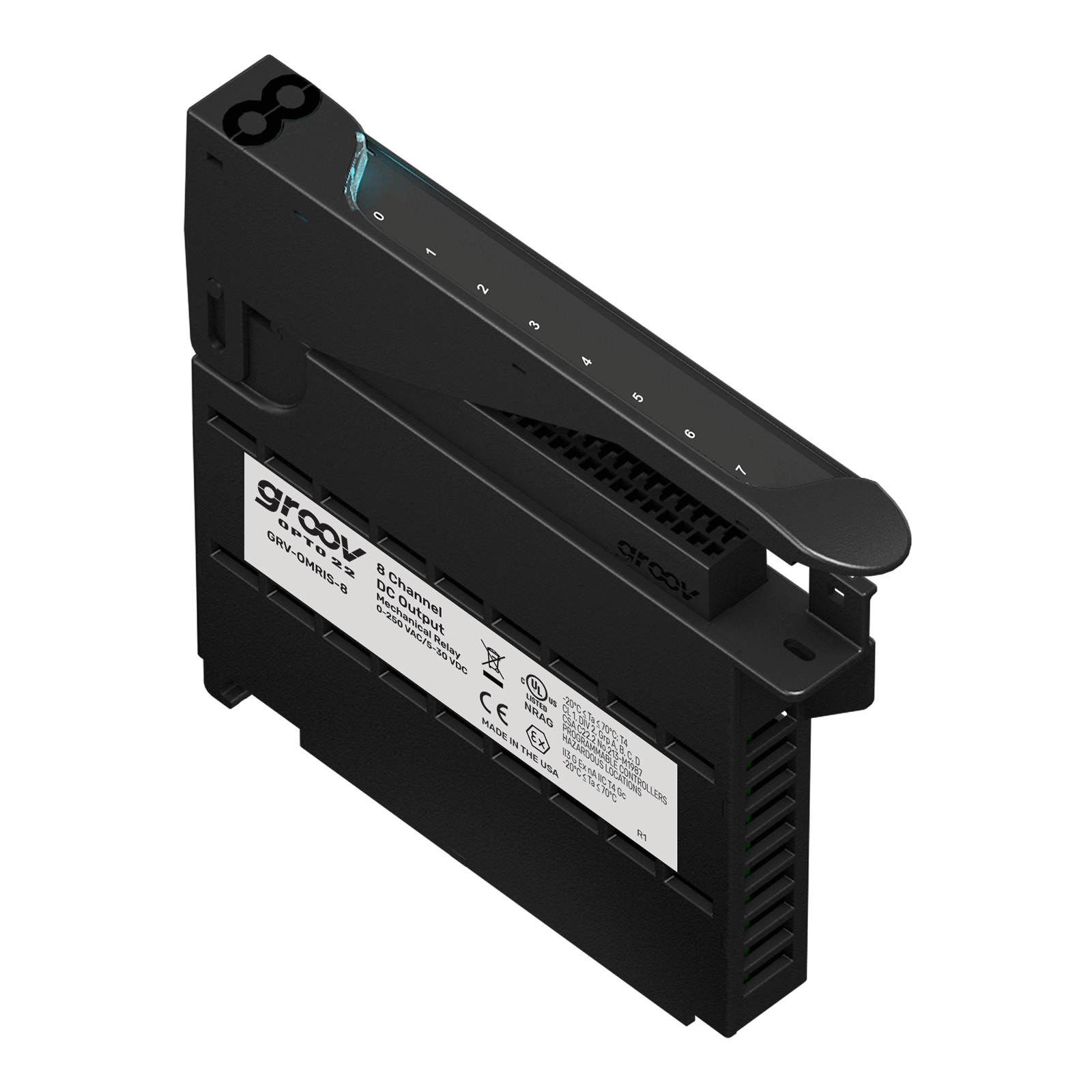

Part of the groov EPIC® system, the GRV-OMRIS-8 is a mechanical relay output module that offers 8 channels for switching loads of up to 5 amps at 250 VAC or 30 VDC. These are form C relays, so each of the 8 mechanical relays can be wired as normally open or normally closed. Fusing is not provided; you must provide fusing when wiring the module. The module cover includes an LED that indicates status and a touch-sensitive pad. Touch the pad and the groov EPIC processor displays information about the module, including specifications and a wiring diagram.

The GRV-OMRIS-8 can mechanically switch either AC or DC loads, potentially reducing the number of modules needed. Its 8 channels are all isolated from each other (channel-to-channel isolation). The module offers little or no leakage current when the contacts are open and is suitable for piloting electronic coil contactors.

The GRV-OMRIS-8 module mounts on a groov EPIC chassis with a GRV-EPIC-PR1 processor and a variety of groov I/O modules (analog, discrete, and serial) to suit your application needs.

All groov I/O modules are UL/cUL listed and compliant with the ATEX, Low Voltage, and EMC CE and UKCA directives. Each module is factory tested twice before shipment and most modules are guaranteed for life.

Feature

GRV-OMRIS-8

Number of Channels

8

Channel-to-Channel Isolation

On/Off State

On/Off Totalization



Output Pulsing/TPO



Quality Indication



Watchdog Timeout



Specification

GRV-OMRIS-8

Line Voltage Range (nominal)

0–250 VAC or 5–30 VDC

Current Rating

5 A per channel

Surge Current

6 A peak for 1 second

Recommended Fuse / Circuit Breaker

5 A at 250 VAC / > 30 VDC per channel

Leakage Current

< 2 µA @ 250 VAC

Contact Resistance

≤100 mOhms

Turn-on Time

8 ms

Turn-off Time

4 ms

Operating Life (to specification)

Min. 30,000 cycles at max. ratings

Mechanical Life

Min. 10,000,000 cycles

Transient Clamp Holding Voltage

440 V

Transient Clamping Voltage (max.)

720 V

Isolation (coil-to-contact)

4000 VACrms 1 min., 10 mA detect/channel

Isolation (channel-to-channel)

300 VAC operating, 1500 Vrms max.

Number of Channels

8

Chassis Power Consumption

1.4 W

Minimum groov EPIC Firmware Version

1.0.0

Minimum PAC Project Version

10.0000

Minimum Library Package for CODESYS Version

1.0.0.0

Wire Size

28–14 AWG

Wire Strip Length

0.315–0.354 inches (8–9 mm)

Torque, connector screw

2.5 in-lb (0.28 N-m)

Torque, hold-down screw

3.5 in-lb (0.4 N-m)

Temperature (operating)

-20 °C to +70 °C

Temperature (storage)

-40 °C to +85 °C

Shock (misoperation)

5 G

Shock (survival)

100 G

Relative Humidity (non-condensing)

5–95%

Agency Approvals

UL/cUL (Class 1, Div 2)a; CE: ATEX (Category 3, Zone 2) and RoHS; DFARS; CB Scheme; UKCA

Warranty

30 months


a For use in hazardous locations, equipment must be mounted in an enclosure that meets the requirements of the National Electrical Code, ANSI/NFPA 70, and ANSI/ISA-61010-1 (82.02.01).
