G4IDC5Q
Hover over image to zoom in

G4IDC5Q

$270.00 (USA and Canada only)

Availability: In stock
OBSOLETE G4 DC Input 2.5-16 VDC, 5 VDC Logic, 2-channel Quadrature

Production Specification

*** This product is OBSOLETE and no longer available when stock is depleted. ***

G4 I/O family

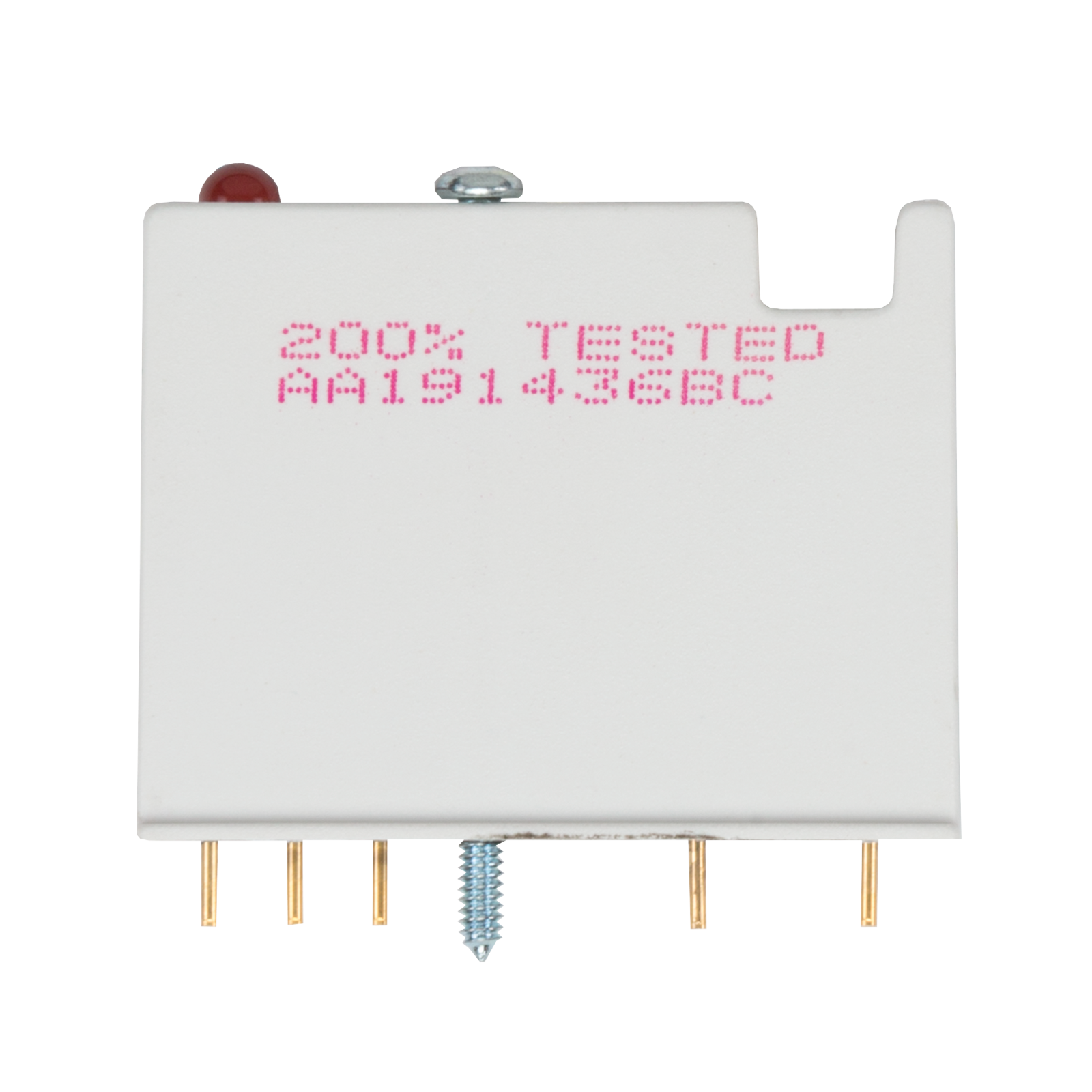

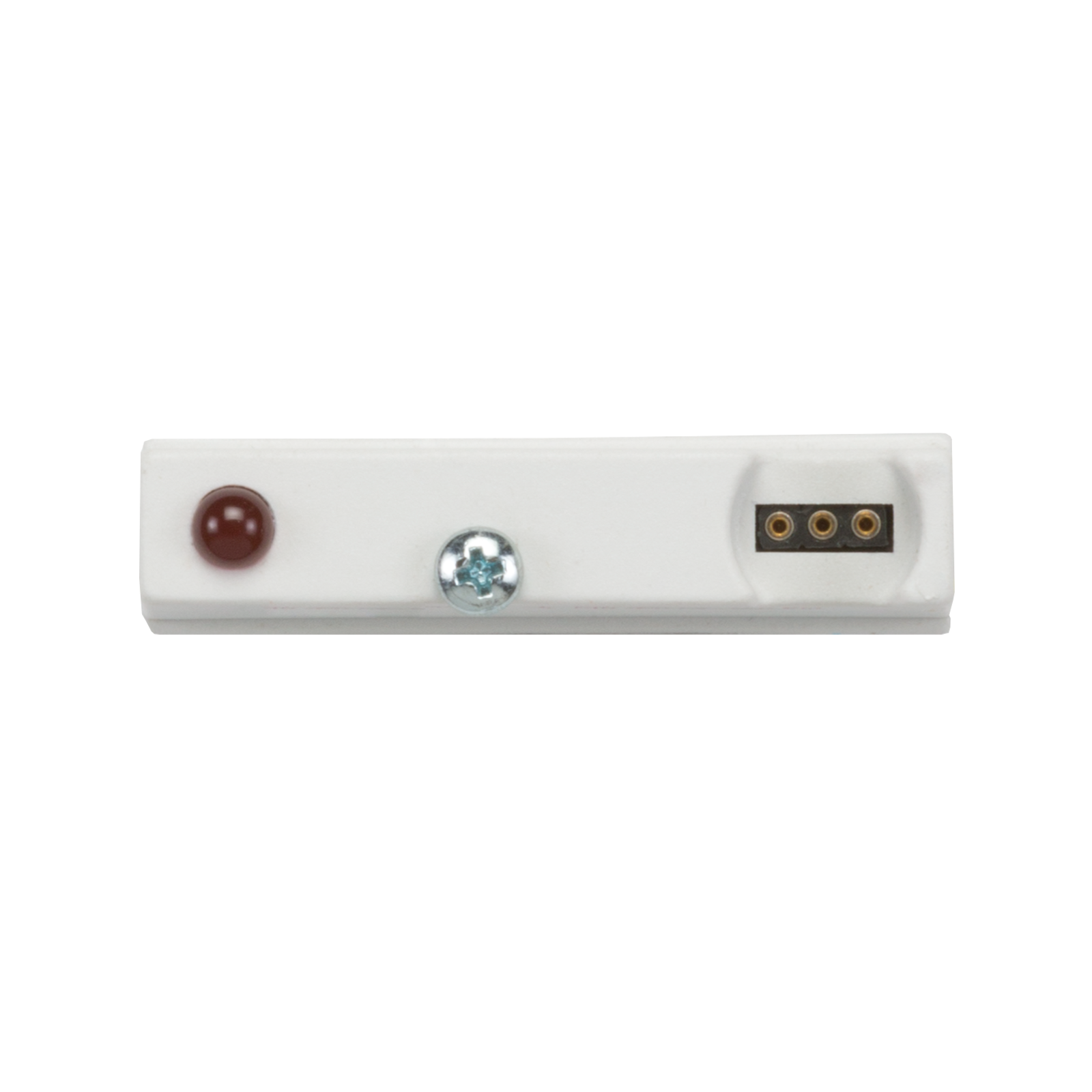

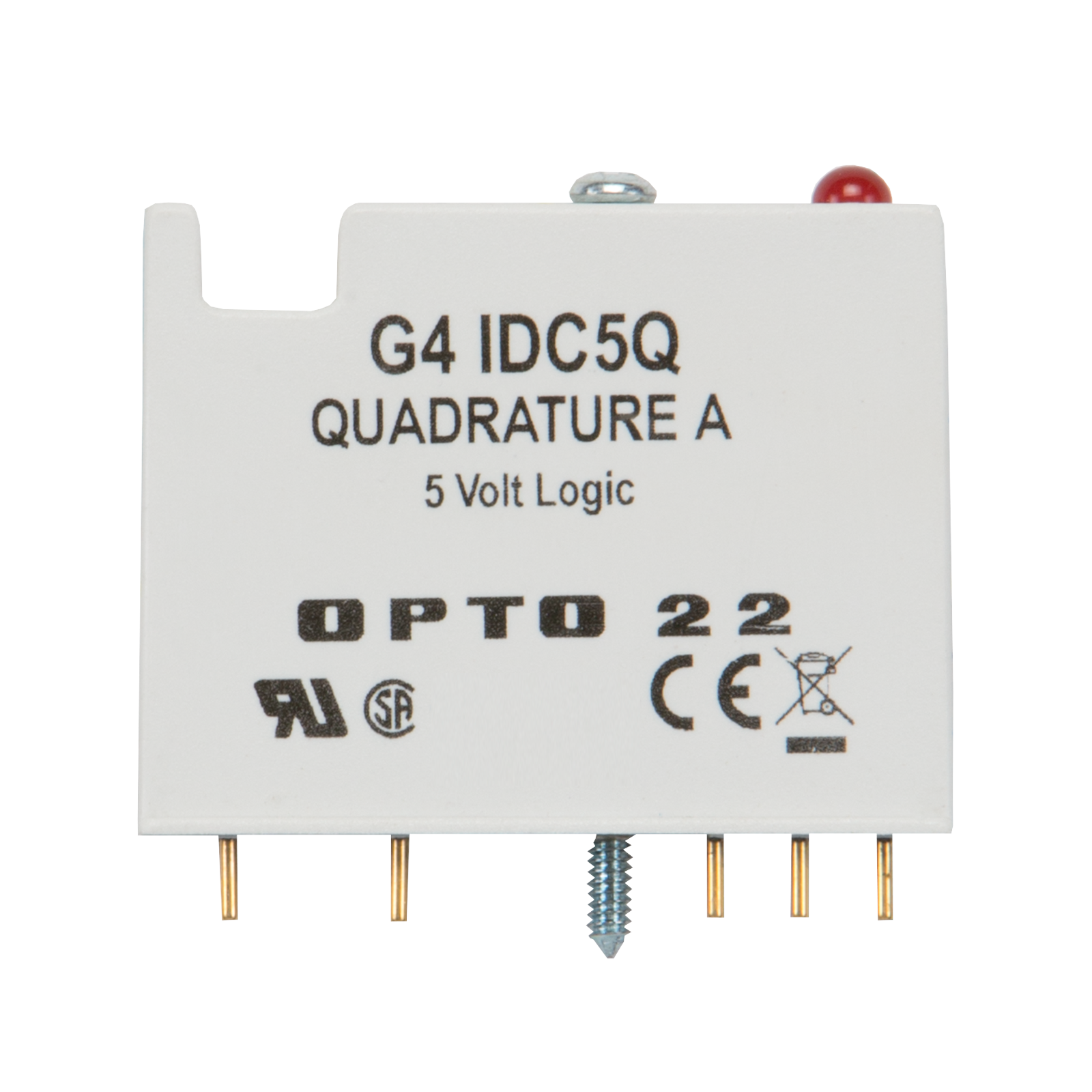

The G4IDC5Q quadrature input module (actually a pair of two modules that work together) is designed to allow a digital mistic 200 multi-function I/O brick to resolve positional information from quadrature encoder devices. The module outputs a pulse to the brick each time the quadrature state changes; the brick counts the module outputs and keeps track of the direction of rotation.

NOTE: This module cannot be used with an E1 or B1 brain board.

G4IDC5Q is OBSOLETE and no longer available when stock is depleted.

Logic Voltage

5 VDC

Operating Ambient Temperature

-30 °C to 70 °C

Isolation input-to-output

4,000 VRMS

Input Voltage Range

4-16 VDC

Input Current

8 mA (constant)

Input Allowed for No Output

1 V

Logic Supply Current @ 5 VDC

60 mA

Maximum Input Frequency,
50% Duty Cycle

12.5 kHz

Minimum Time Between
Quadrature State Changes at 90°

20 µsec

Agency Approvals UL, CE, CSA, RoHS; UKCA



G4 Digital 2-Channel Quadrature DC Input Module Data Sheet

*** NOTE: This part is OBSOLETE and no longer available when stock is depleted. ***

The G4IDC5Q quadrature input module pair is designed to allow a digital mistic 200 multi-function I/O Brick to resolve positional information from quadrature encoder devices.
