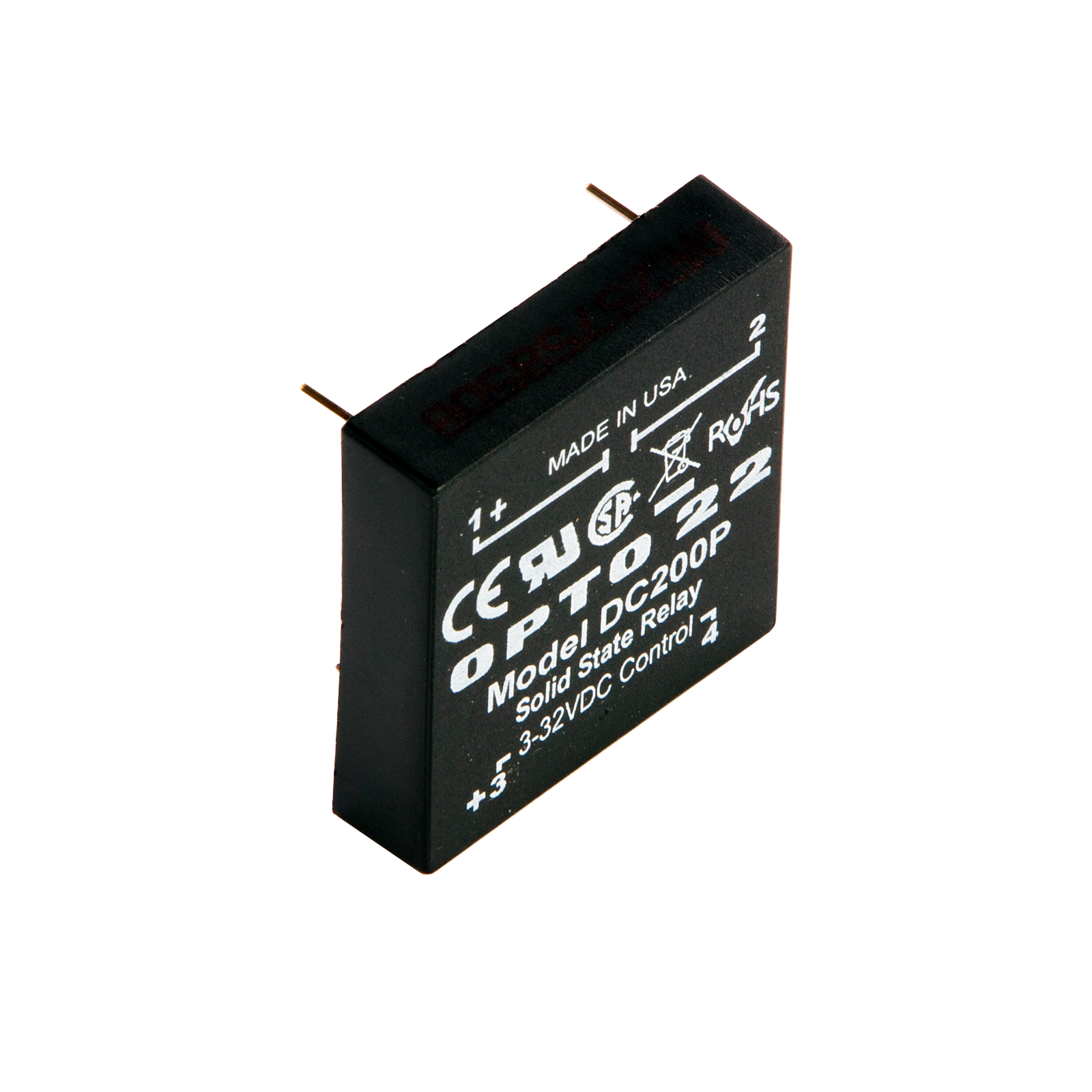

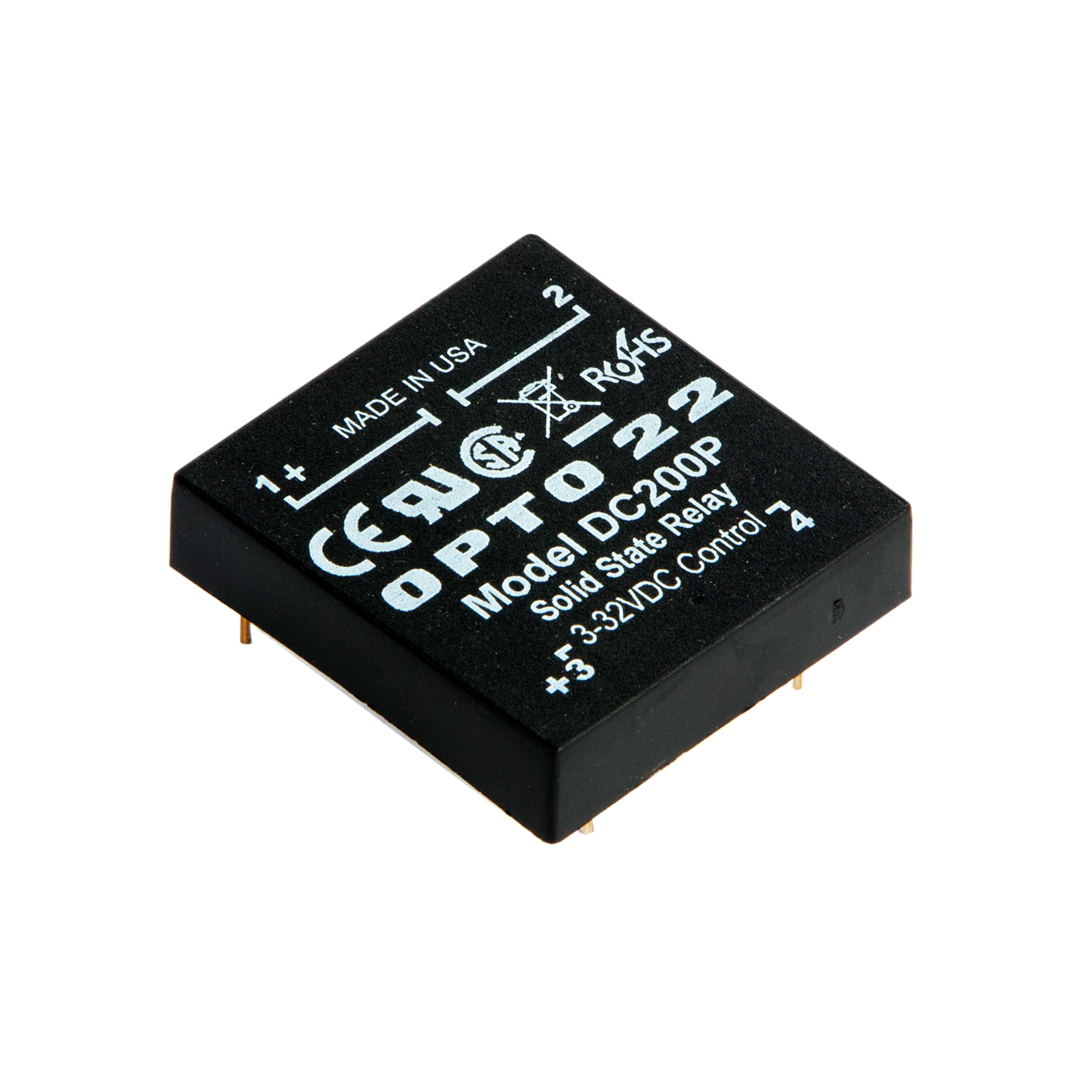

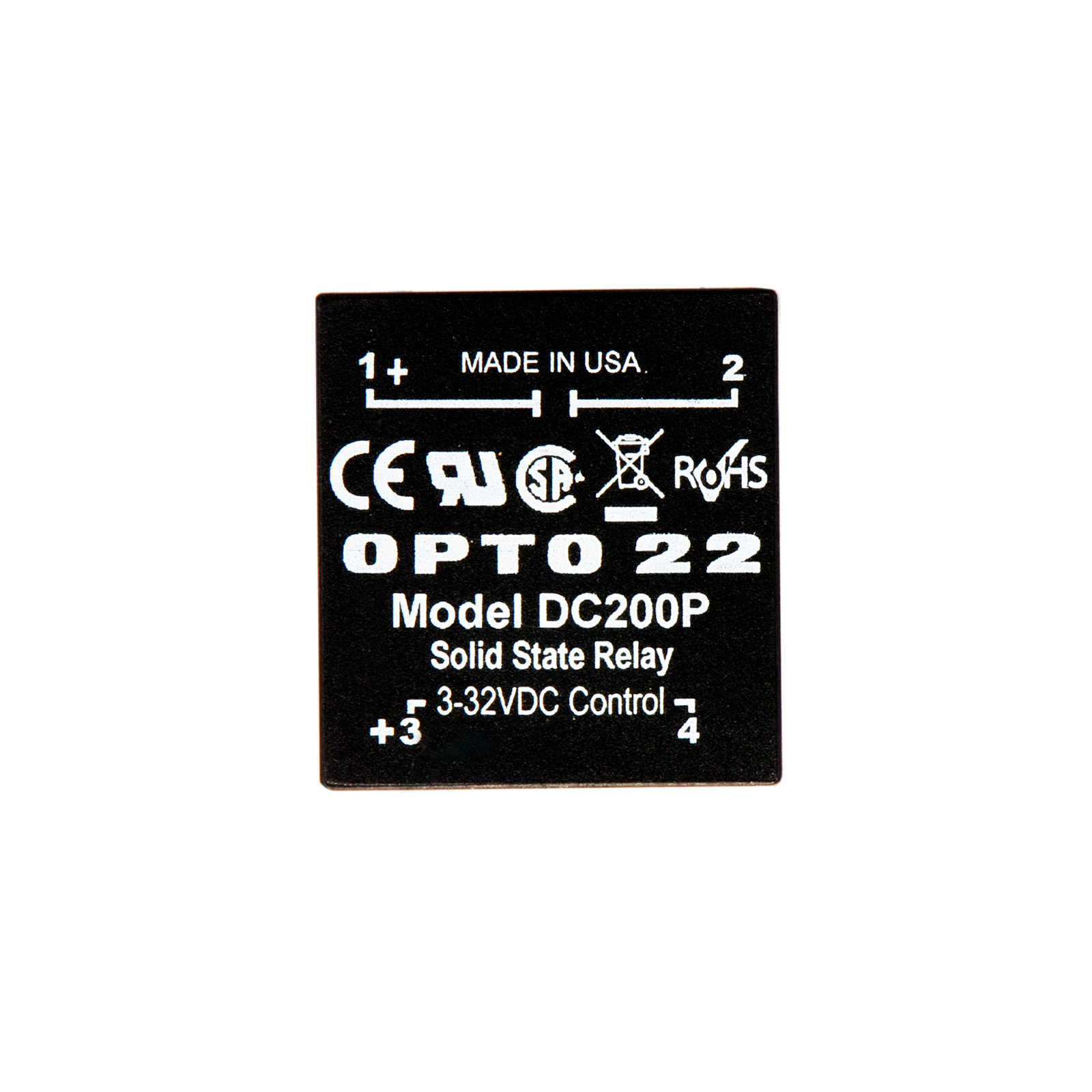

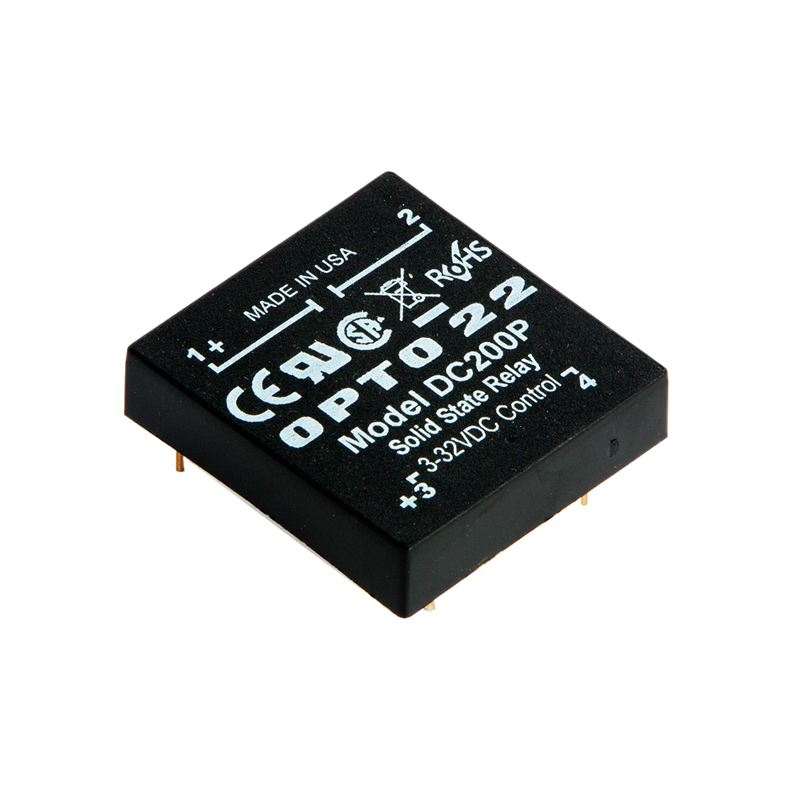

DC200P
Hover over image to zoom in

DC200P

$24.50 (USA and Canada only)

Availability: In stock
P Model, 200 VDC, 1 Amp, DC Control Solid State Relay (SSR)

Production Specification

The DC200P is a DC-controlled P Series relay that switches 200 VDC at up to 1 A.

P Series power relays are designed for OEMs. They provide low-profile (0.5 in. [12.7 mm]) center mounting on printed circuit boards.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list

This SSR carries a lifetime warranty.



DC60P
or DC60MP

DC200P or
DC200MP

DC60S3

DC60S5

Operating Voltage Range

5–60 VDC

5–200 VDC

5–60 VDC

5–60 VDC

Forward Voltage Drop

1.5 volts
at 3 amps

1.5 volts
at 1 amp

1.5 volts
at 3 amps

1.5 volts
at 5 amps

Nominal Currrent Rating
(Amps)

3*

1*

3*

5*

Off-State Blocking

60 VDC

250 VDC

60 VDC

60 VDC

Signal Pickup Voltage

3 VDC
32 Volts**
allowed

3 VDC
32 Volts**
allowed

3 VDC
32 Volts
allowed

3 VDC
32 Volts
allowed

Signal Dropout Voltage

1 VDC

1 VDC

1 VDC

1 VDC

Signal Input Impedeance

1,000 ohms

1,000 ohms

1,000 ohms

1,000 ohms

1 Second Surge

5 amps

2 amps

5 amps

10 amps

Operating Temp. Range

–40 °C to
100 °C

–40 °C to
100 °C

–40 °C to
100 °C

–40 °C to
100 °C

Isolation Voltage

4,000 VRMS

4,000 VRMS

4,000 VRMS

4,000 VRMS

Off-State Leakage

1 mA
maximum

1 mA
maximum

1 mA
maximum

1 mA
maximum

Package Type

P/MP series

P/MP series

Power series

Power series

Turn-on Time

100 microseconds

100 microseconds

100 microseconds

100 microseconds

Turn-off Time

750 microseconds

750 microseconds

750 microseconds

750 microseconds

Agency Approvals UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** MP series maximum allowed control signal is 24 VDC.

For more information, see the Solid State Relays Data Sheet (form 0859).

Solid-State Relays (SSRs) Data Sheet

Opto 22 provides a full range of reliable solid-state relays (SSR). This data sheet includes descriptions, specifications, dimensional drawings, and application information for these parts:

  • 120A10
  • 120A25
  • 240A10
  • 240A25
  • 240A45
  • 120D3
  • 120D10
  • 120D25
  • 120D45
  • 240D3
  • 240D10
  • 240Di10
  • 240D25
  • 240Di25
  • 240D30-HS [Obsolete]
  • 240D45
  • 240Di45
  • 380D25
  • 380D45
  • 480D10-12
  • 480D15-12
  • 480D25-12
  • 480D25-HS [Obsolete]
  • 480D45-12
  • 575D15-12
  • 575D45-12
  • 575D30-HS  [Obsolete]
  • 575Di45-12
  • DC60P or DC60MP
  • DC200P or DC200MP
  • DC60S-3
  • DC60S-5
  • MP120D2 or P120D2
  • MP120D4 or P120D4
  • MP240D2 or P240D2
  • MP240D4 or P240D4
  • MP380D4
  • SAFETY COVER
  • SSR-HS
  • SSR-THERMOPAD
  • Z120D10
  • Z240D10

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CAD 3D Drawing: DC200P Solid State Relay

This CAD file contains a 3-dimensional drawing of the DC200P solid state relay.
