*** NOTE: This part is OBSOLETE and no longer available when current stock is depleted. ***

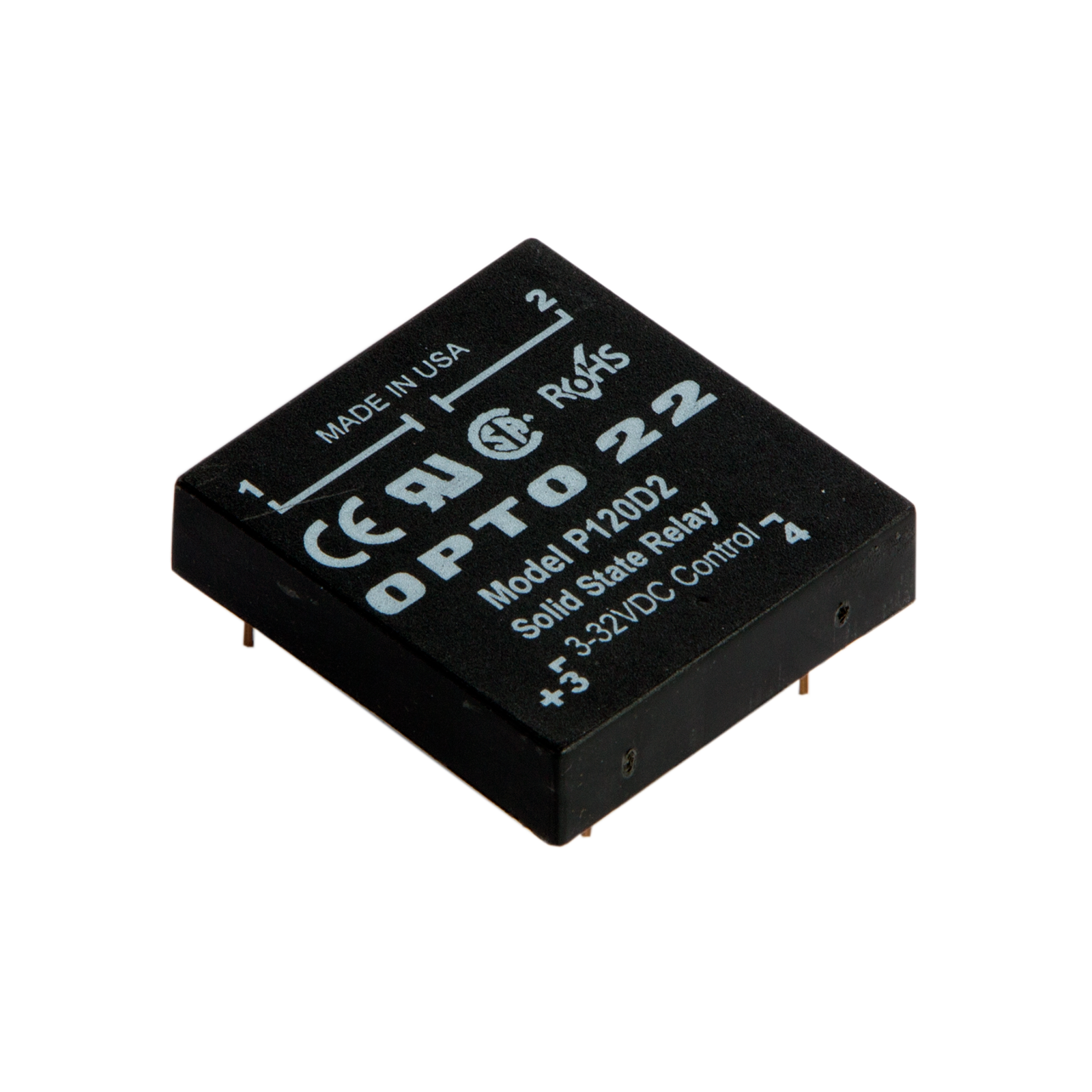

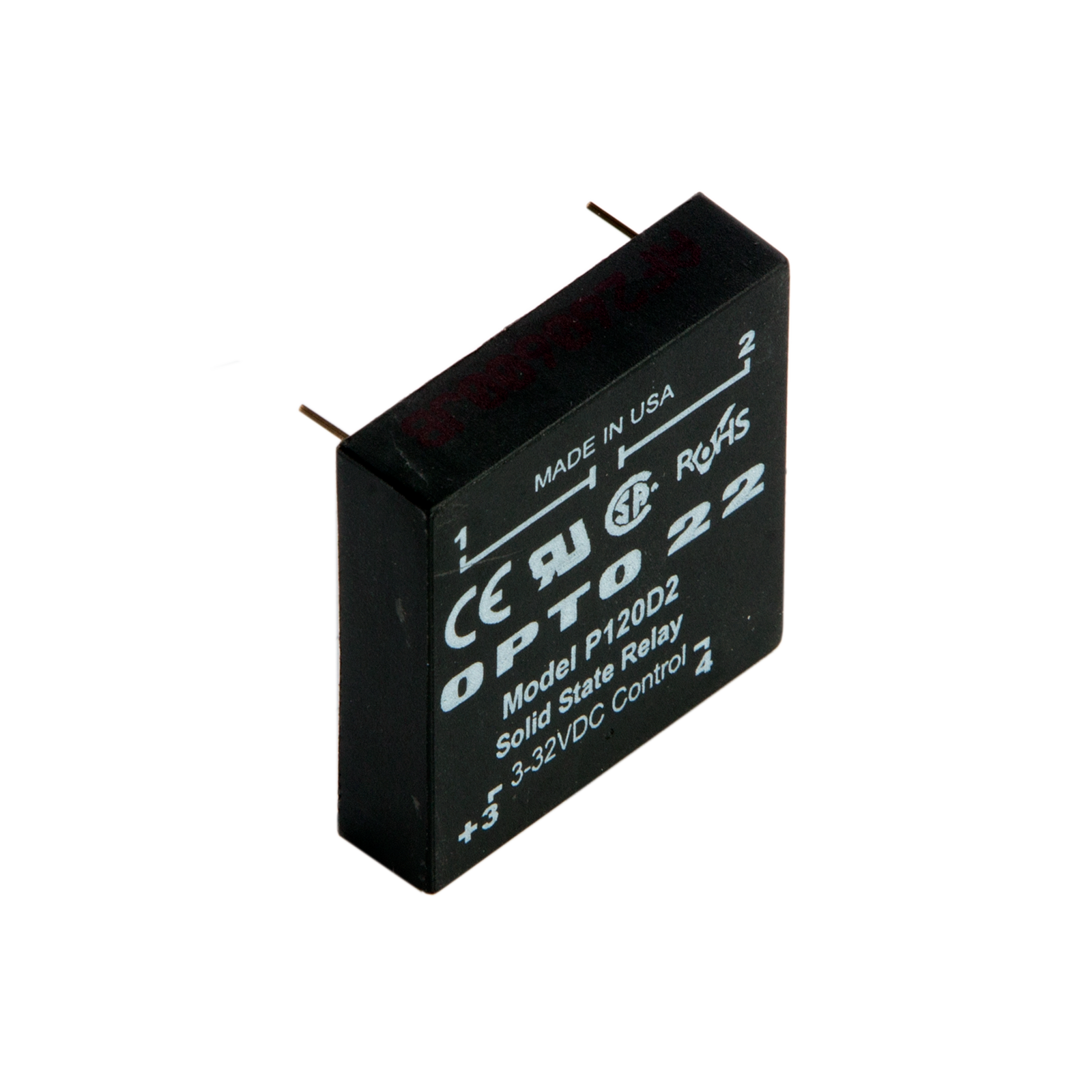

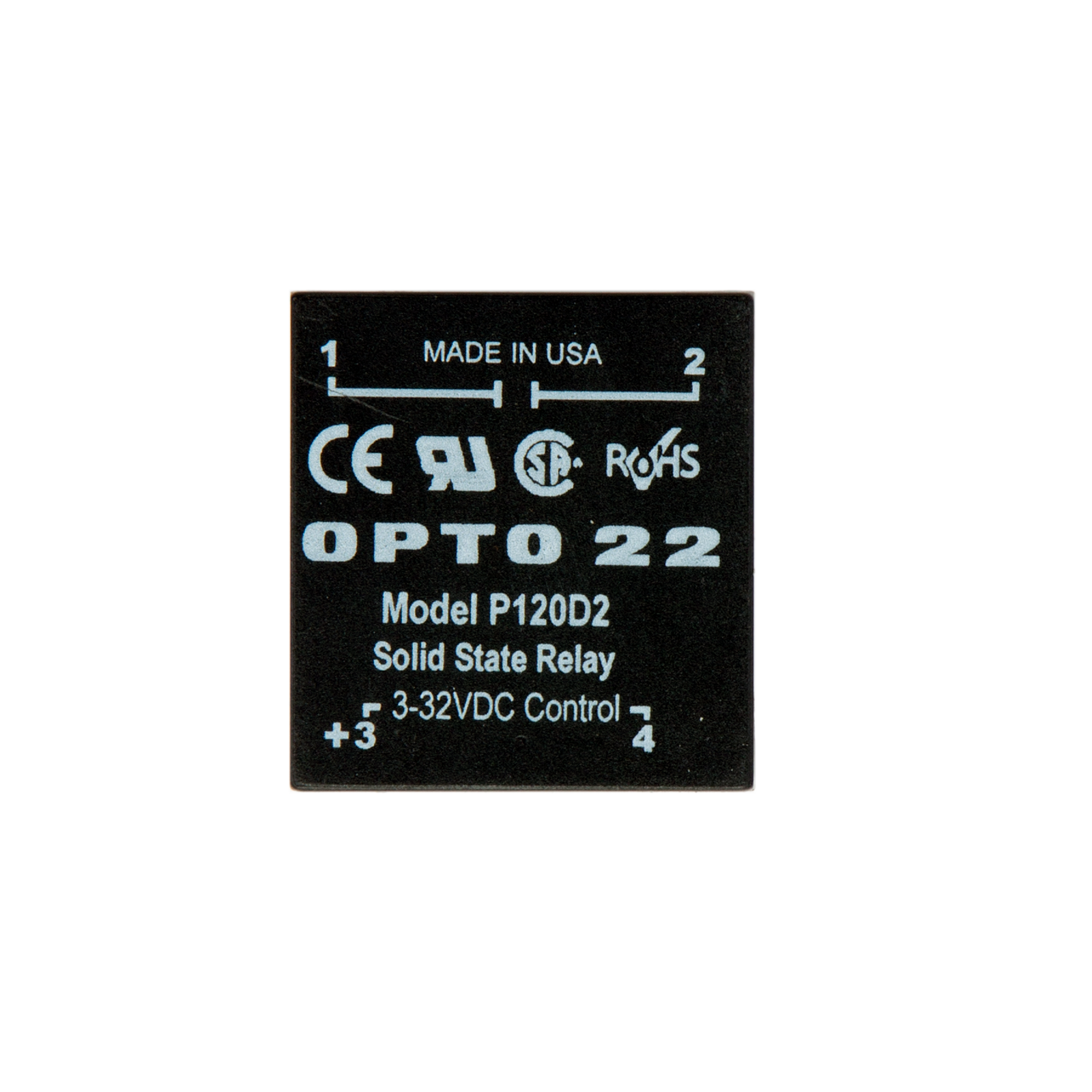

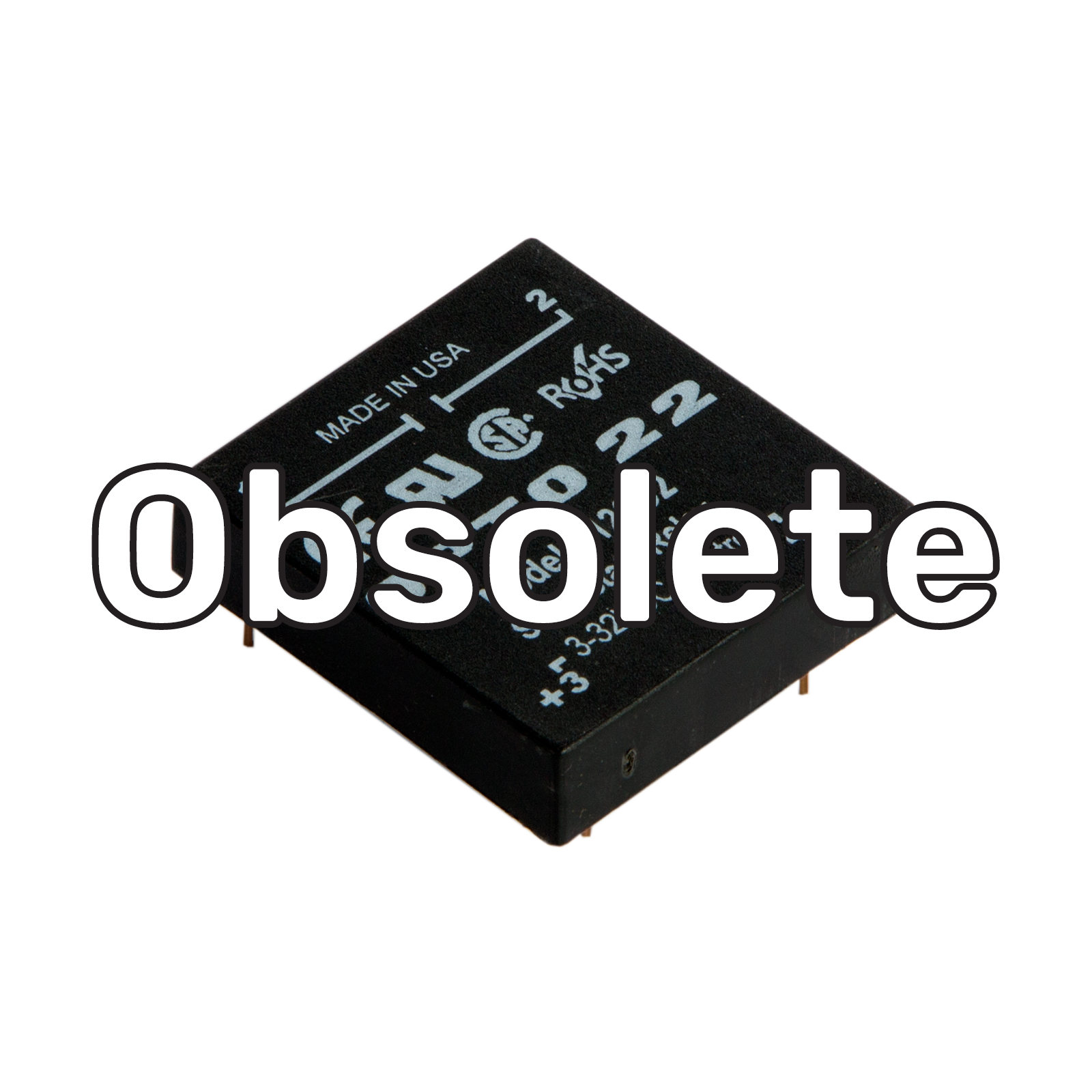

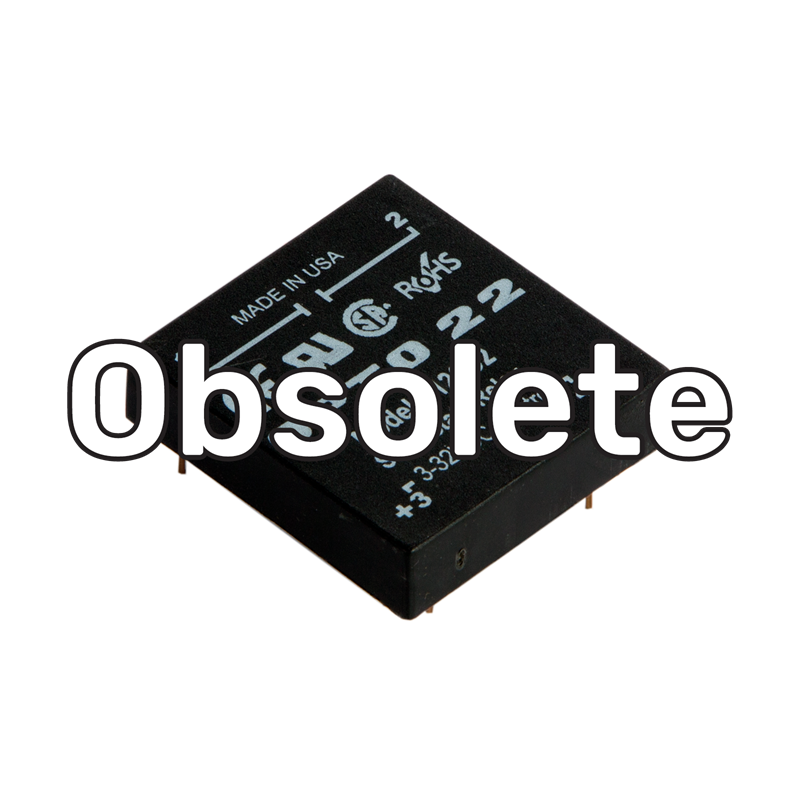

The P120D2 is a DC-controlled P Series relay that switches 120 VAC at up to 2 A.
P Series power relays are designed for OEMs. They provide low-profile (0.5 in. [12.7 mm]) center mounting on printed circuit boards.
Lots of information on choosing and using SSRs can be found in the
SSR data sheet. Also see the
Manufacturers' part number cross-reference list.
This SSR carries a
lifetime warranty.
|
|
MP120D2
or P120D2
|
MP120D4
or P120D4
|
MP240D2
or P240D2
|
MP240D4
or P240D4
|
MP380D4
|
|
Nominal AC Line Voltage
|
120
|
120
|
240
|
240
|
380
|
|
Nominal Current Rating (Amps)
|
2*
|
4*
|
2*
|
4*
|
4*
|
|
1 cycle Surge (Amps) Peak
|
20
|
85
|
20
|
85
|
85
|
|
Nominal Signal Input
Resistance (Ohms)
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Signal Pick-up Voltage
|
3VDC**
(24V allowed)
|
3VDC**
(24V allowed)
|
3VDC**
(24V allowed)
|
3VDC**
(24V allowed)
|
3VDC**
(24V allowed)
|
|
Signal Drop-out Voltage
|
1 VDC
|
1 VDC
|
1 VDC
|
1 VDC
|
1 VDC
|
|
Peak Repetitive Voltage Maximum
|
600
|
600
|
600
|
600
|
800
|
|
Maximum Output Voltage Drop
|
1.6 volts
|
1.6 volts
|
1.6 volts
|
1.6 volts
|
1.6 volts
|
|
Off-State Leakage mA Maximum***
|
5 mA
|
5 mA
|
5 mA
|
5 mA
|
5 mA
|
|
Operating Voltage Range (Volts AC)
|
12–140
|
12–140
|
24–280
|
24–280
|
24–420
|
|
I2t Rating t=8.3 (ms)
|
2
|
30
|
2
|
30
|
30
|
|
Isolation Voltage
|
4,000 VRMS
|
4,000 VRMS
|
4,000 VRMS
|
4,000 VRMS
|
4,000 VRMS
|
|
θjc**** °C/Watt
|
20
|
6.5
|
20
|
6.5
|
6.5
|
|
Dissipation Watts/Amp
|
1.2
|
1.2
|
1.2
|
1.2
|
1.2
|
|
Rating (Motor Load)
|
1 FLA at 120 VAC
6 LRA at 120 VAC
|
2.5 FLA at 240 VAC
6 LRA at 240 VAC
|
1 FLA at 120 VAC
15 LRA at 120 VAC
|
2.5 FLA at 240 VAC
15 LRA at 240 VAC
|
2.5 FLA at 380 VAC
15 LRA at 380 VAC
|
| Agency Approvals |
UL, CSA, RoHS, CE; UKCA |
UL, CSA, RoHS, CE; UKCA |
UL, CSA, RoHS, CE; UKCA |
UL, CSA, RoHS, CE; UKCA |
UL, CSA, RoHS, CE; UKCA |
|
Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** = P Series 32 volts maximum.
*** Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage).
****θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
|
