$25.75 (USA and Canada only)
One-second Surge
5 A
Operating Ambient Temperature
-30 °C to 70 °C
Isolation, Input-to-Output (Transient)
4000 volts
Turn-on Time
100 µs
Turn-off Time
750 µs
Output Voltage Drop Maximum Peak
1.6 volts
Module Specifications
UNITS

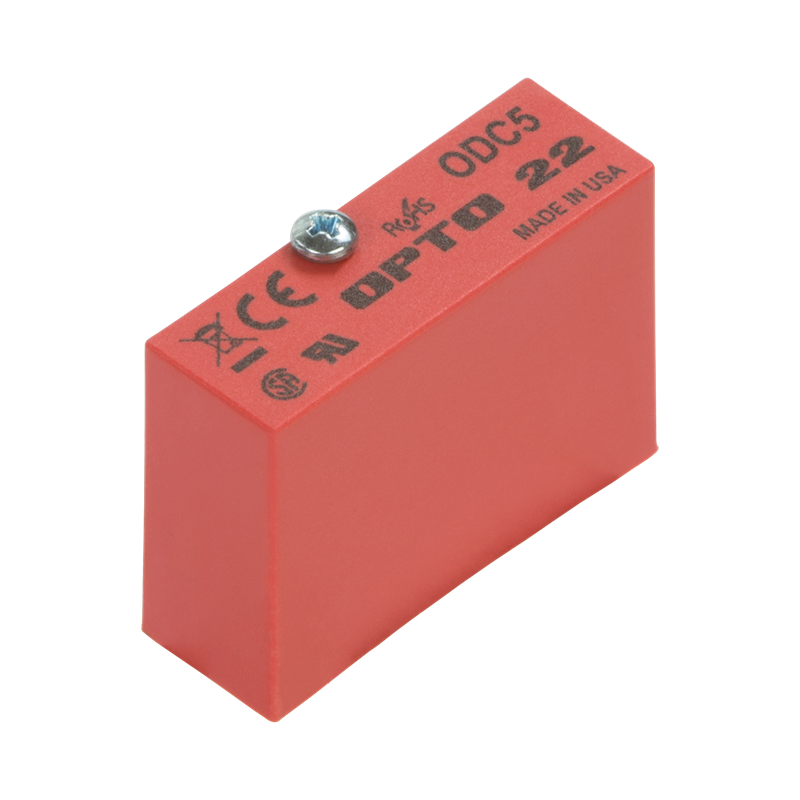

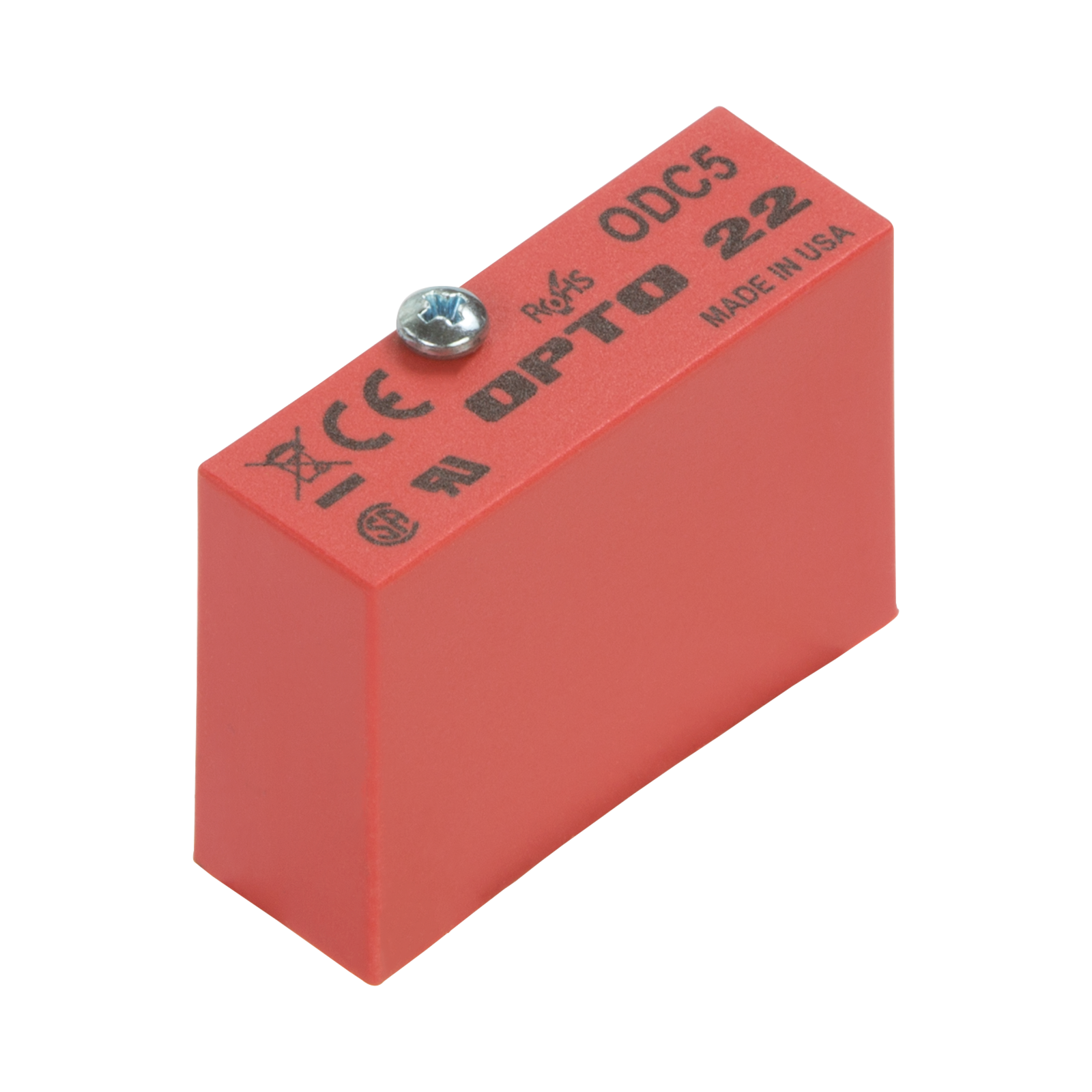

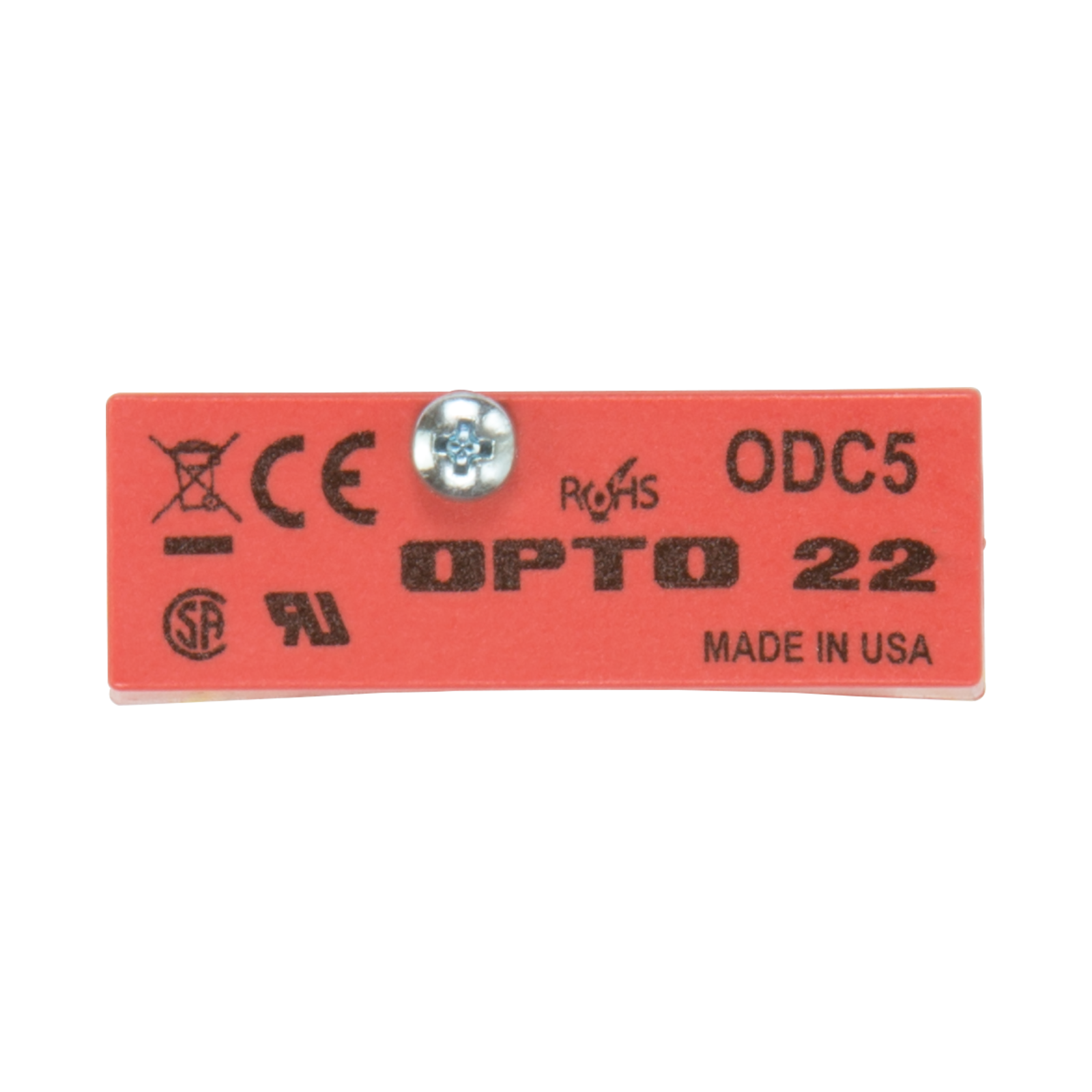

ODC5
ODC5A
ODC15
ODC15A
ODC24
ODC24A
Line voltage - max.
VDC
60
200
Operating voltage range
5–60
5–200
Current rating @ 45 °C ambient @ 70 °C ambient
Amps Amps
3 2
1 0.55
UL Motor Load rating
Amps
1.5
1
Off-state leakage @ max. voltage
mA
2
Logic voltage - nominal
5
15
24
Logic voltage range (Vcc)
2.5–8
9–16
18–32
Logic pickup voltage
2.5
9
18
Logic dropout voltage
Logic input current @ nominal logic voltage
12
Control resistance (Rc in schematic diagram)
Ohms
220
1K
2.2K
DC output modules are used for controlling or switching DC loads.
