G4IDC5MA
Hover over image to zoom in

G4IDC5MA

$52.00 (USA and Canada only)

Availability: In stock

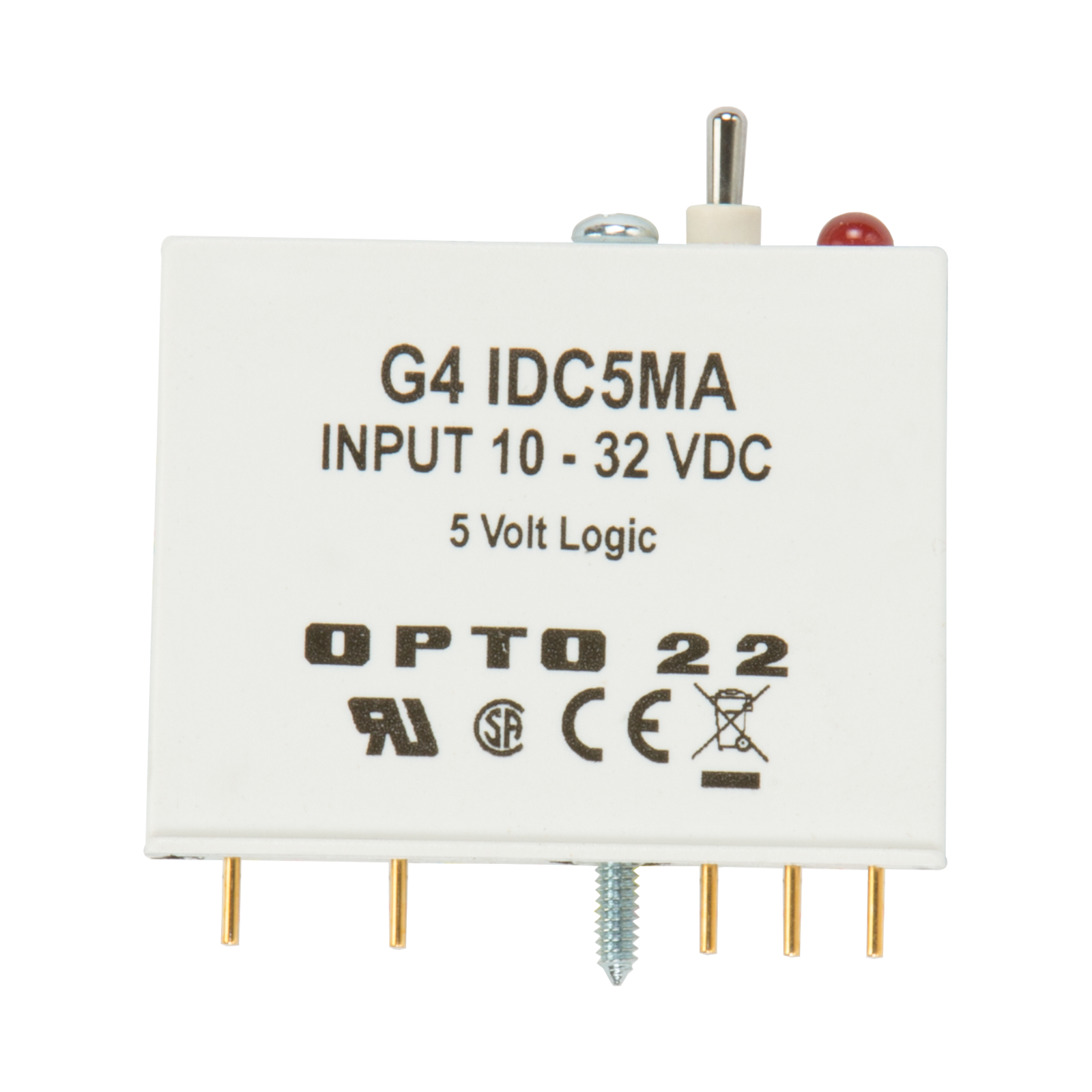

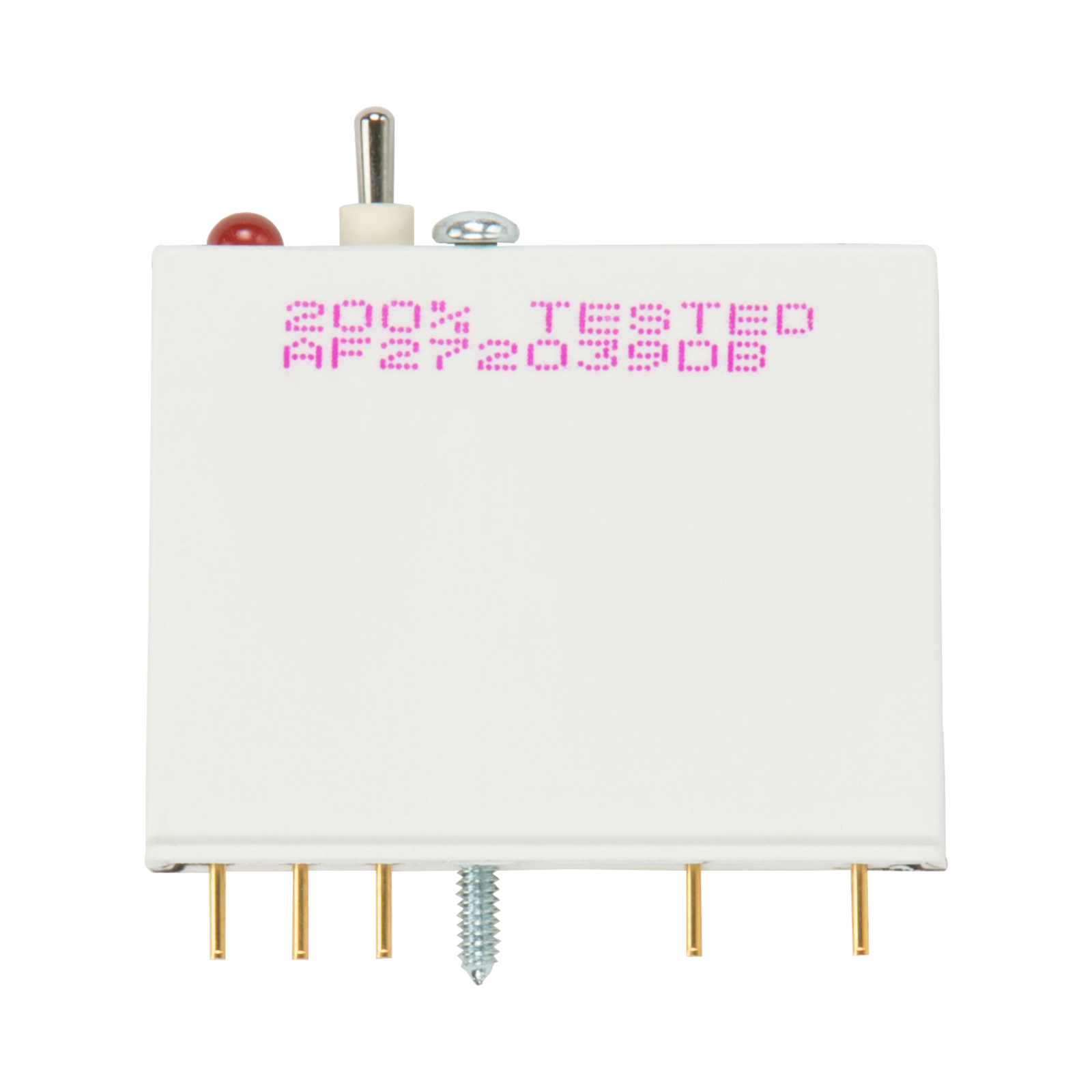

G4 DC Input 10-32 VDC, 5 VDC Logic with Manual/Auto Switch

Production Specification

G4 I/O family

The G4IDC5MA is a digital DC input module with an input voltage range of 10-32 VDC (or 12-32 VAC), requiring a typical logic voltage of 5 VDC. This module is compatible with Opto 22 brains and with a Raspberry Pi.

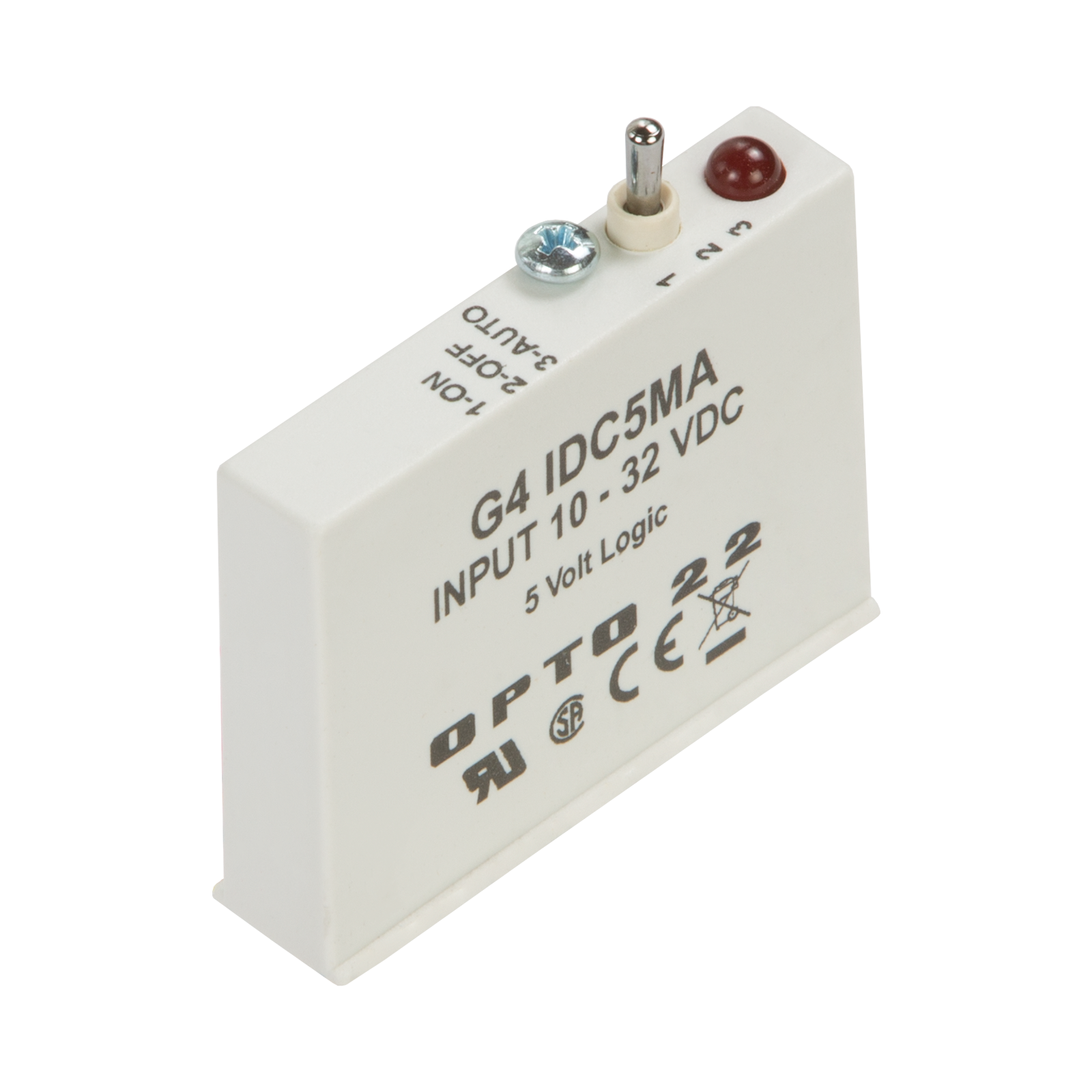

The G4IDC5MA features a manual-on/manual-off/automatic switch, ideal for diagnostic testing of control applications.
This module is designed with filtering on the input and a hysteresis amplifier, providing high noise rejection and transient-free, "clean" switching.

Opto 22’s G4 DC input modules are used to detect on/off DC voltage levels. Each module provides up to 4000 volts (transient) of optical isolation between field inputs and the logic output of the circuit. Typical applications for DC input modules include sensing the presence or absence of voltage and sensing contact closure from sources such as proximity switches, limit switches, selector switches, push buttons, photoelectric switches, and TTL-compatible devices.

Compatible with Raspberry Pi. The G4IDC5MA can be used with the Digital I/O Carrier Board for Raspberry Pi®  (part number OPTO-P1-40P) to monitor and control industrial devices with your Raspberry Pi.



Units

G4IDC5K

G4IDC5MA*

G4IDC15**

G4IDC24**

Input voltage range

VDC
VAC

2.5–16

10–32
12–32

10–32
12–32

10–32
12–32

Key feature



Highest
speed

Diagnostic
switch

Input current at maximum line

mA

30

25

25

25

Isolation, input-to-output (transient):
1 ms
1 minute



V
V



4000
1500



4000
1500



4000
1500



4000
1500

Turn-on time

ms

0.025***

5

5

5

Turn-off time

ms

0.025***

5

5

5

Input allowed for off-state

mA, V

0.2, 1

1, 3

1, 3

1,3

Nominal output supply voltage

VDC

5

5

15

24

Output supply voltage range

VDC

4.5–6

4.5–6

12–18

20–30

Output supply current at
nominal logic voltage

mA

12

12

15

18

Input resistance (R1 in schematic)

ohms

500

1.5 K

1.5 K

1.5 K

Control resistance (Rc in schematic)

ohms

220

220

1 K

2.2 K

Output voltage drop

V @ 50 mA

0.4

0.4

0.4

0.4

Output current (sinking)

mA

50

50

50

50

Output leakage with no input

microamps @ 30 VDC

100

100

100

100

Transistor

V breakdown

30

30

30

30

Temperature:
Operating

Storage



°C
°C



–30 to +70
–30 to +85



–30 to +70
–30 to +85



–30 to +70
–30 to +85



–30 to +70
–30 to +85

Agency Approvals   UL, CE, CSA, FM; UKCA UL, CE, CSA; UKCA UL, CE, CSA; UKCA UL, CE, CSA; UKCA

* Compatible with Raspberry Pi.
** Not for use with Opto 22 brains.
*** At 5Vp-p square wave input, 50% duty cycle.

G4 Digital DC Input Modules Data Sheet

Opto 22’s G4 DC input modules are used to detect on/off DC voltage levels. This document includes descriptions, specifications, and wiring and dimensional diagrams for Opto 22’s G4 DC output modules:

  • G4IDC5
  • G4IDC5B
  • G4IDC5D
  • G4IDC5G [OBSOLETE]
  • G4IDC5K
  • G4IDC5MA
  • G4IDC5-SW
  • G4IDC5-SWNC [OBSOLETE when current stock is depleted]
  • G4IDC15 [OBSOLETE when current stock is depleted]
  • G4IDC24

Digital I/O for Raspberry Pi Selection Guide

Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O.

This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included.

For code samples and steps to get started, also see developer.opto22.com.

G4 Digital I/O Data Book

The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

G4 Digital I/O Wiring Diagrams

Wiring diagrams for G4 modules and racks

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: EMC

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

No downloads are available for this product.
No videos or demos are available for this product.
