DA8
Hover over image to zoom in

DA8

$183.00 (USA and Canada only)

Availability: In stock
OBSOLETE G1 0-20 mA Analog Output

Production Specification

*** NOTE: This part is obsolete and no longer available when current stock is depleted. ***

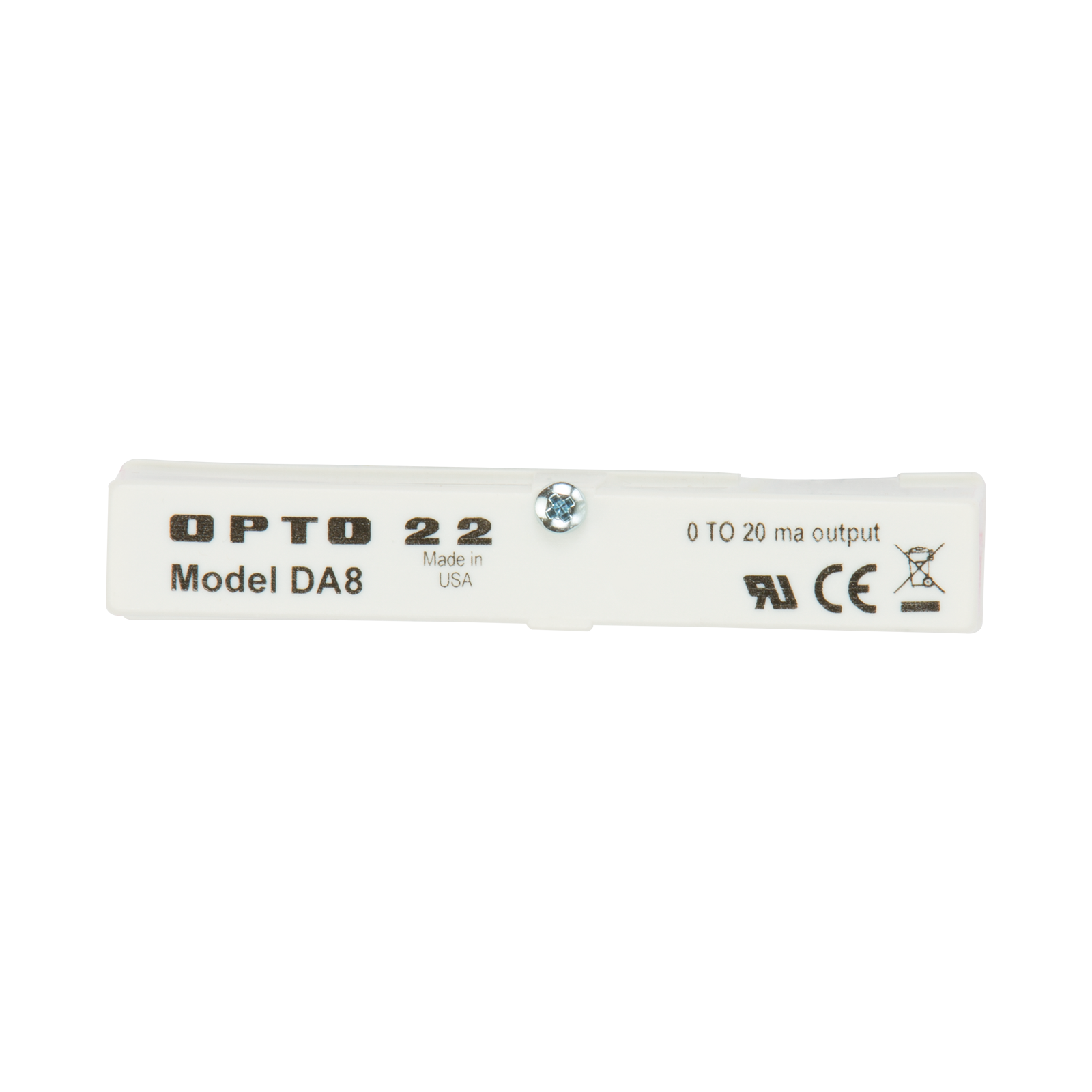

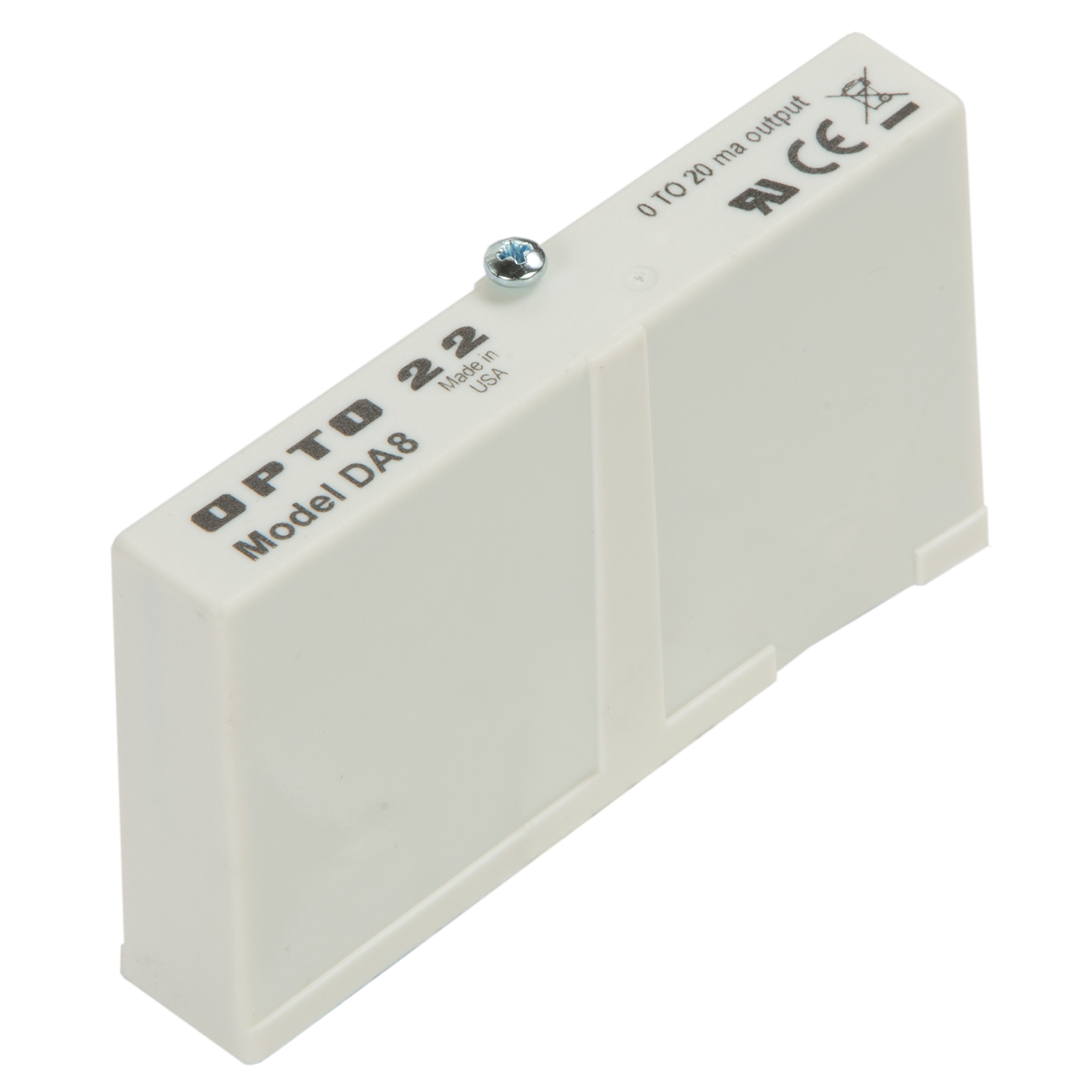

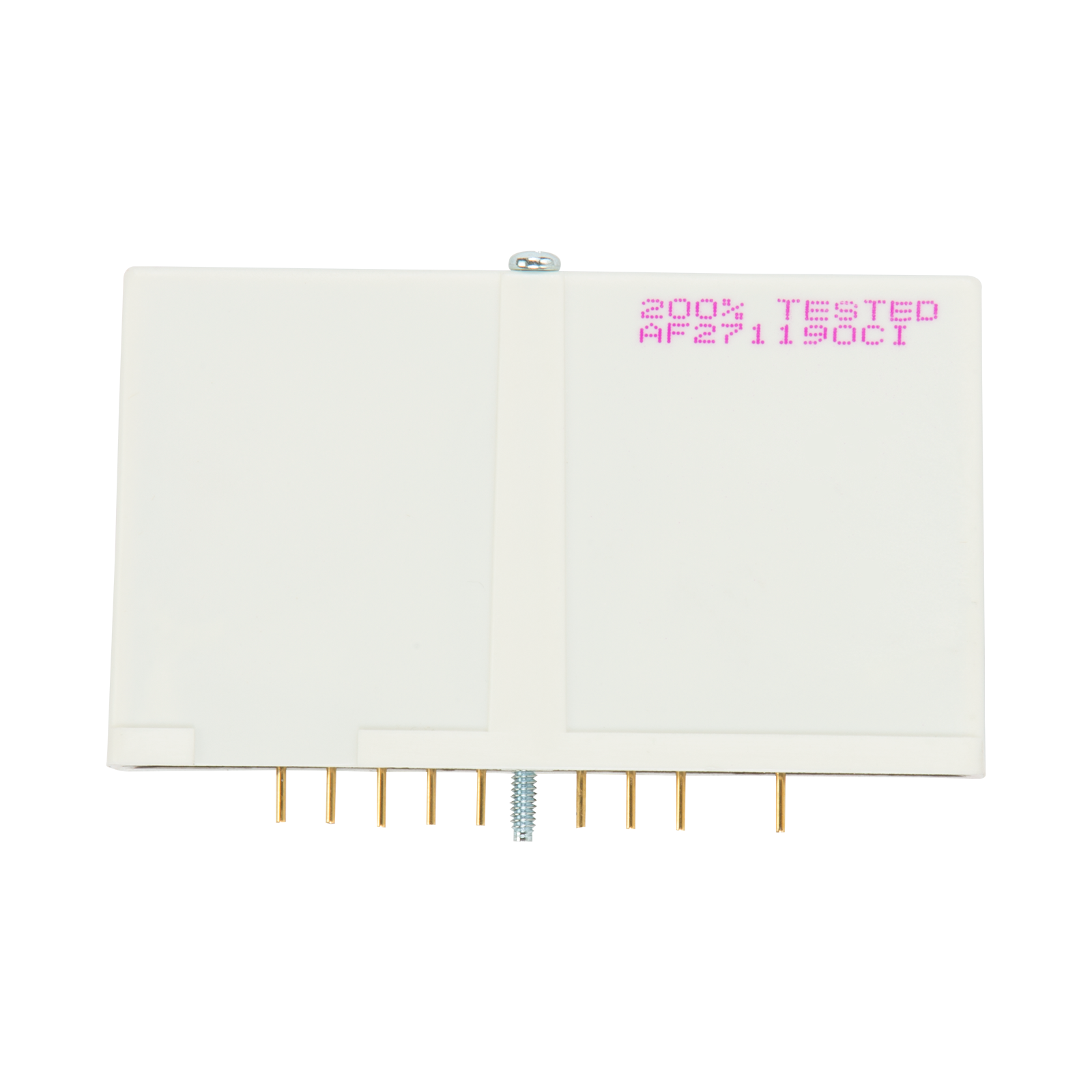

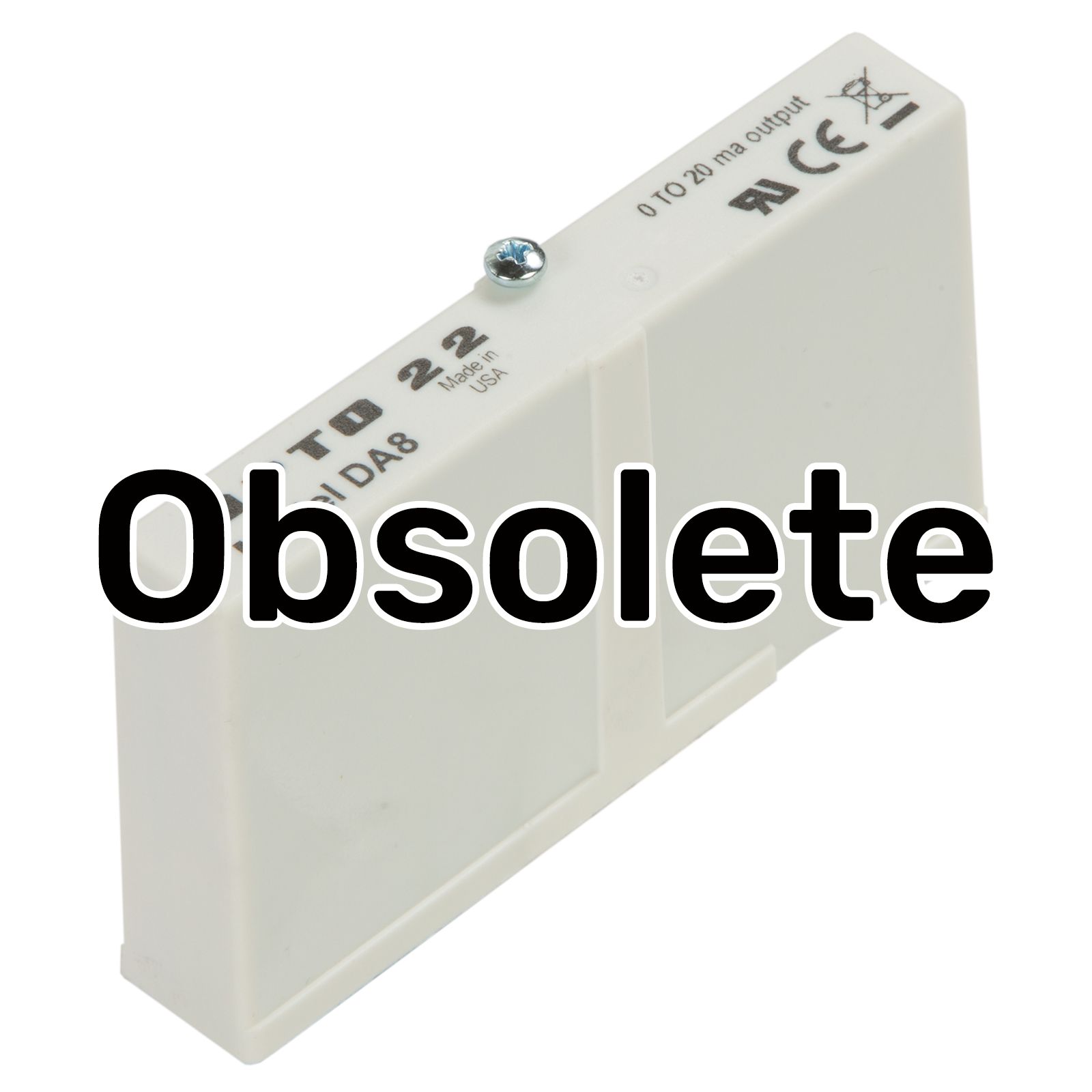

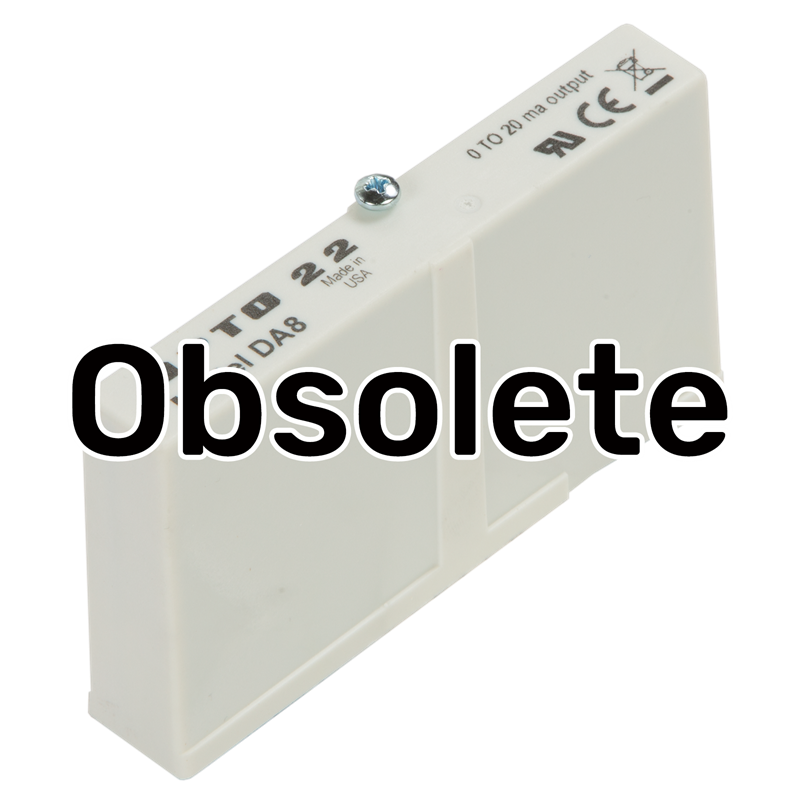

The DA8 provides a single channel of optically isolated digital-to-current conversion. Output current is 0-20 mA. The DA8 is UL approved.

This module mounts on a G1 analog mounting rack, for example the PB16AH.



DA3

DA3T

DA8a

Output Current

4-20 mA

4-20 mA

4-20 mA

Minimal Current Draw

1.6 mA

1.6 mA

1.6 mA

Accuracy

16 μA

16 μA

20 μA

Power Requirements

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
24 mA at 5 VDC

22 mA at +15 (+/- 0.25) VDC
22 mA at -15 (+/- 0.25) VDC
24 mA at 5 VDC

20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
24 mA at 5 VDC

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

CE, RoHS, DFARS; UKCA

UL, CE, RoHS, DFARS; UKCA

a This product is Obsolete and no longer available when the current stock is depleted.

Response Time

Full scale step change in 3 ms

Resolution

12 bits

Isolation
  Input-to-Output
  Input-to-Analog Supply (T Modules)



4,000 Vrms
4,000 Vrms

Temperature
  Operating
  Storage



0 °C to 70 °C
- 25 °C to 85 °C

DA3T: All of the lower A terminals on the mounting rack are tied together.
These provide a convenient tie point for shared loop source return. To use the
DA3T with a common loop supply, connect any one lower A terminal to the
shared loop source "-", then jumper upper A to lower A for each DA3T.

Standard Analog Current Output Modules Data Sheet

These standard (G1) current output modules provide a single channel of optically isolated digital-to-current conversion. This document includes descriptions, specifications, and wiring and dimensional diagrams for Opto 22’s G1 output modules:

  • DA3
  • DA3T
  • DA8 [Obsolete and no longer available when current stock is depleted]
