*** NOTE: This part is obsolete and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.
G1 I/O family

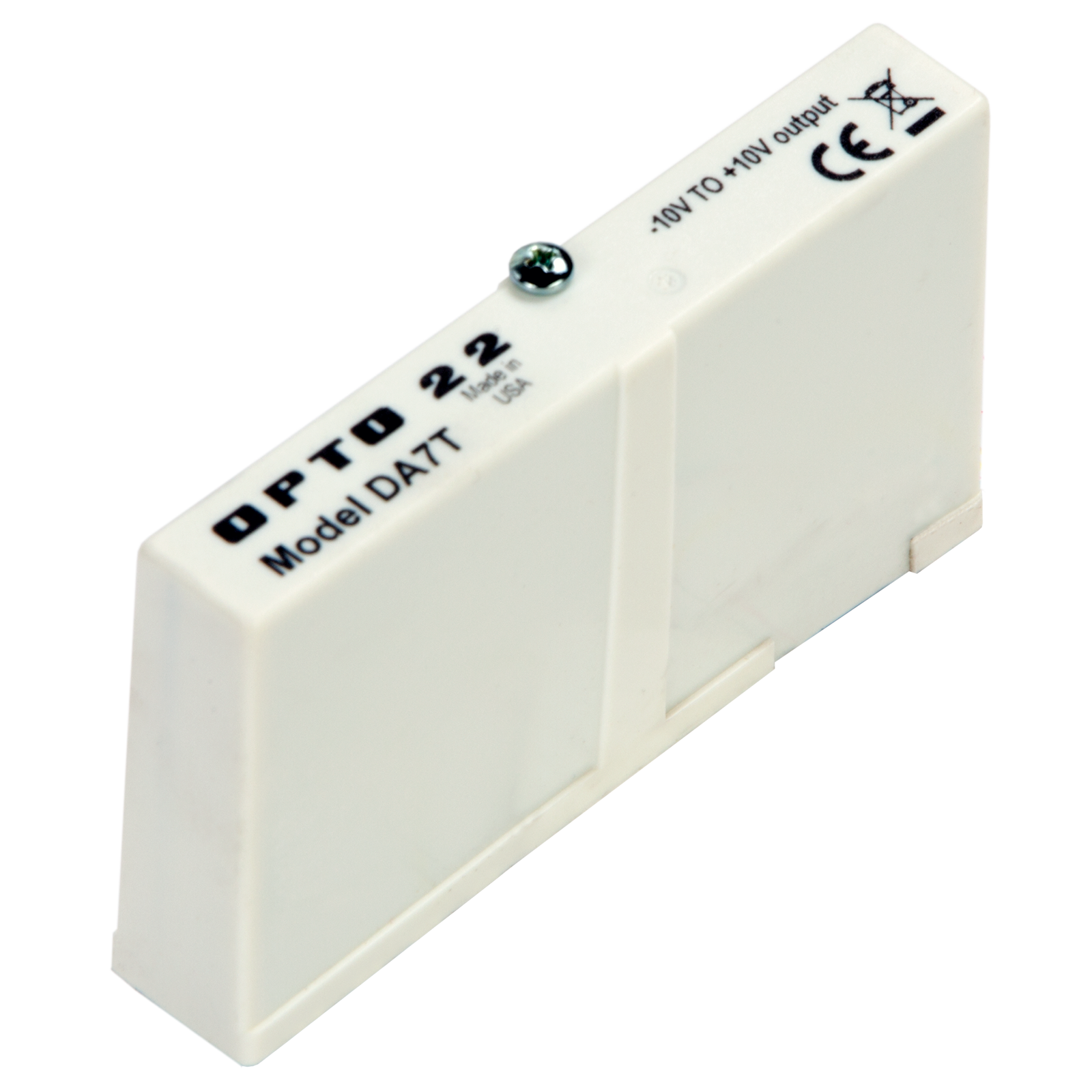

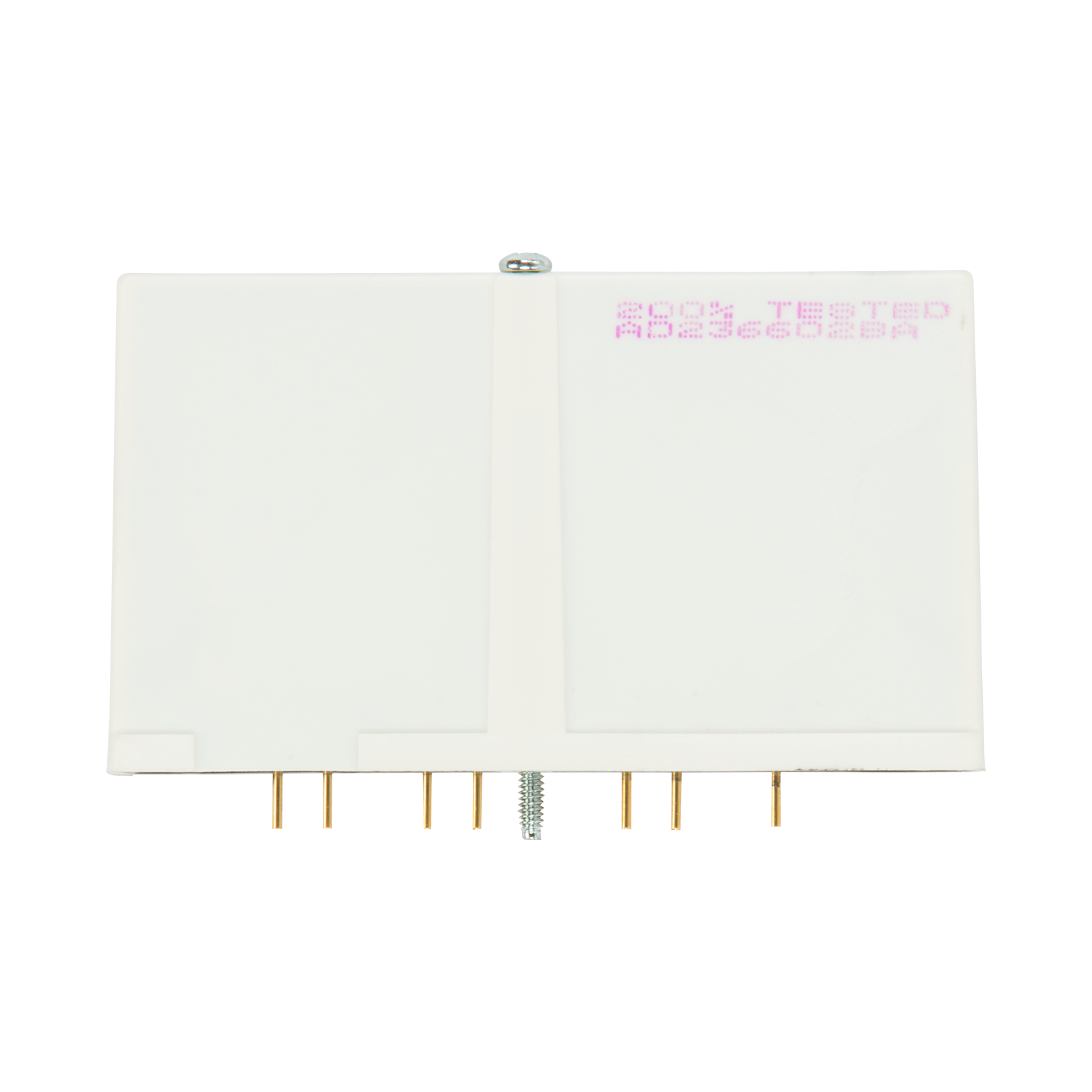

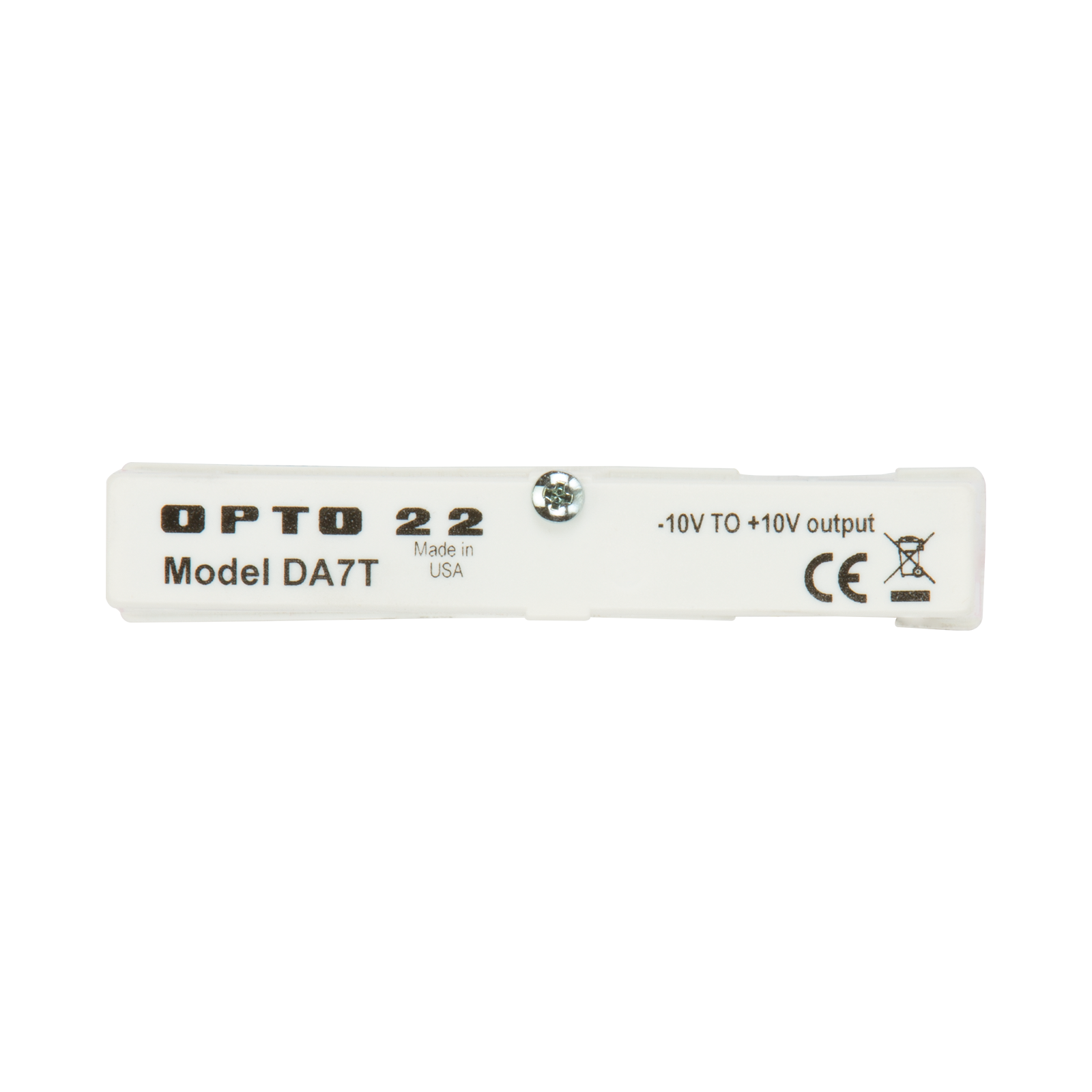

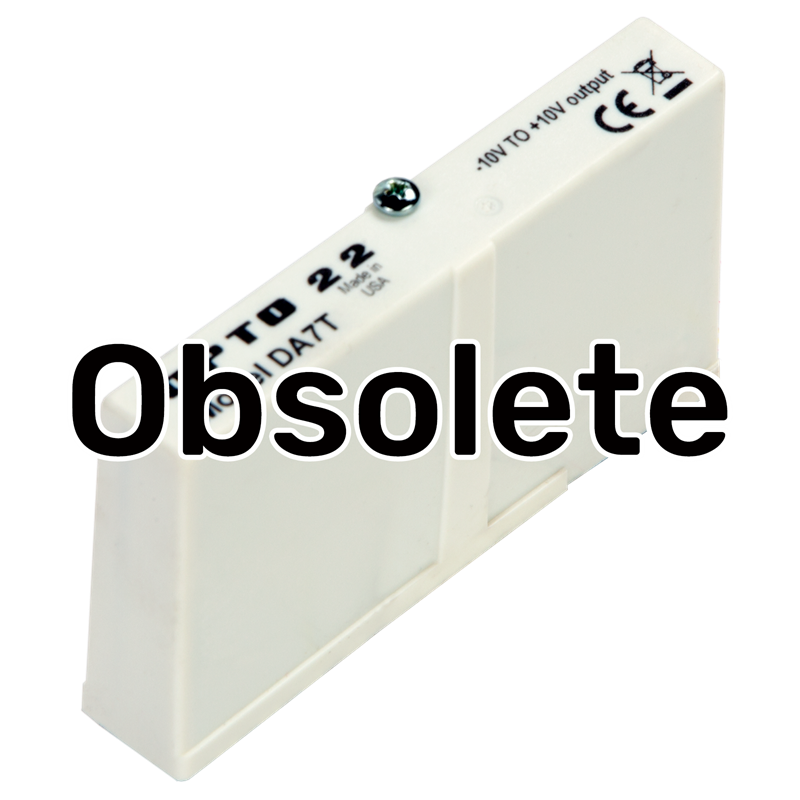

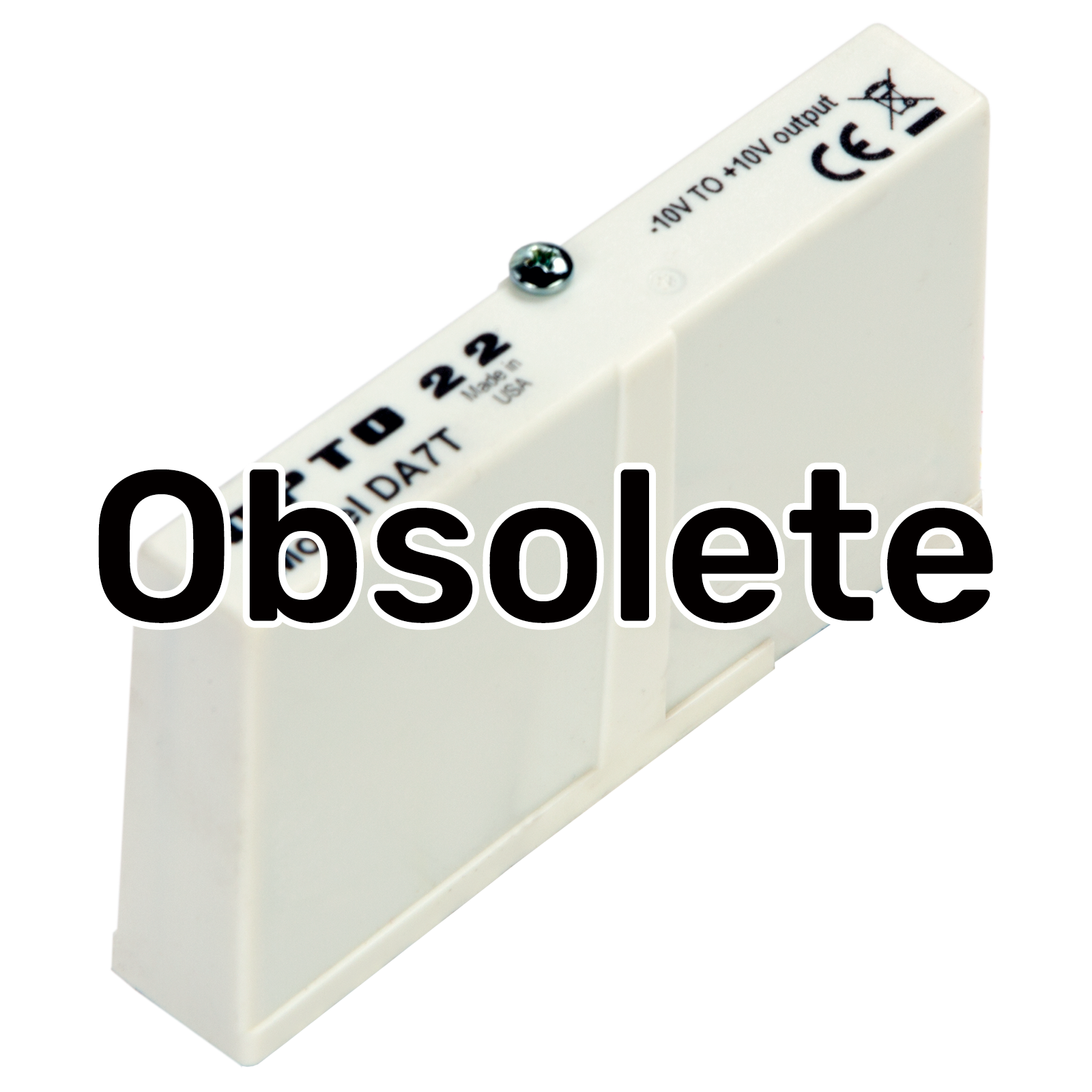

The DA7T provides a single channel of optically-isolated digital-to-voltage conversion. Output voltage is -10 to +10 VDC. This module is also transformer isolated, which eliminates any ground loop problems.
This module mounts on a G1 analog mounting rack, for example the PB16AH.
|
DA4
|
DA4T
|
DA5
|
DA6
|
DA7
|
DA7T
|
Output Voltage
|
0 to 5 VDC
|
0 to 5 VDC
|
0 to 10 VDC
|
-0 to +5 VDC
|
-10 to +10 VDC
|
-10 to +10 VDC
|
Accuracy
|
±5 mV
|
±5 mV
|
±10 mV
|
±10 mV
|
±20 mV
|
±20 mV
|
Power Requirements
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
35 mA at +15 (+/- 0.25) VDC
35 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
20 mA at +15 (+/- 0.25) VDC
10 mA at -15 (+/- 0.25) VDC
|
Output Current
DA4, DA5, DA6, DA7
DA4T, DA7T
|
70 mA
25 mA
|
Output Response Time
|
Full-scale step change in 3 ms
|
Resolution
|
12 bits
|
Isolation
Input-to-Output
Input-to-Analog Supply
|
4,000 Vrms (Transient)
4,000 Vrms
|
Temperature
Operating
Storage
|
0 °C to 70 °C
- 25 °C to 85 °C
|
The voltage output analog module provides a single channel of optically-isolated digital-to-voltage conversion.This data sheet provides information about these standard voltage output modules:
- DA4 [Obsolete]
- DA4T
- DA5
- DA6
- DA7
- DA7T [Obsolete]
