480D10-12
Hover over image to zoom in

480D10-12

$62.25 (USA and Canada only)

Availability: In stock

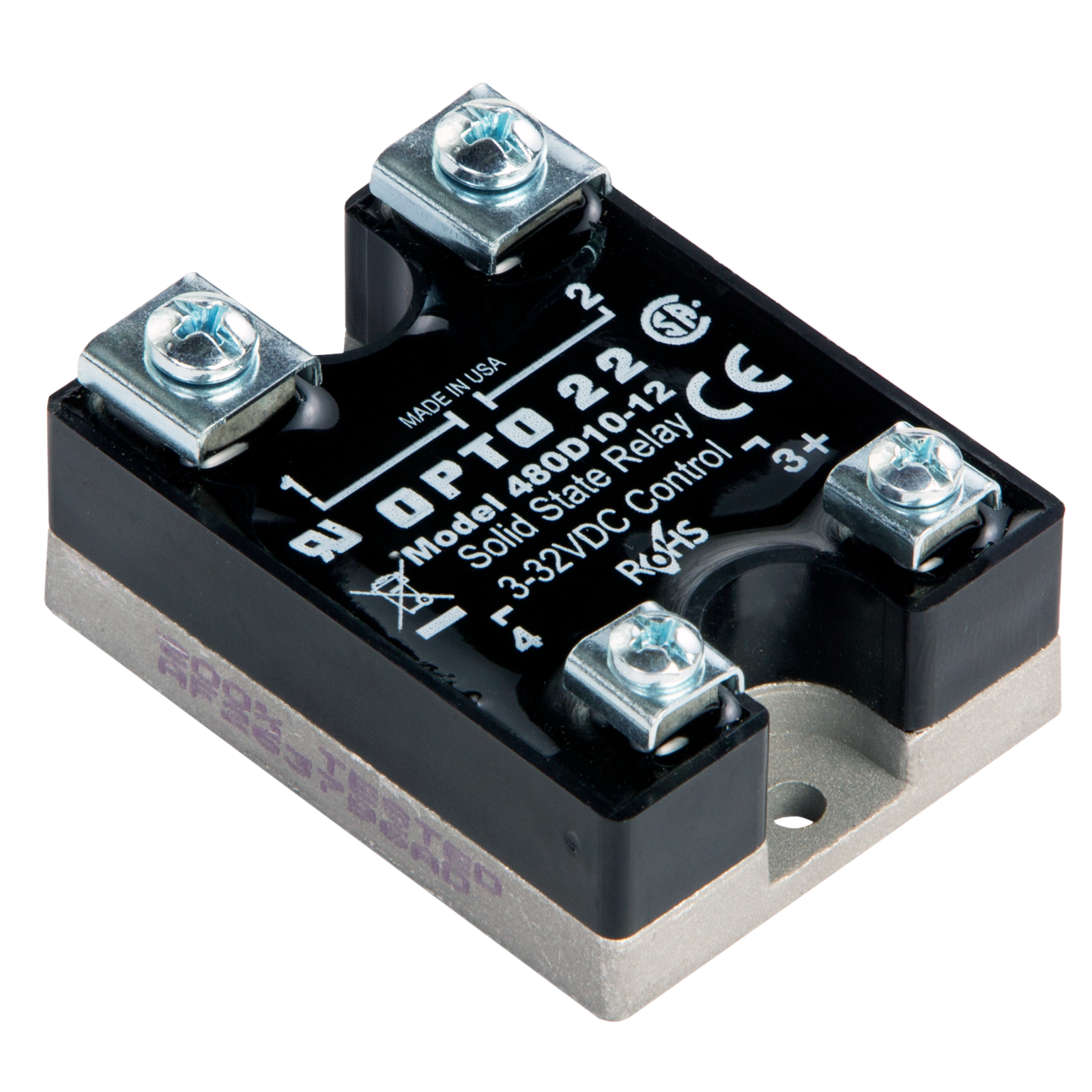

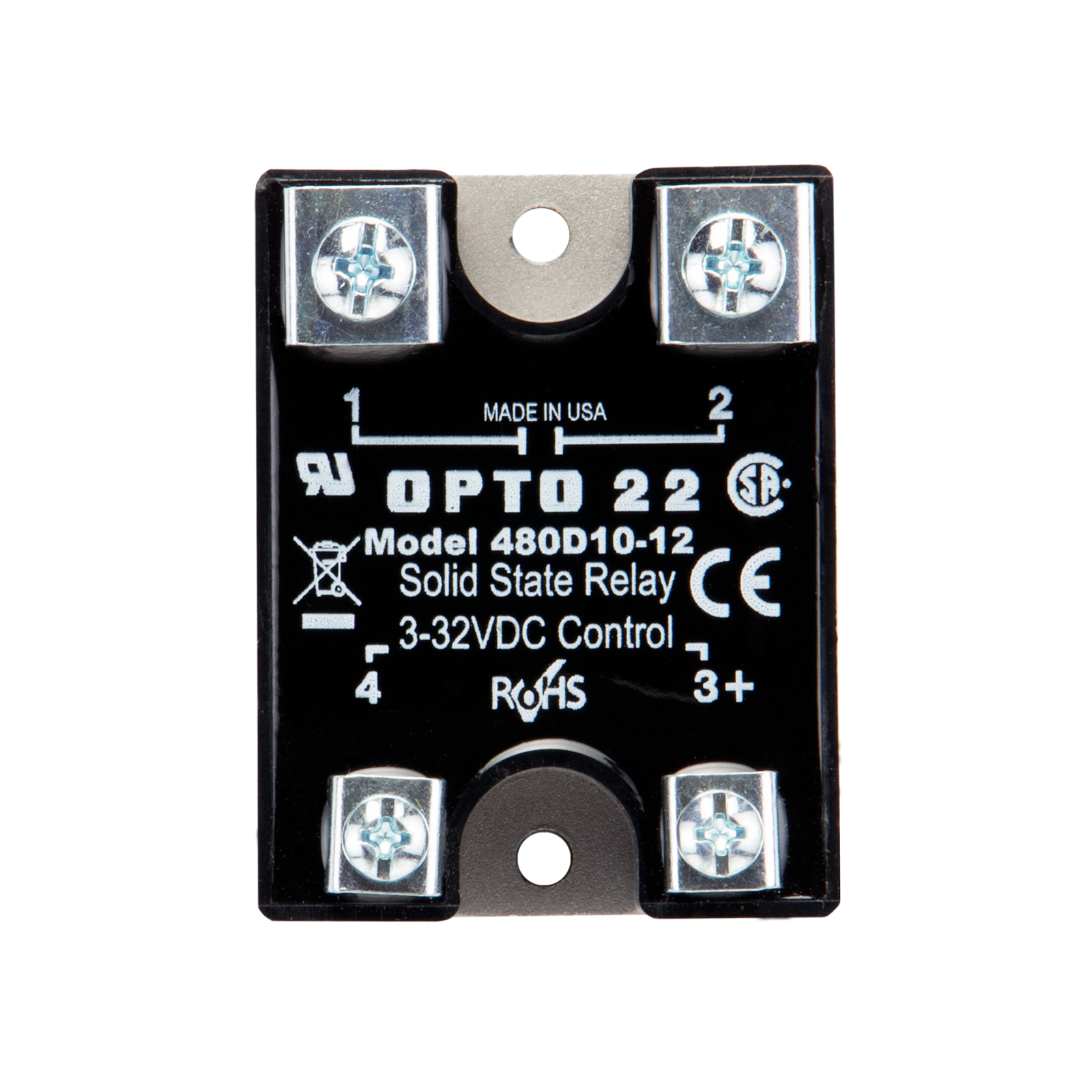

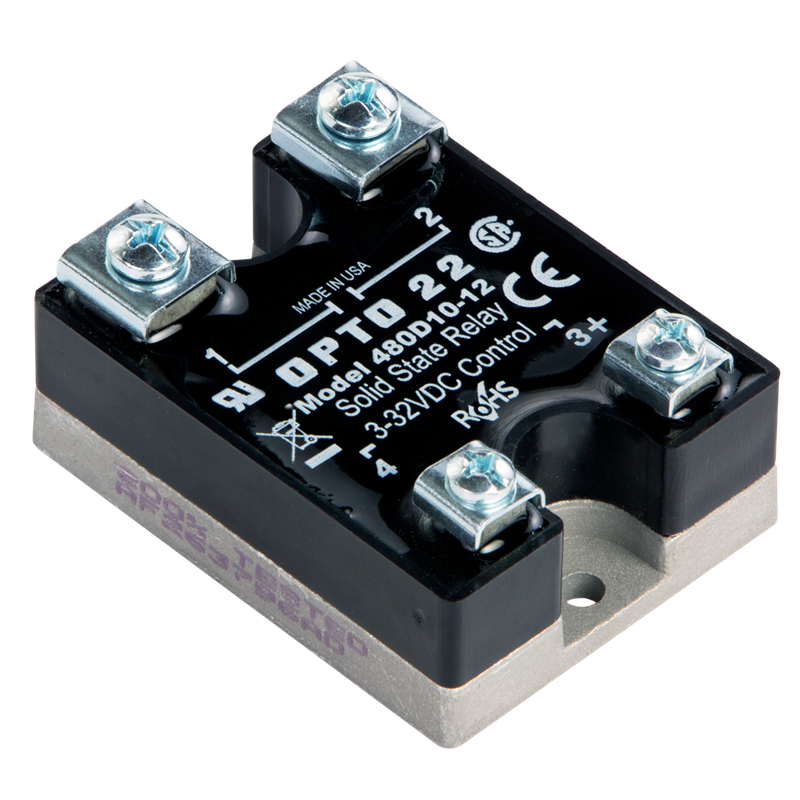

480 VAC, 10 Amp, DC Control Solid State Relay (SSR), Transient Proof

Production Specification

The 480D10-12 is a DC-controlled Power Series relay that switches 480 VAC at up to 10 A. This SSR is transient proof.

Power Series relays provide 4000 volts of isolation between input and output, and offer zero-voltage turn-on and zero-current turn-off. They are UL and CSA recognized and are a CE component, UKCA certified.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list.

This SSR carries a lifetime warranty.

NOTE: We do not recommend mounting the terminal side of the SSR to a flat PCB (printed circuit board) or other flat surface, because there may be some variation in terminal height from one terminal to another and from one SSR to another. Use the MP or P series SSRs for PCB mounting.

480/575 Volt Solid State Relays



480D10-12

480D15-12

480D25-12

480D45-12

575D15-12

575D45-12

575Di45-12

Nominal AC
Line Voltage

480

480

480

480

575

575

575

Nominal Current
Rating (Amps)

10*

15*

25*

45*

15*

45*

45*

1 cycle Surge
(Amps) Peak

110

150

250

650

150

650

650

Nominal Signal Input
Resistance (Ohms)

1000

1000

1000

1000

1000

1000

730

Signal Pick-up
Voltage

3 VDC
(32V Allowed)

3VDC
(32V Allowed)

3VDC
(32V Allowed)

3VDC
(32V Allowed)

3VDC
(32V Allowed)

3VDC
(32V Allowed)

3VDC
(32V Allowed)

Signal Drop-out
Voltage

1 VDC

1 VDC

1 VDC

1 VDC

1 VDC

1 VDC

1 VDC

Peak Repetitive
Voltage Maximum

1200

1200

1000

1000

1200

1000

1000

Maximum Output
Voltage Drop

3.2 volts

3.2 volts

1.6 volts

1.6 volts

3.2 volts

1.6 volts

1.6 volts

Off-State Leakage
(mA) Maximum**

11 mA

11 mA

11 mA

11 mA

15 mA

15 mA

15 mA

Operating Voltage
Range (Volts AC)

100–530

100–530

100–530

100–530

100–600

100–600

100–600

I2t Ratingt=8.3 (ms)

50

50

250

1750

90

1750

1750

IsolationVoltage

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

4,000VRMS

θjc*** (°C/Watt)

1.2

1.2

1.3

0.67

1.2

0.67

0.67

Dissipation
(Watts/Amp)

2.5

2.5

1.3

0.9

2.5

0.9

0.9

Agency Approvals UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA CE, CSA, RoHS; UKCA UL, CE, CSA, RoHS; UKCA UL, CE,  RoHS; UKCA

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage).
***θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
