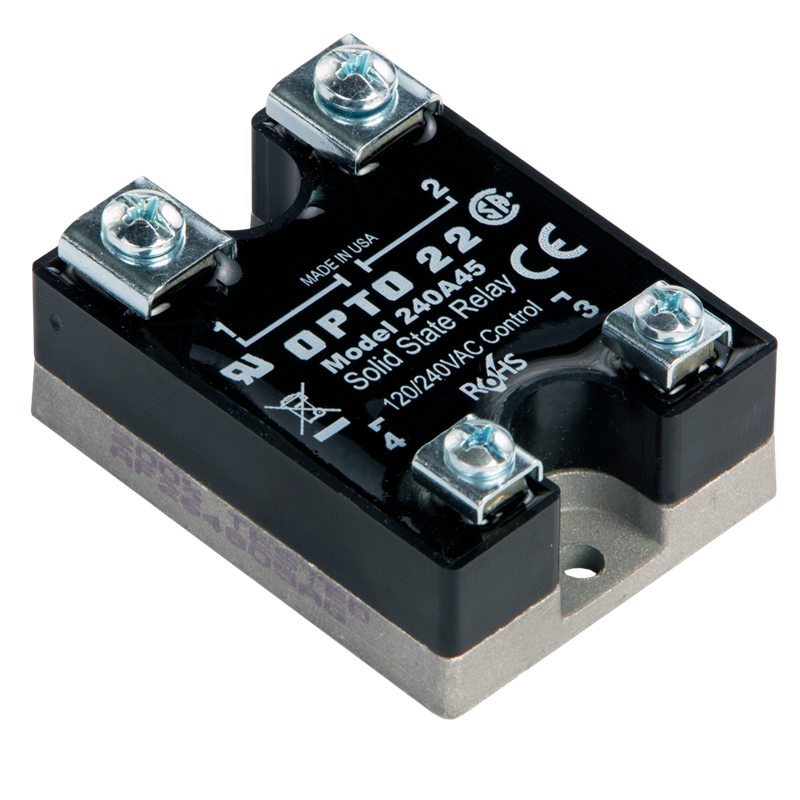

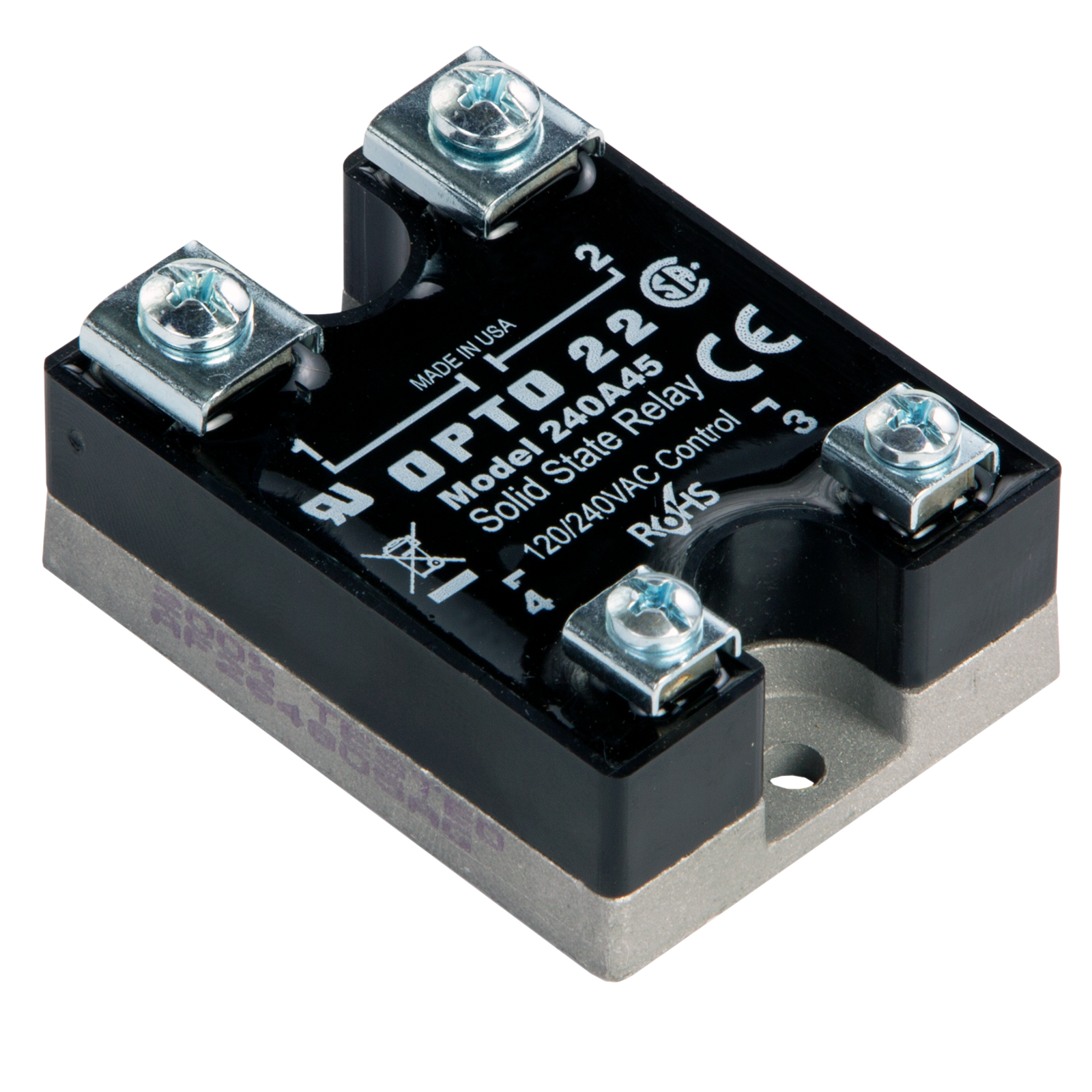

$71.75 (USA and Canada only)
Optical Isolation Input to Output
4,000 V
Turn-on Time
½ cycle maximum
Turn-off Time
Operating Frequency
25 to 65 Hz (operates at 400 Hz with six times off-state leakage)
Coupling Capacitance Input to Output
8 pF maximum
DV/DT Off-state
200 volts per microsecond
DV/DT Commutating
Snubbed for rated current at 0.5 power factor
380D25
380D45
120A10
120A25
240A10
240A25
240A45
Nominal AC Line Voltage
380
120
240
Nominal Current Rating (Amps)
25*
45*
10*
1 cycle Surge (Amps) Peak
250
650
110
Nominal Signal Input Resistance (Ohms)
1000
33K
Signal Pick-up Voltage
3VDC (32V allowed)
85 VAC (280 allowed)
Signal Drop-out Voltage
1 VDC
10 VAC
Peak Repetitive Voltage Maximum
800
600
Maximum Output Voltage Drop
1.6 volts
Off-State Leakage (mA) Maximum
12 mA
7 mA
14 mA
Operating Voltage Range (Volts AC)
24–420
12–140
24–280
I2t Rating t=8.3 (ms)
1750
50
Isolation Voltage
4,000VRMS
θjc** (°C/Watt)
1.2
0.67
1.3
Dissipation (Watts/Amp)
0.9
1.6
Notes: * Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859). ** θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
Opto 22 provides a full range of reliable solid-state relays (SSR). This data sheet includes descriptions, specifications, dimensional drawings, and application information for these parts:
A quick overview of Opto 22 solid-state relays (SSRs).
