G4PB32DEC

$179.00 (USA and Canada only)

Availability: In stock

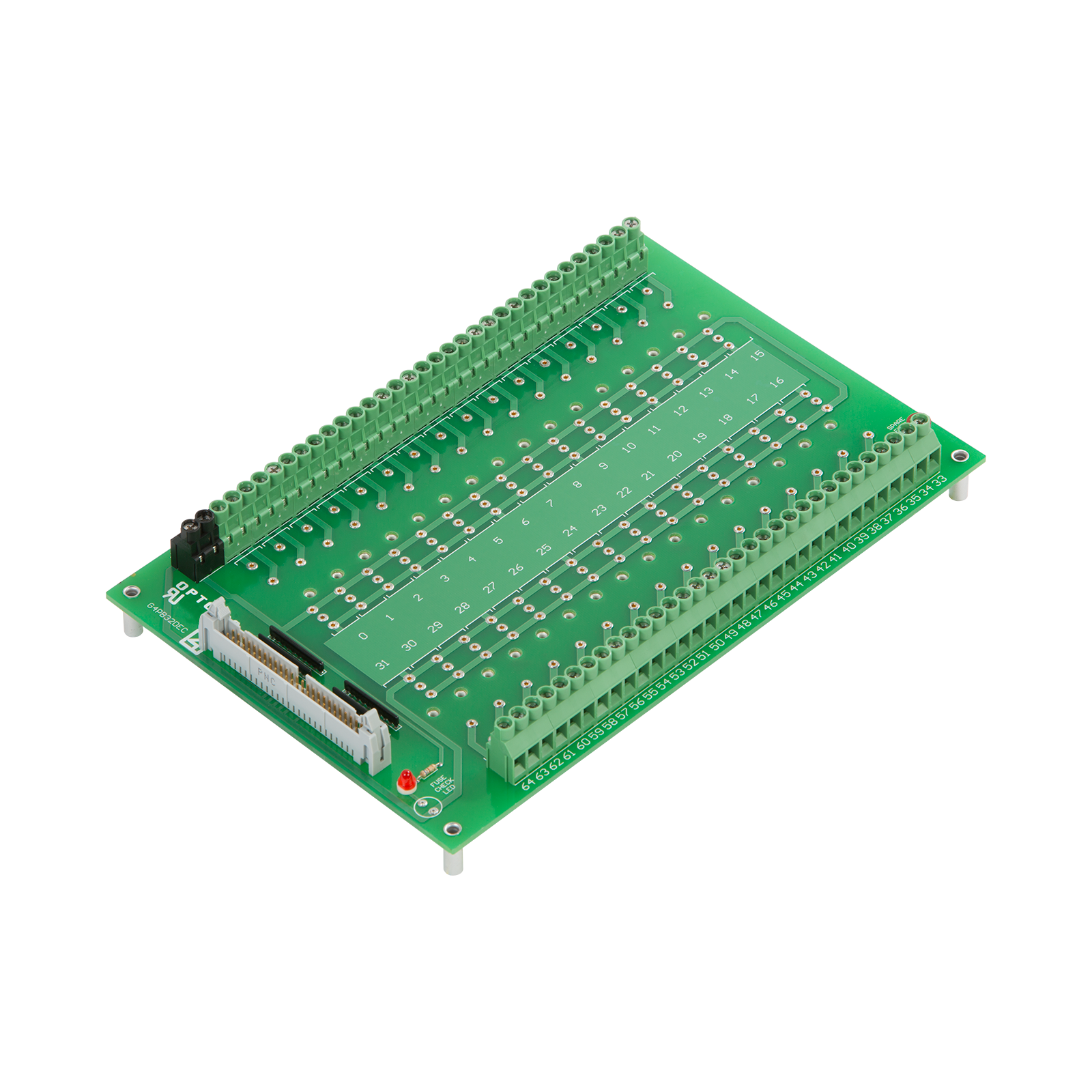

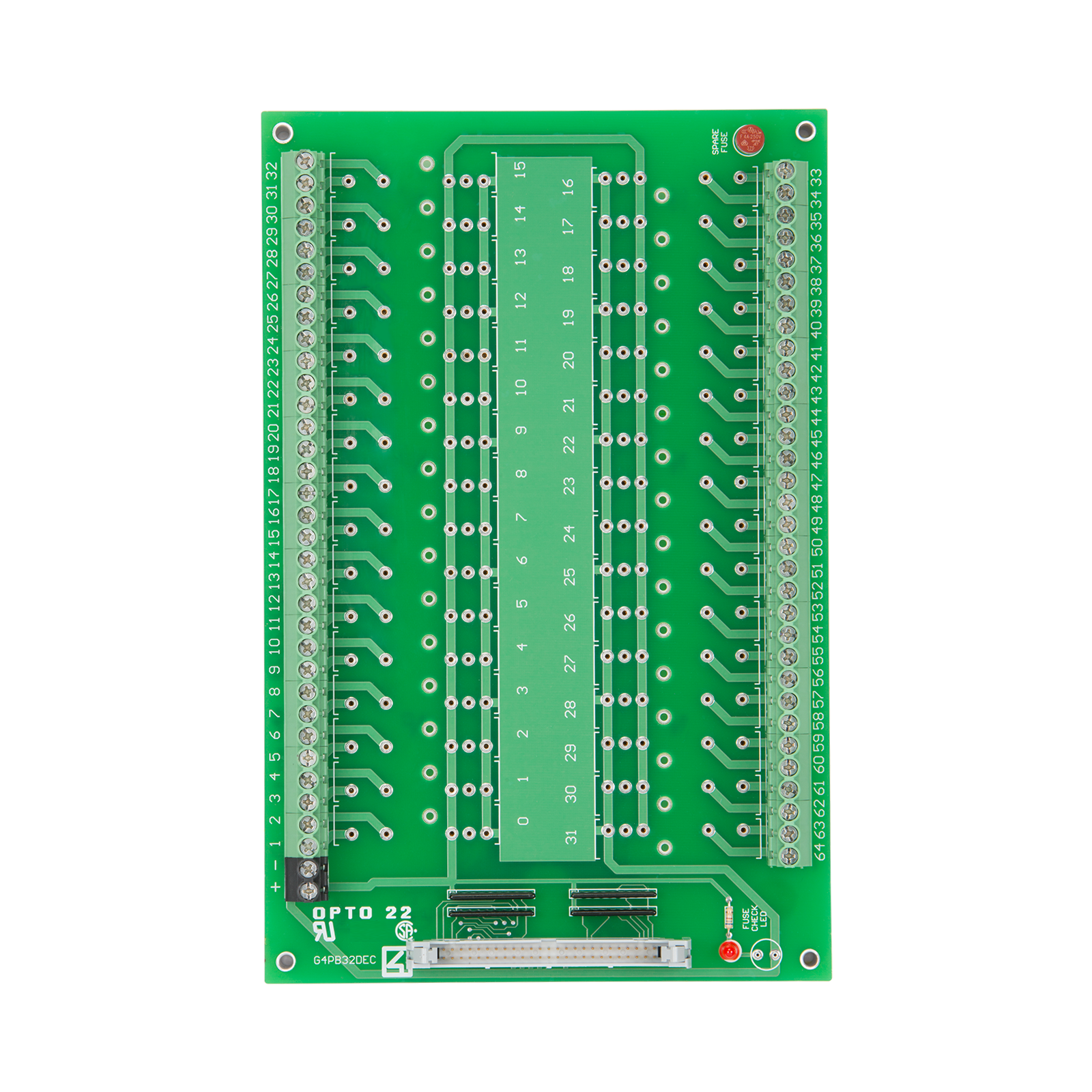

G4 32-channel I/O Module Rack for DEC Computers

Please call (800) 321-6786 to order.

G4PB32DEC

Production Specification

G4 I/O family

The G4PB32DEC I/O mounting rack accommodates up to 32 G4 digital I/O modules and is used to interface to a DEC computer DRV-11J parallel card.

This rack supports negative-true logic only (zero voltage = ON; Vcc = OFF).

A header connector on the rack is used for logic connections with a standard 50-conductor, flat ribbon cable. Barrier strips with screw terminals provide the field and mounting rack power connections.

Operating
temperature:

0 to 70 °C
95 percent relative humidity, non-condensing

Interface connector:
Field:
Control:
Power:



Screw-type barrier strip accommodates up to 10 AWG wire
50-conductor header connector
Two-position screw terminal for a VCC power supply

Agency approvals:

UL, DFARS

Warranty:

30 months from date of manufacture

G4 Digital 32-Channel (for DEC Computers) Rack Data Sheet

The G4PB32DEC I/O mounting rack accommodates up to 32 G4 digital I/O modules and is used to interface to a DEC computer DRV-11J parallel card.

G4 Digital I/O Data Book

The G4 Digital I/O Data Book provides complete details on every G4 digital I/O product component, including adapter cards, I/O modules, and mounting racks.

G4 Digital I/O Wiring Diagrams

Wiring diagrams for G4 modules and racks

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

No downloads are available for this product.
No videos or demos are available for this product.
