Z240D10-17
Hover over image to zoom in

Z240D10-17

$29.50 (USA and Canada only)

Availability: In stock

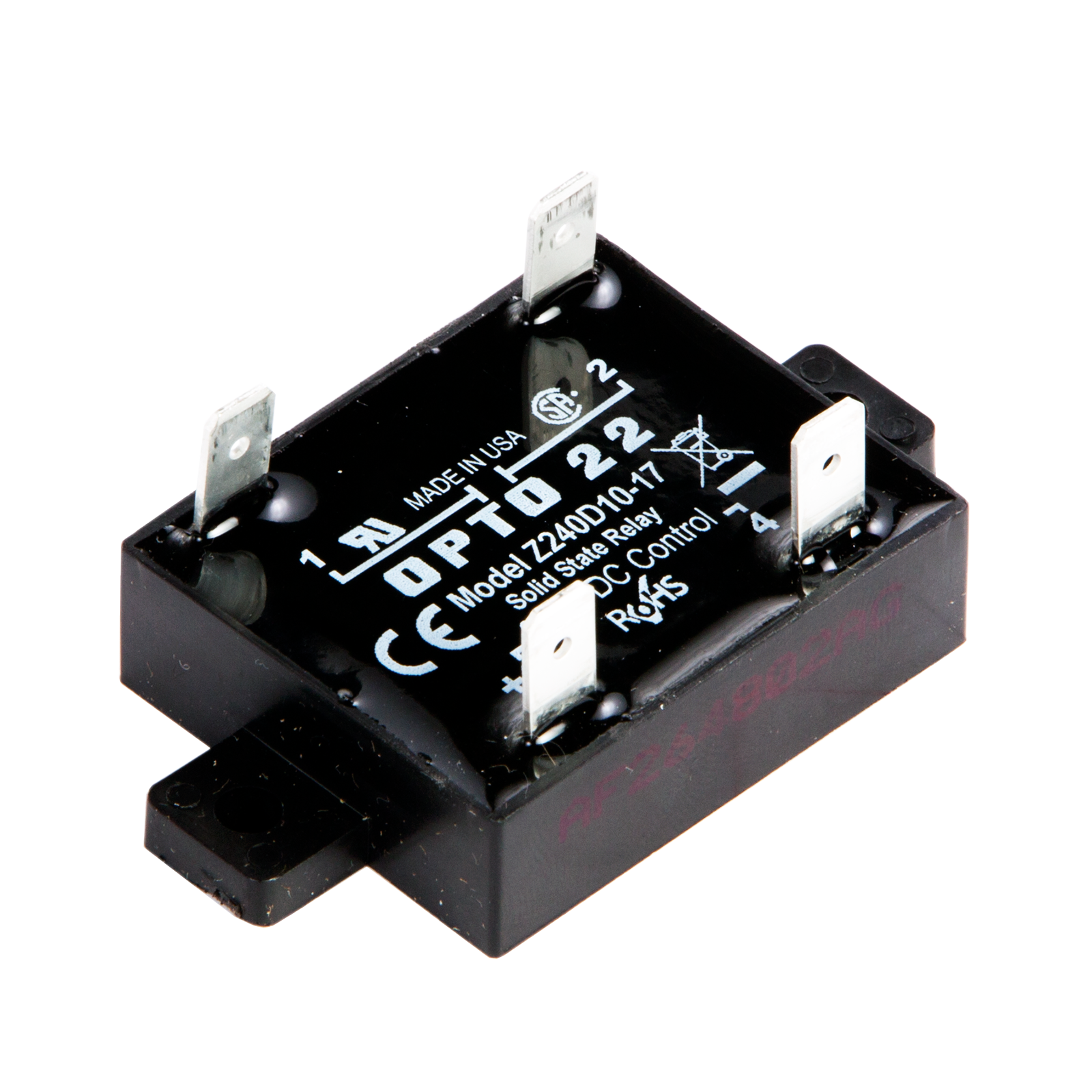

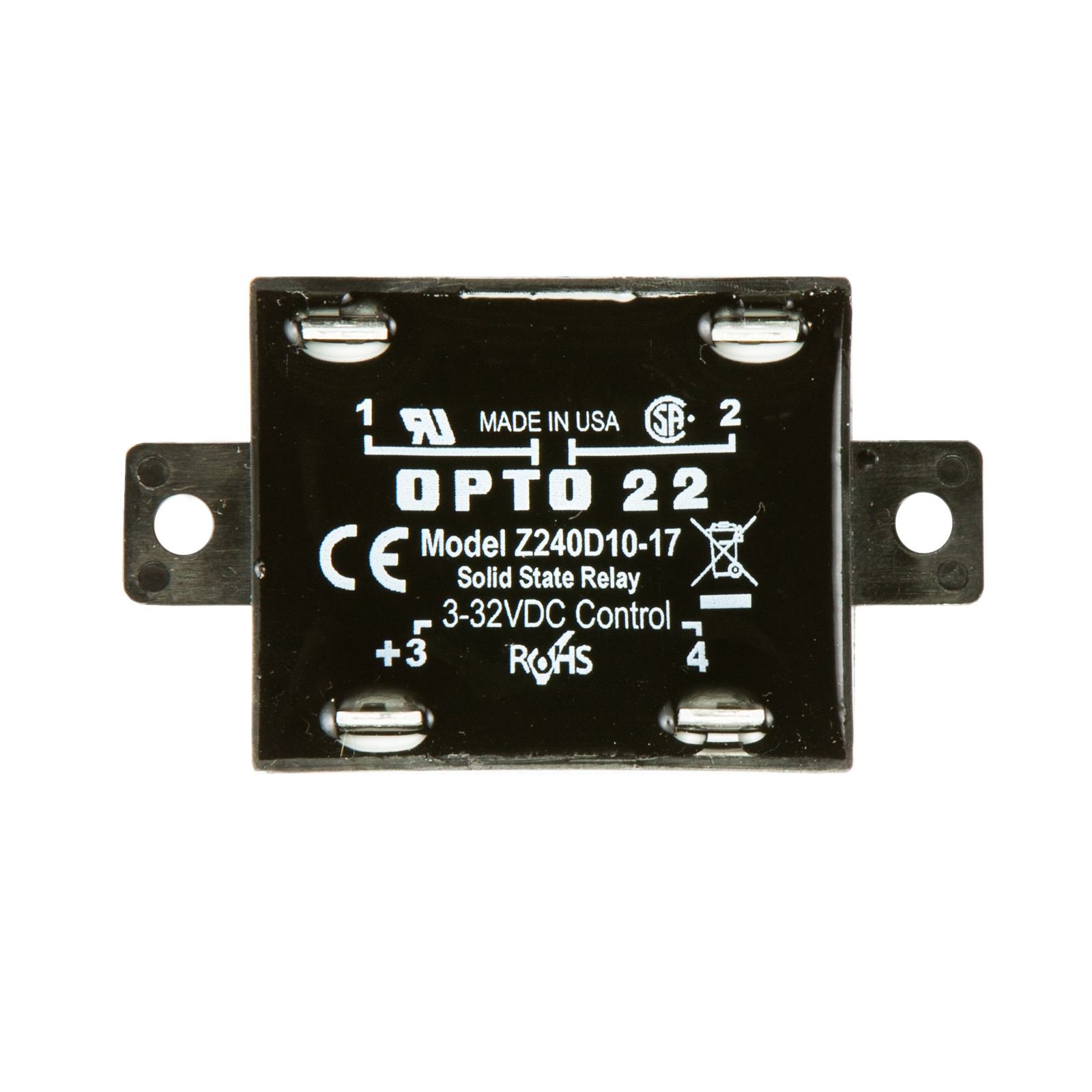

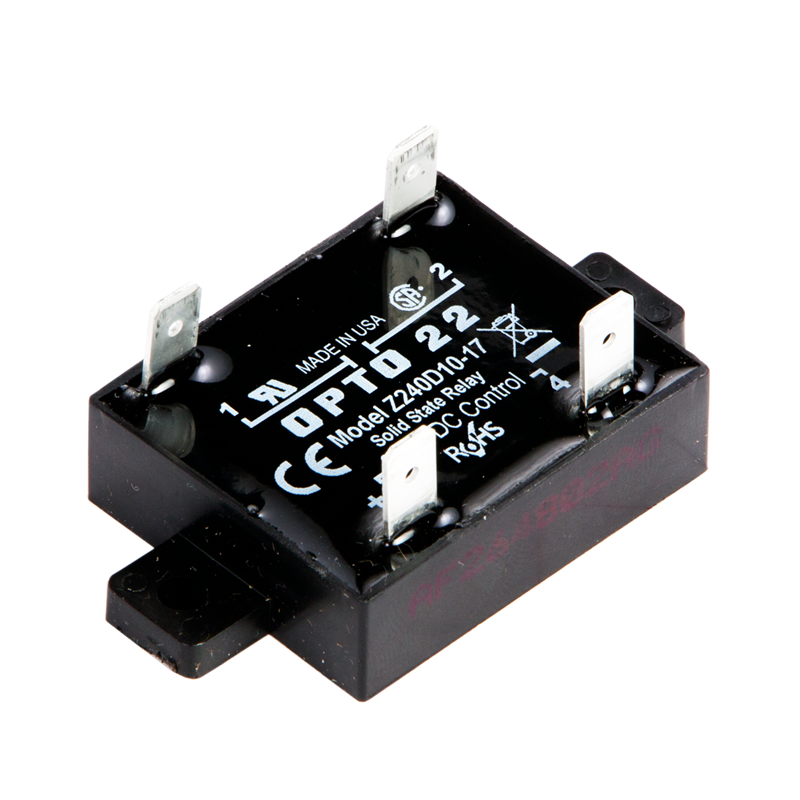

Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR), Replacement Part Only

Production Specification

This Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR) should be used as a replacement part only. For new development, use the equivalent Z240D10 SSR instead. The two parts are manufactured identically using the same VDE-approved optocoupler and have identical specifications.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list.

NOTE: We do not recommend mounting the terminal side of the SSR to a flat PCB (printed circuit board) or other flat surface, because there may be some variation in terminal height or alignment from one terminal to another and from one SSR to another. For PCB boards, use the MP or P series SSRs.

NOTE: Specifications for Z240D10-17 are identical to Z240D10.

120/240 Volt Solid State Relays

AC Power Series 120/240 Volt:
Plastic Package (Z Series)



Z120D10

Z240D10

Nominal AC Line Voltage Nominal

120

240

Current Rating (Amps)

10

10

1 cycle Surge (Amps) Peak

110

110

Nominal Signal Input Resistance (Ohms)

1000

1000

Signal Pick-up Voltage

3VDC (32V allowed)

3VDC (32V allowed)

Signal Drop-out Voltage

1 VDC

1 VDC

Peak Repetitive Voltage Maximum

600

600

Maximum Output Voltage Drop

1.6 volts

1.6 volts

Off-State Leakage (mA) Maximum**

6 mA

12 mA

Operating Voltage Range (Volts AC)

12-140

24-280

I2t Rating t=8.3 (ms)

50

50

Isolation Voltage

4,000 VRMS

4,000 VRMS

θjc* (°C/Watt) Dissipation (Watts/Amp)

4

4

Agency Approvals CE, CSA, RoHS, UKCA CE, CSA, RoHS, UKCA

Notes: θjc* = Thermal resistance junction to base. Maximum junction temperature is 110°C.
** Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage)
