Z240D10
Hover over image to zoom in

Z240D10

$31.00 (USA and Canada only)

Availability: In stock

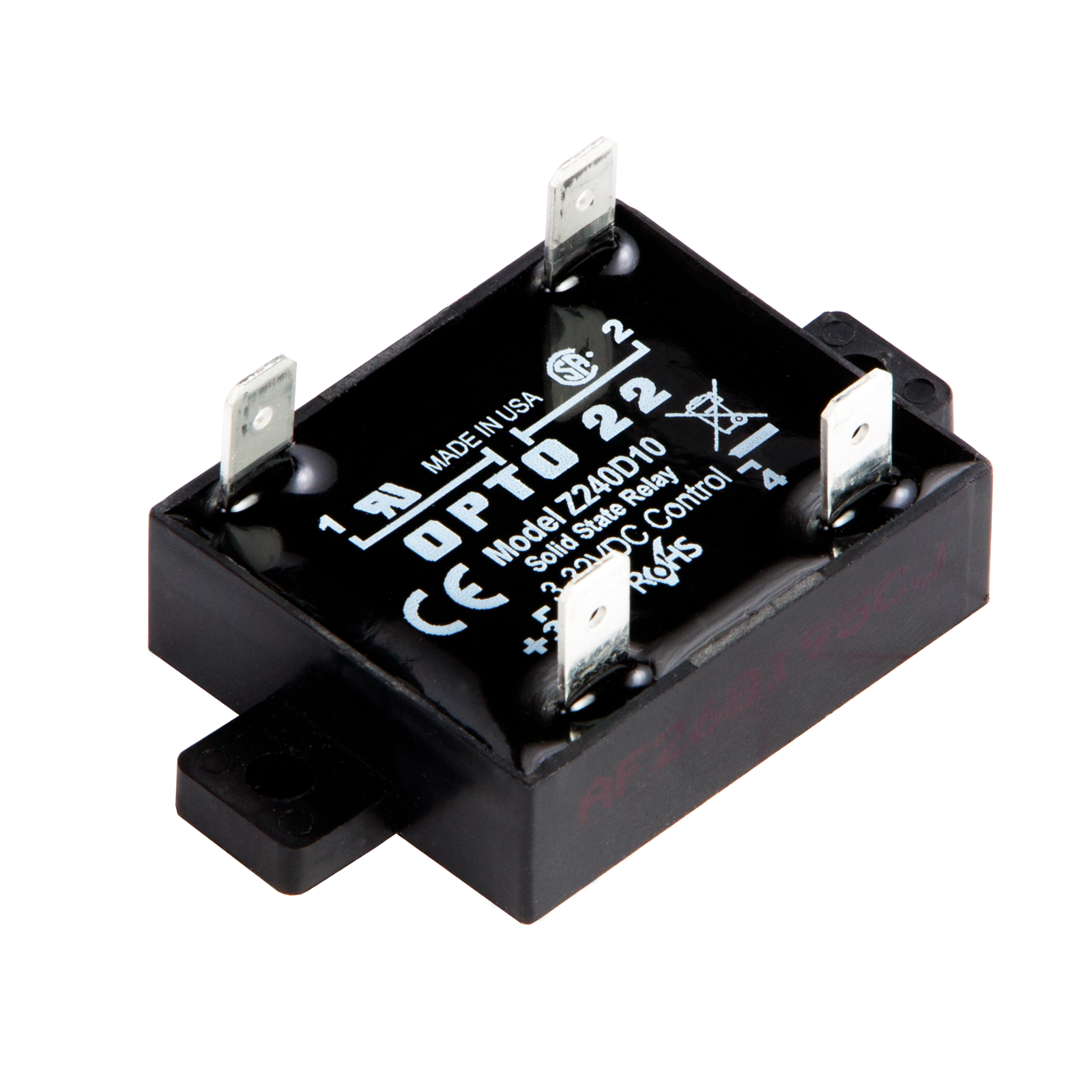

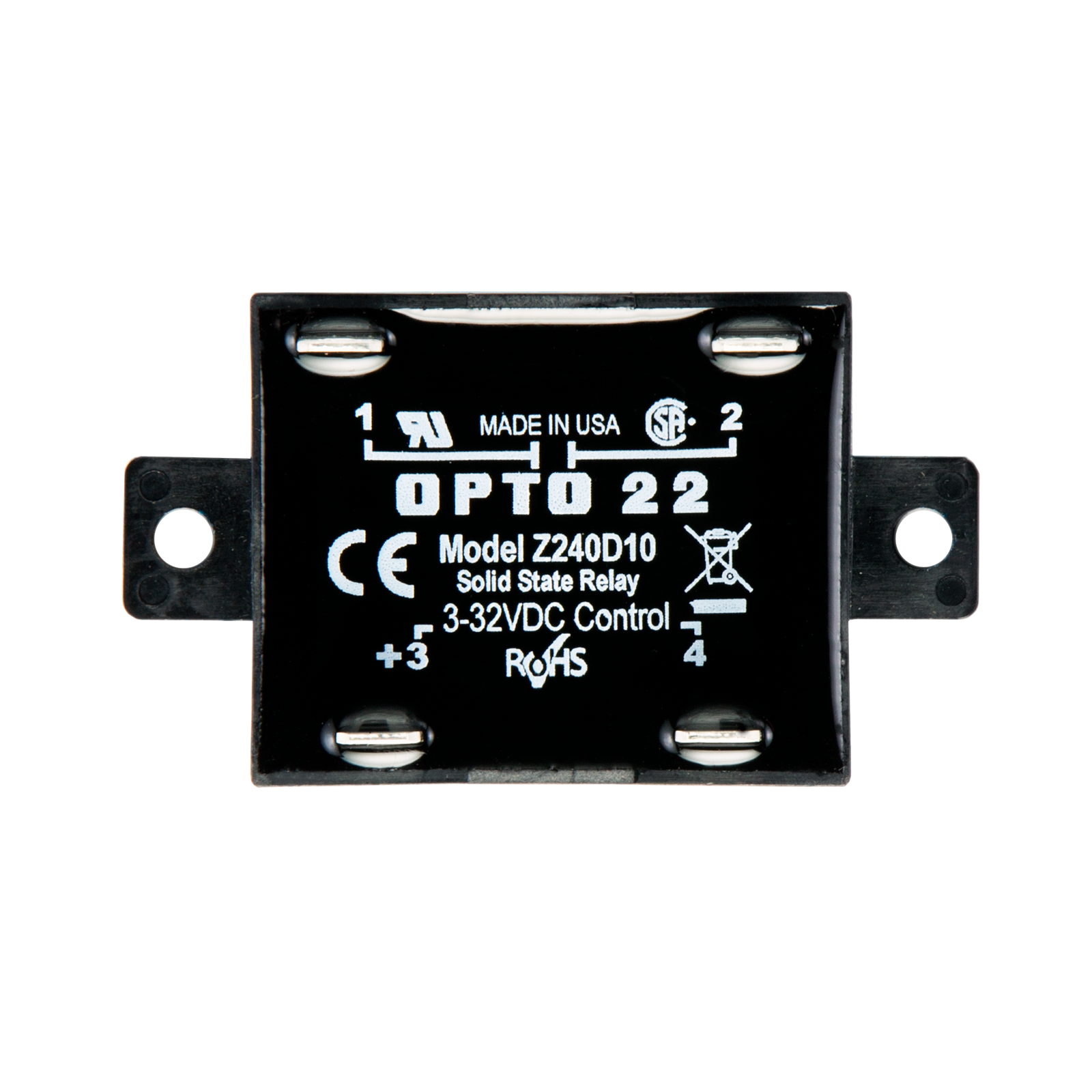

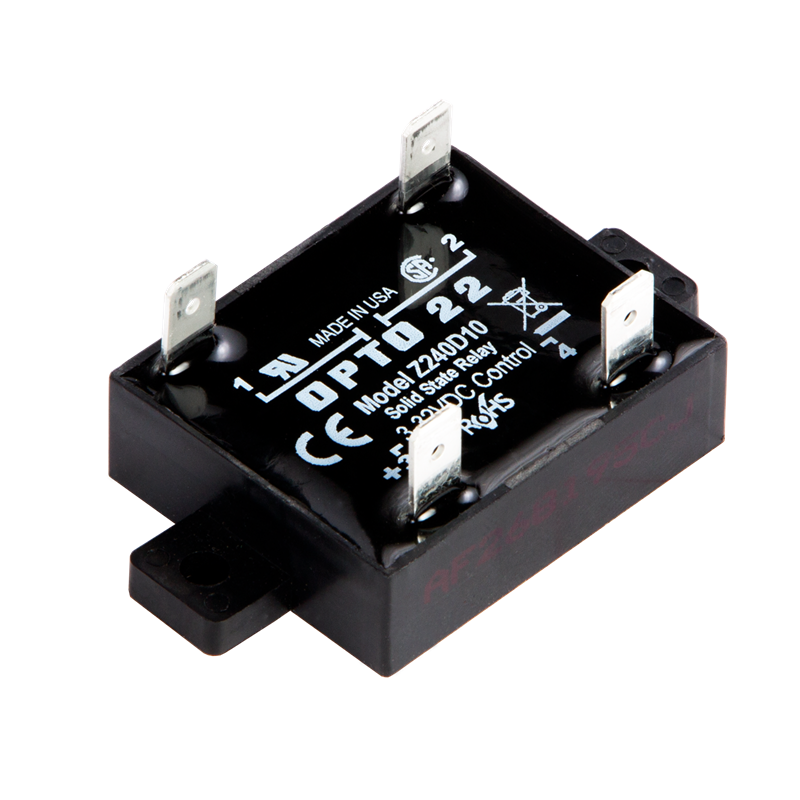

Z Model, 240 VAC, 10 Amp, DC Control Solid State Relay (SSR)

Production Specification

The Z240D10 is a DC-controlled relay that switches 240 VAC at up to 10 A.

Z Series SSRs use a unique heat transfer system that makes it possible to produce a low-cost, 10-amp, solid state relay in an all-plastic case. The Z series is ideal for high-volume OEM applications because of its push-on, tool-free quick-connect terminals. Operating temperature: –40 °C to 100 °C.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list.

This SSR carries a lifetime warranty.

NOTE: We do not recommend mounting the terminal side of the SSR to a flat PCB (printed circuit board) or other flat surface, because there may be some variation in terminal height or alignment from one terminal to another and from one SSR to another. For PCB boards, use the MP or P series SSRs.

120/240 Volt Solid State Relays

AC Power Series 120/240 Volt:
Plastic Package (Z Series)



Z120D10

Z240D10

Nominal AC Line Voltage Nominal

120

240

Current Rating (Amps)

10*

10*

1 cycle Surge (Amps) Peak

110

110

Nominal Signal Input Resistance (Ohms)

1000

1000

Signal Pick-up Voltage

3VDC (32V allowed)

3VDC (32V allowed)

Signal Drop-out Voltage

1 VDC

1 VDC

Peak Repetitive Voltage Maximum

600

600

Maximum Output Voltage Drop

1.6 volts

1.6 volts

Off-State Leakage (mA) Maximum**

6 mA

12 mA

Operating Voltage Range (Volts AC)

12-140

24-280

I2t Rating t=8.3 (ms)

50

50

Isolation Voltage

4,000 VRMS

4,000 VRMS

θjc*** (°C/Watt) Dissipation (Watts/Amp)

4

4

Agency Approvals CE, CSA, RoHS, UKCA CE, CSA, RoHS, UKCA

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage).
*** θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.

Solid-State Relays (SSRs) Data Sheet

Opto 22 provides a full range of reliable solid-state relays (SSR). This data sheet includes descriptions, specifications, dimensional drawings, and application information for these parts:

  • 120A10
  • 120A25
  • 240A10
  • 240A25
  • 240A45
  • 120D3
  • 120D10
  • 120D25
  • 120D45
  • 240D3
  • 240D10
  • 240Di10
  • 240D25
  • 240Di25
  • 240D30-HS [Obsolete]
  • 240D45
  • 240Di45
  • 380D25
  • 380D45
  • 480D10-12
  • 480D15-12
  • 480D25-12
  • 480D25-HS [Obsolete]
  • 480D45-12
  • 575D15-12
  • 575D45-12
  • 575D30-HS  [Obsolete]
  • 575Di45-12
  • DC60P or DC60MP
  • DC200P or DC200MP
  • DC60S-3
  • DC60S-5
  • MP120D2 or P120D2
  • MP120D4 or P120D4
  • MP240D2 or P240D2
  • MP240D4 or P240D4
  • MP380D4
  • SAFETY COVER
  • SSR-HS
  • SSR-THERMOPAD
  • Z120D10
  • Z240D10

UKCA Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

Declaration of Conformity (EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

CSA Approval Document

This document lists all Opto 22 part numbers that have the Canadian Standards Association (CSA) approval.

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

CAD 3D Drawing: Z240D10 Solid State Relay

This CAD file contains a 3-dimensional drawing of the Z240D10 solid state relay.

No videos or demos are available for this product.
