Z120D10

$18.00 (USA and Canada only)

Availability: In stock

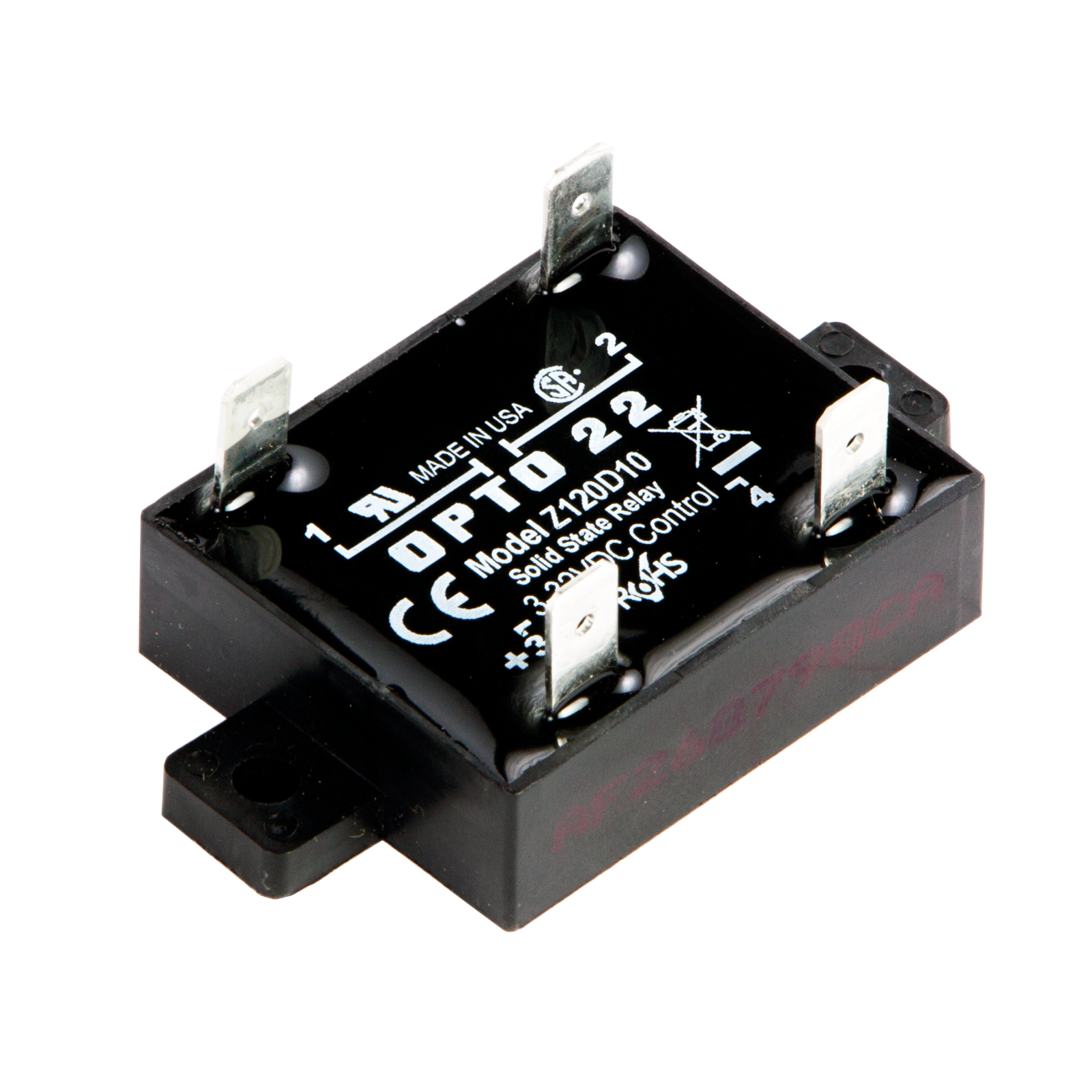

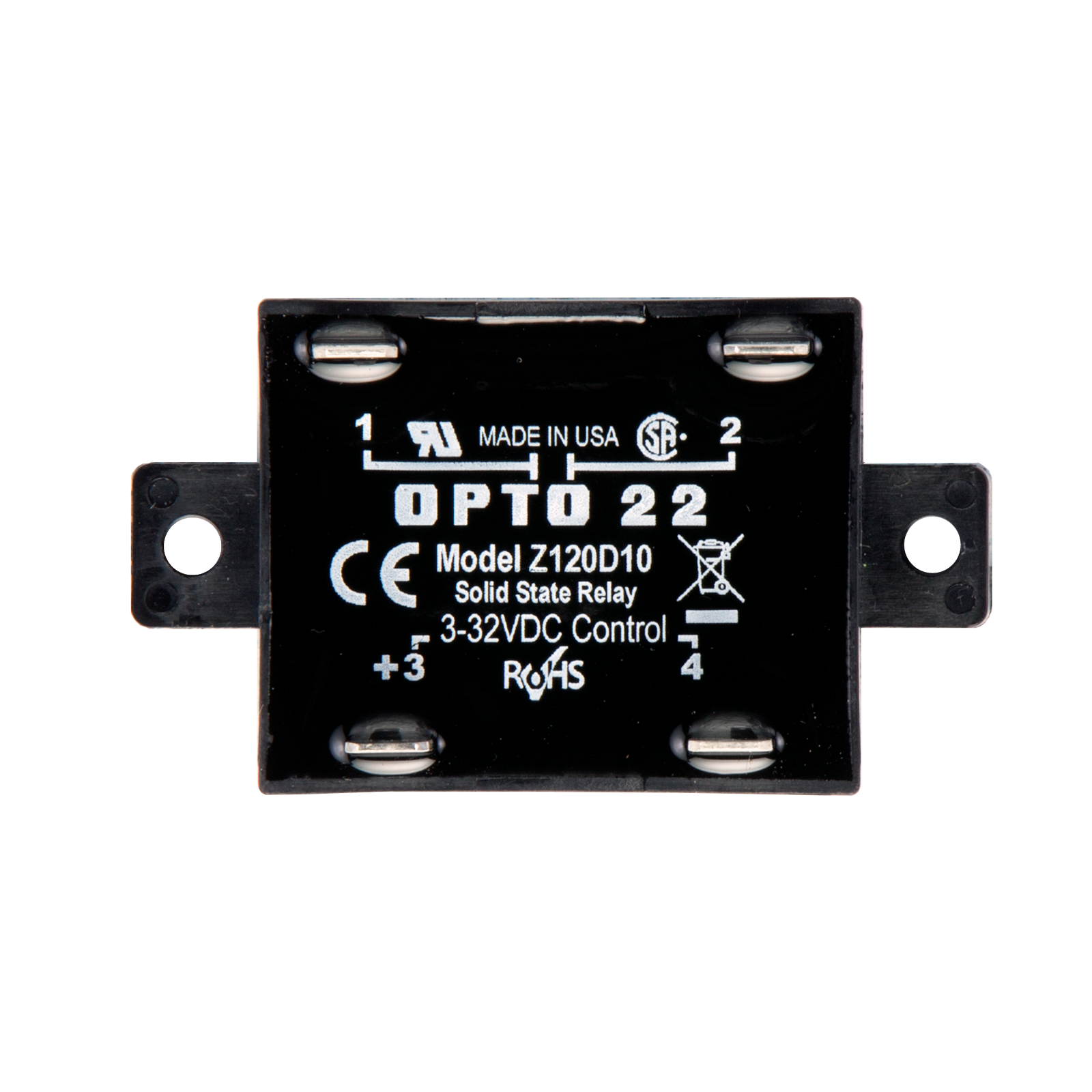

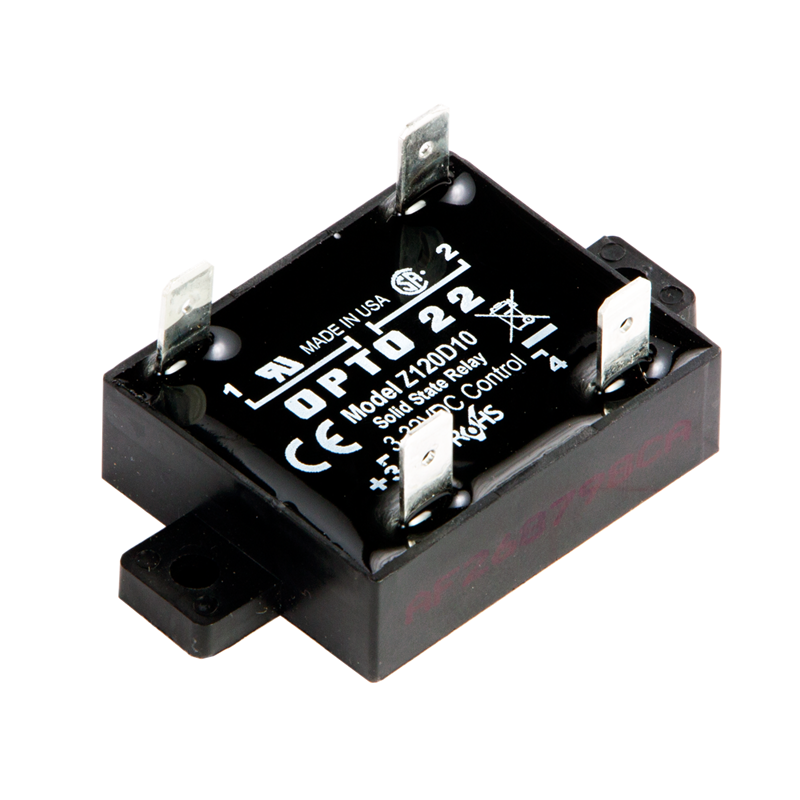

Z Model, 120 VAC, 10 Amp, DC Control Solid State Relay (SSR)

Please call (800) 321-6786 to order.

Z120D10

Production Specification

The Z120D10 is a DC-controlled relay that switches 120 VAC at up to 10 A.

Z Series SSRs use a unique heat transfer system that makes it possible to produce a low-cost, 10-amp, solid state relay in an all-plastic case. The Z series is ideal for high-volume OEM applications because of its push-on, tool-free quick-connect terminals. Operating temperature: –40 °C to 100 °C.

Lots of information on choosing and using SSRs can be found in the SSR data sheet. Also see the Manufacturers' part number cross-reference list.

This SSR carries a lifetime warranty.

NOTE: We do not recommend mounting the terminal side of the SSR to a flat PCB (printed circuit board) or other flat surface, because there may be some variation in terminal height or alignment from one terminal to another and from one SSR to another. For PCB boards, use the MP or P series SSRs.



Z120D10

Z240D10

Nominal AC Line Voltage Nominal

120

240

Current Rating (Amps)

10*

10*

1 cycle Surge (Amps) Peak

110

110

Nominal Signal Input Resistance (Ohms)

1000

1000

Signal Pick-up Voltage

3VDC (32V allowed)

3VDC (32V allowed)

Signal Drop-out Voltage

1 VDC

1 VDC

Peak Repetitive Voltage Maximum

600

600

Maximum Output Voltage Drop

1.6 volts

1.6 volts

Off-State Leakage (mA) Maximum**

6 mA

12 mA

Operating Voltage Range (Volts AC)

12-140

24-280

I2t Rating t=8.3 (ms)

50

50

Isolation Voltage

4,000 VRMS

4,000 VRMS

θjc*** (°C/Watt) Dissipation (Watts/Amp)

4

4

Notes:
* Ambient temperature will affect the current rating. For details, see the Thermal Ratings charts in the Solid State Relays Data Sheet (form 0859).
** Operating Frequency: 25 to 65 Hz (operates at 400 Hz with 6 times the offstate leakage).
*** θjc = Thermal resistance from internal junction to base. Maximum internal junction temperature is 110 °C.
