SNAP-PAC-RCK4
Hover over image to zoom in

SNAP-PAC-RCK4

$192.00 (USA and Canada only)

Availability: In stock

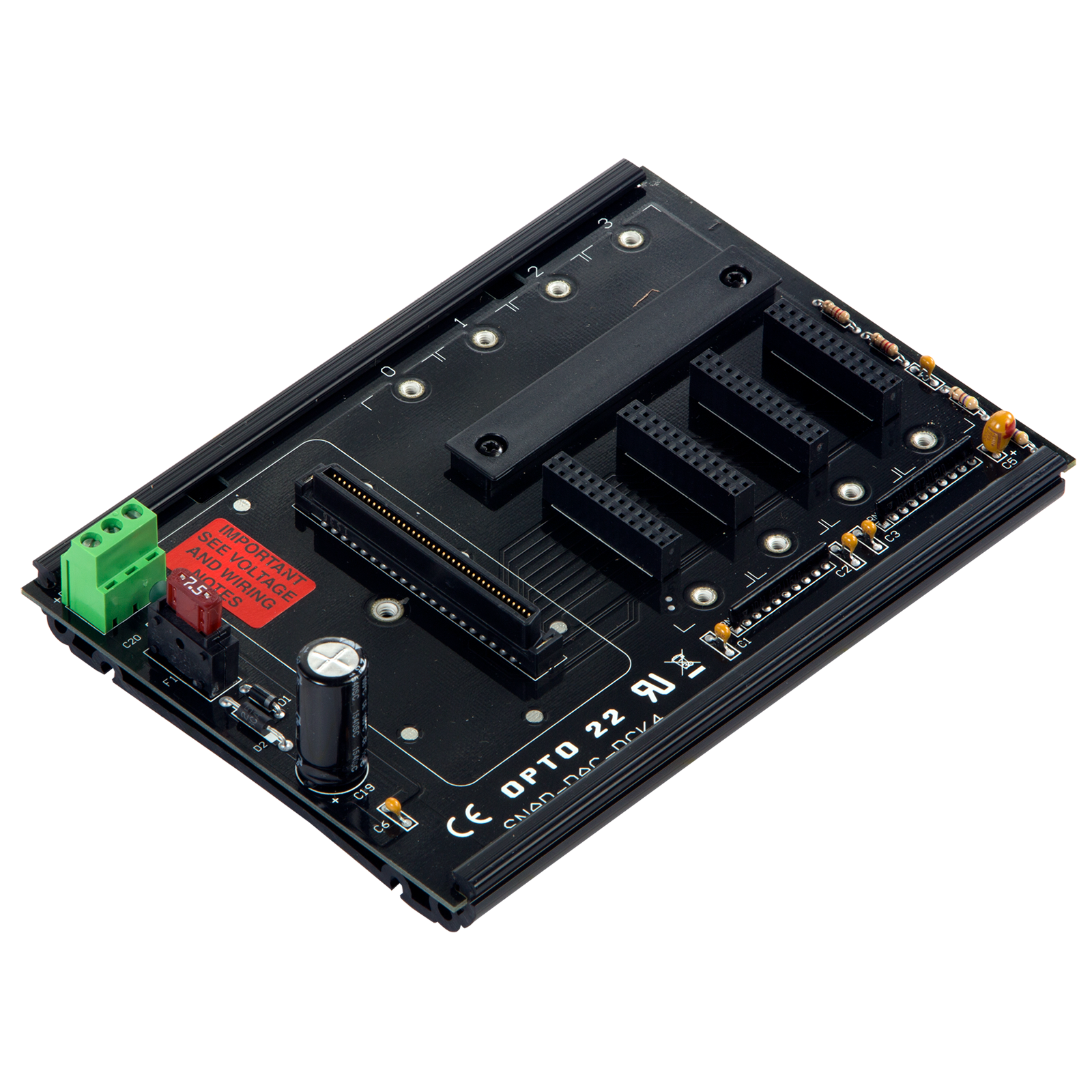

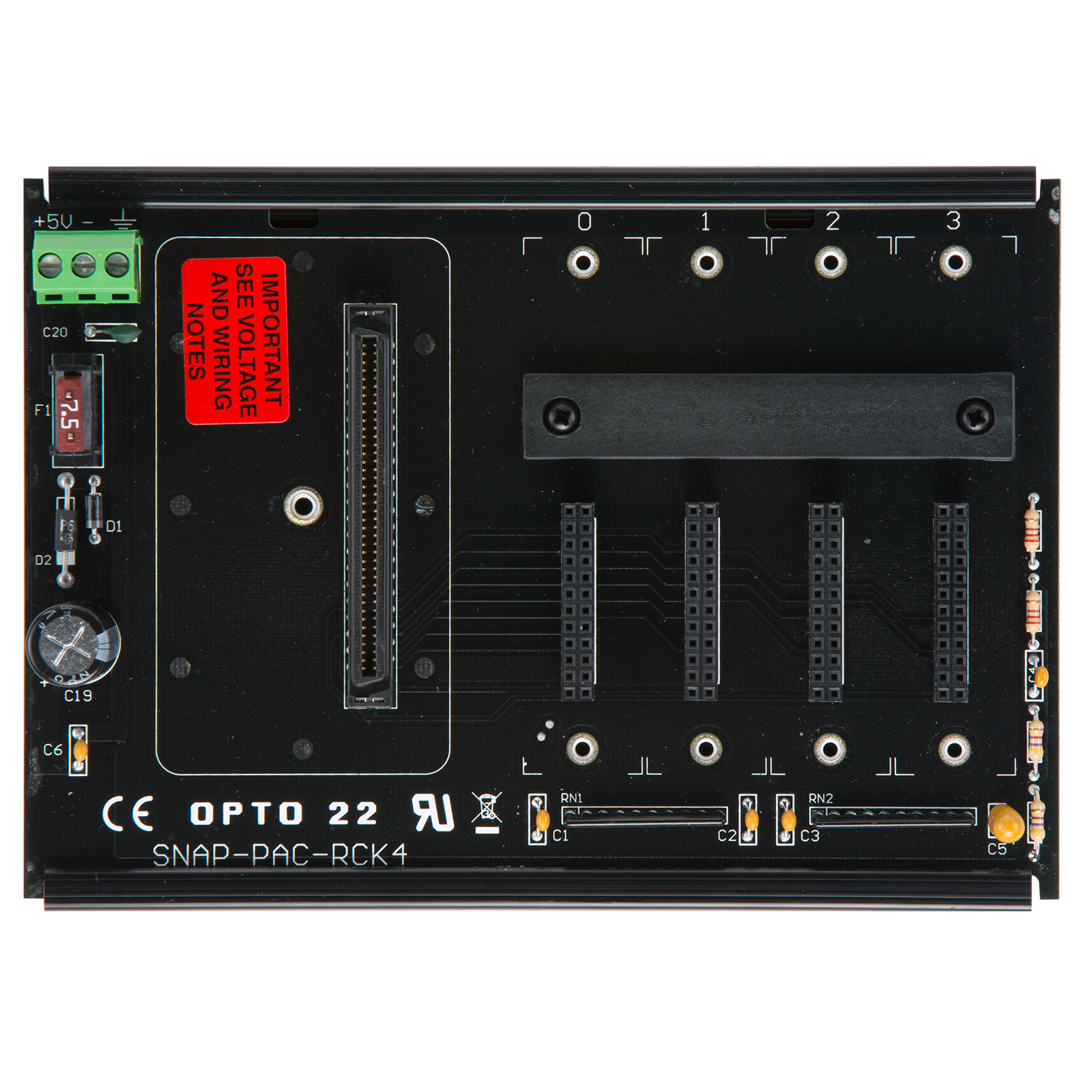

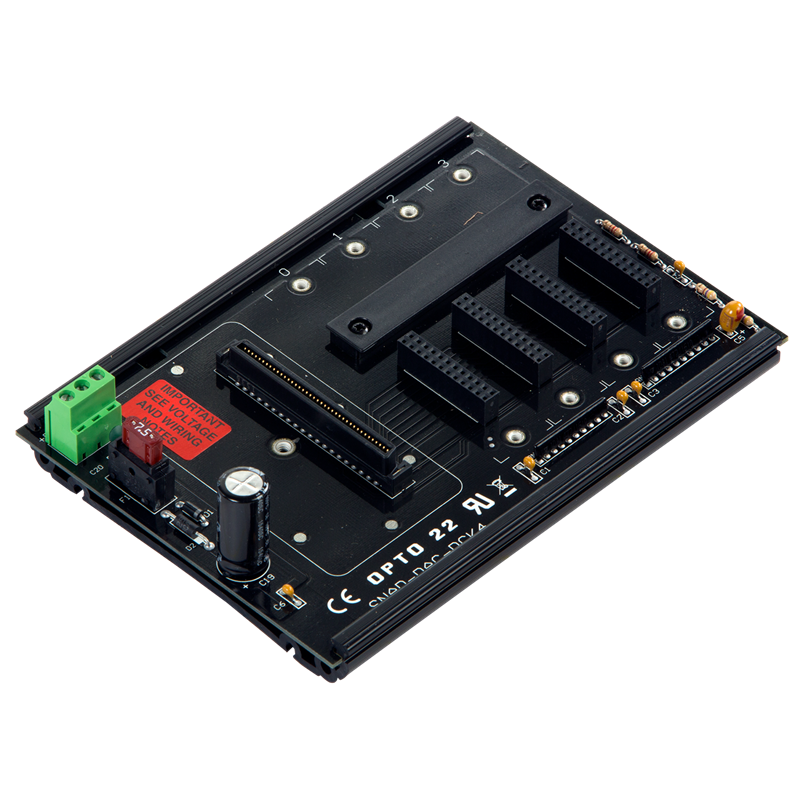

SNAP PAC 4-Module Mounting Rack
Data Sheet

Production Specification

The SNAP-PAC-RCK4 mounts one SNAP PAC brain or on-the-rack controller and up to 4 analog, digital, serial, and special-purpose SNAP I/O modules. The SNAP-PAC-RCK4 can be DIN-rail or panel mounted.

This rack works with all SNAP I/O modules on the Opto 22 website. Analog, digital, and serial modules can be mixed on the rack and placed in any position. (Some serial modules are limited to a maximum of eight on one rack. See module data sheets for limitations and power requirements.)

Together with I/O modules and a brain or rack-mounted controller, this rack forms an I/O unit that provides distributed control in a SNAP PAC System. The I/O unit can also be used for PC-based control or as intelligent remote I/O for an Allen-Bradley MicroLogix PLC or other RSLogix-based system, such as ControlLogix or CompactLogix.

Need an enclosure with this 4 position rack? See the SNAP-IT-WM4 which includes an I/O mounting rack and a power supply, already wired. You add the I/O processor and the SNAP input and output (I/O) modules needed for your application. This wall-mounted polycarbonate enclosure makes it easy to install Opto 22 I/O where you need it, providing convenience and protection for your SNAP PAC System. Learn more about the SNAP-IT-WM4.

Other SNAP PAC racks available: NOTE: This rack replaces part number SNAP-M16. All brains that mount on a SNAP-M16 can also be mounted on this rack.

Build your system in the SNAP I/O Configurator.

Power1 Requirements

5.0 to 5.2 VDC @ 4.2 Amps max

I/O Processor2
Compatibility

SNAP-PAC-R1
SNAP-PAC-R2
SNAP-PAC-EB13
SNAP-PAC-EB23

SNAP-PAC-EB1-W3
SNAP-PAC-EB2-W3
SNAP-PAC-R1-W3
SNAP-PAC-R2-W3

Replacement Fuse

SNAP-FUSE7.5AB or Littelfuse 297 07.5

Rack Power Terminals Wire Size

22 to 14 AWG

Operating Temperature

–20 to 70 °C

Storage Temperature

–40 to 85 °C

Relative Humidity

95%, non-condensing

Agency Approvals

CE, ATEX, RoHS, DFARS; UKCA

Warranty

30 months from date of manufacture

1 Power requirements shown are for a rack, a processor, and a full load of analog modules. Power requirements for SNAP serial and high-density modules are higher. See module data sheets.

2 “I/O Processor” means a SNAP PAC brain or SNAP PAC on-the-rack controller. For compatibility with legacy Opto 22 products, see form #1693, Legacy and Current Product Comparison and Compatibility Charts.

3 OBSOLETE products, no longer available when current stock is depleted.

1684

SNAP PAC Racks Data Sheet

SNAP PAC racks mount one SNAP PAC brain or on-the-rack controller, plus up to 4, 8, 12, or 16 SNAP input/output (I/O) modules.

I/O modules may be analog, digital, or serial modules. All module types can be mixed together on the same rack in any position.

This data sheet covers the following part numbers:

View

1696

SNAP PAC System Specification Guide

This guide is a comprehensive introduction to the SNAP PAC System. The guide describes the system's components (software, controllers, I/O processors, and I/O); shows how to build a basic system and how to expand it; and includes installation instructions, wiring diagrams, dimensional drawings, and specifications for parts.

View

1569

SNAP PAC System Product Guide

This document lists and describes all current Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

View

1038

SNAP PAC Racks Assembly and Installation Technical Note

This document comes packed in the box with a SNAP PAC I/O mounting rack. It shows where to find assembly and installation instructions, plus wiring accessories. This document applies to:

View

2374

UKCA Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

2274

Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

View

1648

Opto 22 RoHS 3 Statement of Compliance - Restriction of Hazardous Substances

This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.

View

1271

Using Power Supplies with Opto 22 Systems

This technical note gives an overview of power supplies for use with many Opto 22 control systems and recommends types of power supplies for Opto 22 mounting racks.

This note applies to SNAP, mistic, Optomux, Pamux, and direct I/O. It does NOT apply to groov EPIC systems, which have their own integrated power supplies.

View

1057

UL Approval Document

This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.

View

0893

CE Declaration: Component

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

View

0891

CE Declaration: Low Voltage

This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.

View

CAD 3D Drawing: SNAP-PAC-RCK4 Mounting Rack

This CAD file contains a 3-dimensional drawing of the SNAP-PAC-RCK4 mounting rack, which holds a SNAP PAC I/O processor (brain or rack-mounted controller) plus up to four analog, digital, or serial I/O modules.

View

CAD Drawing: SNAP-PAC-RCK4 Mounting Rack

This CAD file includes drawings of the SNAP-PAC-RCK4, a mounting rack that holds one SNAP PAC brain or on-the-rack controller plus any mix of up to four analog, digital, and serial SNAP I/O modules.

View

CAD Drawing: Base for SNAP-PAC-RCK4

This CAD file includes a drawing of the base for the SNAP-PAC-RCK4, a mounting rack that holds one SNAP PAC brain or on-the-rack controller plus any mix of up to four analog, digital, and serial SNAP I/O modules.

View

Video: Verifying Voltage at the I-O Rack

Verifying the voltage level at the I/O rack is very important for equipment safety and point value accuracy. This is the proper technique for reading the voltage level at the rack.

Video: Securing SNAP Module

A quick overview on securing a SNAP Module to a SNAP rack.

Video: Removing a SNAP Module

A quick overview on removing a SNAP module.

Accuracy vs Resolution

What's the difference between accuracy and resolution in analog I/O specifications? Try your own specs in the calculator.
