SNAP-PAC-RCK12
Hover over image to zoom in

SNAP-PAC-RCK12

$250.00 (USA and Canada only)

Availability: Call for Availability

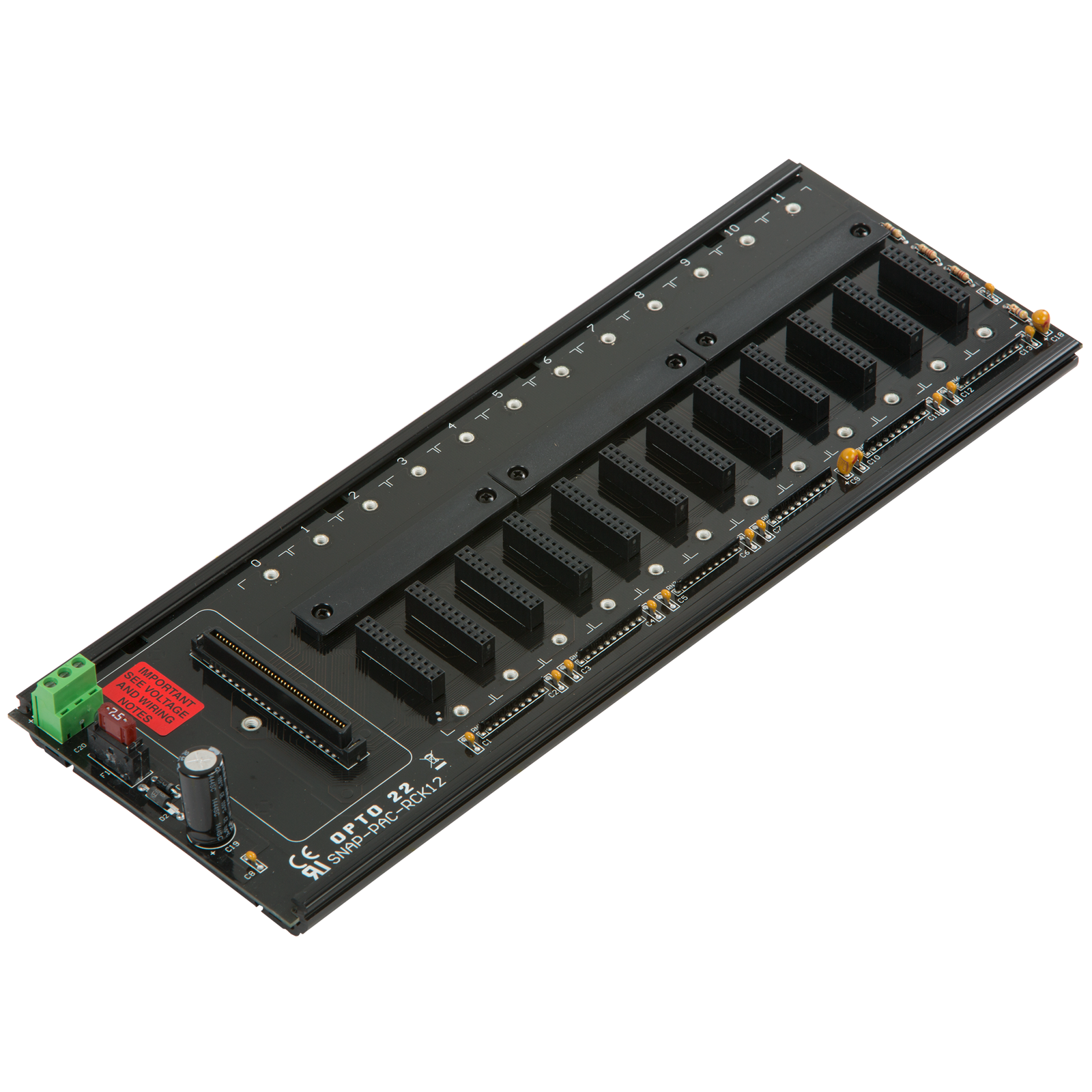

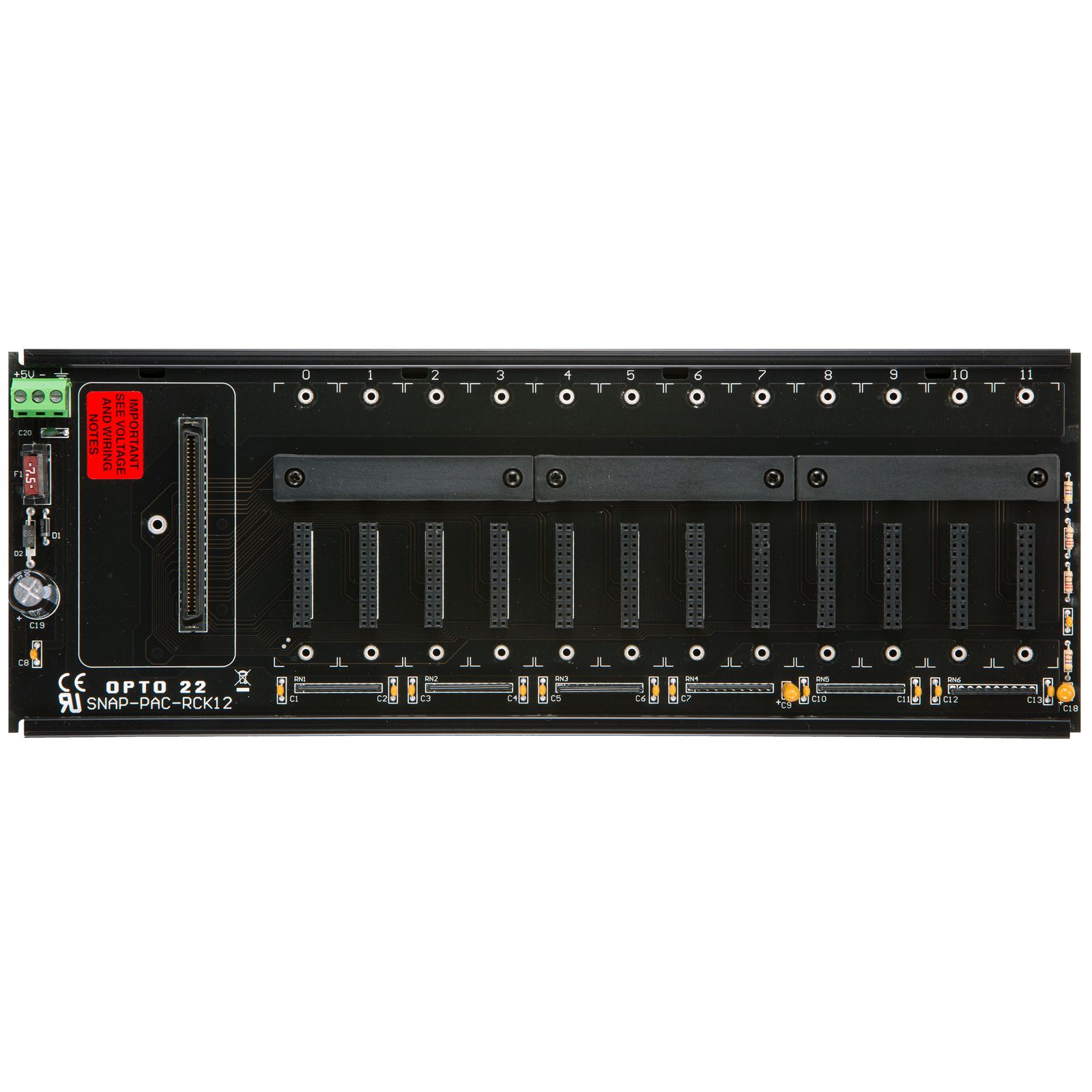

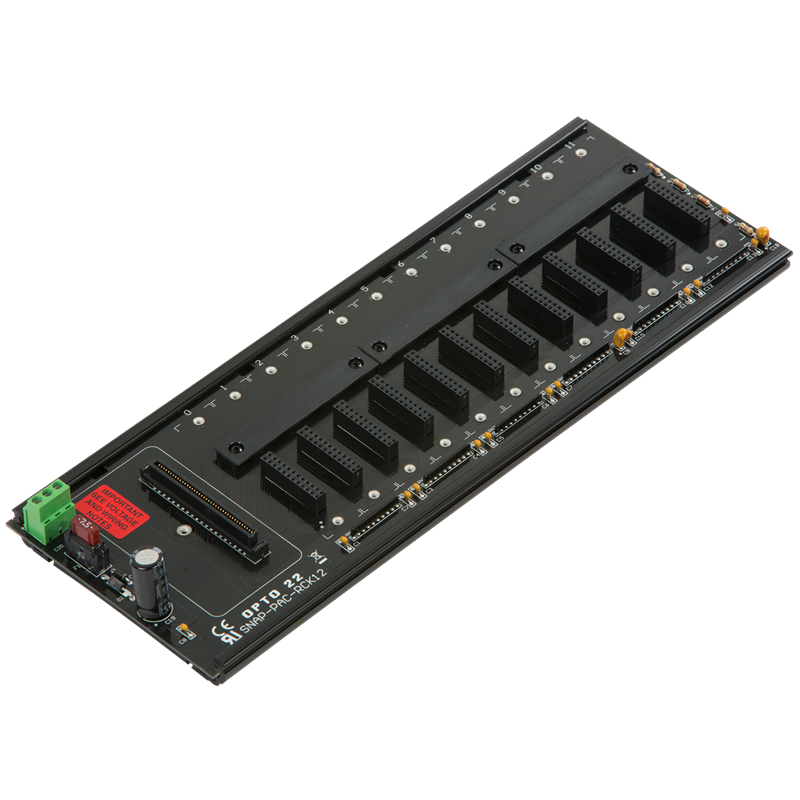

SNAP PAC 12-Module Mounting Rack

Production Specification

The SNAP-PAC-RCK12 mounts one SNAP PAC brain or on-the-rack controller and up to 12 analog, digital, serial, and special-purpose SNAP I/O modules. The SNAP-PAC-RCK12 can be DIN-rail or panel mounted.

This rack works with all SNAP I/O modules on the Opto 22 website. Analog, digital, and serial modules can be mixed on the rack and placed in any position. (Some serial modules are limited to a maximum of eight on one rack. See module data sheets for limitations and power requirements.)
Together with I/O modules and a brain or rack-mounted controller, this rack forms an I/O unit that provides distributed control in a SNAP PAC System. The I/O unit can also be used for PC-based control or as intelligent remote I/O for an Allen-Bradley MicroLogix PLC or other RSLogix-based system, such as ControlLogix or CompactLogix.

Need an enclosure with this rack? See the SNAP-IT-PM12 which includes an I/O mounting rack and a power supply, already wired. You add the I/O processor and the SNAP input and output (I/O) modules needed for your application. This panel-mounted metal enclosure makes it easy to install Opto 22 I/O where you need it, providing convenience and protection for your SNAP PAC System. Learn more about the SNAP-IT-PM12.

Other SNAP PAC racks available: NOTE: This rack replaces part number SNAP-M48. All brains that mount on a SNAP-M48 can also be mounted on this rack.

Build your system in the SNAP I/O Configurator.

Power1 Requirements

5.0 to 5.2 VDC @ 4.2 Amps max

I/O Processor2
Compatibility

SNAP-PAC-R1
SNAP-PAC-R2
SNAP-PAC-EB1
3
SNAP-PAC-EB23
SNAP-PAC-R1-W3
SNAP-PAC-R2-W3

SNAP-PAC-EB1-W3
SNAP-PAC-EB2-W3
SNAP-PAC-R1-FM
3
SNAP-PAC-R2-FM3
SNAP-PAC-EB1-FM3
SNAP-PAC-EB2-FM3

Replacement Fuse

SNAP-FUSE7.5AB or Littelfuse 297 07.5

Rack Power Terminals Wire Size

22 to 14 AWG

Operating Temperature

–20 to 70 °C

Storage Temperature

–40 to 85 °C

Relative Humidity

95%, non-condensing

Agency Approvals

UL, CE, RoHS, DFARS; UKCA


Warranty

30 months from date of manufacture

1 Power requirements shown are for a rack, a processor, and a full load of analog modules. Power requirements for SNAP serial and high-density modules are higher. See module data sheets.

2 “I/O Processor” means a SNAP PAC brain or SNAP PAC on-the-rack controller. For compatibility with legacy Opto 22 products, see form #1693, Legacy and Current Product Comparison and Compatibility Charts.

3 This product is Obsolete and not available when current stock is depleted.
