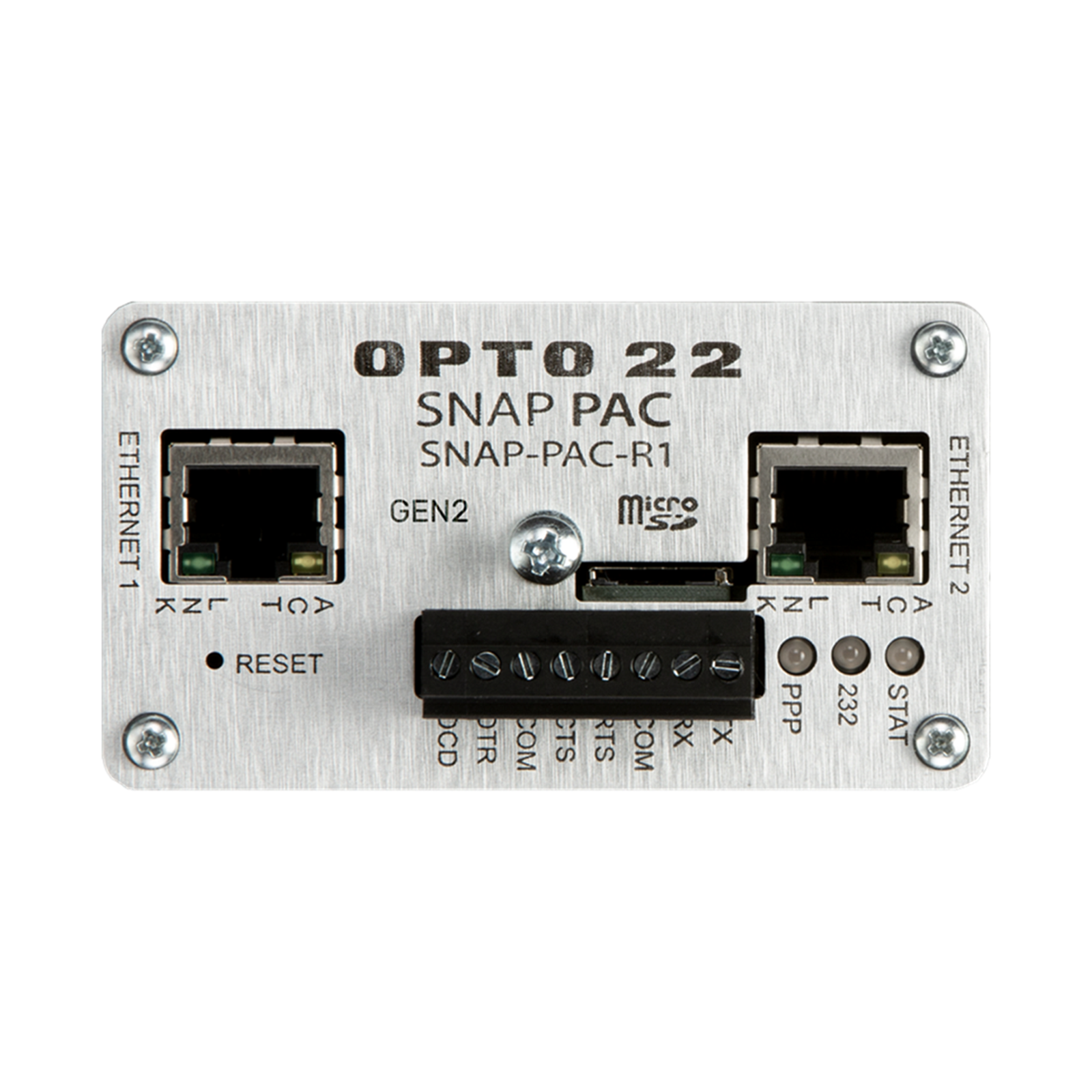

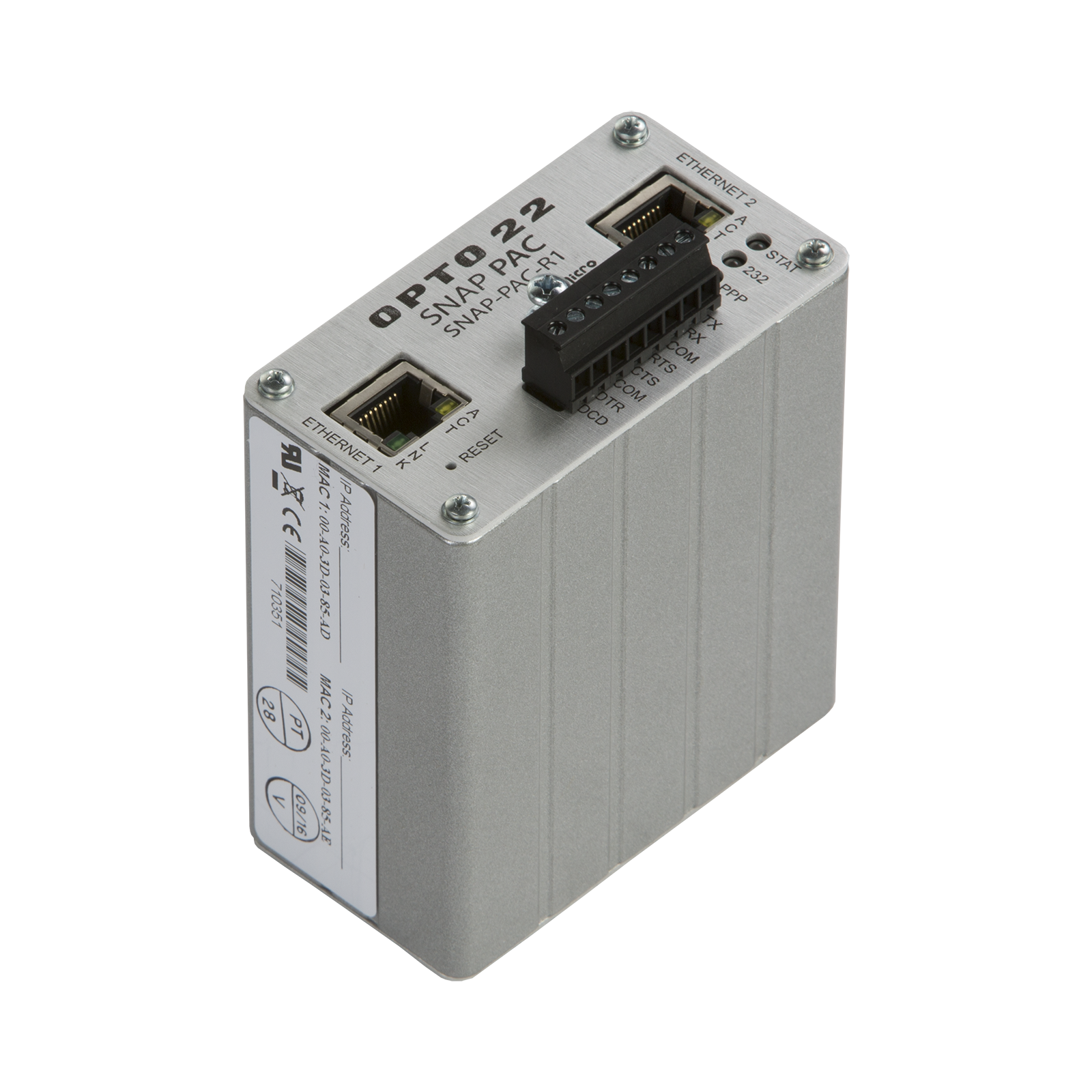

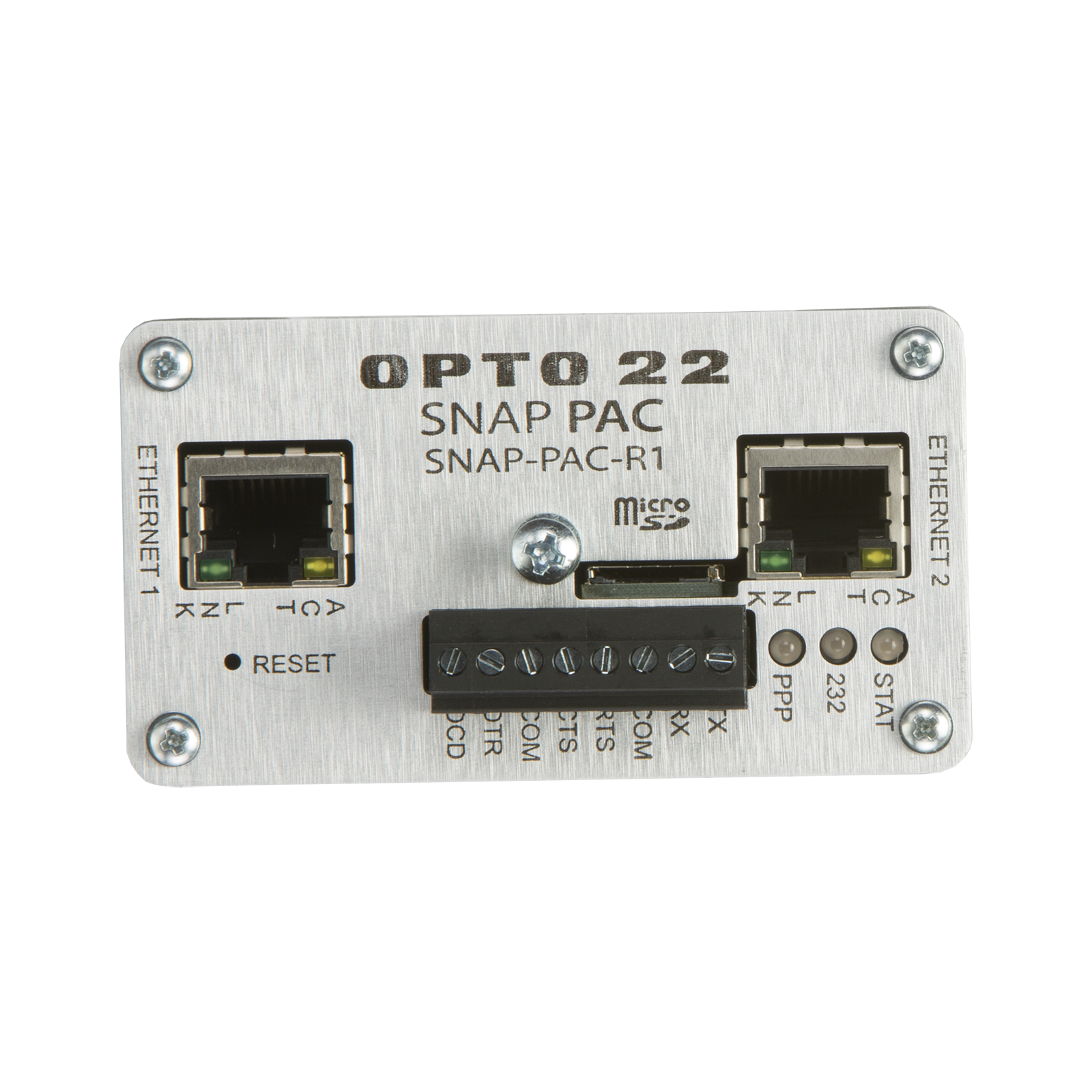

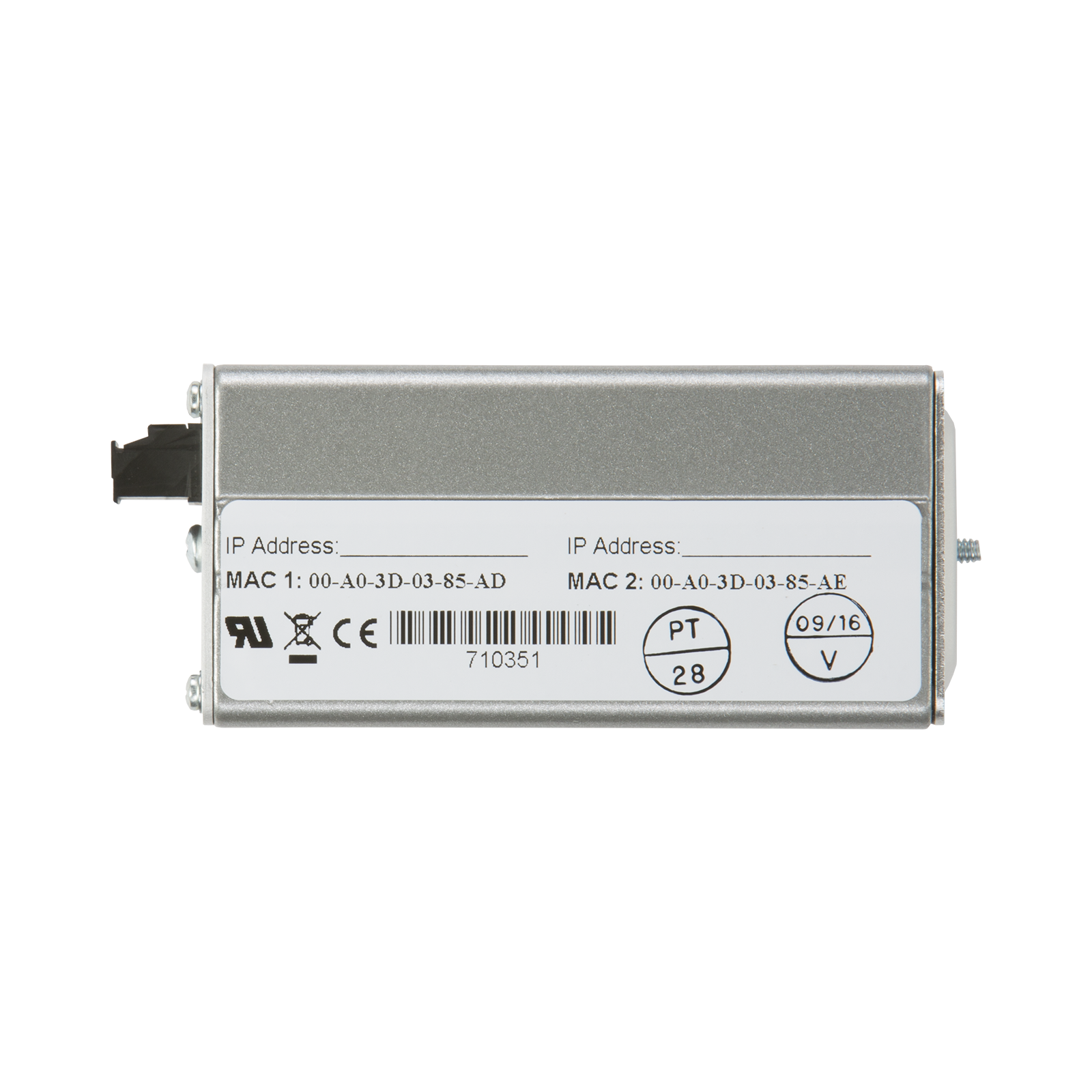

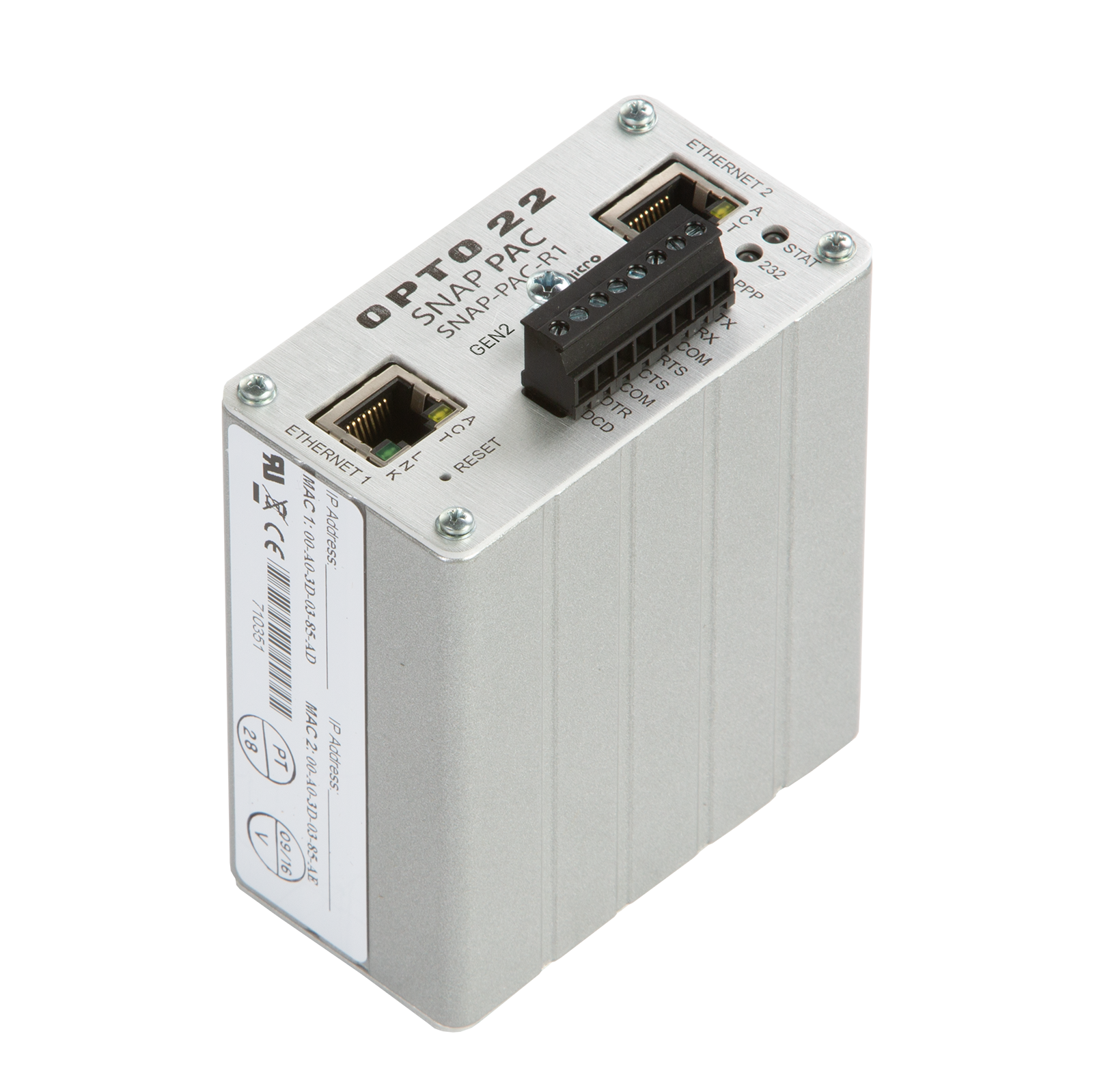

SNAP-PAC-R1
Hover over image to zoom in

SNAP-PAC-R1

$1,215.00 (USA and Canada only)

Availability: Call for Availability
SNAP PAC R-series Programmable Automation Controller - On-the-rack - REST API - Analog, full digital, serial

Production Specification

The SNAP-PAC-R1 programmable automation controller provides control, communication, and I/O processing in a compact, rack-mounted package. A versatile controller, the SNAP-PAC-R1 is:

  • fully integrated with PAC Project software, SNAP PAC brains, and SNAP I/O modules;
  • compatible with groov EPIC, either as a SNAP PAC R-series I/O unit to a groov EPIC or to control groov EPIC I/O units (requires PAC Control R10.0a or higher); and
  • can be used as a remote Ethernet I/O unit to custom control applications running on controllers or PCs.

Used with the freely available PAC Project Basic software suite (or PAC Project Professional, purchased separately), the Ethernet-based SNAP-PAC-R1 can handle almost all your industrial control, remote monitoring, and data acquisition needs.

System Architecture
This intelligent, flexible PAC can be used in several ways. The SNAP-PAC-R1 can provide complete cell control on its own rack with I/O modules. It can also control SNAP I/O and groov EPIC I/O units simultaneously for a larger system. Or the R1 can be used in a more extensive distributed control system as a remote I/O unit controlled by a groov EPIC processor or a SNAP PAC S-series controller. It can even be used as intelligent remote I/O for Allen-Bradley Logix PLC systems, such as ControlLogix and MicroLogix.

Networking
Two independent, 10/100 Mbps Ethernet network interfaces are included on each SNAP-PAC-R1. These interfaces have separate IP addresses and can be used to segment the control network from the company network or to provide Ethernet link redundancy in case of link failure or maintenance. In addition, the controller has an RS-232 serial port with hardware handshaking, which can be used for direct connection to serial devices or for PPP (Point-to-Point Protocol) communication over a modem.

Programming and Protocols
The SNAP-PAC-R1 is programmed using the included PAC Control software. PAC Control is a flowchart-based tool for developing control applications (strategies). You create and debug the strategy on your computer and then download it to the R1, where it runs independently. (Processor and memory resources—which affect control application performance—may vary; for more information, see the memory and processor specifications in the Specifications table.)

  • Remote I/O: The SNAP-PAC-R1 supports OptoMMP, Modbus, and EtherNet/IP protocols. For tasks like network addressing and protocol configuration, you can use the freely available PAC Manager tool to configure the R1 over an Ethernet network.
  • REST API & Node-RED: Developers can securely access PAC Control strategy tags using the built-in HTTP/HTTPS server and RESTful API, with data delivered in JSON format. For complete API documentation and steps for getting started, see developer.opto22.com. In addition, two Opto 22 Node-RED nodes are available. Note that minimum firmware R9.5a and PAC Project R9.5a are required to use the REST API.
  • HMI: You can build full-featured operator interfaces (HMIs) using the freely available PAC Display Basic (or PAC Display Professional, purchased separately) software, which taps the same tagname database you've already developed in your PAC Control strategy. SNAP PAC R-series controllers are also compatible with Opto 22's groov products and groov View HMI tool.
  • Communication: Because the SNAP-PAC-R1 is based on the Internet Protocol (IP), the SNAP-PAC-R1 can communicate simultaneously using several different protocols, including TCP/IP, EtherNet/IP, PPP, Modbus/TCP, SNMP for network management, SMTP for emailing, and OptoMMP, the open memory-mapped protocol used by all Opto 22 Ethernet-based devices.

I/O Processing
The controller mounts on a SNAP PAC mounting rack with up to 4, 8, 12, or 16 digital, analog, serial, and special-purpose I/O modules. Choose the modules needed for your application from the extensive line of SNAP I/O modules.

  • Analog features include thermocouple linearization, minimum/maximum values, offset and gain calibration, scaling, ramping, TPO, output clamping, filter weight, and watchdog timer. The SNAP-PAC-R1 also offers up to 96 PID loops.
  • Digital features on 4-channel digital modules include latching, high-speed counting (up to 20 kHz, depending on the module), quadrature counting, pulse generation and measurement, TPO, and watchdog timer. Features on high-density digital modules are more limited (see module data sheet for details).
Compare all SNAP PAC controllers and brains (detailed chart).

Build your system in the SNAP I/O Configurator.

Processor

  • GEN2 edition: 528 MHz 32-bit Single-core Arm Cortex®-A7
  • Earlier edition: 200 MHz 32-bit ColdFire® 5475

Memory


  • Total RAM
  • GEN2 edition: 256 MB (approx. 64 MB reserved for PAC Control strategy and approx. 30 MB reserved for file storage)
  • Earlier edition: 16 MB (approx. 5 MB reserved for PAC Control strategy and approx. 2 MB reserved for file storage)
  • Battery-backed RAM
  • 2 MB (approx. 1 MB available for PAC Control strategy)
  • Flash
  • GEN2 edition: 16 MB (approx. 7 MB reserved for PAC Control strategy; approx. 1 MB reserved for file storage)
  • Earlier edition: 8 MB (approx. 3.25 MB reserved for PAC Control strategy; approx. 384 KB reserved for file storage)

Removable storage

  • GEN2 edition: MicroSD card slot supports microSD and microSDHC up to 32 GB; microSDXC cards that have been repartitioned to 32GB or less and reformatted to FAT32.
  • Earlier edition (models with manufacture dates of November 2008 and newer):
    • Firmware R9.4a or higher and loader R6.1a or higher: microSD card slot supports microSD or microSDHC cards to 32 GB.
    • Firmware R8.4 through R9.3e: microSD card slot supports microSD cards up to 2 GB.

Backup battery

Rechargeable (recharges whenever the unit has power):

  • GEN2 edition:  1.5-year power-off data retention
  • Earlier edition: 3-year power-off data retention

Replacement part number: SNAP-PAC-BATTERY-ML24301

Communication


  • Ethernet
  • Two independent 10/100 Mbps Ethernet network interfaces (RJ-45 connectors). Each interface has a separate IP address. Connects to host and I/O. Supports Auto MDI-X (crossover cable not needed).
  • RS-232 serial
  • One RS-232 serial port2 with hardware handshaking. Connects to host (via modem and PPP) or serial device. Cannot connect to serial I/O.

I/O unit compatibility

SNAP PAC I/O units: SNAP PAC R-series and EB-series I/O units
groov RIO edge I/O units
groov EPIC I/O units

Power requirements

5.0–5.2 VDC @ 1.5 A

Hold-down screw

Torque: Not to exceed 1 in-lb (0.11 N-m)

Connector screw

Torque: 1.7 in-lb (0.19 N-m)

Environmental
  Operating temperature
  Storage temperature
  Humidity


-20 °C to 60 °C
-40 °C to 85 °C
0% to 95% relative humidity, non-condensing

Software


  • PAC Project Basic5
  • Includes programming, HMI, and configuration software; included with purchase of controller.
  • PAC Project Professional5
  • PAC Project Basic features plus OPC DA 2.0-compliant OPC server, database connectivity, OptoControl strategy and OptoDisplay project importing, and support for Ethernet link redundancy or network segmenting.
  • REST API3
  • Use HTTPS to access data (read/write or read-only) from controller tags using your chosen programming language. Data returned in JSON. More information at developer.opto22.com

Number of charts that can run simultaneously

  • GEN2 edition: 32
  • Earlier edition: 16

Agency certifications

DFARS, CE, RoHS, UKCA, UL, ATEX

Warranty

30 months from date of manufacture

Other features

  • Multiple protocol support including TCP/IP, HTTP/HTTPS, FTP, EtherNet/IP, Modbus/TCP, SNMP v2.0c, OptoMMP™, and SMTP
  • Built-in I/O processor handles up to 16 digital4, analog, and serial I/O modules on the same rack
  • Real-time clock
  • FTP server/client with file system (in RAM and removable storage)
  • Scratch Pad area for peer-to-peer communication
  • Configurable link redundancy or segmented networking for I/O-controller subnetting (when using PAC Project Professional)

1 Models manufactured before July 1, 2007 have a user-replaceable 3-volt CR2032 Lithium battery (typical service life with power off: 5 years).
2 Connecting to a serial device requires configuration in PAC Manager; PAC Control handles communication.
3 Requires firmware R9.5a or higher
4 SNAP-PAC-R1s with serial numbers lower than 600,000, and all SNAP-PAC-R1-Bs, are limited to eight 4-channel digital modules per rack; remaining eight can be analog, serial, and high-density digital modules.
5 For the GEN2 edition, use PAC Project R10.0 or higher.
