SNAP-PAC-EB1-W
Hover over image to zoom in

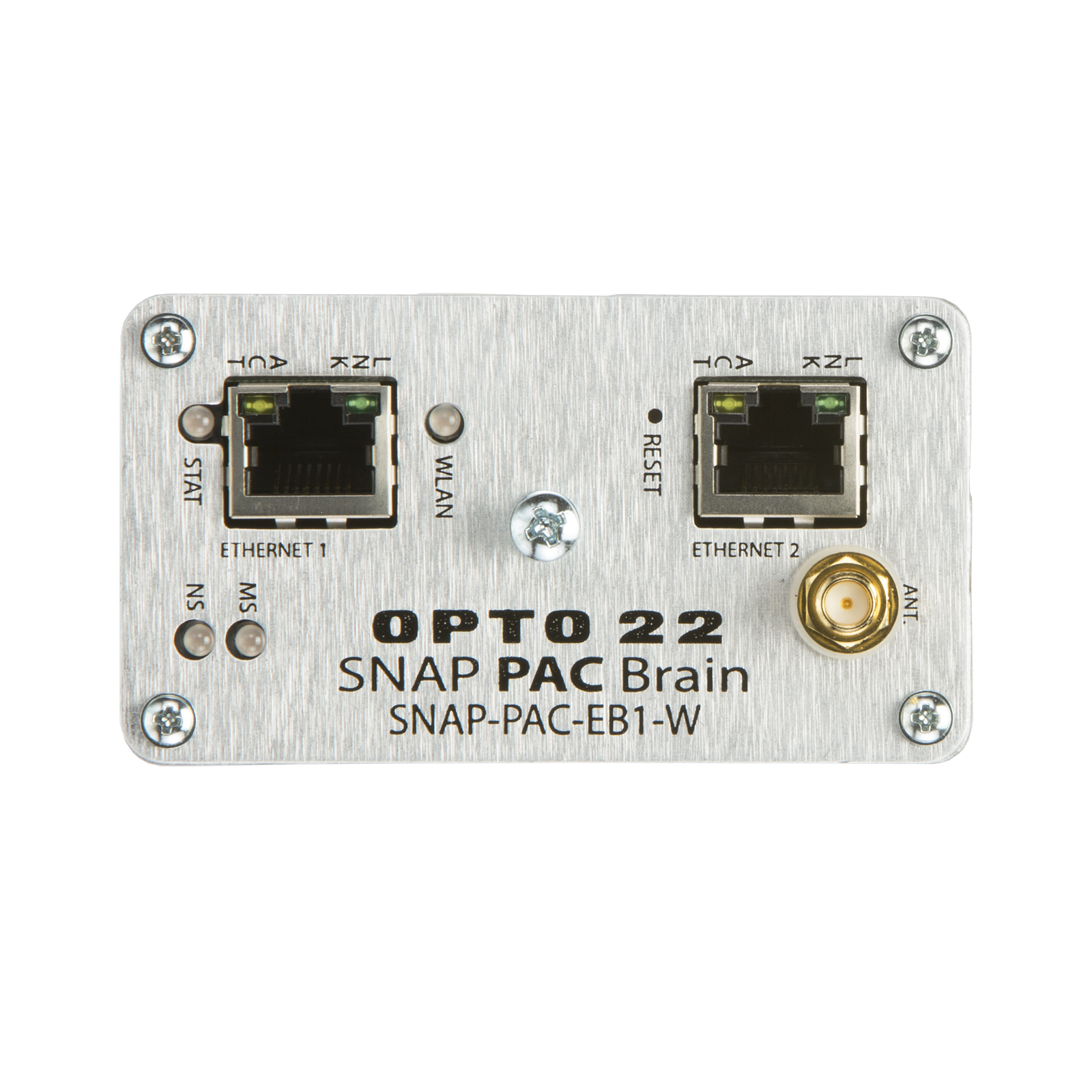

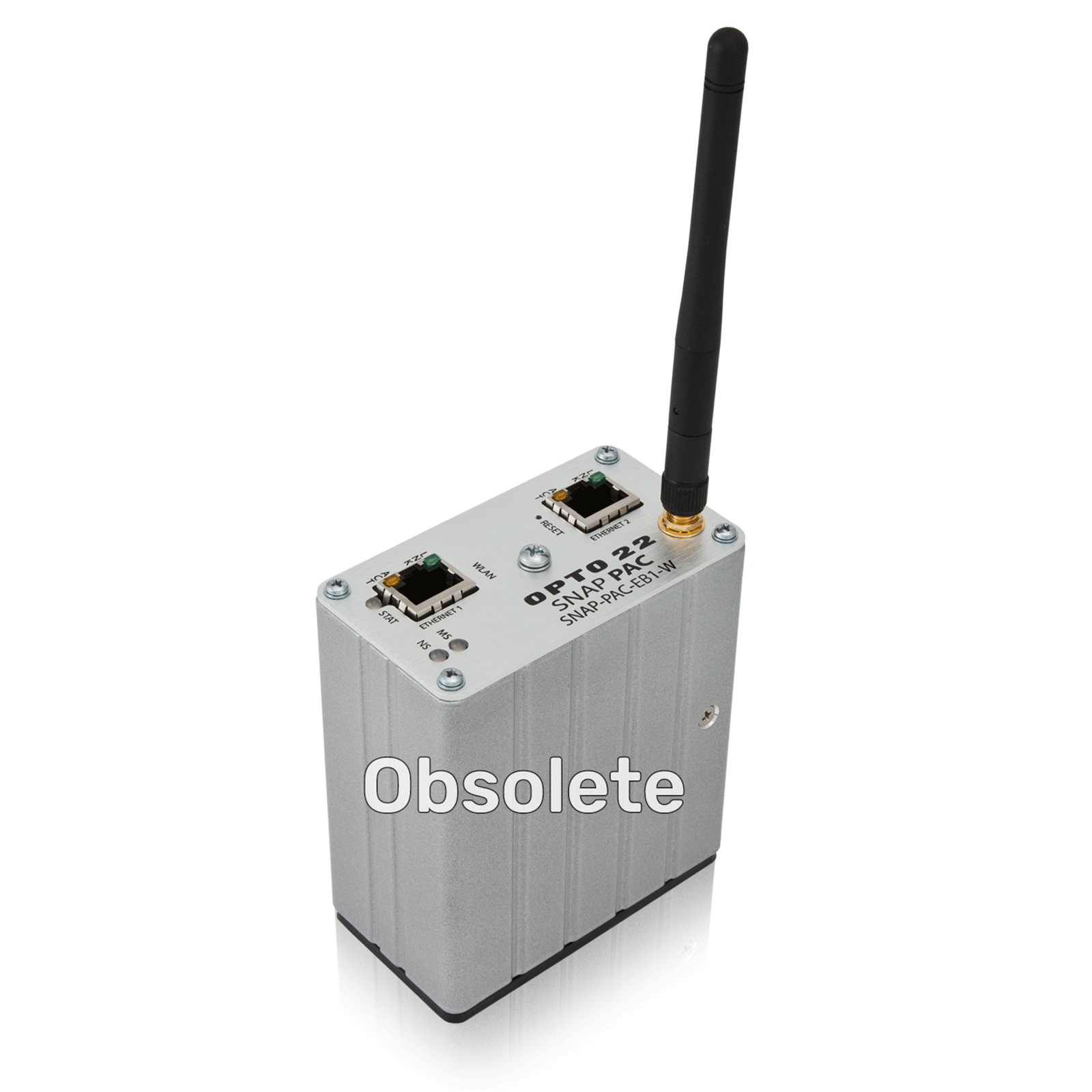

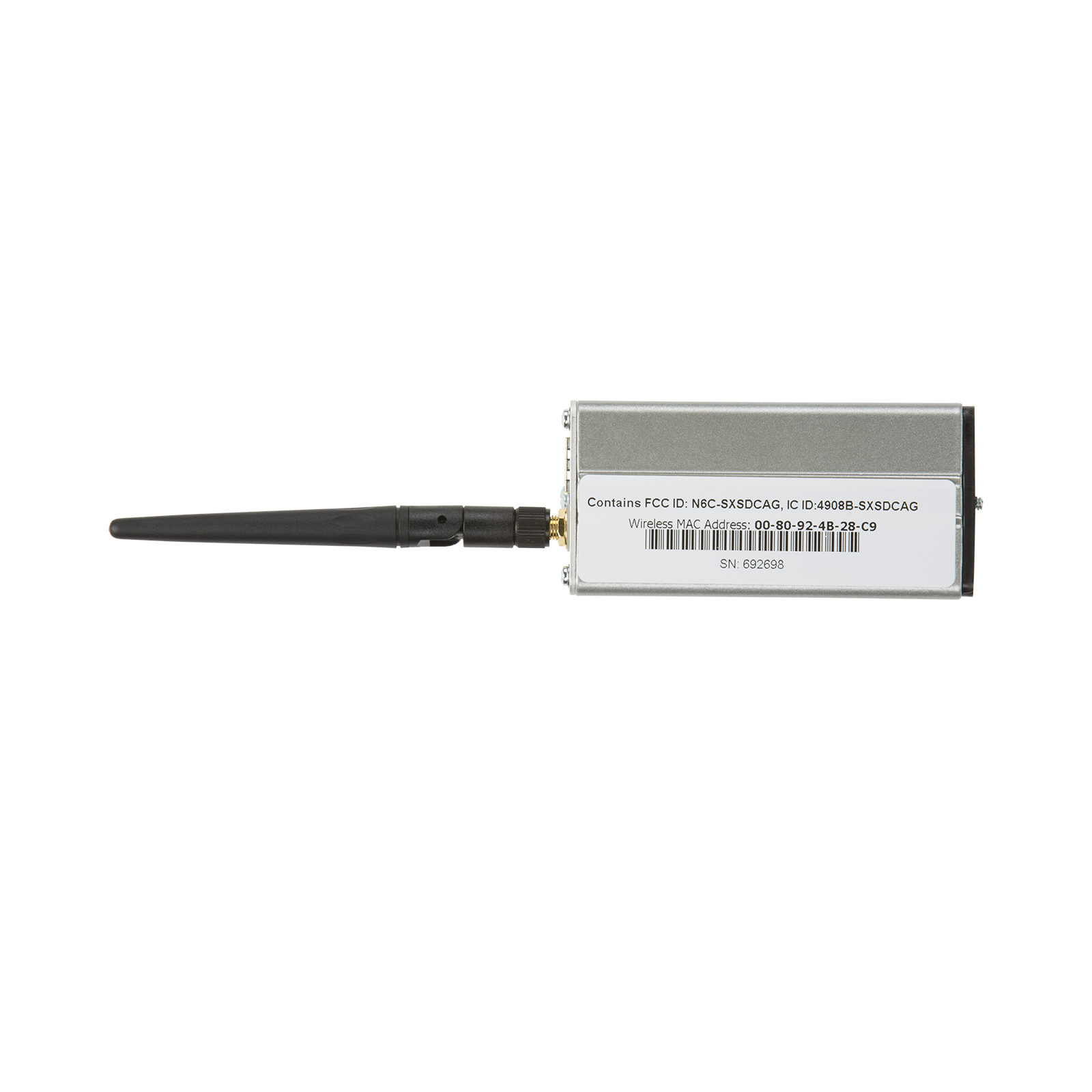

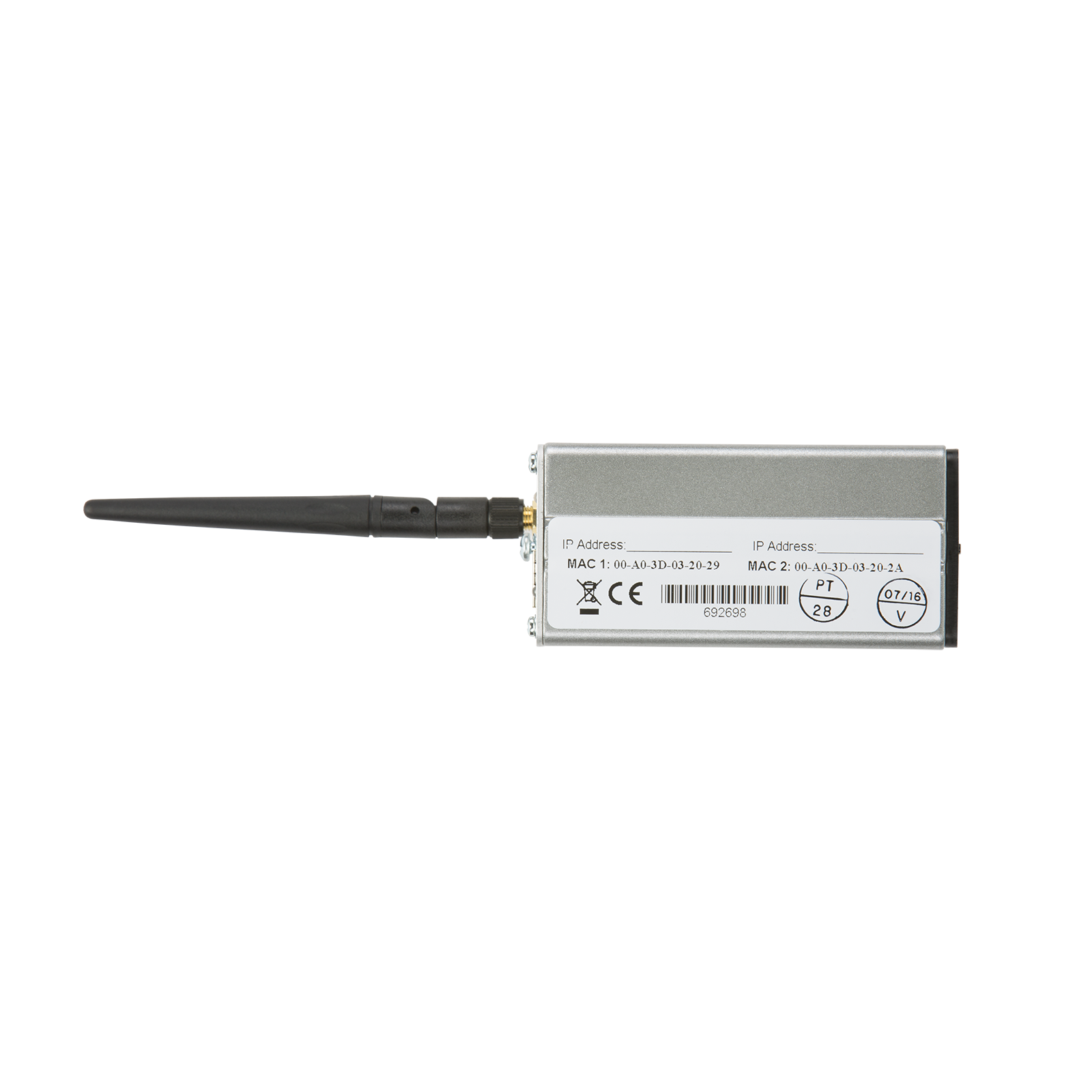

SNAP-PAC-EB1-W

Availability: Obsolete
OBSOLETE Wired+Wireless SNAP PAC Ethernet Brain, analog/digital/serial, with high-speed digital functions

Production Specification

*** NOTE: This part is obsolete and no longer available. ***

-----------

The SNAP-PAC-EB1-W brain provides the same features as the SNAP-PAC-EB1 and adds a wireless LAN interface as well.

An I/O and communications processor for your control system, the SNAP-PAC-EB1-W is designed primarily to work in distributed systems controlled by a SNAP PAC S-series or R-series controller. This brain can also be used in remote I/O with Allen-Bradley industrial PLC systems such as MicroLogix, or other A-B PLCs using explicit messaging.

The SNAP-PAC-EB1-W provides local intelligence that frees the controller (PAC or PLC) for supervisory tasks. As an I/O processor, the SNAP PAC brain independently handles functions such as latching, counting, thermocouple linearization, watchdog timers, and PID loop control. These functions continue to work on the brain even if communication with the controller is lost.

Networking
The SNAP-PAC-EB1-W brain includes a wireless LAN interface that supports 802.11a, b, and g network standards. The brain can be used in infrastructure or ad-hoc mode. For security, 802.11i standards are supported, including WPA2-AES as well as WPA and WEP for backwards compatibility.

In addition, the brain communicates over a standard 10/100 Mbps Ethernet network using two switched Ethernet network interfaces. Because these interfaces share a single IP address and act just like an Ethernet switch, SNAP PAC brains can be installed in a multi-drop (daisy-chain) configuration, extending the control network without the added expense of additional Ethernet network hardware. (Note that the wireless LAN interface does not provide access to other brains in a daisy-chain configuration, as this interface is independent.) SNAP PAC brains can also be installed in a star configuration using standard, off-the-shelf Ethernet network components.

The SNAP-PAC-EB1-W brain can run on a wireless LAN, on a wired network, or on both at once.

I/O Modules
The SNAP-PAC-EB1-W brain supports all the SNAP I/O analog, digital, and serial input and output modules available on the Opto 22 website. These modules can all be mixed on the same mounting rack and placed in any position on the rack. The brain and modules mount on a SNAP PAC rack, which holds up to 4, 8, 12, or 16 modules.

NOTE: In order to use Opto 22 serial modules with an EB2 brain, the I/O should be controlled by a SNAP PAC controller running a PAC Control strategy.
Since the same rack and I/O are used regardless of network, you can switch from wired to wireless and back again without having to add parts, reconfigure I/O, or change field wiring.

The SNAP-PAC-EB1-W brain offers high-speed digital functions, including high-speed counting (up to 20 KHz, depending on the module), quadrature counting, pulse generation and measurement, and TPO (time-proportional output). Pulse generation and measurement require PAC Control and a SNAP PAC controller, or using the brain with Allen-Bradley PLC systems. For a complete list of features and specifications, see form #1689, the SNAP PAC Brains Data Sheet, under the Docs & Downloads tab.

Communication
The SNAP-PAC-EB1-W brain supports communication using multiple protocols running simultaneously over Ethernet. Most customers use the PAC Project software suite for control, monitoring, and data acquisition. At the same time, you can communicate using other methods, including EtherNet/IP, Modbus/TCP, SNMP, SMTP, FTP, and OptoMMP. Communication with OPC 2.0-compliant clients is available through OptoOPCServer.

If you don't need high-speed digital functions, choose the SNAP-PAC-EB2-W brain instead.

If you don't need wireless capability, see the SNAP-PAC-EB1.

For a complete list of features and specifications, see the SNAP PAC Brains Data Sheet.

Compare SNAP PAC controllers and brains.

If you are not using PAC Project software and a SNAP PAC controller with this brain and instead need to communicate directly with it, see the SNAP PAC .NET OptoMMP SDK.

Build your system in the SNAP I/O Configurator.

Ethernet and Serial Brains [Ethernet Brains are Obsolete 3/1/22]

Power Requirements

5.0–5.2 VDC at 750 mA maximum (does not include module power requirements)

-W Models: 5.0–5.2 VDC at 1.0 A maximum (not including module requirements)

Memory

16 MB RAM

Backup battery for real-time clock

Rechargeable (recharges whenever the brain has power). 5-year life when power is off. (replacement part number: SNAP-PAC-BATTERY-ML2430). (Models manufactured before August 2007 have a 3-volt CR2032 lithium battery, available in retail stores. See original user guide for replacement steps.)

Hold-down screw

Torque: 8 in-lb (0.9 N-m)

Operating Temperature

-20 to 60 °C

Storage Temperature

-40 to 85 °C

Humidity

0–95% humidity, non-condensing

Agency certifications

-EB models (except -EB-W): UL, CE, RoHS, DFARS; UKCA
-EB-W models: CE, UL, DFARS, UKCA ; U.S., FCC Part 15 Subpart C; Canada, IC RSS-210
-SB models: CE, RoHS, DFARS; UKCA

Warranty

30 months from date of manufacture

Ethernet Brains (EB) only

Wired Ethernet Network Interfaces

IEEE 802.3 network, 10Base-T and 100Base-TX. Supports Auto MDI-X (crossover cable not needed). Two switched interfaces, allowing multi-drop (daisy-chain) or standard star network configuration.

Maximum Ethernet Segment Length

100 meters with Category 5 or superior UTP
For 100 Mbps at this distance, use Category 5 or superior solid UTP.

Wireless LAN interface*
  Topologies
  Security

  Frequency 802.11a
  Frequency 802.11b/g
  Transmit Power
  Antenna Connector
  Roaming

Separate IP address
Infrastructure, Ad-Hoc
802.11i: AES - Compatible with WPA2 Personal, TKIP - Compatible with WPA Per­sonal, WEP. Note: TKIP/AES security is not supported in Ad-Hoc mode.
5.180–5.24 GHz, 5.745–5.825 GHz
2.412–2.472 GHz, 2.484GHz
15 dBm maximum
Reverse polarity SMA (RP-SMA or RSMA)
Supported within an SSID (Service Set Identifier) only

Serial Brains (SB) only

Network interfaces

RS-485, 2- or 4-wire, twisted pair(s), with shield

Serial data rates

300 baud to 230.4 Kbaud

Range: Serial multidrop

32 stations maximum on a segment (including PC, controller, repeaters, and I/O units); up to 3000 ft (914 m) on a segment

* Requires Wired+Wireless model (SNAP-PAC-EB1-W or SNAP-PAC-EB2-W)

SNAP PAC Brains Data Sheet

NOTE: Due to the unavailability of essential parts, SNAP PAC brains are obsolete and no longer available. Instead of Ethernet-based brains, use a SNAP-PAC-R1 controller/brain; it has all the same features plus additional power (and programmability, if you need it). For serial brain options, contact Opto 22 Product Support.

SNAP PAC brains are powerful and versatile I/O and network communications processors. Designed primarily to work in distributed systems controlled by a SNAP PAC controller, SNAP PAC Ethernet brains can also be used as intelligent remote I/O for groov EPIC systems and Allen-Bradley Logix-based PLC systems.

SNAP PAC brains provide local intelligence for functions such as latching, counting, thermocouple linearization, watchdog timers, and PID loop control.
