*** NOTE: This part is OBSOLETE and no longer available. ***
Contact Opto 22
Pre-Sales engineers for more information or see
Form 2411, Obsolete SNAP 4-Channel Digital I/O Technical Note.

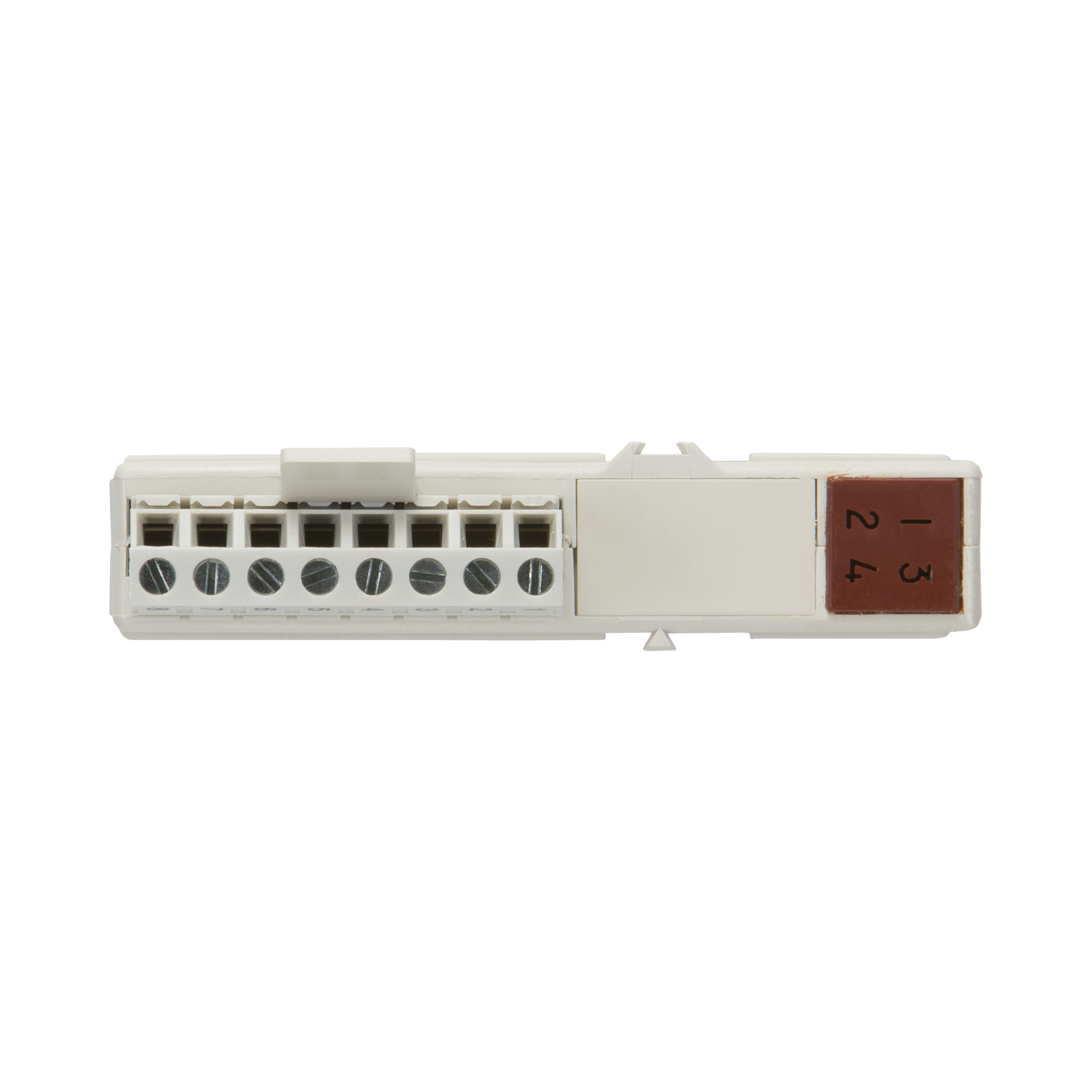

The SNAP-ODC5R5FM is a digital output module that uses low-voltage mechanical relays and does not provide optical isolation. Current rating depends on the voltage the module is used with. This module is normally closed. It includes a connector clamp to prevent sparks.
Typical applications for these modules include analog signal and communication line multiplexing. Because of their low 10 VA rating, these modules are not recommended for inductive or capacitive loads (even very small loads) because the inrush current is likely to exceed the 10 VA rating.
IMPORTANT: Applications using 120 VAC are typically NOT suited to this module. If you are considering using this module for any application other than low-voltage purely resistive loads, see the detailed notes and rating curve in the data sheet, and call Pre-sales Engineering for specific guidance.
For many applications a better choice is the
SNAP-OMR6-C module, which can handle a full 6 A at 0-250 VAC or 0-30 VDC.
Part of the SNAP PAC System, the module mounts on a
SNAP PAC rack with a SNAP PAC
brain or
rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an
Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.
For easier, faster wiring, see SNAP TEX
cables and
breakout boards.
Build your system in the
SNAP I/O Configurator.
