(USA and Canada only)

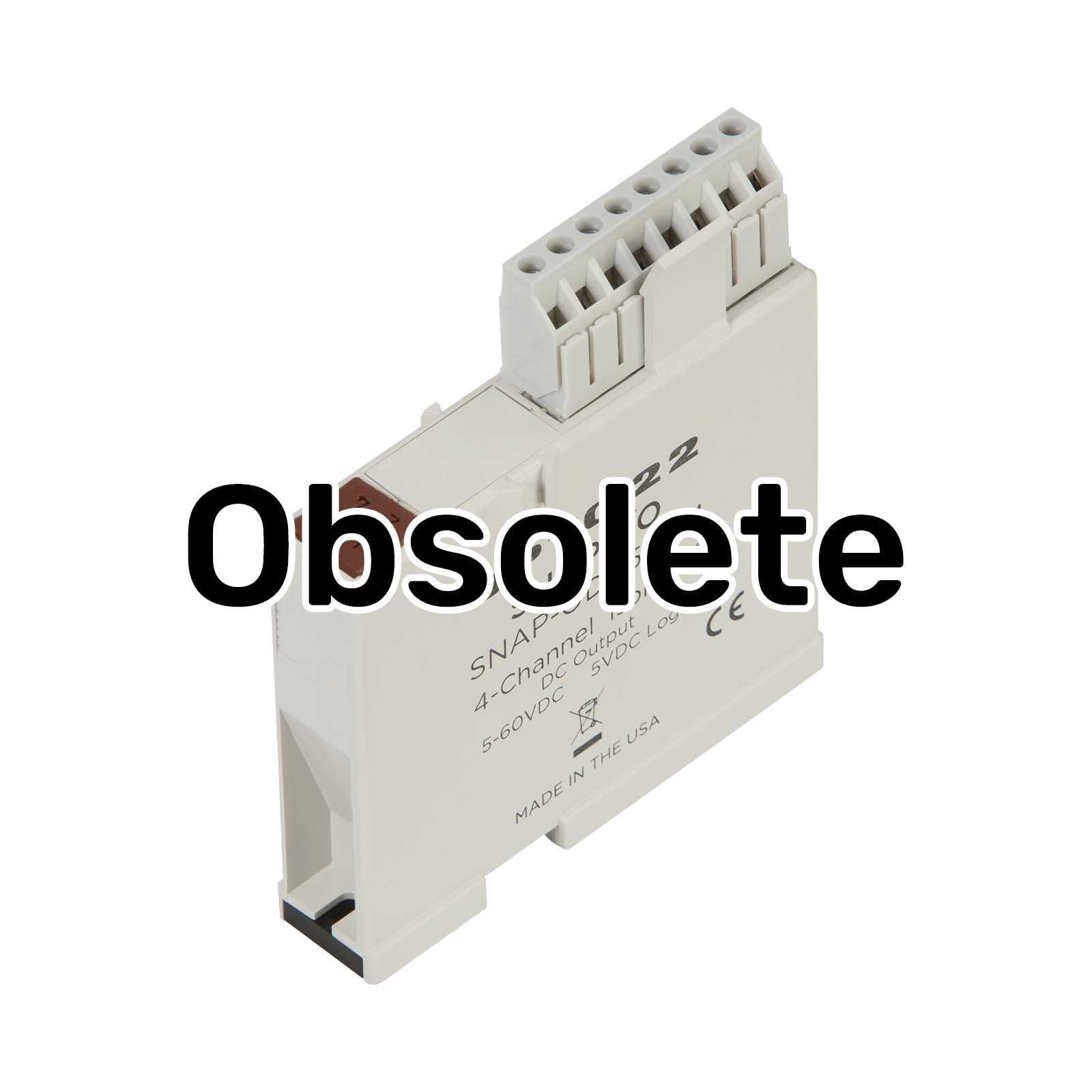

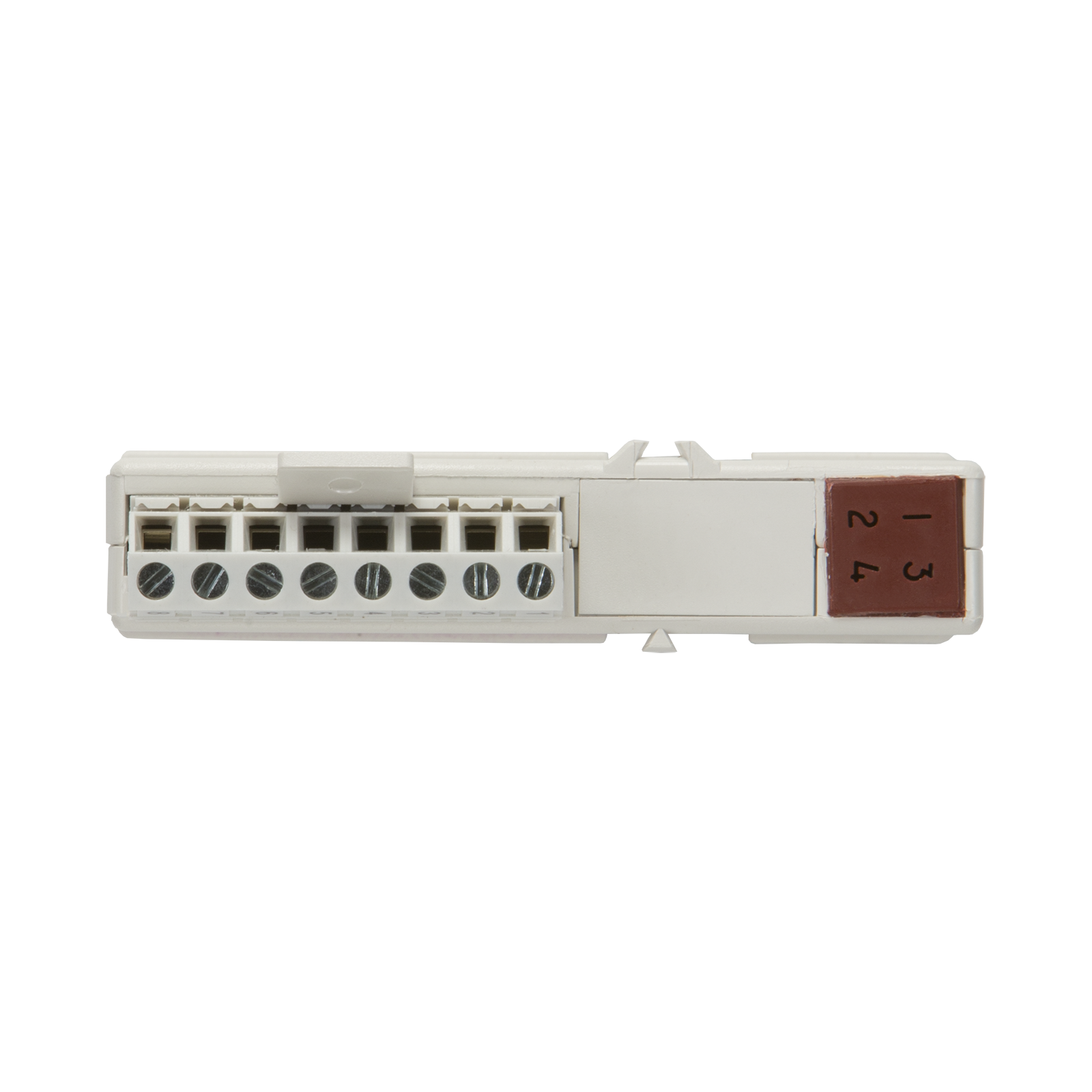

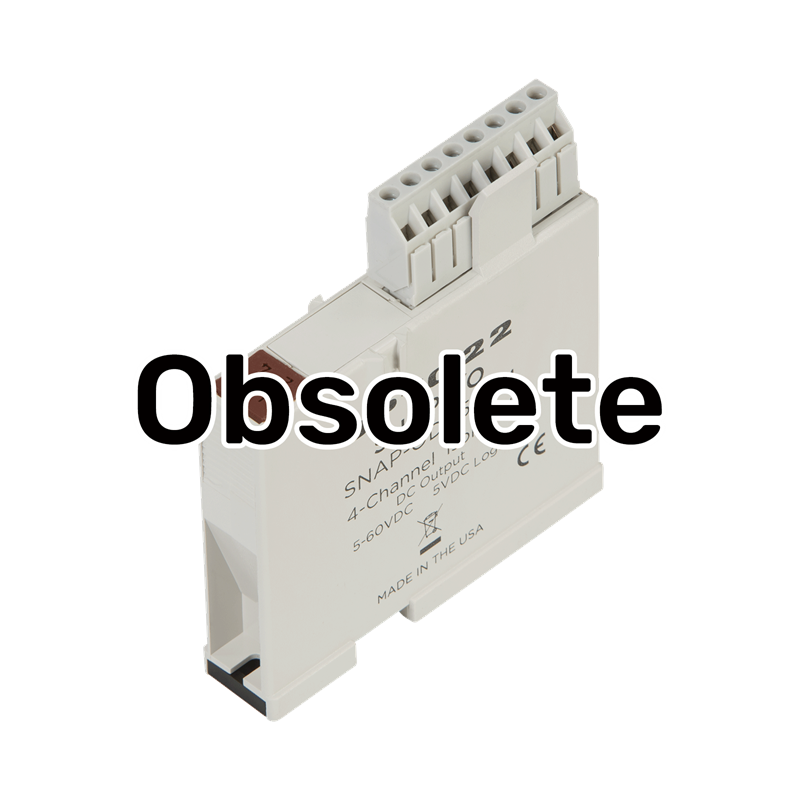

Four isolated channels
Factory Mutual approved
Torque, hold-down screws
Not to exceed 1 in-lb (0.11 N-m)
Torque, connector screws
5.22 in-lb (0.59 N-m)
Field Side Ratings (each channel)
Line Voltage - Range
Line Voltage - Nominal
Current Rating 0°C to 70°C Ambient
3 amps per module
5 amps peak for 1 second
Output Voltage Drop
1.6 volts max.@ 0.75 amps
1 mA @ 60 VDC
Peak Blocking Voltage
Fuse (Common to all Channels)
Has four isolated channels. User must provide own fusing.
Logic Side Ratings
4 V @ 5.5 mA
Logic Supply Voltage
5 VDC ± 0.25 VDC
Logic Supply Current
50 mA maximum
Number of Channels Per Module
Isolation (Field Side to Logic Side)
4,000 volts (transient)
-20 ° to 70 °C, operating
-40 ° to 85 °C, storage
Wire size range
22 to 14 AWG
CE, ATEX, FM, RoHS, DFARS; UKCA
CE, FM, RoHS, DFARS; UKCA
