SNAP 4-Ch Isolated 10-32 VDC/VAC Digital (Discrete) Input Module with Manual/Auto Switches

Production Specification

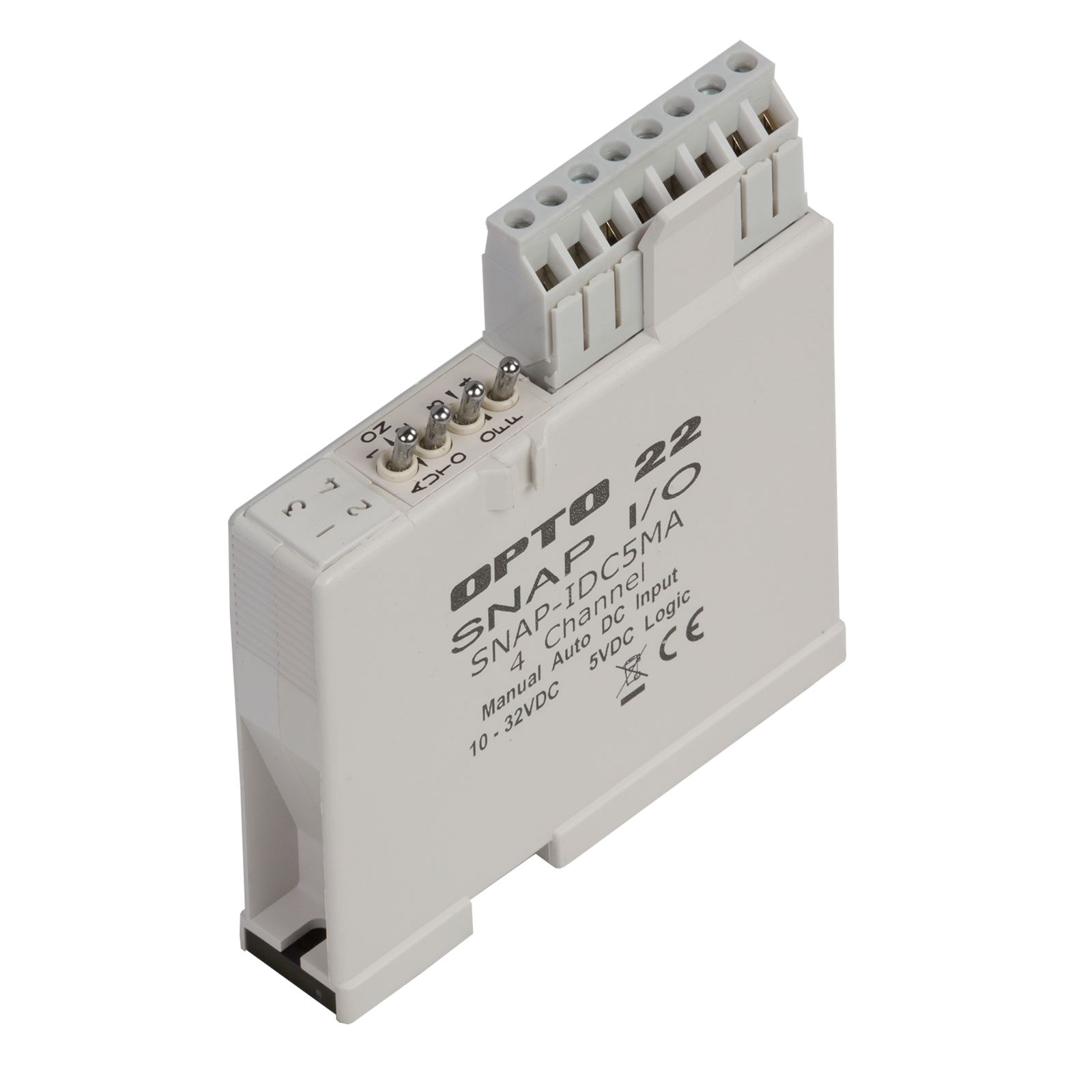

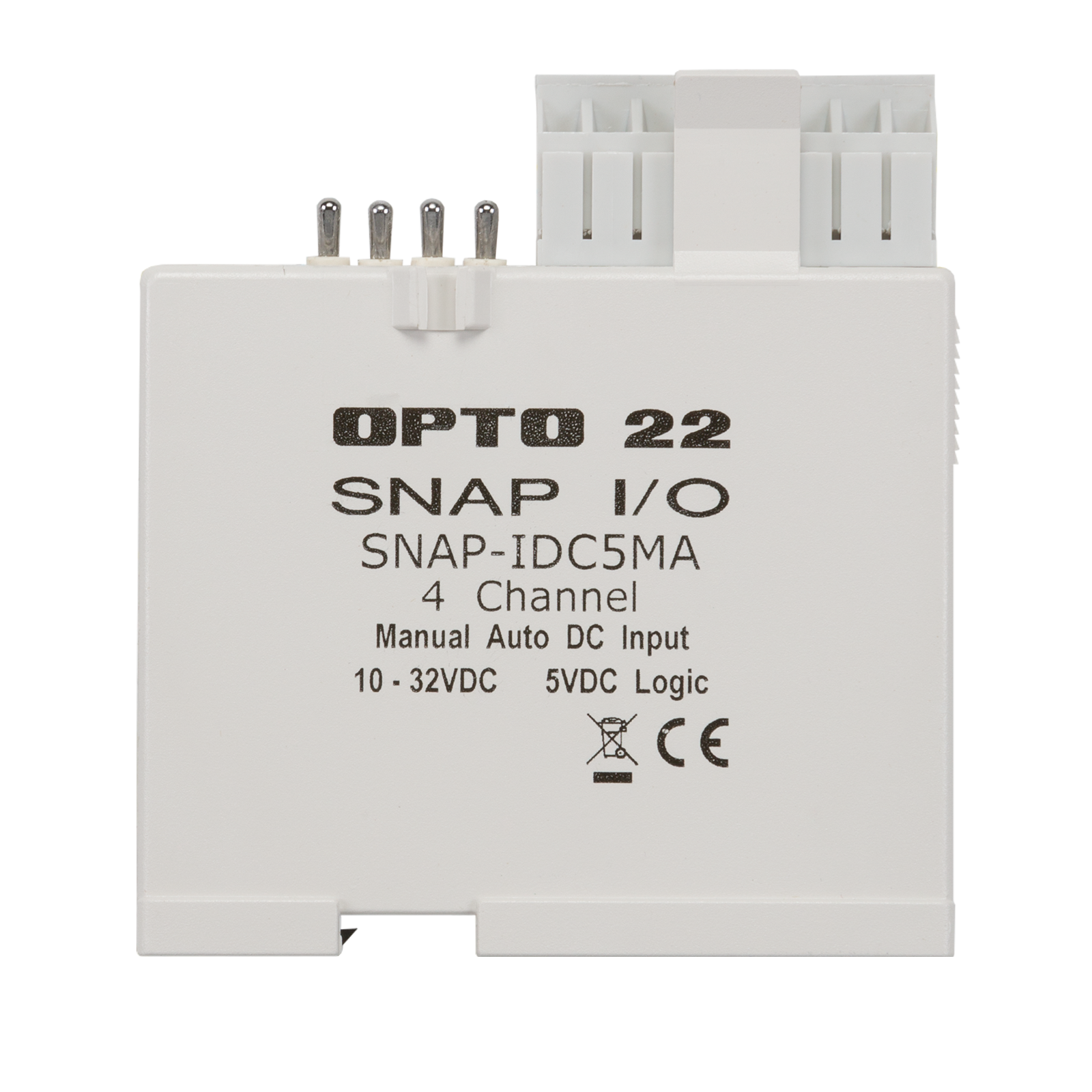

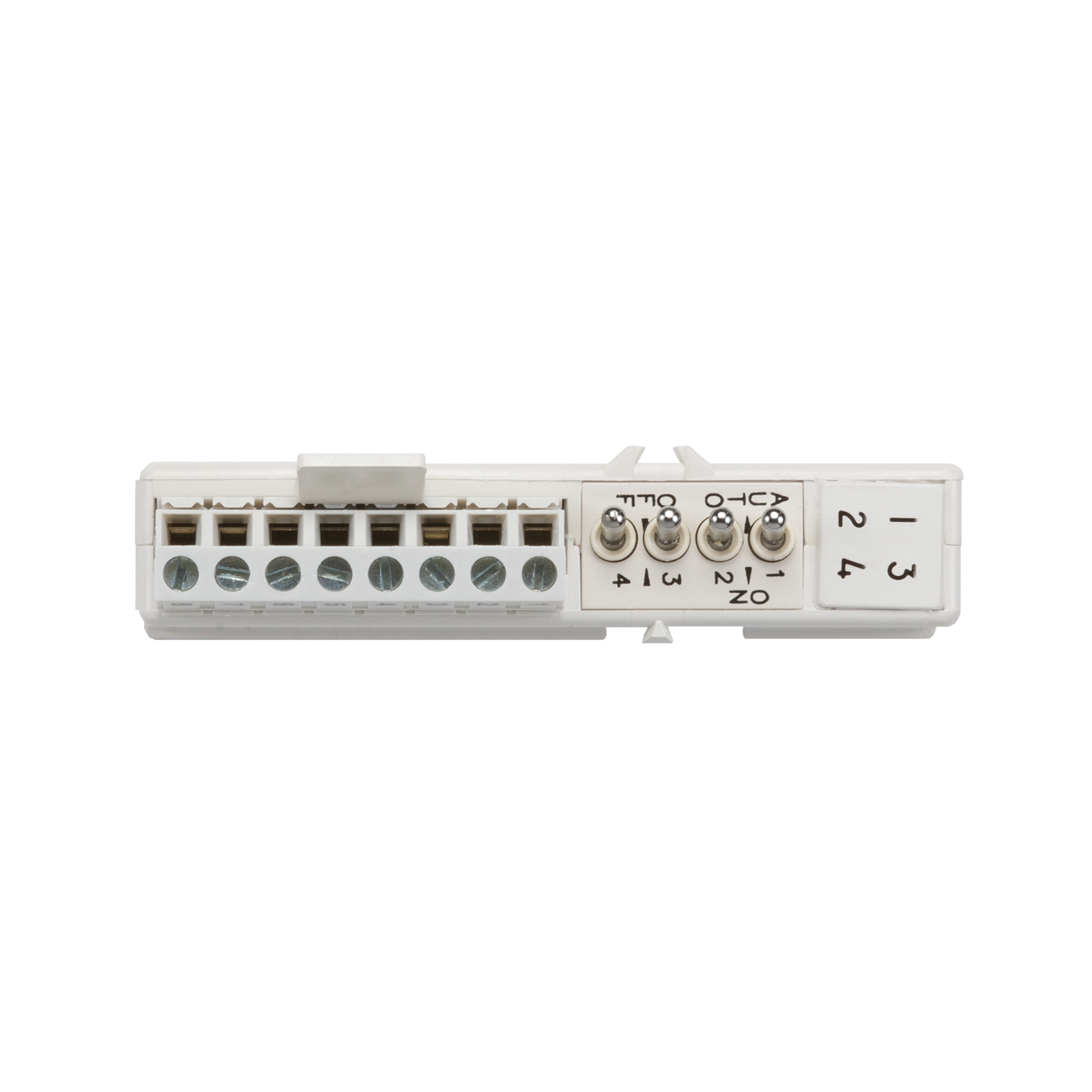

The SNAP-IDC5MA provides four channels of 10-32 VDC/VAC digital input. Each channel senses the on/off status for DC voltages from sources such as proximity switches, push buttons, or auxiliary contacts. This module features manual-on/manual-off/automatic switches that override input from field devices and are ideal for testing control applications.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-IDC5FAST*

SNAP-IDC5-FAST-A**

SNAP-IDC5MA

Key Feature

High-speed

High-speed

Diagnostic switches, channel-to-channel isolated

Wire size

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

Field Side Ratings (each channel)

Nominal Input Voltage

5 VDC

28 VDC

24 VAC/VDC

Channel-to-channel isola­tion

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

Input Voltage Range

2.5–16 VDC

18–32 VDC

10–32 VAC/VDC

Turn-on Voltage

2.5 VDC

18 VDC

10 VAC/VDC

Turn-off Voltage

1 VDC

5 VDC

3 VAC/VDC

Input Resistance

440 ohms (nominal)

8 K ohms (nominal)

15 K ohms (nominal)

Logic Side Ratings

Logic Output Voltage

<0.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

<0.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

<0.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing

Logic Supply Voltage***

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

50 mA maximum

Negative True Logic
Output Drive

TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL

TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL

TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL

Module Ratings

Number of Channels Per Module

4

4

4

Turn-on Time

0.025 msec*

0.025 msec**

5 msec

Turn-off Time

0.025 msec*

0.025 msec**

15 msec

Optical Isolation
(Field Side to Logic Side)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 °C to 70 °C, operating
-40 °C to 85 °C, storage

-20 °C to 70 °C, operating
-40 °C to 85 °C, storage

-20 °C to 70 °C, operating
-40 °C to 85 °C, storage

Agency Approvals

UL, CE, FM, CSA, RoHS, DFARS; UKCA

UL, CE, CSA, RoHS, DFARS; UKCA

CE, RoHS, DFARS; UKCA

Warranty

Lifetime

Lifetime

30 months

* At 20kHz, 5Vp-p square wave input, 50% duty cycle.
** At 20kHz, 28Vp-p square wave input, 50% duty cycle.
*** When used with an I/O processor (brain or on-the-rack controller), the processor requires 5.0 to 5.2 VDC.

SNAP Digital Input Modules Data Sheet

SNAP digital input modules are designed to work with SNAP PAC racks and can sense either AC or DC signals.

All SNAP digital input modules are compatible with SNAP PAC brains and R-series controllers, including Wired+Wireless models.

Most digital input modules are also compatible with SNAP D-series or legacy M-series and B-series racks and with the brains that mount on them.

This data sheet applies to:

SNAP PAC System Product Guide

This document lists and describes all current Opto 22 SNAP PAC System part numbers, including PAC Project software, SNAP PAC controllers, and SNAP I/O modules of all kinds. SNAP PAC mounting racks and SNAP power supplies are also listed.

Digital I/O for Raspberry Pi Selection Guide

Now you can safely and reliably sense and switch industrial-level electrical loads with your Raspberry Pi® and Opto 22 industrially hardened digital I/O.

This Selection Guide describes compatible I/O racks and modules, power supplies, and accessories that work with the Raspberry Pi and the Digital I/O Carrier Board for the Pi (OPTO-P1-40P). Specifications, dimensional drawings, and wiring diagrams for racks and I/O modules are included.

For code samples and steps to get started, also see developer.opto22.com.
