SNAP-IDC5DFM
Hover over image to zoom in

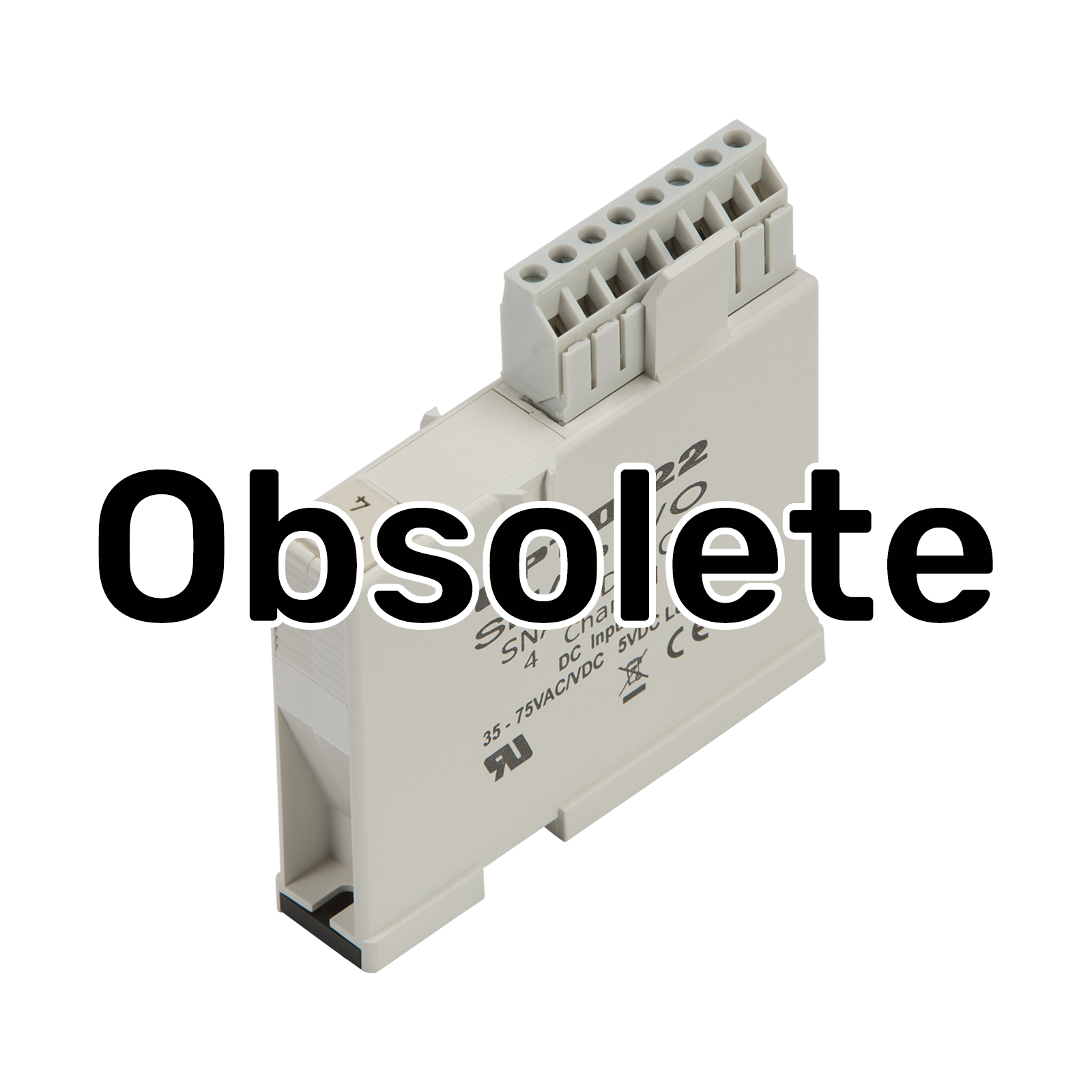

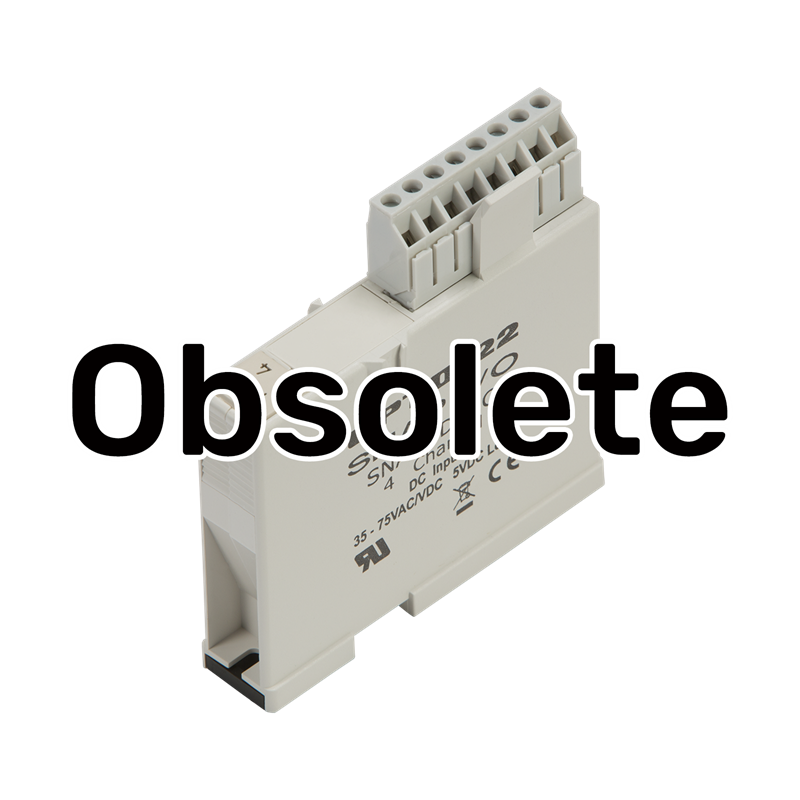

SNAP-IDC5DFM

Availability: Obsolete

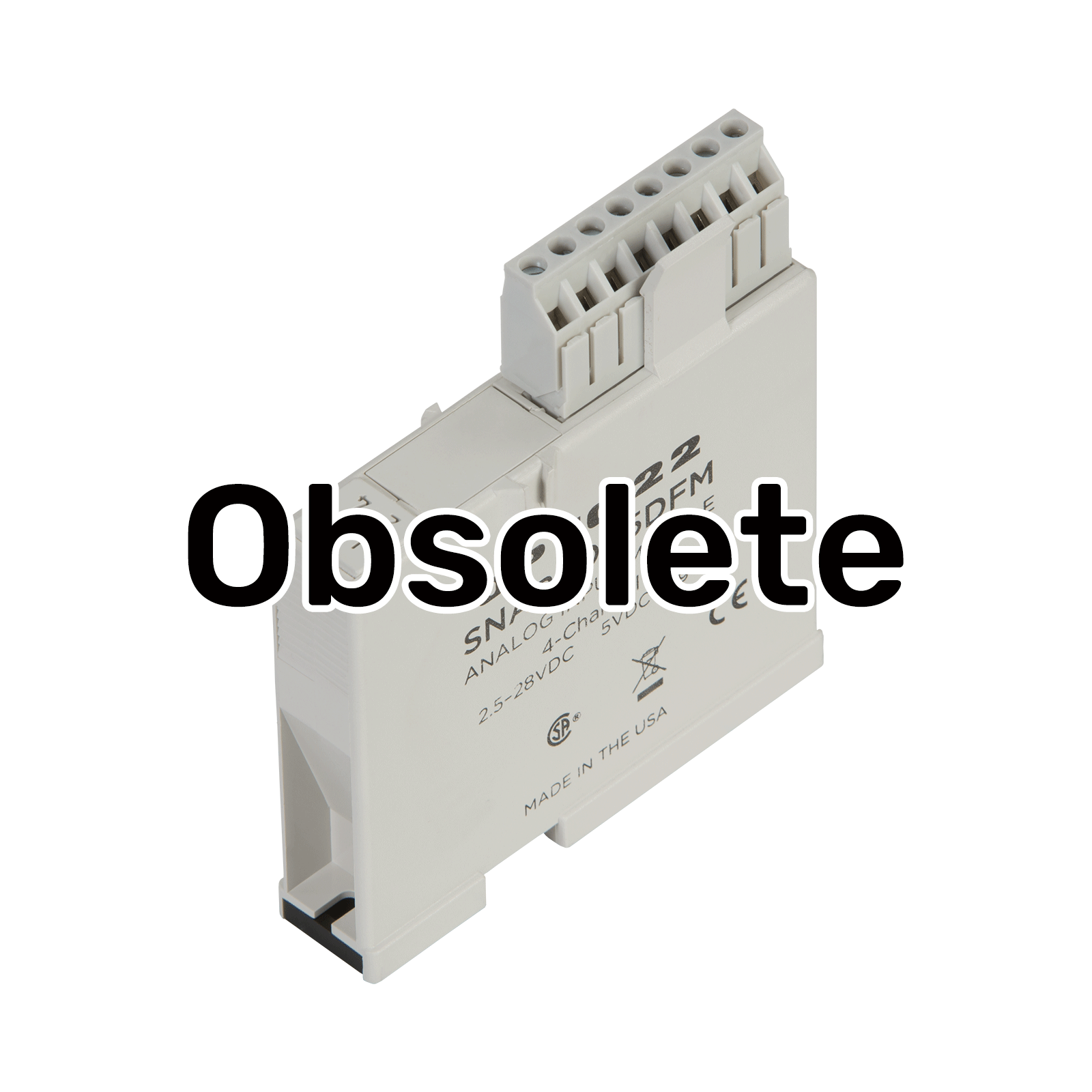

OBSOLETE SNAP 4-Ch 2.5-28 VDC Digital Input Module, Factory Mutual approved

Production Specification

** NOTE: This part is OBSOLETE and no longer available. ***
Please contact Opto 22 Pre-Sales engineers for more information.

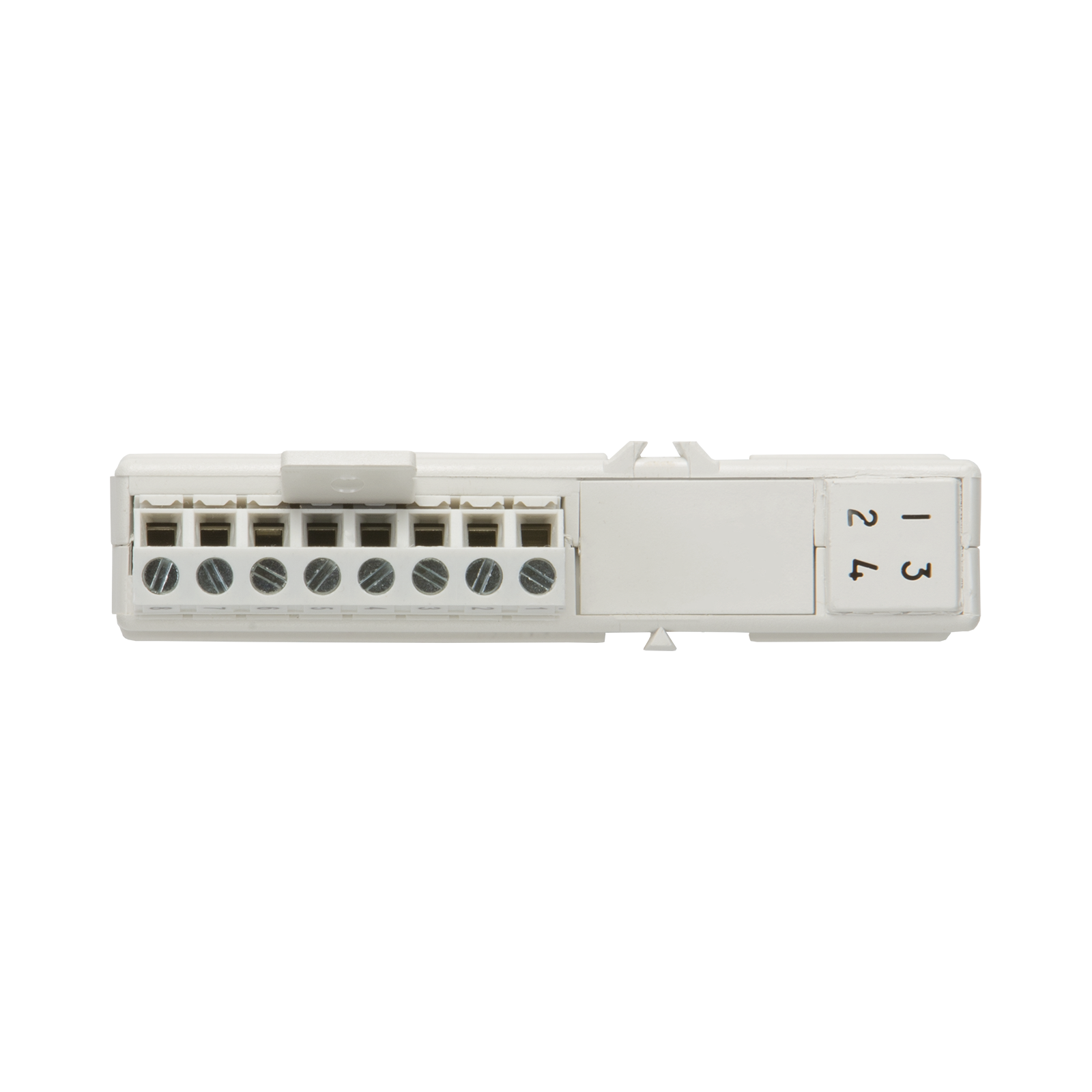

The SNAP-IDC5DFM provides four channels of 2.5-28 VDC digital input. Each channel senses the on/off status for DC voltages from sources such as proximity switches, push buttons, or auxiliary contacts. It has removable top-mounted connectors for easy access to field wiring, as well as channel-specific LEDs for convenient troubleshooting.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.



SNAP-IAC5FM
[Obsolete]

SNAP-IAC5AFM
​[Obsolete]

SNAP-IDC5FM
​[Obsolete]

SNAP-IDC5DFM
​[Obsolete]

Wire size

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

22 to 14 AWG

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

5.22 in-lb (0.59 N-m)

Field Side Ratings (each channel)

Nominal Input Voltage

120 VAC/VDC

240 VAC/ VDC

24 VAC/VDC

5 VDC

Channel-to-channel
isolation

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

300 VAC
(1,500 V transient)

Input Voltage Range

90–140 VAC/VDC

180–280 VAC/VDC

10–32 VAC/VDC

2.5–28 VDC

Turn-on Voltage

90 VAC/VDC

180 VAC/VDC

10 VAC/VDC

2.5 VDC

Turn-off Voltage

35 VAC/VDC

35 VAC/VDC

3 VAC/VDC

1 VDC

Input Resistance

169 K ohms (nominal)

305 K ohms (nominal)

15 K ohms (nominal)

3 K ohms (nominal)

Logic Side Ratings

Logic Output Voltage

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 0.4 mA sourcing

Logic Supply Voltage*

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

5 VDC ± 0.25 VDC

Logic Supply Current

50 mA maximum

50 mA maximum

50 mA maximum

50 mA maximum

Negative True Logic
Output Drive

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

TTL 74 Series=1 UL
TTL 74LS Series=5 UL

Module Ratings

Number of Channels
Per Module

4

4

4

4

Turn-on Time

30 msec

30 msec

5 msec

1 msec

Turn-off Time

30 msec

30 msec

15 msec

1 msec

Optical Isolation
(Field Side to
Logic Side)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

4,000 volts (transient)

Temperature

-20 to 70 °C, operating
-40 to 85 °C, storage

-20 to 70 °C, operating
-40 to 85 °C, storage

-20 to 70 °C, operating
-40 to 85 °C, storage

-20 to 70 °C, operating
-40 to 85 °C, storage

Agency Approvals

CE, RoHS, DFARS; UKCA

CE, RoHS, DFARS; UKCA

CE, RoHS, DFARS; UKCA

CE, ATEX, RoHS, DFARS; UKCA

Warranty

Lifetime

Lifetime

Lifetime

Lifetime

*When used with an I/O processor (brain or on-the-rack controller), the processor requires 5.0 to 5.2 VDC.
