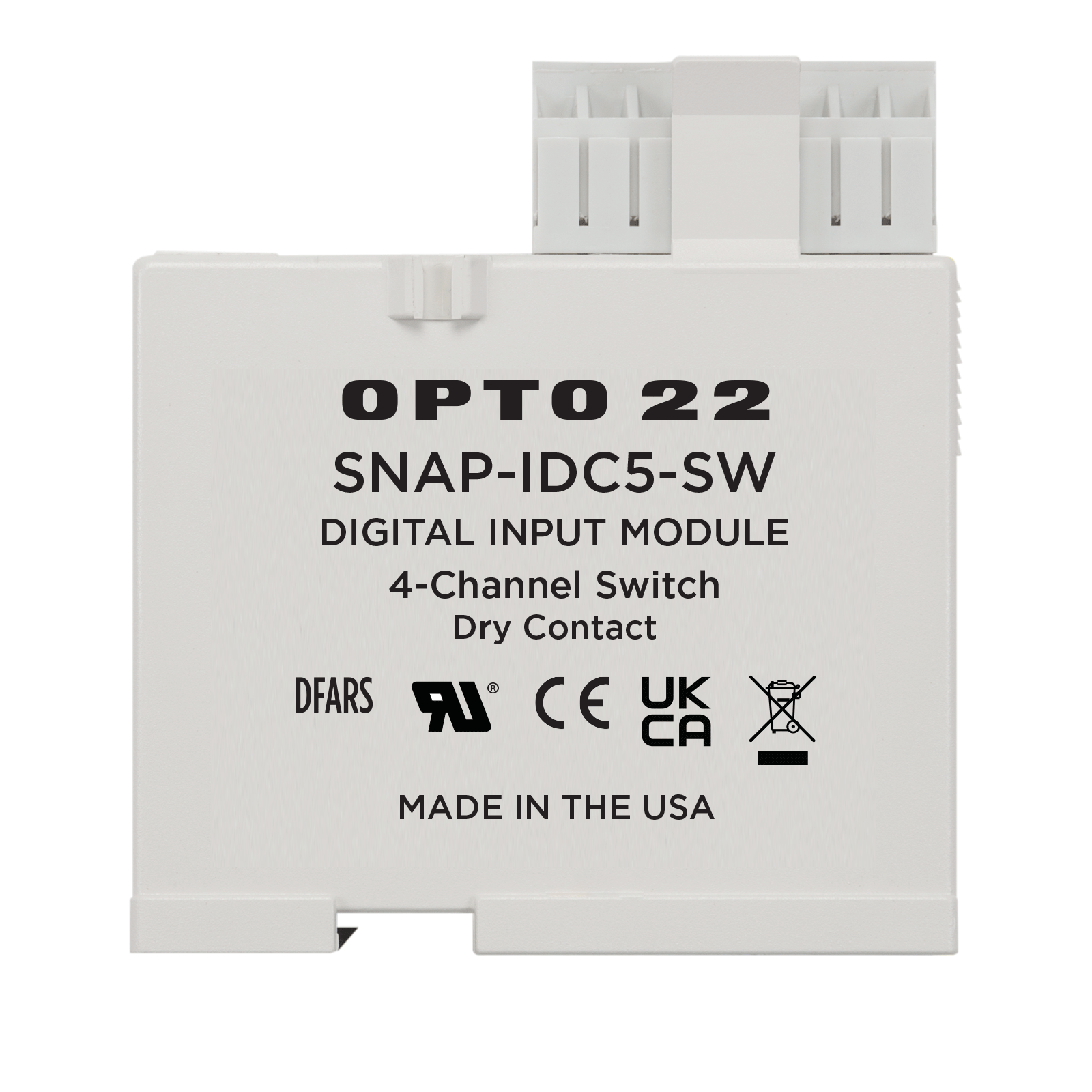

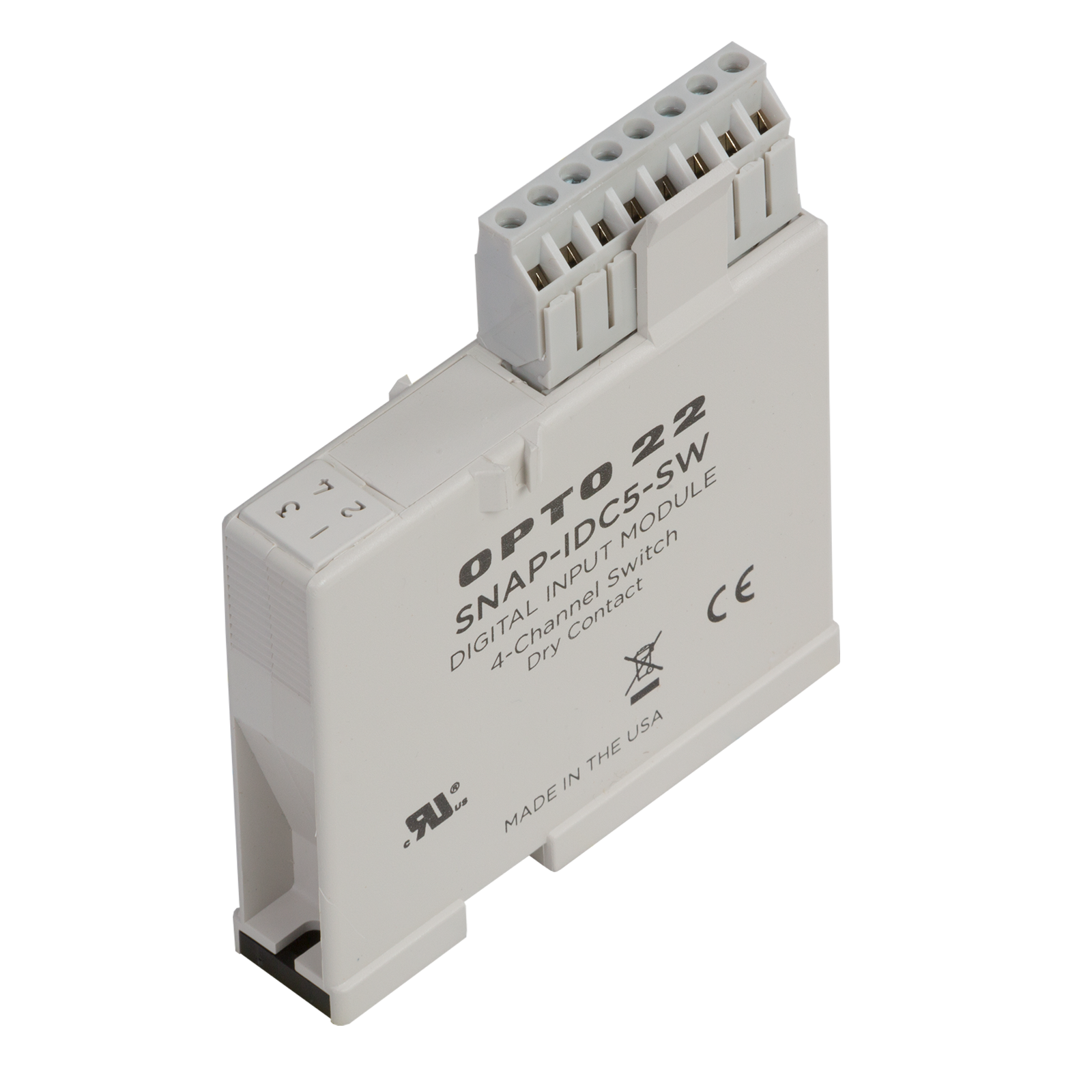

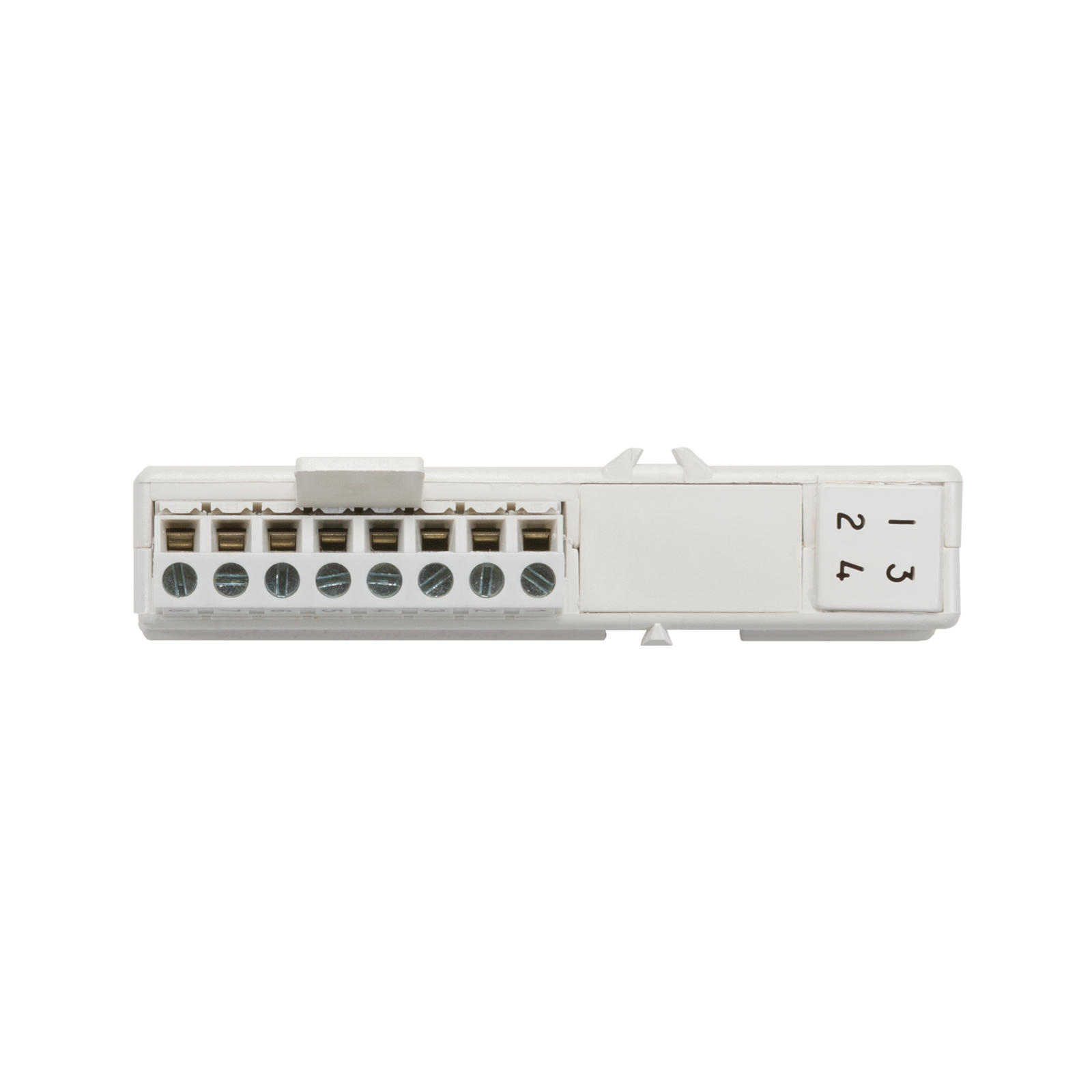

SNAP-IDC5-SW
Hover over image to zoom in

SNAP-IDC5-SW

$97.25 (USA and Canada only)

Availability: Call for Availability
SNAP 4-Ch Contact Status Input Module, Normally Open

Production Specification

The SNAP-IDC5-SW module provides four channels of contact status input. The module supplies 15 volts of power to an external dry contact switch and senses switch closure. Each user-supplied switch is connected with two wires. Because the module includes power for the switch, it is particularly cost-effective when labor costs for wiring external power are high.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

For easier, faster wiring, see SNAP TEX cables and breakout boards.

Build your system in the SNAP I/O Configurator.

Field Side Ratings (each channel)

Open Circuit Voltage (Switch Open)

15 VDC typical

Short Circuit Current (Switch Closed)

7 milliamps nominal

Minimum Off Resistance

>20 K ohms

Maximum Allowable On Resistance (Wire + Con­tact Resistance)

500 ohms

Logic Side Ratings

Logic Output Voltage for
SNAP-IDC5-SW
(normally open)

<0.5 V max. (switch closed; LED on)
@ 2 mA sinking
2.7 V min. (switch open; LED off)
@ 0.4 mA sourcing

Logic Output Voltage for
SNAP-IDC5-SW-NC
(normally closed)

<0.5 V max.(switch closed; LED off)
@ 2 mA sinking
2.7 V min. (switch open; LED on)
@ 0.4 mA sourcing

Maximum Operating Common Mode Voltage (Field Term to Logic Con­nector)

250 V

Power Requirements

5 VDC (±0.25) @ 200 mA

Module Ratings

Number of Channels Per Module

4

Turn-on Time

5 msec

Turn-off Time

25 msec

Channel-to-channel Isola­tion

None

Input-to-output Isolation

1500 V AC/DC

Wire size

22 to 14 AWG

Torque, hold-down screws


Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Temperature

-20 °C to 70 °C, operating
-40 °C to 85 °C, storage

Agency Approvals

UL, CE, RoHS, DFARS; UKCA

Warranty

Lifetime
