SNAP-IAC5
|
SNAP-IAC5A
|

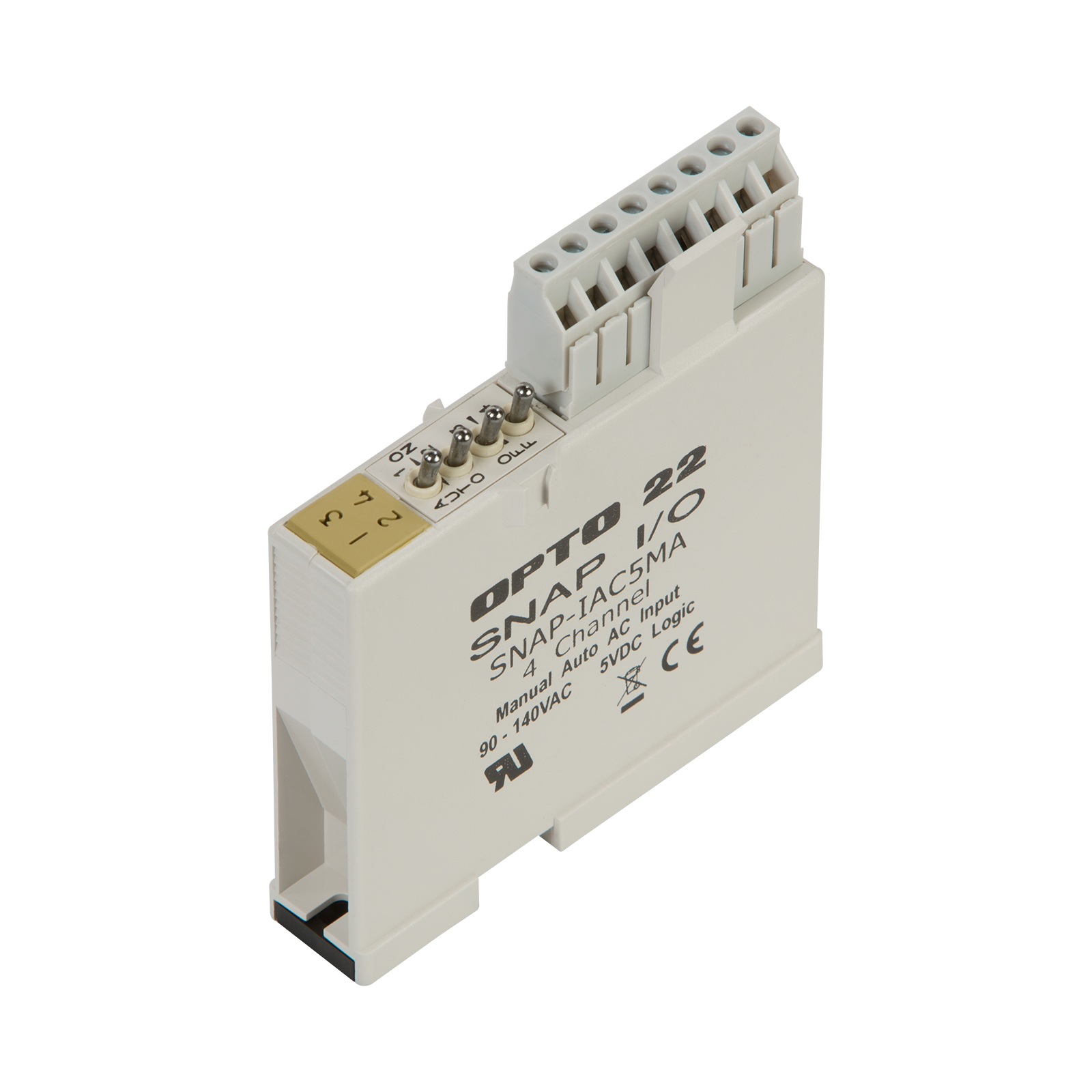

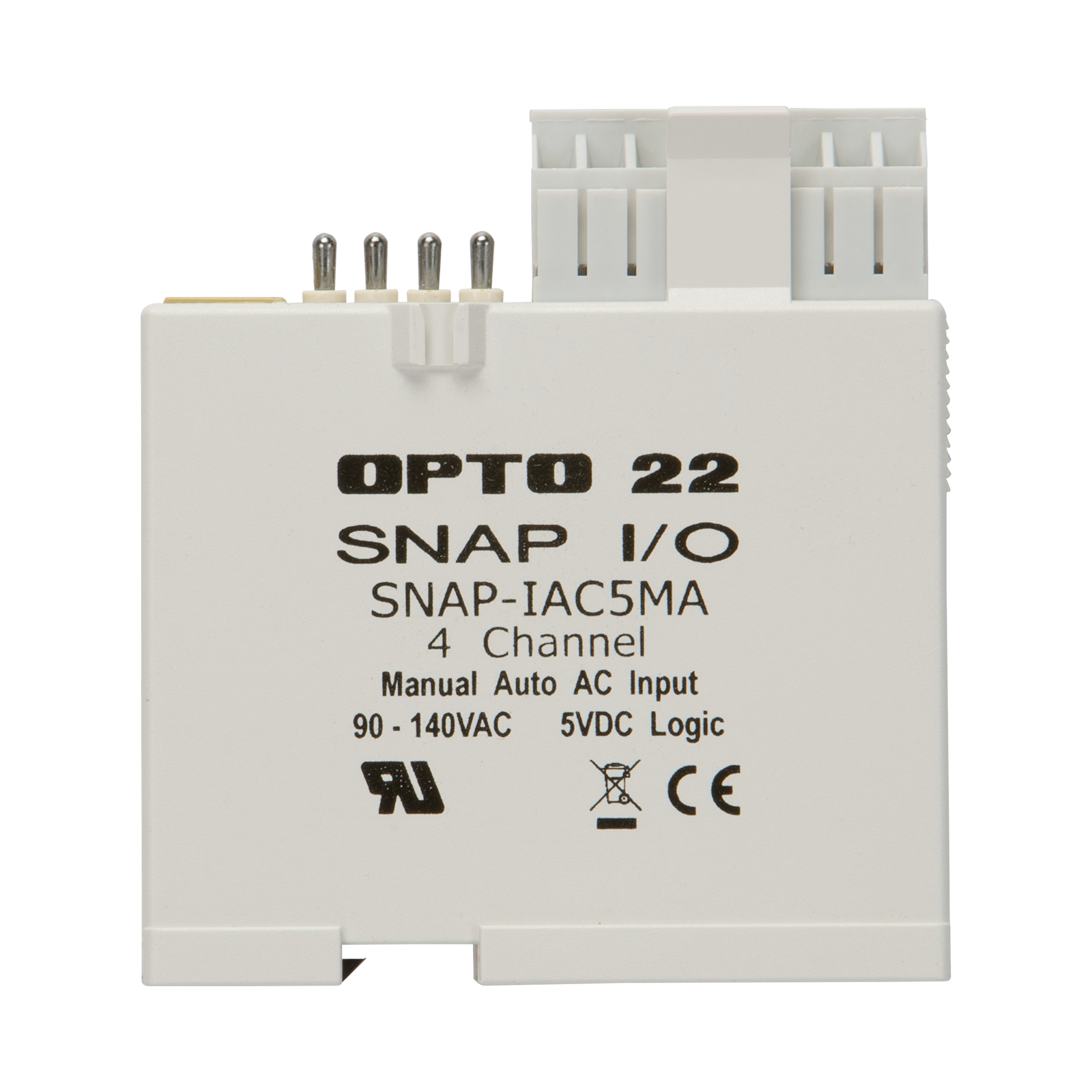

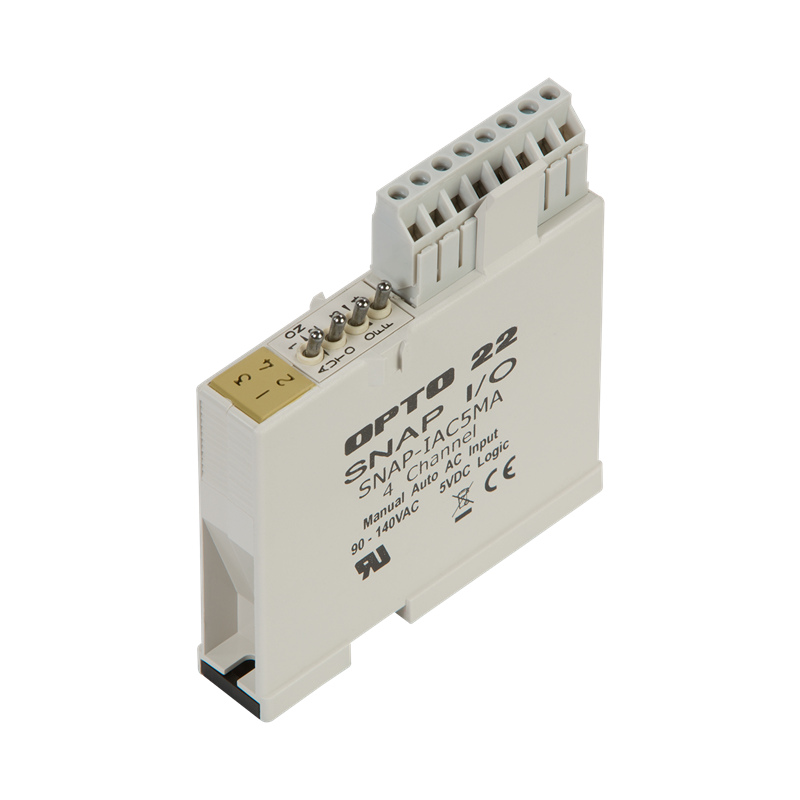

SNAP-IAC5MA
|
|
Key Feature
|
|
|

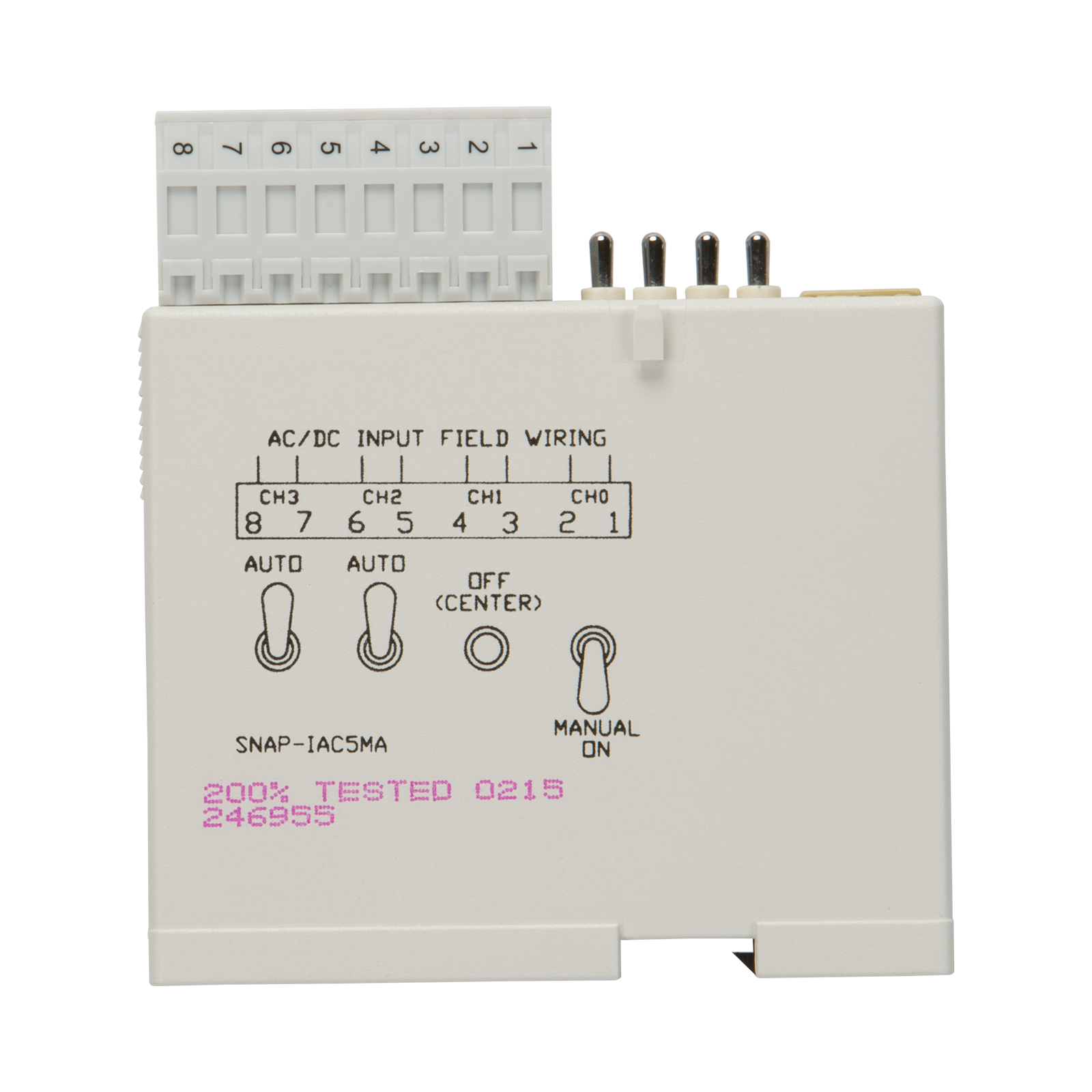

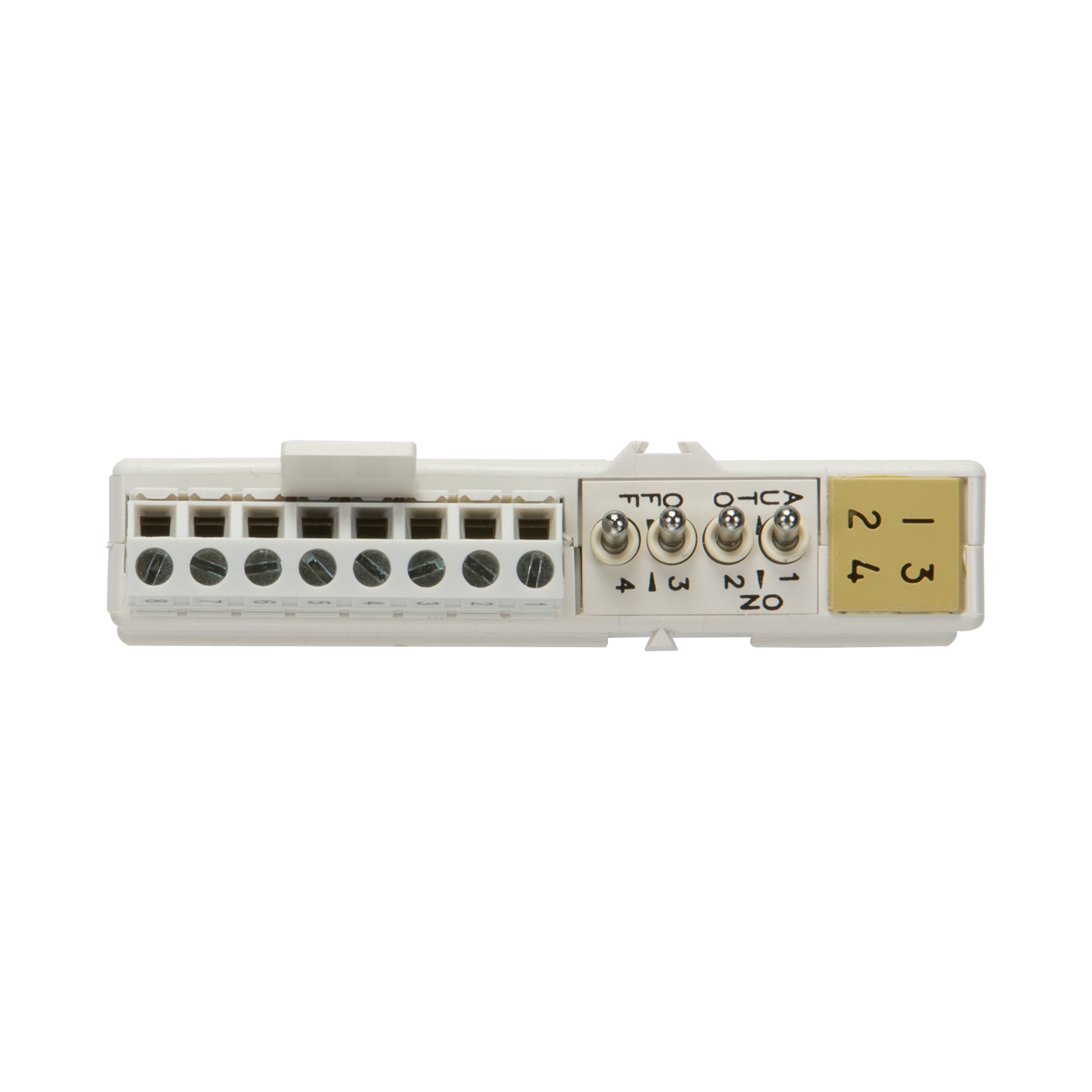

Diagnostic switches
|
|
Wire size
|
22 to 14 AWG
|
22 to 14 AWG
|
22 to 14 AWG
|
|
Torque, hold-down screws
|
Not to exceed 1 in-lb (0.11 N-m)
|
Not to exceed 1 in-lb (0.11 N-m)
|
Not to exceed 1 in-lb (0.11 N-m)
|
|
Torque, connector screws
|
5.22 in-lb (0.59 N-m)
|
5.22 in-lb (0.59 N-m)
|
5.22 in-lb (0.59 N-m)
|
|
Field Side Ratings (each channel)
|
|
Nominal Input Voltage
|
120 VAC/VDC
|
240 VAC/VDC
|
120 VAC/VDC
|
|
Channel-to-channel isolation
|
300 VAC
(1,500 V transient)
|
300 VAC
(1,500 V transient)
|
300 VAC
(1,500 V transient)
|
|
Input Voltage Range
|
90–140 VAC/VDC
|
180–280 VAC/VDC
|
90–140 VAC/VDC
|
|
Turn-on Voltage
|
90 VAC/VDC
|
180 VAC/VDC
|
90 VAC/VDC
|
|
Turn-off Voltage
|
35 VAC/VDC
|
35 VAC/VDC
|
35 VAC/VDC
|
|
Input Resistance
|
169 K ohms (nominal)
|
305 K ohms (nominal)
|
169 K ohms (nominal)
|
|
Logic Side Ratings
|
|
Logic Output Voltage
|
<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing
|
<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing
|
<.5 V max. (on)
@ 2 mA sinking
2.7 V min. (off)
@ 400 mA sourcing
|
|
Logic Supply Voltage*
|
5 VDC ± 0.25 VDC
|
5 VDC ± 0.25 VDC
|
5 VDC ± 0.25 VDC
|
|
Logic Supply Current
|
50 mA maximum
|
50 mA maximum
|
50 mA maximum
|
|
Negative True Logic
Output Drive
|
TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL
|
TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL
|
TTL 74 Series = 1 UL
TTL 74LS Series = 5 UL
|
|
Module Ratings
|
|
Number of Channels Per Module
|
4
|
4
|
4
|
|
Turn-on Time
|
30 msec
|
30 msec
|
30 msec
|
|
Turn-off Time
|
30 msec
|
30 msec
|
30 msec
|
|
Optical Isolation, Field to Logic
|
4,000 volts (transient)
|
4,000 volts (transient)
|
4,000 volts (transient)
|
|
Temperature
|
-20 °C to 70 °C, operating
-40 °C to 85 °C, storage
|
-20 °C to 70 °C, operating
-40 °C to 85 °C, storage
|
-20 °C to 70 °C, operating
-40 °C to 85 °C, storage
|
|
Agency Approvals
|
UL, CE, CSA, RoHS, DFARS; UKCA
|
UL, CE, CSA, RoHS, DFARS; UKCA
|
UL, CE, RoHS, DFARS
|
|
Warranty
|
Lifetime
|
Lifetime
|
30 months
|
|
* When used with an I/O processor (brain or on-the-rack controller), the processor requires 5.0 to 5.2 VDC.
|
