$278.00 (USA and Canada only)
SNAP I/O Racks
Part Number
Description1
Power2 Requirements
I/O Processor3 Compatibility
Replacement Fuse
Operating Temperature
Relative Humidity
SNAP-B4M6
4-module mixed
5.0 to 5.2 VDC @ 1.8 Amps max
SNAP-UP1-ADS
SNAP-B3000-ENET
SNAP-ENET-RTC
B3000
B3000-HA
SNAP-B4
SNAP-B6
SNAP-BRS
SNAP-BRS-HA
SNAP-B3000- MODBUS
SNAP-FUSE4A
or Bel5 5HF4
0 to 70 °C
95%, non-condensing
SNAP-B8M6
8-module mixed
5.0 to 5.2 VDC @ 2.6 Amps max
SNAP-B8MC6
8-module mixed, terminal block
SNAP-B8MC-P6 [Obsolete]
8-module mixed, pluggable terminal block
SNAP-B12M6
12-module mixed4
5.0 to 5.2 VDC @ 3.4 Amps max
SNAP-B12MC6
12-module mixed4, terminal block
SNAP-B12MC-P6 [Obsolete]
12-module mixed4, pluggable terminal block
SNAP-B16M6
16-module mixed4
5.0 to 5.2 VDC @ 4.2 Amps max
SNAP-B16MC
16-module mixed4, terminal block
SNAP-B16MC-P6 [Obsolete]
16-module mixed4, pluggable terminal block
SNAP-D64RS7 [Obsolete]
16-module digital only (limited digital functions)
SNAP-UP1-D64 SNAP-ENET-D64 SNAP-PDPRS64
SNAP-FUSE1A or Buss5 GDC1A
1 “Mixed” means the rack can hold analog, digital, and serial modules. Most Ethernet-based I/O processors handle all these types of modules; other processors do not. See the processor’s data sheet for details.
2 Power requirements shown are for a rack, a processor, and a full load of 2-channel analog modules (for the SNAP-D64RS, a full load of 4-channel digital modules). Power requirements for other SNAP modules are higher. See module data sheets.
3 “I/O Processor” means a SNAP brain or on-the-rack controller.
4 Four-channel SNAP digital modules can be used in positions 0–7 only.
5 Manufacturer’s part number (not available through Opto 22). 6 Agency Approvals include: UL, CE, RoHS, DFARS; UKCA 7 Agency Approvals include: CE, RoHS, DFARS; UKCA

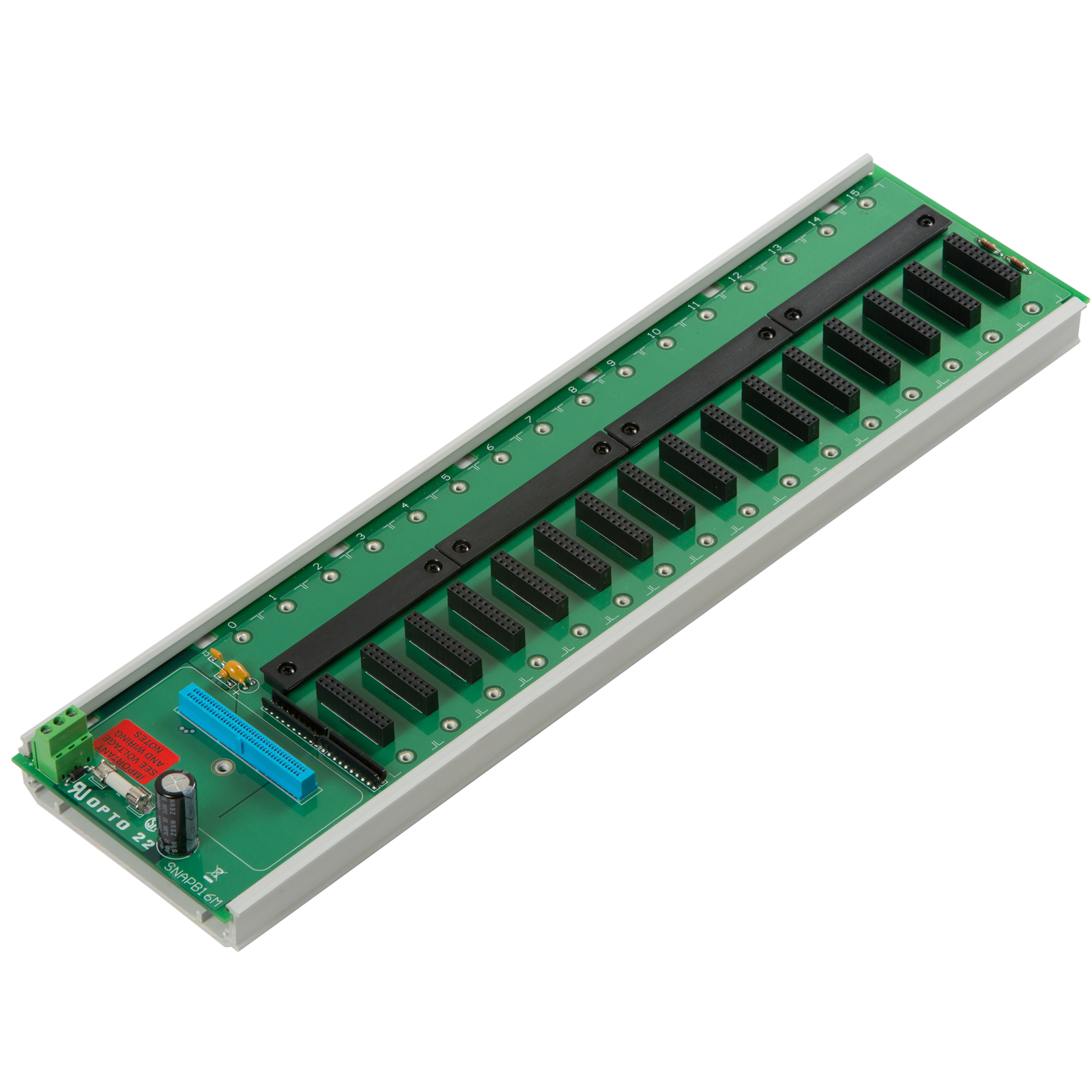

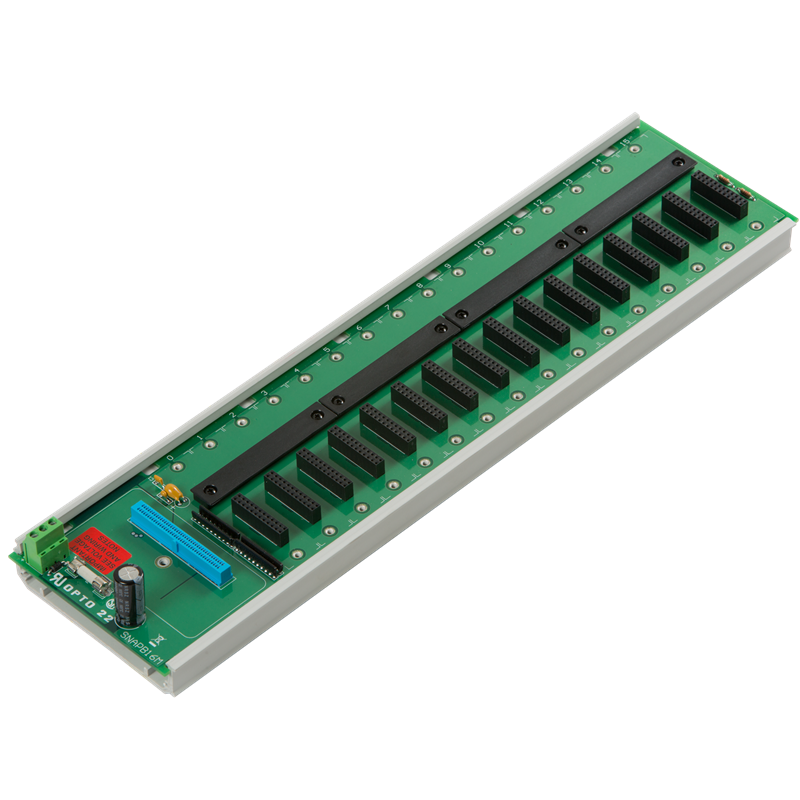

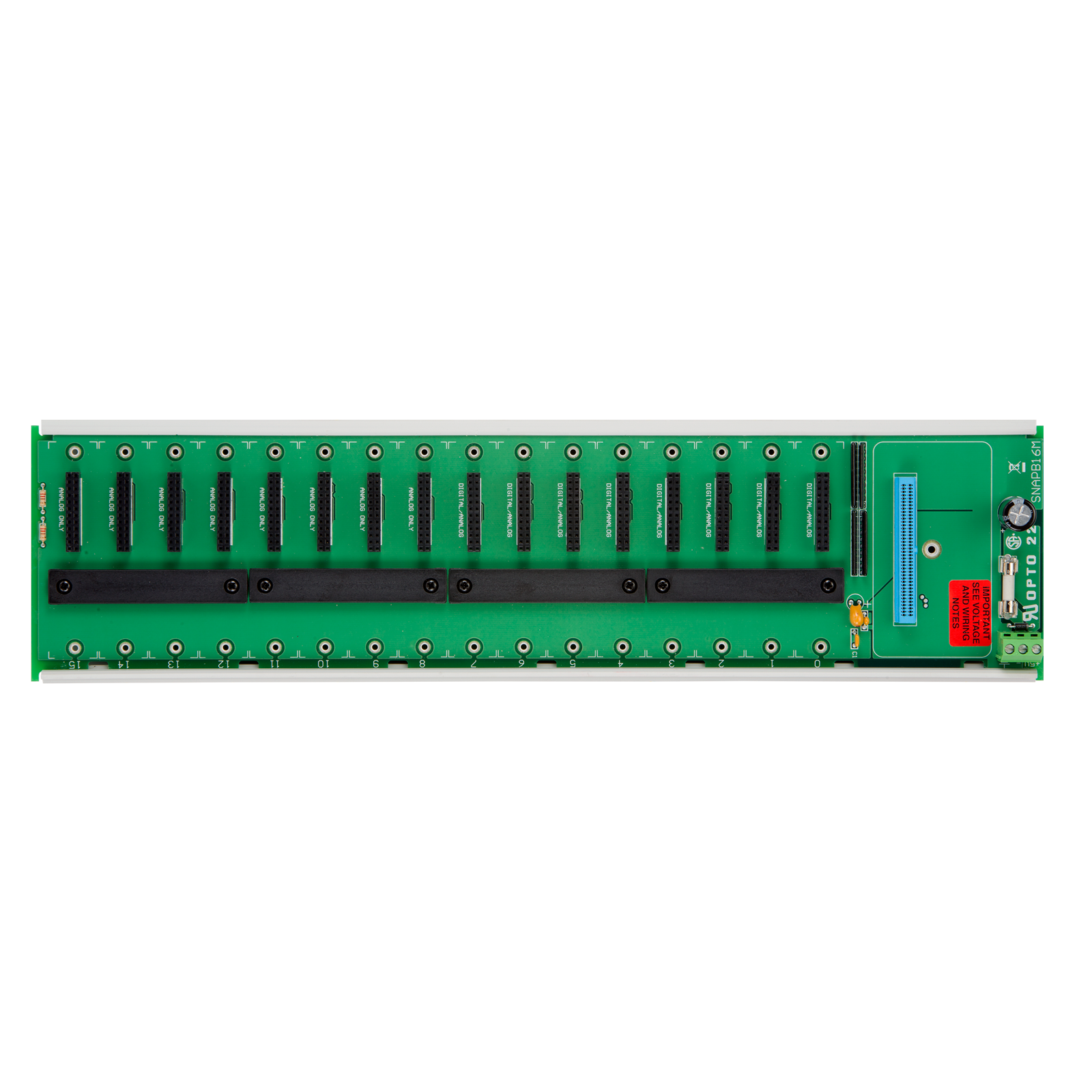

SNAP B-series mounting racks are designed to hold an intelligent SNAP I/O processor (either a SNAP brain or an on-the-rack controller) and several I/O modules. This data sheet includes detailed information and specifications for SNAP B-series racks as well as the digital-only SNAP-D64RS rack. Rack fuses and DIN-rail adapters are also included in the data sheet. B-series racks are used with serial and some Ethernet I/O processors.
This legacy document describes how to install a legacy rack extrusion and how to install or remove a circuit board. It includes a list of SNAP rack accessories and applies to these parts:
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.
This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.
This note describes how to install the SNAP-RCK-M2B rack adapter, which allows a SNAP PAC rack-mounted controller or brain to be used on a legacy B-series SNAP rack. This note is applicable to these parts:
This document is a statement of compliance with the EU Directive 2015/863/EU, Restriction of Hazardous Substances (RoHS 3). This document lists Opto 22 products that comply with the substance restrictions of the RoHS 3 directive.
This technical note gives an overview of power supplies for use with many Opto 22 control systems and recommends types of power supplies for Opto 22 mounting racks. This note applies to SNAP, mistic, Optomux, Pamux, and direct I/O. It does NOT apply to groov EPIC systems, which have their own integrated power supplies.
This document lists all Opto 22 part numbers that have the Underwriters Laboratory (UL) approval.
This document is the Manufacturer's Declaration for the listed products as mentioned in the attachment - to which this confirmation refers - that they are in accordance with the mentioned European, international and/or national standards and regulations.
This file contains AutoCAD drawings of Opto 22 products dating from 1988 to 2003. These are the same drawings that have been available on our BBS. Included is an Excel file describing the file names and relevant Opto 22 part numbers.
This CAD file contains a drawing of the base of the SNAP-B16M mounting rack, which mounts SNAP I/O modules with a legacy brain or rack-mounted controller.
NOTE: For new development, we recommend SNAP PAC racks, brains, and controllers instead.
Verifying the voltage level at the I/O rack is very important for equipment safety and point value accuracy. This is the proper technique for reading the voltage level at the rack.
