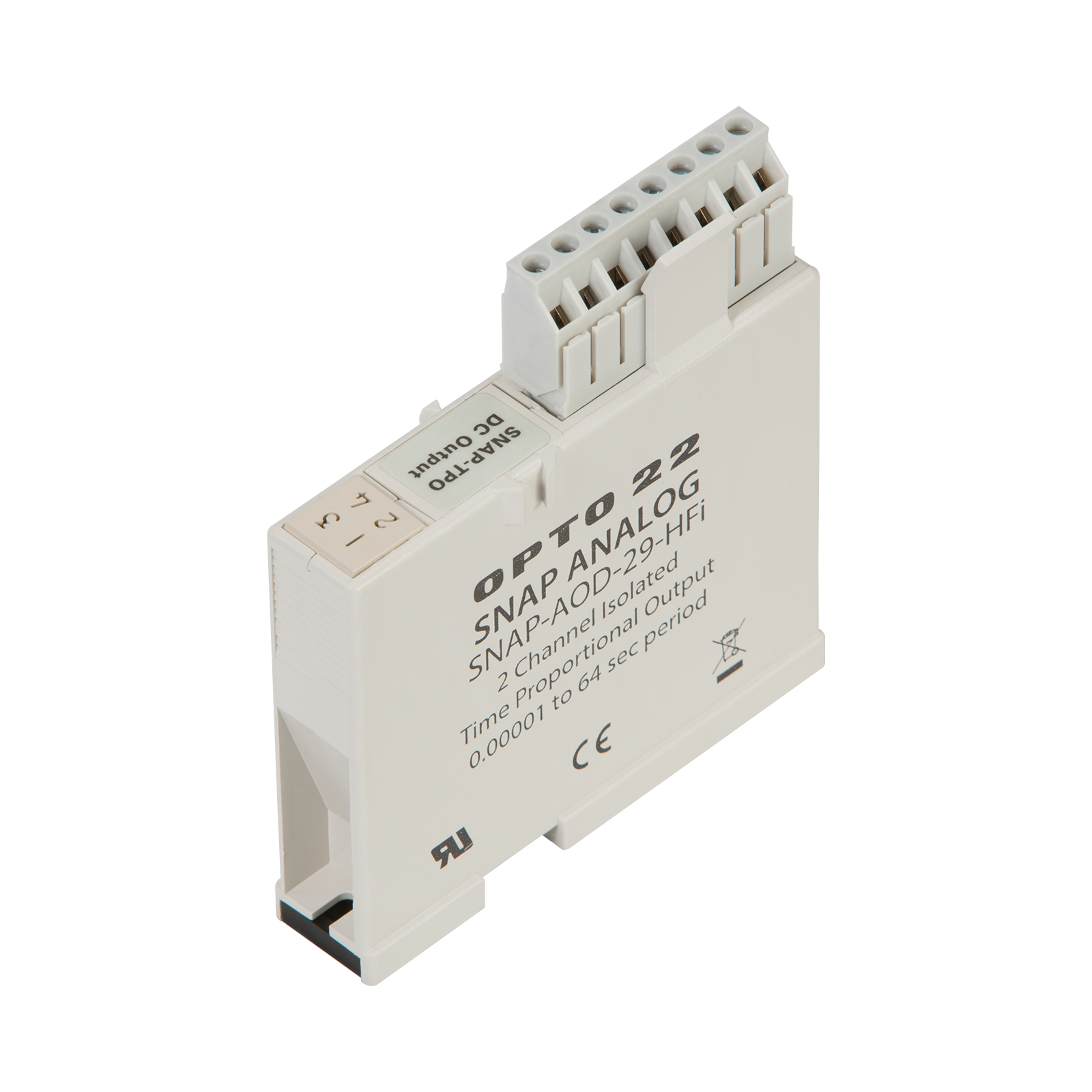

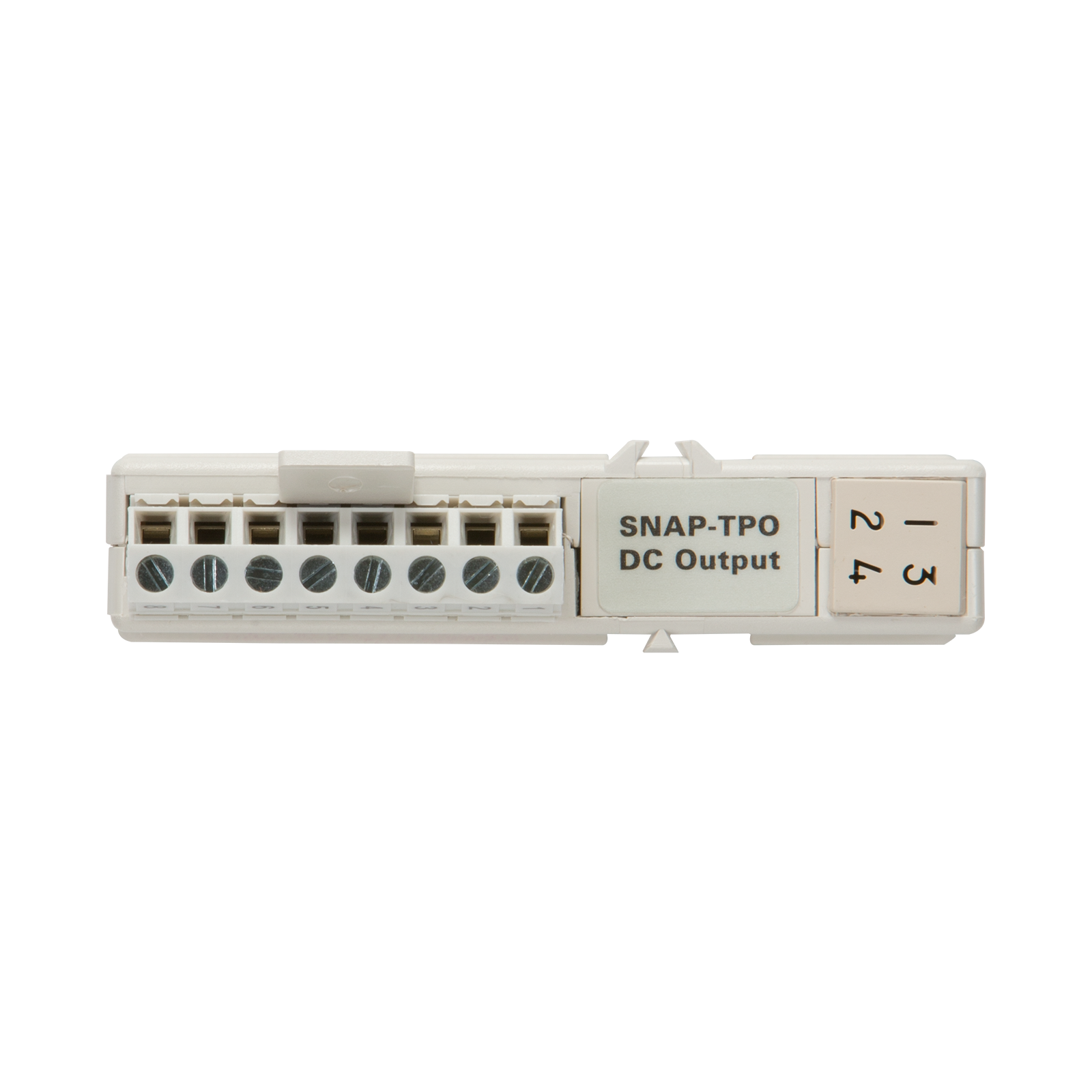

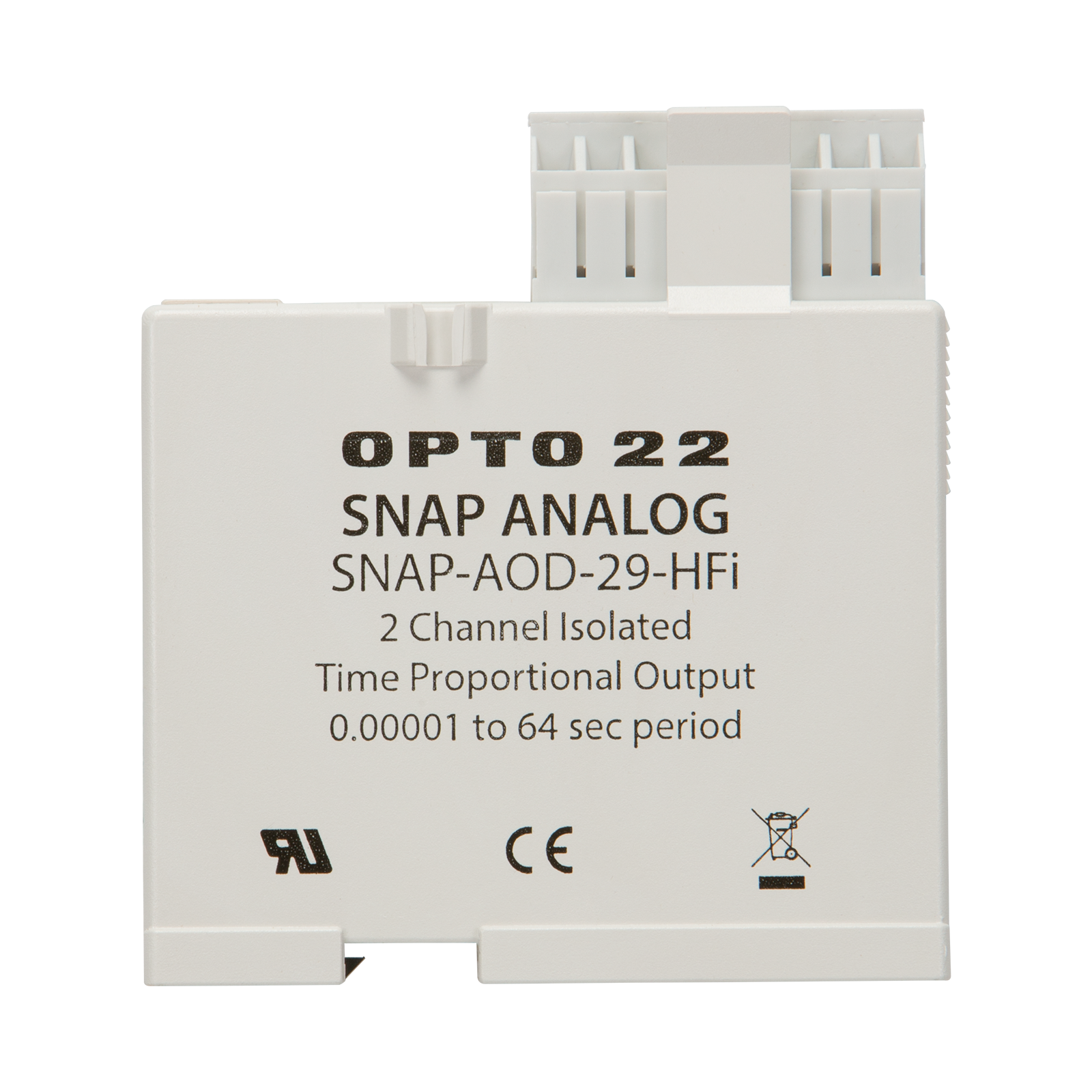

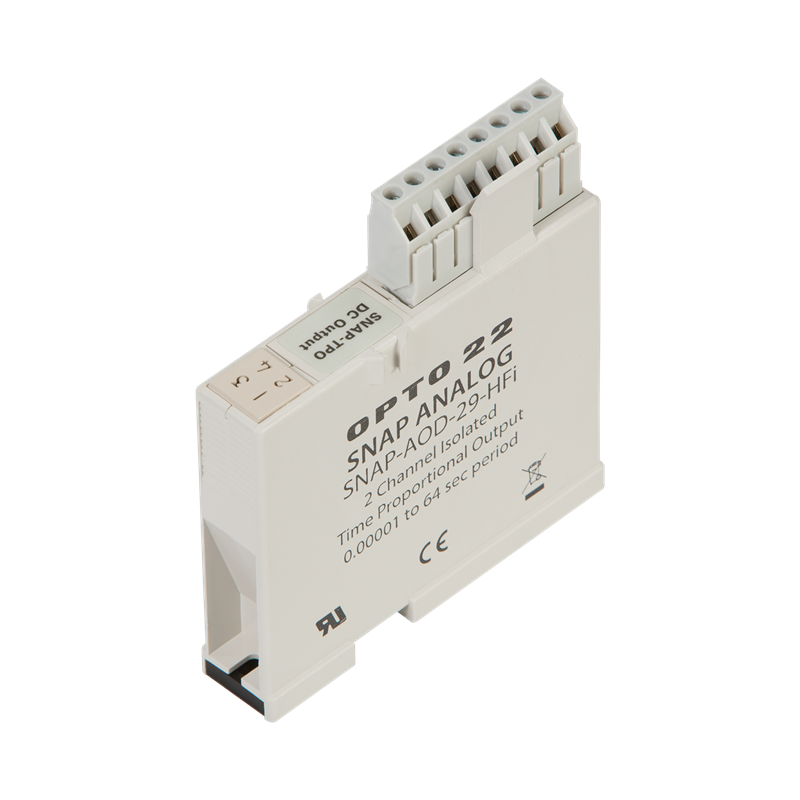

SNAP-AOD-29-HFi
Hover over image to zoom in

SNAP-AOD-29-HFi

$347.00 (USA and Canada only)

Availability: In stock
SNAP Isolated 2-Ch Analog TPO or PWM Output, 2.5 to 24 VDC, 0 to 100 kHz

Production Specification

The SNAP-AOD-29-HFi is a high-speed time proportional output (TPO) and pulse width modulation (PWM) module that converts an analog value to a digital on/off output. Each channel can switch 100 mA of load current ranging from 2.5 VDC to 24 VDC supplied externally, over a period range of 0.00001 seconds to 64.25 seconds (0-100 kHz).

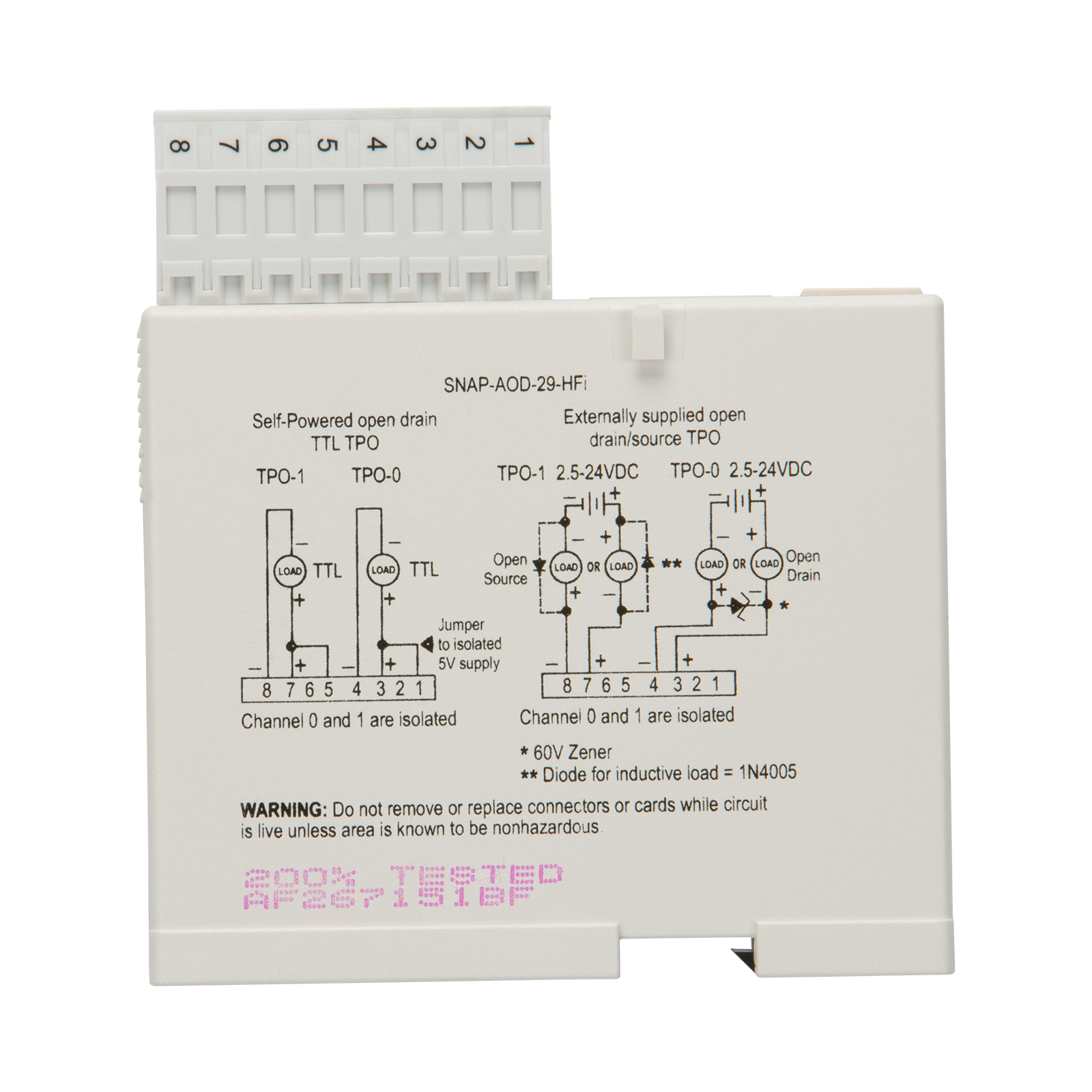

The two channels are optically isolated from each other. Five volts through a 200 Ohm pull-up resistor are provided internally for each channel for use with TTL loads. This feature means you don’t have to provide the pull-up voltage supply required for each output.

The SNAP-AOD-29-HFi mounts on ​a SNAP PAC rack and works with all SNAP PAC rack-mounted controllers and brains with SNAP PAC firmware version 9.3c or higher.

If your application doesn't require high-speed output, see the SNAP-AOD-29.

NOTE: If you are using a SNAP PAC IO4AB system to communicate with an Allen-Bradley PLC, you don't need this module. Instead, use the built-in TPO functionality available on all SNAP-PAC brains that support IO4AB.

Switched Output

2.5 to 24 VDC at 100 mA supplied externally

Maximum Survivable Switch Voltage

60 VDC

Peak Current

1.0 A (t < 10 milliseconds)

Period Range

0.00001 sec to 64.25 sec

Percent Range

0-100%

Period Resolution

20.8 nanoseconds

Percent Resolution

0.024% (12-bit)

Period Accuracy

+- 0.005% of period

Pull-up Voltage

4.5 to 5.0 VDC

Pull-up Resistor

200 Ohm

Minimum Output Pulse Width

1 microsecond

Maximum Operating Com­mon Mode Voltage

250 V Continuous

Isolation: Channel to Channel

250V Continuous
1500V Transient

Power Consumption

1.5 W (300 mA @ 5 V)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

CE, RoHS, DFARS; UKCA

Warranty

Lifetime
