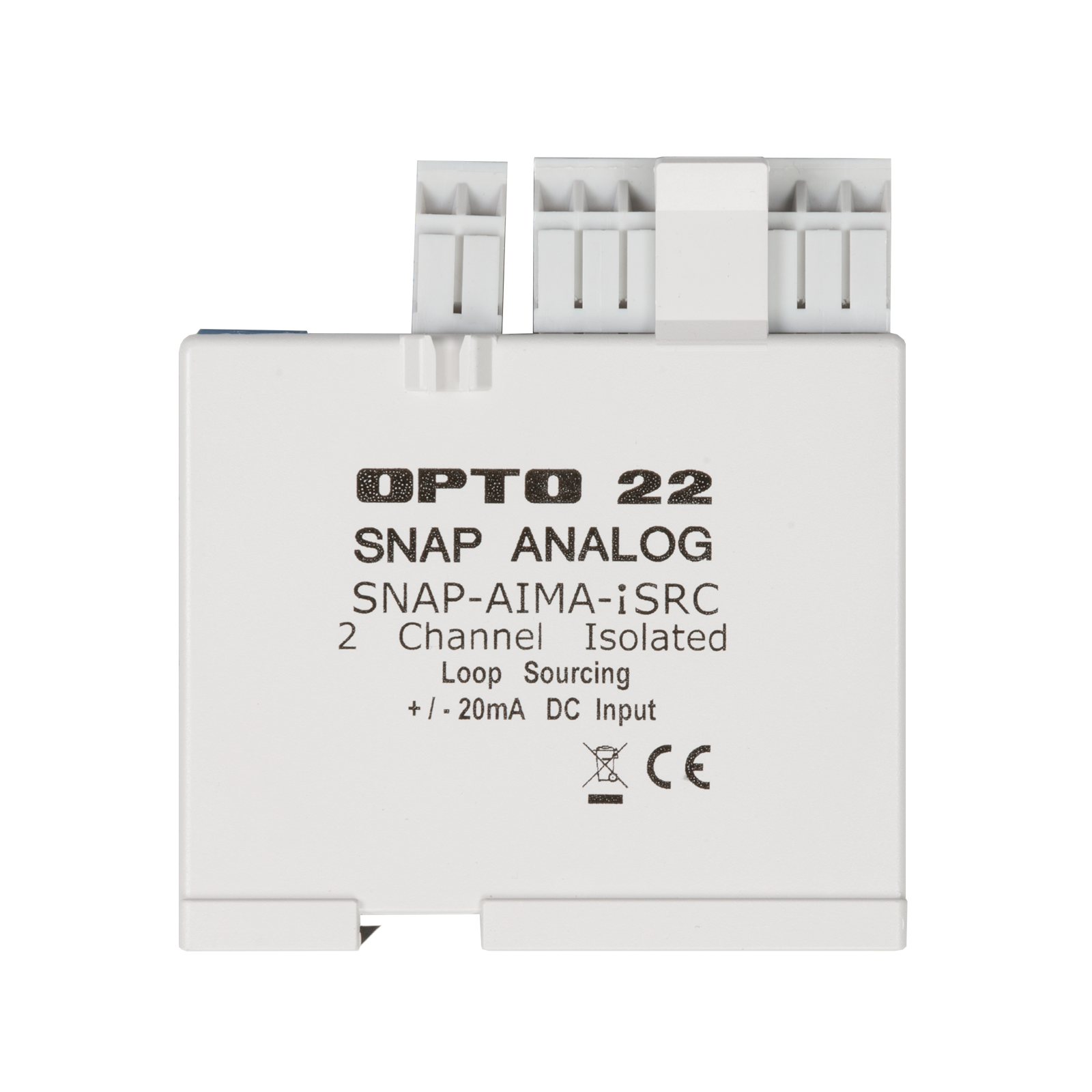

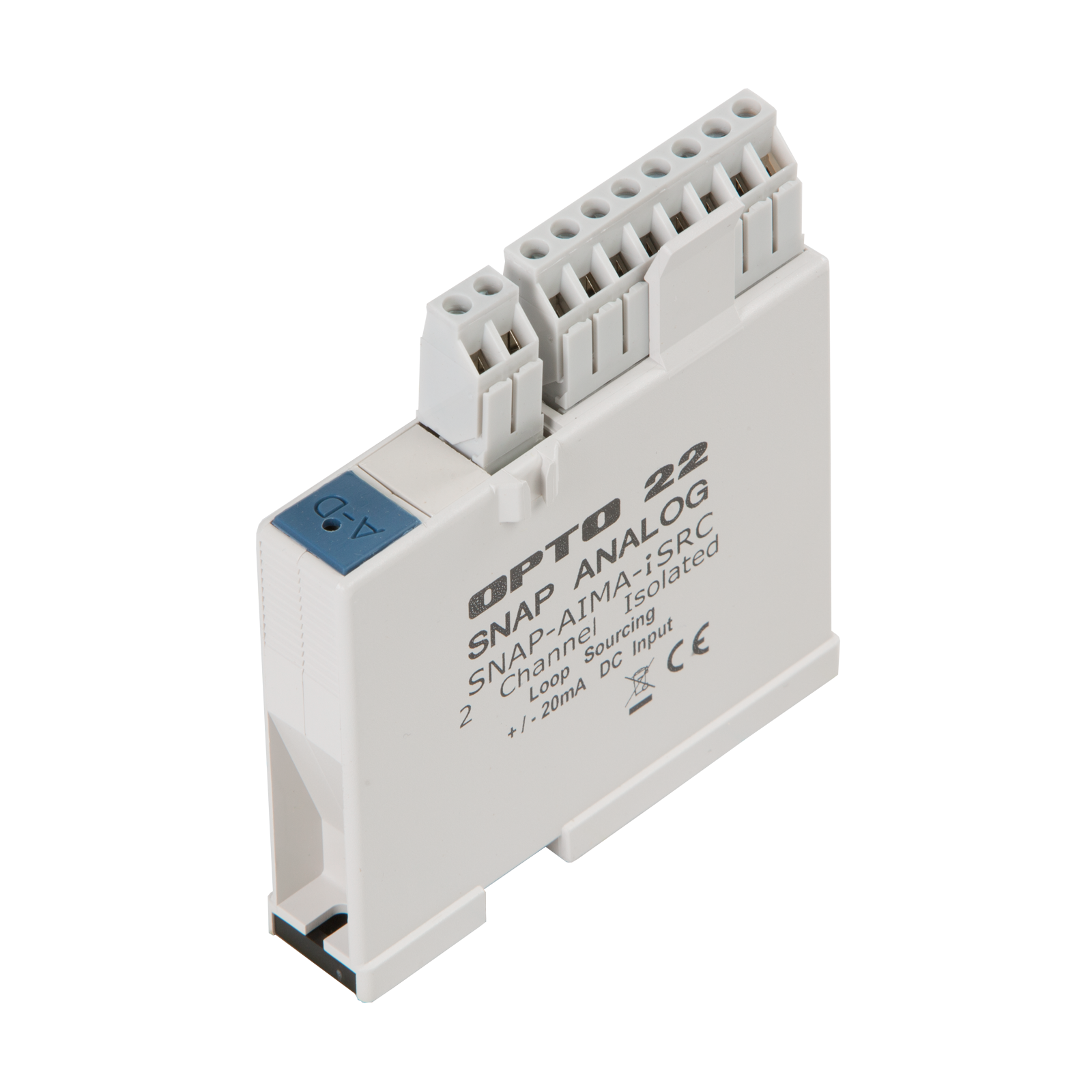

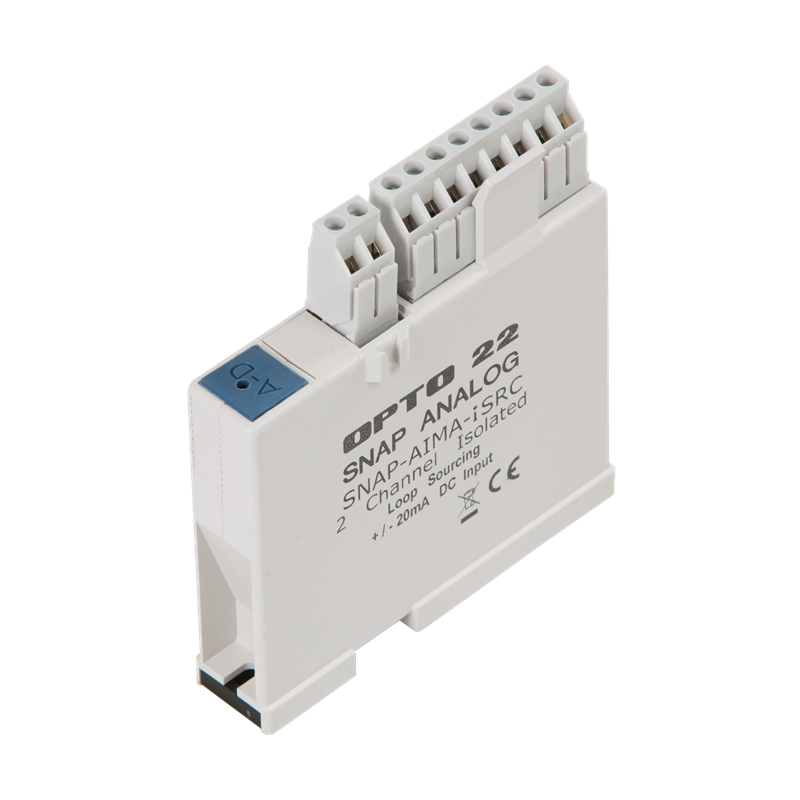

SNAP 2-Ch Isolated -20 to +20 mA Analog Current Input Module with Loop Sourcing

Production Specification

The SNAP-AIMA-iSRC provides two isolated channels of -20 mA to +20 mA analog current and also includes built-in loop sourcing capability. With the connection of a single 24 V power supply, the module sources 24 V for two 4–20 mA loops. The loops are internally connected to the individual inputs. The two channels and their loop sources are isolated from each other.

Part of the SNAP PAC System, the module mounts on a SNAP PAC rack with a SNAP PAC brain or rack-mounted controller. Analog, digital, and serial I/O modules can all be on the same rack. Such an I/O unit is also well suited for PC-based control or for use as intelligent remote I/O for an Allen-Bradley Logix PLC system, such as ControlLogix, MicroLogix, or CompactLogix.

Other options:
  • If you do not need loop sourcing, see SNAP-AIMA-i.

  • If you do not need channel-to-channel isolation, see SNAP-AIMA.

Build your system in the SNAP I/O Configurator.

Input Range

0 to +20 mA with loop sourcing
-20 mA to +20 mA

Maximum Over Range

± 10%
(= ± 27500 counts)

Resolution

0.8 µA

Input Response Time
(% of span/delta I/delta time)

99.9 %/19.9 mA/10 ms

Data Freshness

11 ms

DC Common Mode Rejec­tion

>-120 dB

AC Common Mode Rejec­tion

>-120 dB @ 60 Hz

Maximum Survivable Input

36 mA or 9 VDC

Maximum Operating
Common Mode Voltage

250 V

Accuracy

0.05% (10 µA)

DRIFT: Gain Temperature
Coefficient

30 PPM/ °C

DRIFT: Offset Temperature
Coefficient

15 PPM/ °C

Isolation: Optical

4000 V

Isolation: Transformer

1500 V

Isolation: Channel to Chan­nel

250 V continuous
(1500 V transient)

Power Requirements

5 VDC (±0.15) @ 200 mA

Power Requirements -
Loop Power (Input)

From separate field connector:
24 VDC nominal (70 mA max @ 24 V input, both loops @ 20 mA),
30 VDC maximum

Loop Power (Output)

24 VDC (± 1.5 V) @ 20 mA
Open loop: 30 V maximum
Shorted loop: 24 mA nominal

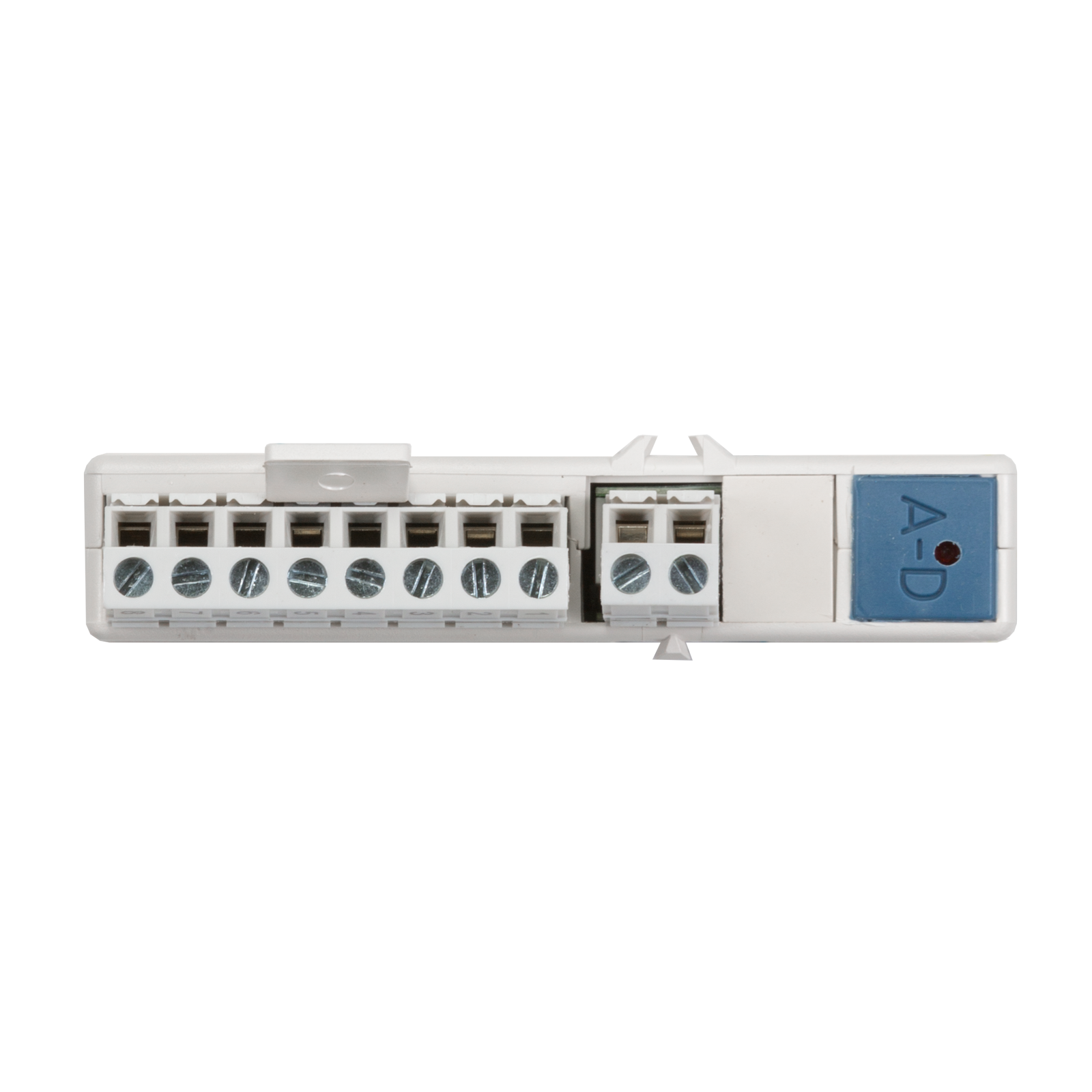

LED on top of module

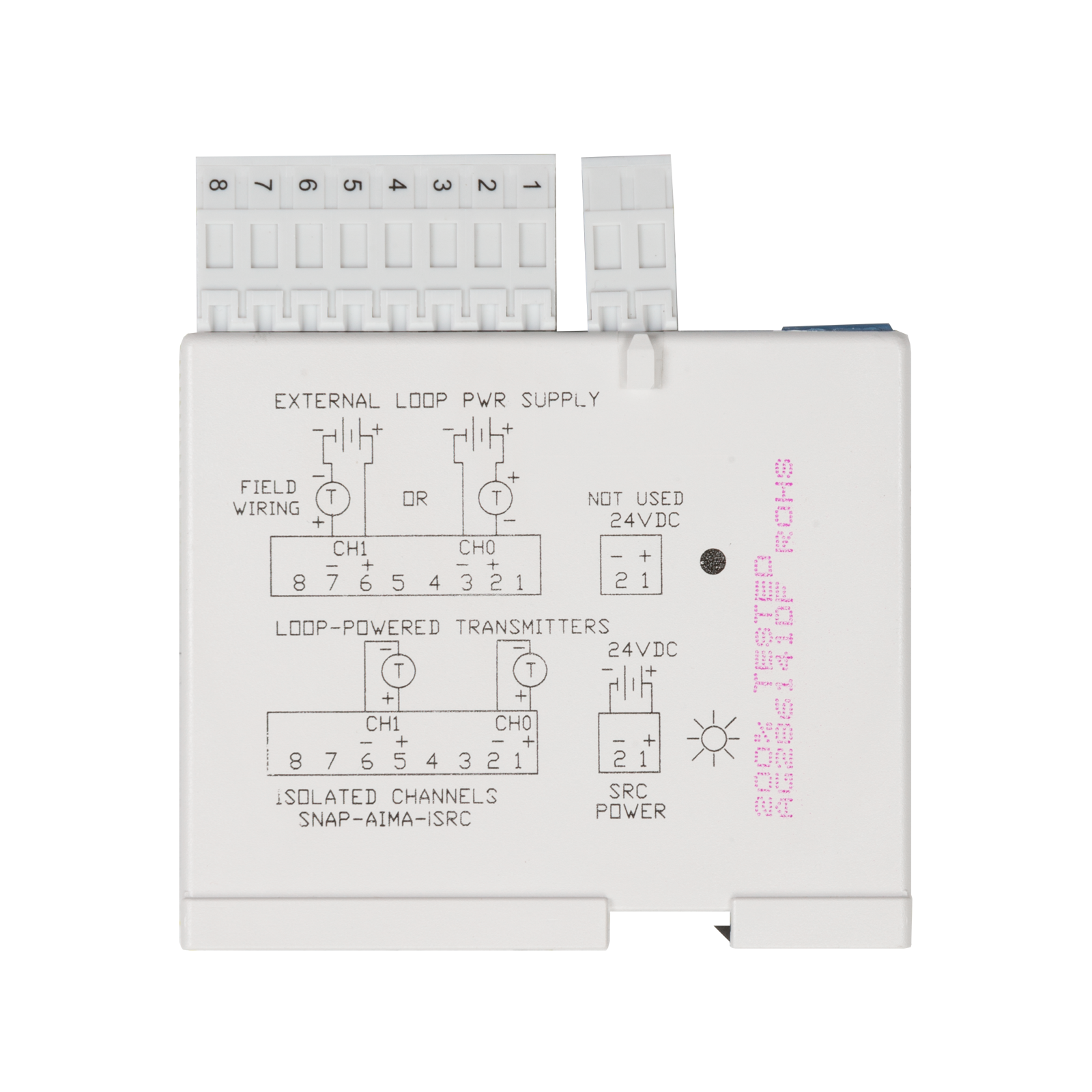

Indicates that there is power to the 24v source supply 2-pin connector

Input Resistance

200 ohms (each channel)

Ambient Temperature:
 Operating
 Storage



-20 °C to 70 °C
-40 °C to 85 °C

Humidity

5-95%, non-condensing

Torque, hold-down screws

Not to exceed 1 in-lb (0.11 N-m)

Torque, connector screws

5.22 in-lb (0.59 N-m)

Wire size range

22 to 14 AWG

Agency Approvals

CE, RoHS, DFARS; UKCA

Warranty

Lifetime
