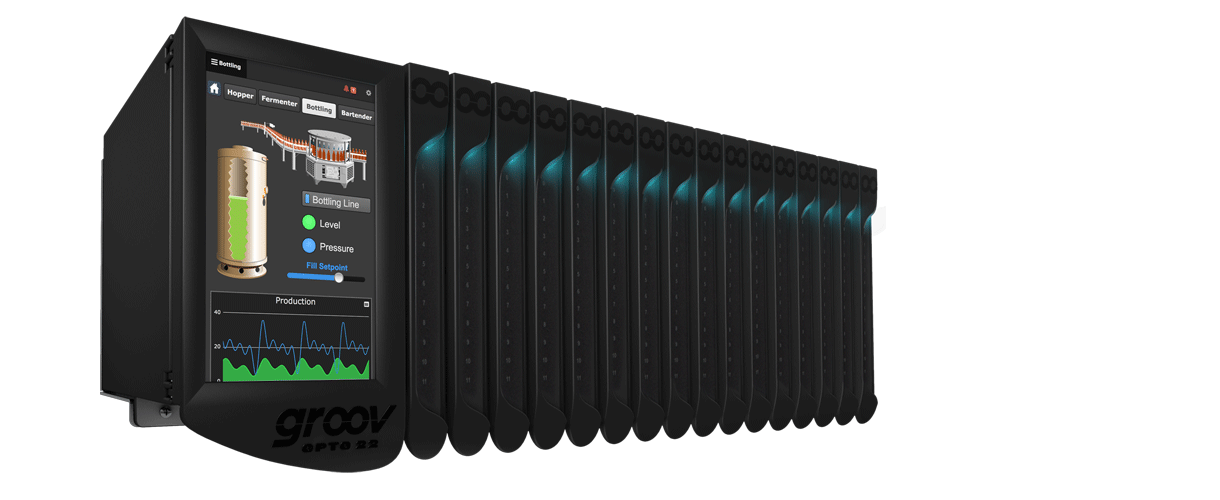

Edge Programmable Industrial Controller and I/O



The groov EPIC system provides reliable real-time control where and when you need it.




Controller

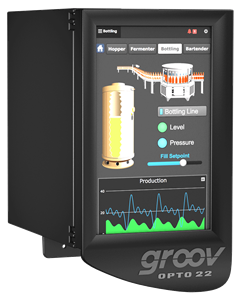

Opto 22 EPIC controller with color touchscreen
  • Integrated high-resolution color touchscreen for on-board I/O and network configuration, commissioning, and troubleshooting; no PC required
  • Real-time, open-source Linux® OS running on an industrial quad-core ARM® processor; industrial solid-state drive
  • Control programming options: flowchart-based PAC Control with optional scripting or CODESYS and IEC 61131-3 languages including ladder logic
  • Built-in software including Node-RED for simple logic flows, MQTT for efficient data communication, groov View HMI, and Inductive Automation's Ignition or Ignition Edge
  • Optional secure shell access (SSH) for your own custom-developed application
  • Dual, independent Gigabit Ethernet network interfaces
  • Dual USB ports for external keyboard/mouse, WiFi adapter, serial adapter, approved USB Bluetooth adapter, or USB memory stick to 32 GB
  • HDMI output for optional external monitor
  • Remote system configuration, troubleshooting, and visualization from any web browser on any authorized device
  • RESTful API to controller data
  • Multiple power supply options including AC, DC, and pass-through
Made in the USAAll groov EPIC system products are manufactured and supported in the U.S.A. Product support is free.

I/O

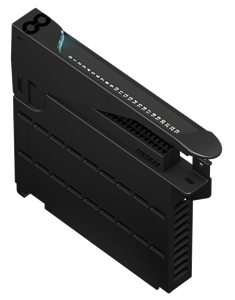

Opto 22 groov I/O module
  • UL Hazardous Locations approved and ATEX compliant
  • Wide -20 to 70 °C operating temperature range
  • Stainless-steel chassis with 0, 4, 8, or 16 I/O modules
  • Up to 24 channels per module
  • Spring-clamp terminal strip directly atop I/O module, accommodating up to 14 AWG wire
  • Integrated wireway with two-position swing-away cover
  • Single module retention screw and strain relief tab built in
  • Hot-swappable I/O
  • Touch-sensitive pad on I/O modules for configuring, commissioning, and testing
  • LED indicators for module health at a glance, and for individual discrete channels
  • Multi-featured analog input with voltage, current, and loop sourcing in single module
  • Analog input resolution of 20 bits at 0.1% accuracy over span
  • DC outputs with load switching at 0.4 A per channel @ 70 ºC
  • AC outputs with load switching at 0.5 A per channel @ 70 ºC; blown-fuse detection
  • AC/DC mechanical relay output at 5 A per channel @ 70 ºC
  • Serial communication modules, including CAN bus
  • Channel-to-channel isolation available
  • Guaranteed for life
Read the white paper, Meet the Future: Edge Programmable Industrial Controllers



See data sheets

See all part numbers on the groov EPIC and groov RIO Product Guide page.

groov EPIC Processor data sheet (form 2245)

groov EPIC Chassis data sheet (form 2247)

groov EPIC Power Supplies, Converters, and Adapters data sheet (2246)

groov Accessories data sheet (2314)

groov Enclosures data sheet (2340)

groov EPIC Learning Center data sheet (2286)


Analog I/O modules

groov Analog Current Input Module data sheet (2239)

groov Analog Voltage Input Module data sheet (2241)

groov Analog Thermocouple/Millivolt Input Module data sheet (2240)

groov Analog Voltage and Current Output Module data sheet (2244)

groov ICTD Temperature Input Module Data Sheet (2300)

groov Thermistor/Resistor Input Module Data Sheet (2301)

groov Power Monitoring Module data sheet (2351)

See data sheets



Digital (discrete) I/O modules

groov 180–280 VAC Input Modules data sheet (2222)

groov 115 VAC Input Modules data sheet (2226)

groov 10–30 VDC Input Modules data sheet (2236)

groov 2.0–16 VDC/VAC Input Modules data sheet (2237)

groov 12–250 VAC Output Modules data sheet (2231)

groov 5–60 VDC Output Modules data sheet (2238)

groov DC Output Sourcing Module data sheet (2242)

groov Mechanical Relay Output Module data sheet (2243)


Multifunction module

groov Multifunction Mixed Signal Module data sheet (2353)


Serial modules
groov Serial Modules data sheet (2296)




Connect

Connect to A-B & Siemens PLCs, Modbus/TCP, groov EPIC, groov RIO, SNAP PACs, databases, online services, APIs. Use OPC UA and efficient MQTT. More on connectivity.

Handle Data

Process data locally, then move it where you need it, using secure, standard Internet and IT-compatible tools and protocols. More on data handling.

Visualize

Monitor and control your equipment from anywhere using your smartphone or tablet. More on visualization.
