GROOV-LIC-EDGE
Hover over image to zoom in

GROOV-LIC-EDGE

Availability: Obsolete

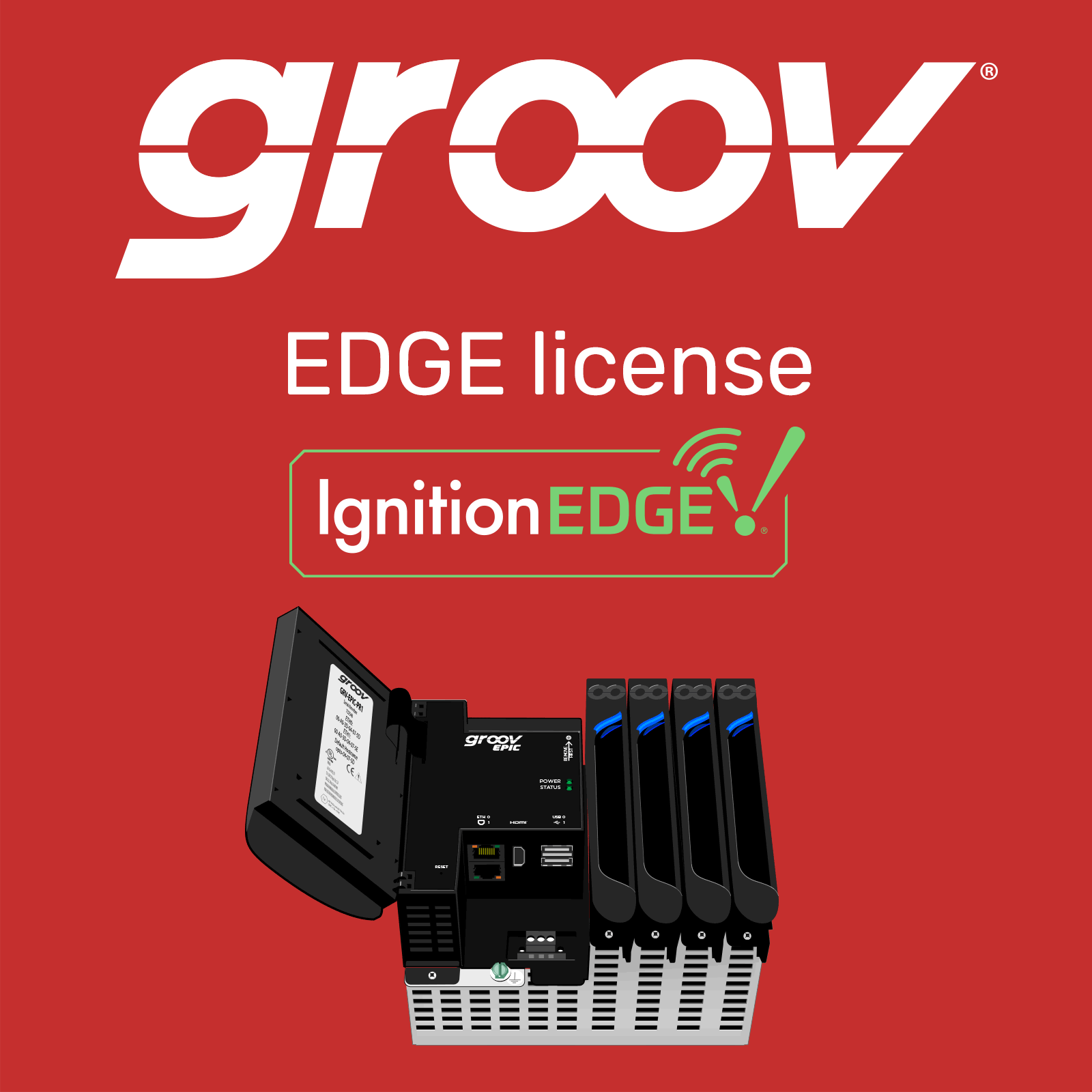

License for Ignition Edge MQTT version 7 pre-installed on the groov EPIC processor PR1 (NO LONGER SUPPORTED)

Production Specification

IGNITION EDGE MQTT (version 7.x) IS NO LONGER AVAILABLE.

This license was for Ignition Edge IIoT version 7, which is end-of-life from Inductive Automation. To run Ignition Edge on a GRV-EPIC-PR1, see GROOV-LIC-EDGE8.
This license does not apply to GRV-EPIC-PR2, which ships with Ignition Edge 8 and requires GROOV-LIC-EDGE8.

If you are using full Ignition, not Ignition Edge, you need a different license. Contact us for more information.

NOTE: When activating your groov product, activate the EPIC processor first, and then activate GROOV-LIC-EDGE.

To use GROOV-LIC-EDGE, you must also have a groov EPIC processor (GRV-EPIC-PR1).

groov EPIC Processor Data Sheet

This data sheet describes Opto 22's groov EPIC® processors, part numbers GRV-EPIC-PR1 and GRV-EPIC-PR2, which are embedded Linux®, real-time controllers with gateway functions. The processor is your central command to your groov EPIC system, which handles multiple control, automation, and data acquisition tasks involving digital and analog control, serial string handling, PID, and enterprise connectivity.

The processor includes a high-resolution color touchscreen display. It provides USB and HDMI ports so you can extend its capabilities, as well as dual independent Gigabit Ethernet network interfaces.

Software tools include groov Manage, groov View, PAC Project, Node-RED, Ignition Edge® from Inductive Automation® , and CODESYS® Runtime Engine from CODESYS. Full use of some software tools requires a license; the following licenses are also covered in this data sheet:

groov EPIC User's Guide

This user's guide shows you how to assemble, initialize, configure, and maintain a groov EPIC system and use groov EPIC processors, part numbers GRV-EPIC-PR1 and GRV-EPIC-PR2. The guide explains how to mount the power supplies, processor, and groov I/O modules onto the groov chassis, the first configuration steps to take after you turn it on, and how to keep the system up-to-date through system updates.

groov Box User's Guide

This user's guide shows you how to set up and configure a legacy GROOV-AR1-BASE groov Box Edge Appliance and to work with the software in the Box, including:

  • groov View for building and using operator interfaces
  • Node-RED for building simple logic flows for internet of things applications
  • Ignition Edge internal OPC-UA server and drivers, plus MQTT Transmission protocol (for full use, requires GROOV-LIC-EDGE)

No downloads are available for this product.

Playlist: Ignition Edge

Inductive Automation's Ignition Edge OPC-UA drivers and capabilities are built into the groov Edge Appliance (the groov Box). See step by step how to activate and use Ignition Edge in these workshop videos.
