B3000-B-OMUX
Hover over image to zoom in

B3000-B-OMUX

$688.00 (USA and Canada only)

Availability: In stock
SNAP Analog/Digital Brain, Optomux Protocol
Data Sheet User's Guide

Production Specification

NOTE: For new systems requiring a brain that communicates serially, we recommend a SNAP PAC SB serial brain. If you're ready to modernize or need easier system integration, see the groov EPIC System. Fully compatible with SNAP PAC, groov EPIC offers secure, efficient data processing and communication for industrial internet of things applications, as well as real-time control and I/O at the edge of your network.

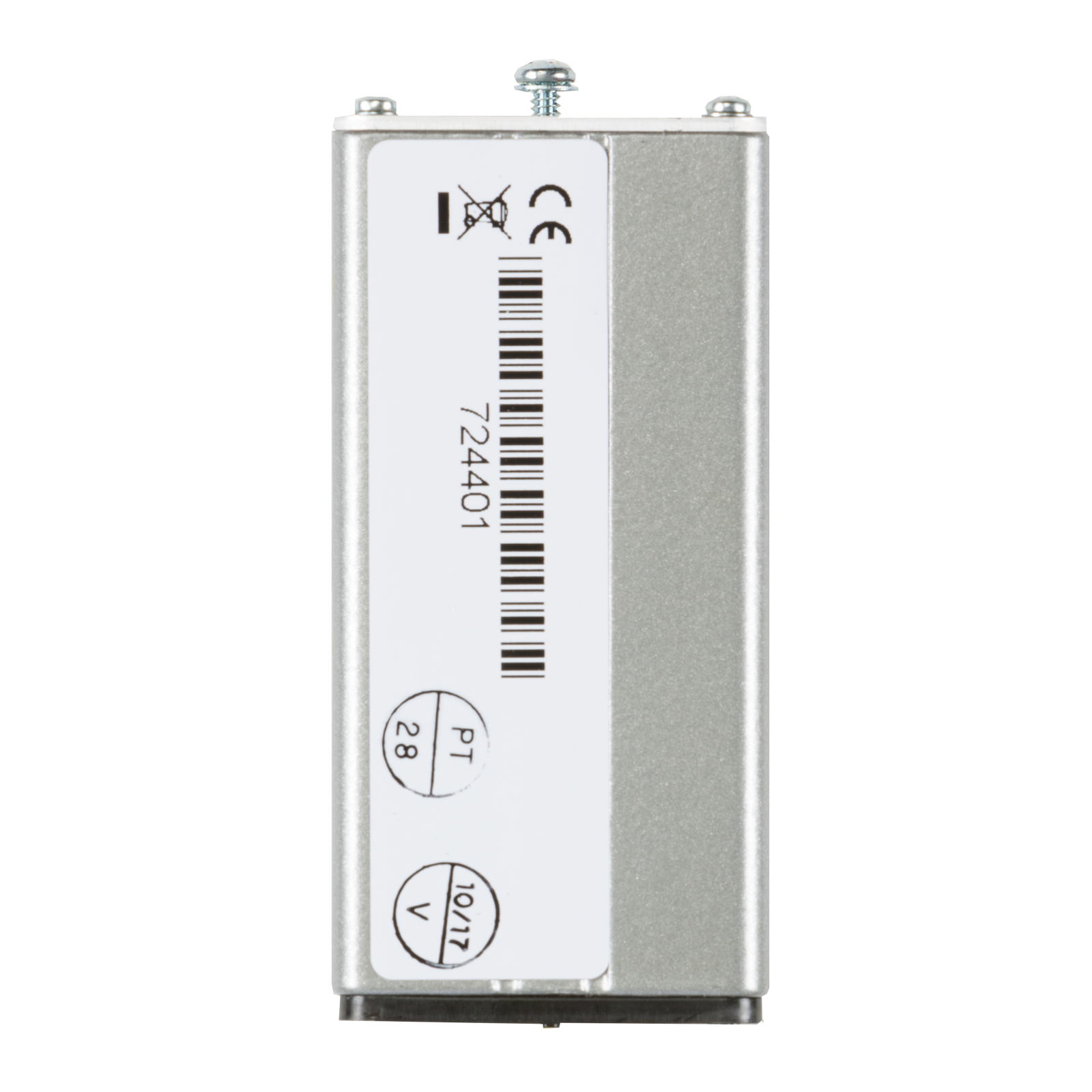

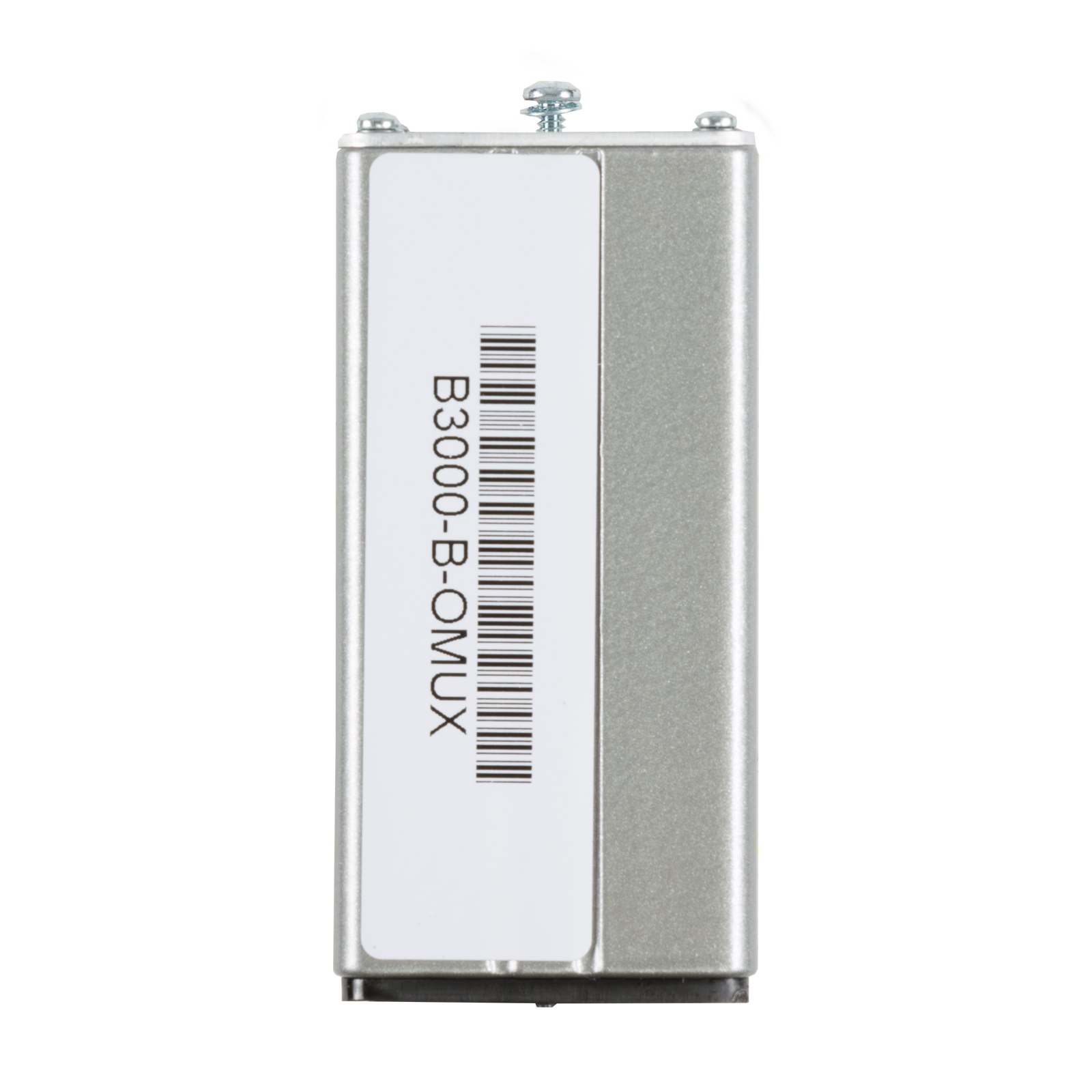

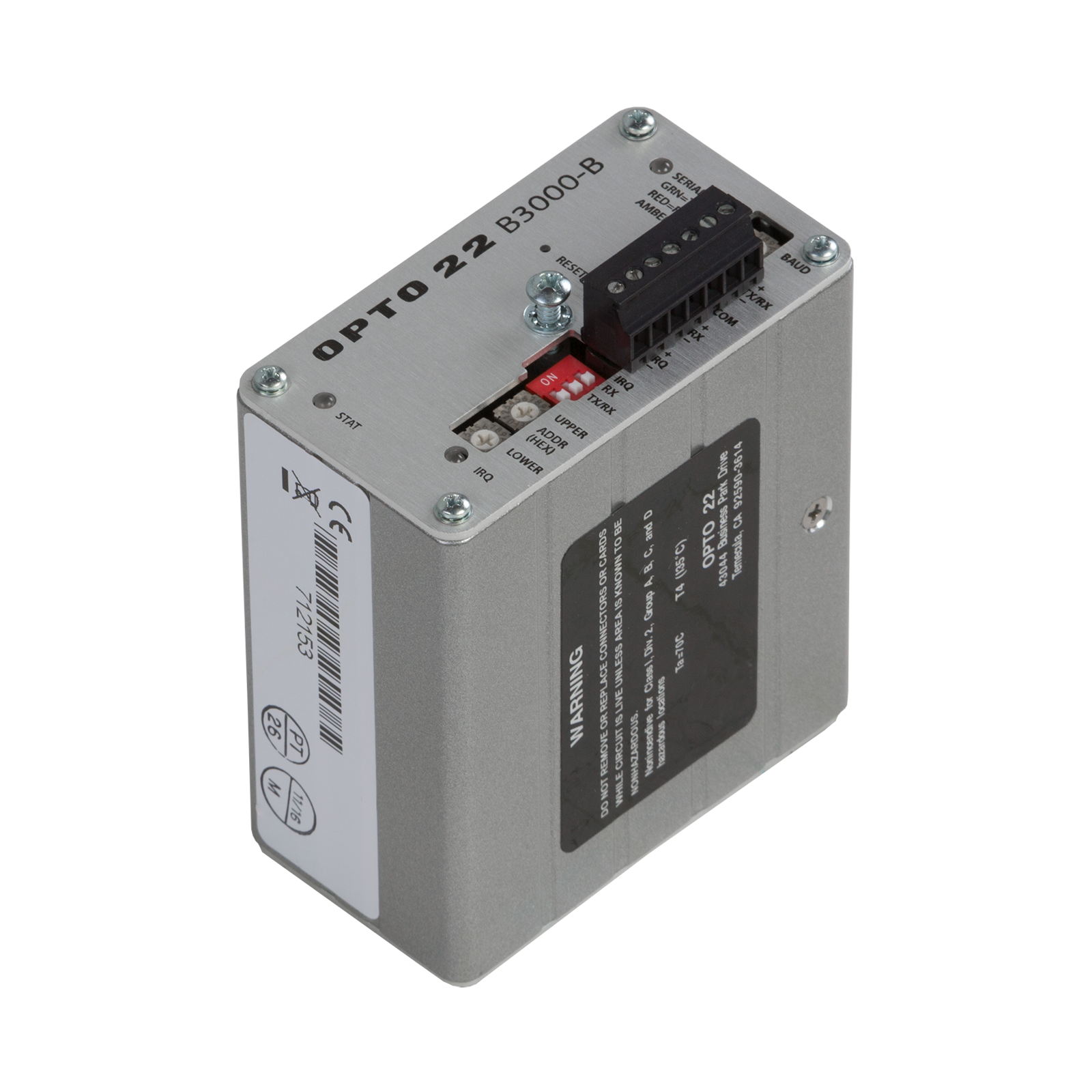

The B3000-B-OMUX is a drop-in replacement for a B3000 that uses the Optomux protocol. The B3000-B-OMUX is identical to the B3000-B (which uses the mistic protocol) but contains different firmware. The B3000-B-OMUX has a sticker on its side to identify it.

Power Requirements

5.0–5.2 VDC at 750 mA maximum (does not include module power requirements)

Operating Temperature

0 to 60 °C

Storage Temperature

-40 to 85 °C

Humidity

0–95% humidity, non-condensing

Communications Interface

RS-485, 2- or 4-wire, twisted pair(s), with shield

Data Rates

300 baud to 230.4 Kbaud

Range: Multidrop

32 stations maximum between repeaters; up to 3000 ft (914 m) between repeaters

LED indicators

SERIAL (transmit/receive), STAT (brain status), IRQ (interrupt)

Options:
Switch Selectable

Address
Baud rate
Binary/ASCII
CRC/Checksum
Agency Approvals CE, DFARS; UKCA

1794

B3000-B Serial Brains Data Sheet

B3000-B brains are serial brains designed as drop-in replacements for the obsolete B3000. Two models are
available:

  • The B3000-B replaces a B3000 that uses the mistic protocol. This model is compatible with FactoryFloor controllers running OptoControl strategies and SNAP B-series mounting racks. The B3000-B has the same functionality as the B3000 but supports mistic only.
  • The B3000-B-OMUX replaces a B3000 that uses the Optomux protocol. This model is compatible with SNAP B-series mounting racks and contains firmware suited for an Optomux system.
The two models have identical hardware but different firmware. The B3000-B-OMUX has an identifying label on its side.

View

1781

B3000-B Serial Brains User's Guide

B3000-B brains are serial brains designed as drop-in replacements for the obsolete B3000. Two models are
available:

  • The B3000-B replaces a B3000 that uses the mistic protocol. This model is compatible with FactoryFloor controllers running OptoControl strategies and SNAP B-series mounting racks. The B3000-B has the same functionality as the B3000 but supports mistic only.
  • The B3000-B-OMUX replaces a B3000 that uses the Optomux protocol. This model is compatible with SNAP B-series mounting racks and contains firmware suited for an Optomux system.
The two models have identical hardware but different firmware. The B3000-B-OMUX has an identifying label on its side. This guide shows you how to configure, wire, and maintain both brains.

View

RM_B3000-B-OMUX

B3000-B-OMUX Firmware Readme

This Readme file lists revision changes made to the firmware used in the B3000-B-OMUX brain, a serial brain using the Optomux protocol.

View

2374

UKCA Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with the rules, regulations and standards of the United Kingdom. The models cited have been tested to the essential requirements listed in the Standards section, and fully comply with the legislation as listed in UK Legislation section.

View

2274

Declaration of Conformity (ATEX, EMC, LVD, RoHS)

This document is the Manufacturer's Declaration of Conformity for the products listed herein, in accordance with European, international, and/or national standards and regulations.

View

B3000-B-OMUX Brain Firmware

Firmware for B3000-B-OMUX brain. For details, see the firmware Readme.

View
